The Story

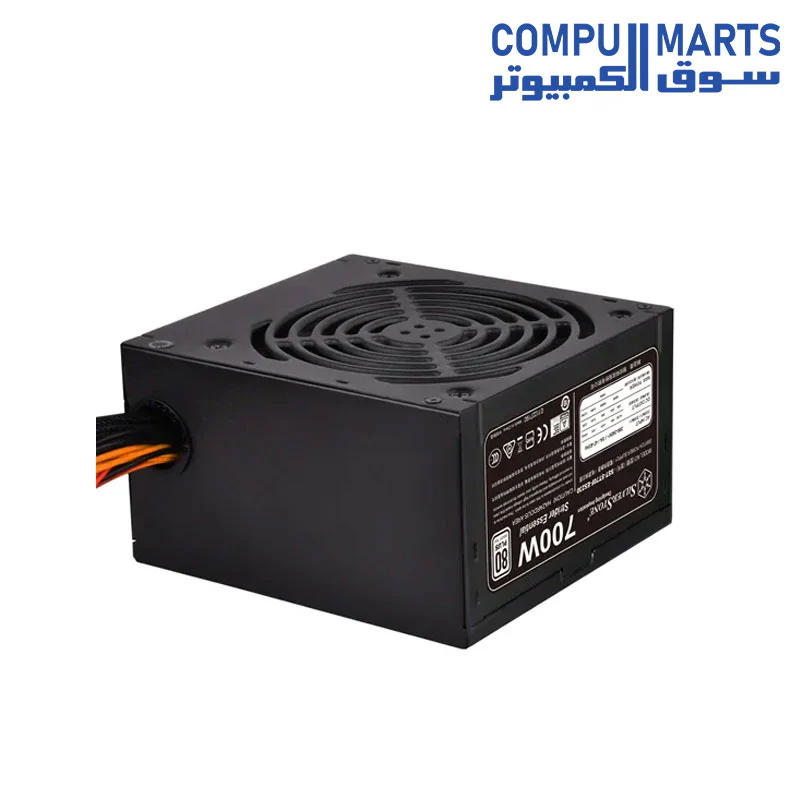

SilverStone ST70F-ES230 80 PLUS 230V EU 700W ATX power supply
-
High efficiency with 80 PLUS certification
-
24/7 continuous power output with 40℃ operating temperature
-
Class-leading single +12V rail
-
Active PFC Circuitry
-
PCI-E 8pin and PCI-E 6pin connector support
-
Silent running 120mm fan with 18dBA
Product Specifications
Product No. SST-ST70F-ES230
Color Black（Lead-Free Paint）
Max. DC Output 700W
Power density 388W per liter
Combined +3.3V & +5V
Output |
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|---|---|---|---|---|---|
Max.(Amps) |
22A |
22A |
54A |
2.5A |
0.3A |
Peak (Amps) |
/ |
/ |
/ |
/ |
/ |
Min.(Amps) |
0A |
0A |
0A |
0A |
0A |
Range (%) |
±5% |
±5% |
±5% |
±5% |
±10% |
Line Reg.(%) |
±1% |
±1% |
±1% |
±1% |
±1% |
Ripple(mVp-p) |
50mV |
50mV |
120mV |
50mV |
120mV |
Combined +12V
648W
Input Voltage
180V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
82% ~ 85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over voltage protection
Short circuit protection
Connectors
1 x 24 / 20-Pin motherboard connector（500mm）
1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）
4 x 8 / 6-Pin PCIE connector（”500mm / 150mm” x 2）
4 x SATA connector（”500mm / 150mm” x 2）
3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）
1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）
Cooling System

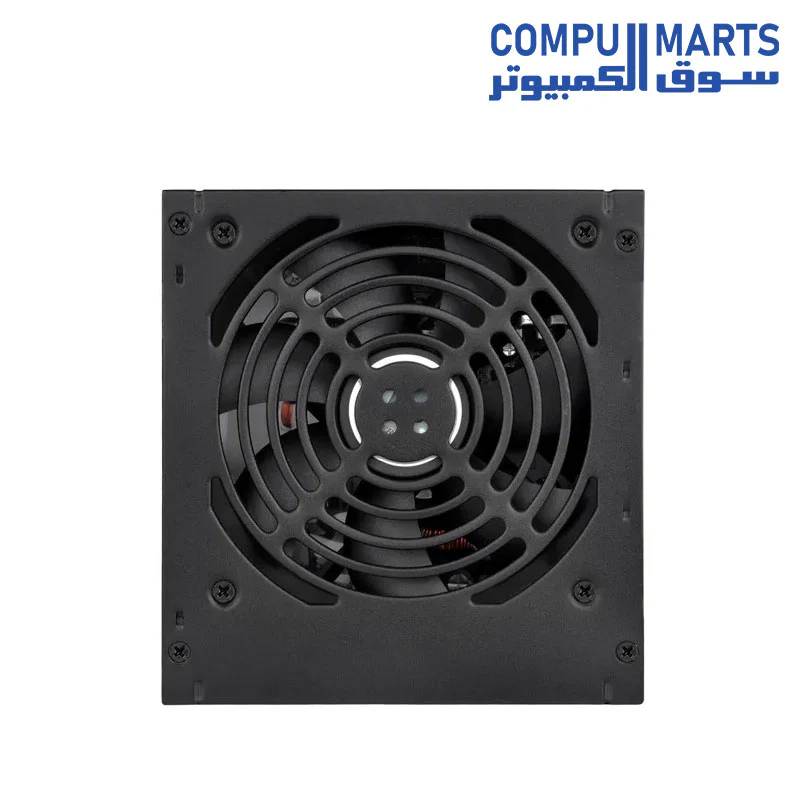

Single 120mm silent fan
Noise Level
18 dBA minimum
Certification
80 PLUS
Form factor
ATX
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
1.43 kg
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
