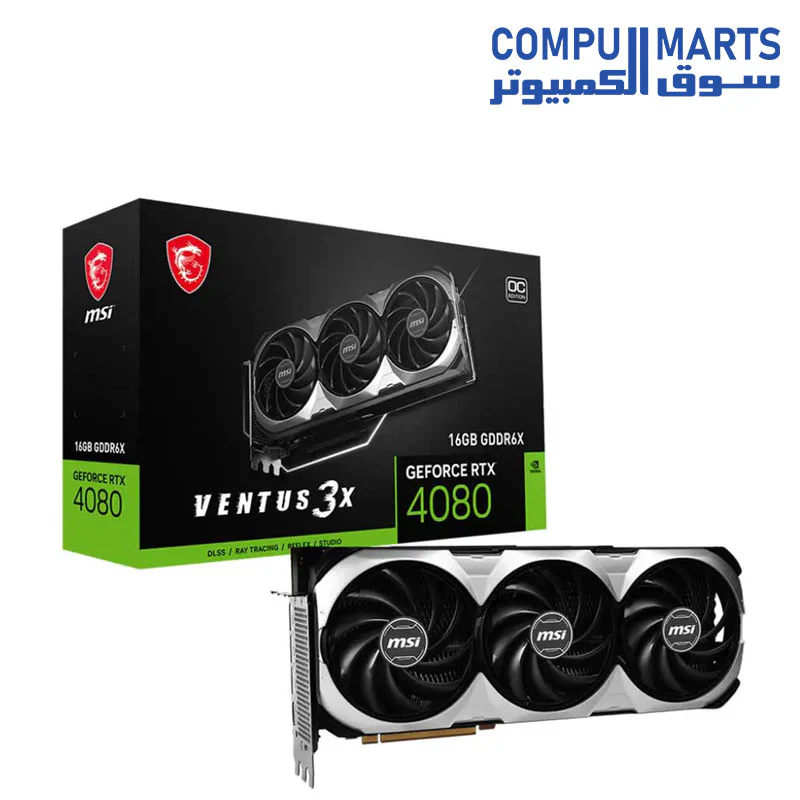

MSI RTX 4080 VENTUS 3X OC 16GB GDDR6X GRAPHIC Card

MSI RTX 4080 VENTUS 3X OC 16GB GDDR6X GRAPHIC Card



Triple Fan
Three fans and a huge heatsink ensure a cool and quiet
experience for you.
TORX FAN 4.0
A masterpiece of teamwork, fan blades work in pairs to create
unprecedented levels of focused air pressure.
Core Pipe
Precision-machined heat pipes ensure max contact and spread
heat along the full length of the heatsink.
Airflow Control
Don’t sweat it, Airflow Control guides the air to exactly where it
needs to be for maximum cooling.
Metal Backplate
Thermal pads under the sturdy metal backplate provide additional
cooling while the flow-through ventilation reduces trapped heat.
Copper Baseplate
A solid nickel-plated copper baseplate transfers heat from the
GPU to all heat pipes for better cooling.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.

Model Name

GeForce RTX 4080 16GB VENTUS 3X OC

Graphics Processing Unit

NVIDIA GeForce RTX  4080 16GB

Interface

PCI Express Gen 4

Core Clocks

Extreme Performance: 2550 MHz (MSICenter)
Boost: 2535 MHz

CUDA CORES 9728 Units

Memory Speed 22.4 Gbps

Memory 16GB GDDR6X

Memory Bus 256-bit

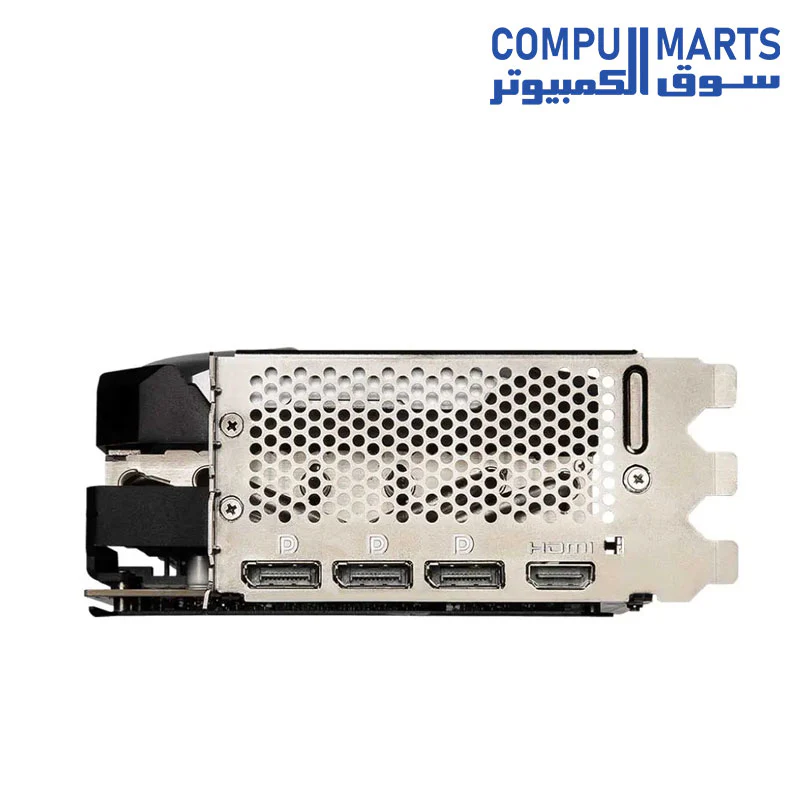

Output

DisplayPort x 3 (v1.4a) HDMI  x 1 (Supports 4K@120Hz HDR,8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

HDCP Support Y

Power consumption 320W

Power connectors 16pin x 1

Recommended PSU 750W

Card Dimension (mm) 322 x 136 x 63mm

Weight (Card / Package) 1595g / 2200g

DirectX Version Support 12 Ultimate

OpenGL Version Support 4.6

Maximum Displays 4

G-SYNC  technology Y

Digital Maximum Resolution 7680 x 4320

GeForce RTX 4080 16GB VENTUS 3X OC  WITH DLSS 3

The NVIDIA  GeForce RTX  4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics with DLSS 3. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.

Boost Clock / Memory Speed

• Extreme Performance: 2550 MHz (MSI Center)

  Boost: 2535 MHz

  22.4 Gbps

• 16GB GDDR6X

• DisplayPort x 3 (v1.4a)

  HDMI  x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)

Triple Fan Thermal Design

• TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.

• Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

• Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.

• Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

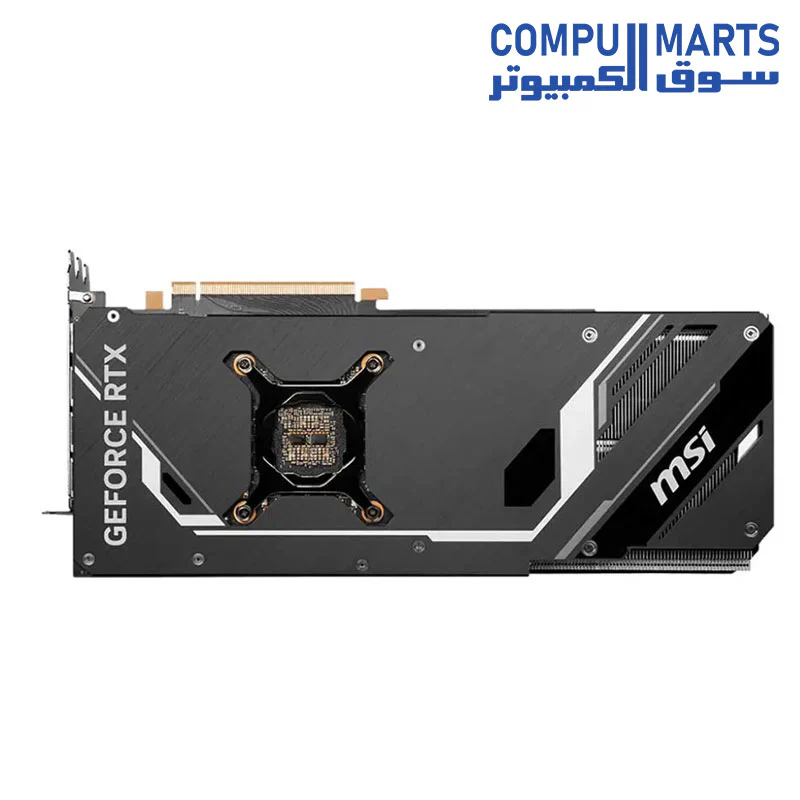

Metal Backplate

• Thermal pads under the sturdy flow-through metal backplate helps with cooling.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
