$74.44
Original: $248.12

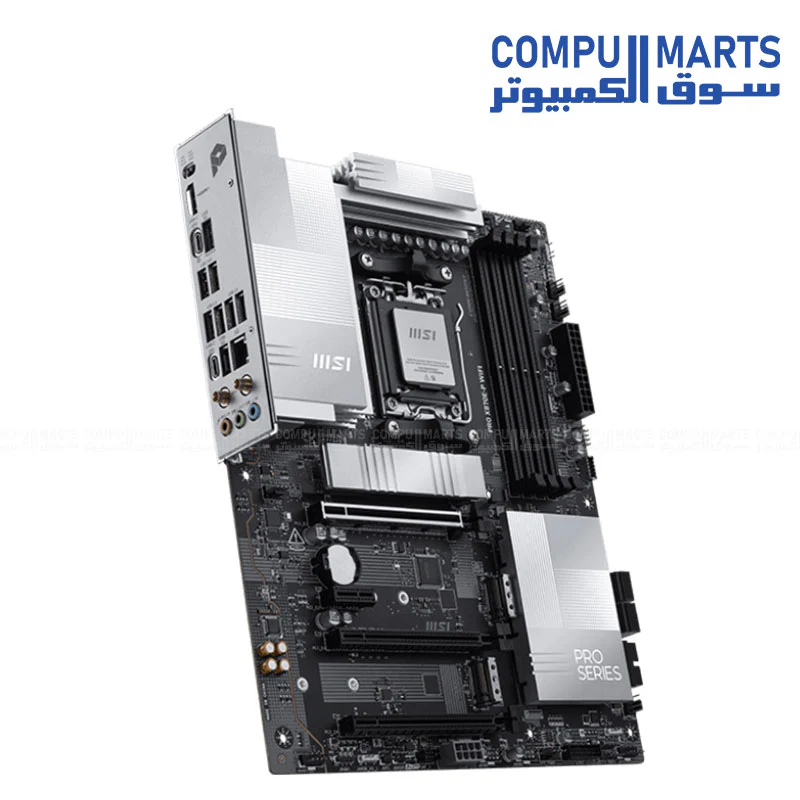

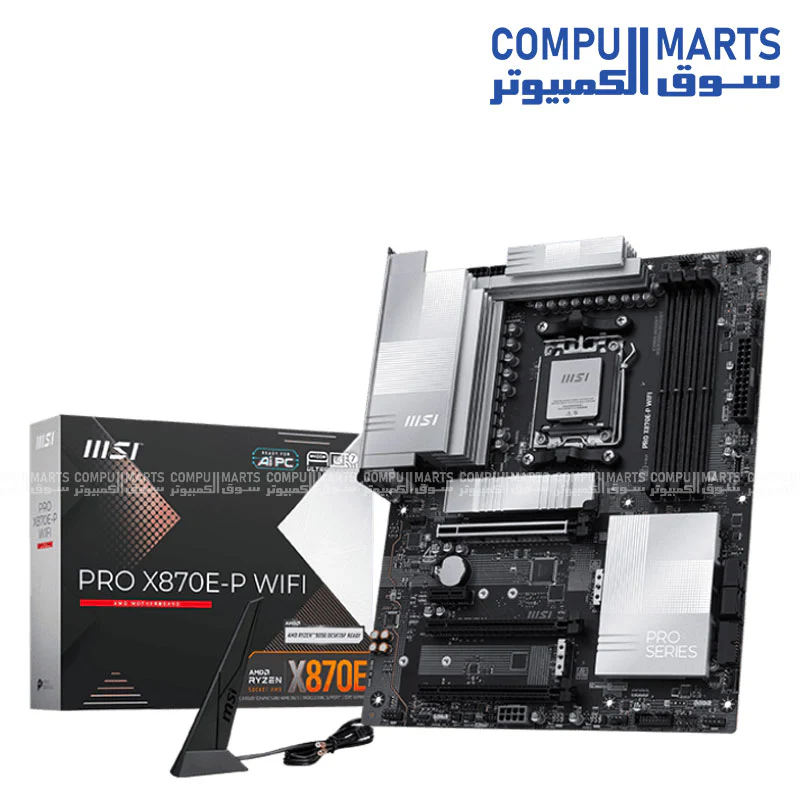

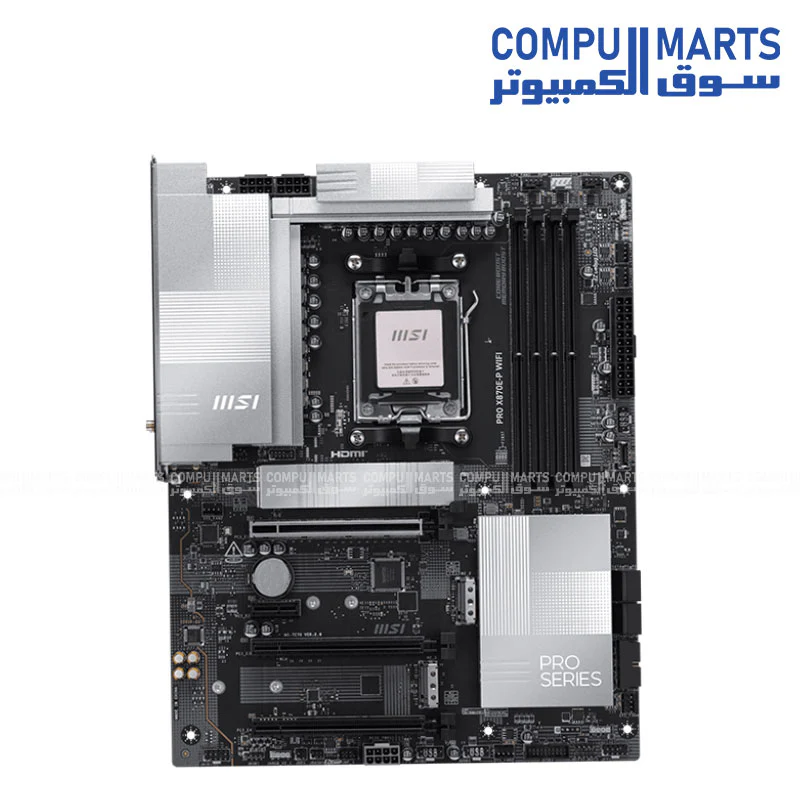

-70%MSI PRO X870E-P WiFi AM5 DDR5 PCIe 5.0 ATX Motherboard—
$248.12
$74.44The Story
| Category | Specification Details |
|---|---|
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5 UDIMM, Max 256GB. Supports up to 8200+ MT/s (OC). Dual-Channel, AMD EXPO™ & CUDIMM support. |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz), 1x Type-C DisplayPort (USB4® 4K 60Hz) |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 3.0 x1 (Chipset) |
| Storage | 3x M.2 Slots (M.2_1 up to PCIe 5.0 x4), 4x SATA 6G. Supports RAID 0, 1, 5, 10. |
| USB Ports | 1x USB 40Gbps (Type-C), 1x USB 20Gbps (Type-C), 3x USB 10Gbps, 6x USB 5Gbps, 10x USB 2.0 (Total Rear + Front) |
| Networking | Realtek® 8126VB 5G LAN + Wi-Fi 7 (Up to 5.8Gbps) + Bluetooth 5.4 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Internal I/O | 8pin PCIe Power, 8x Fan Connectors, JARGB_V2, TPM 2.0 header, EZ Conn-header |
| Diagnostics | 4x EZ Debug LED, 1x EZ Memory Detection LED |

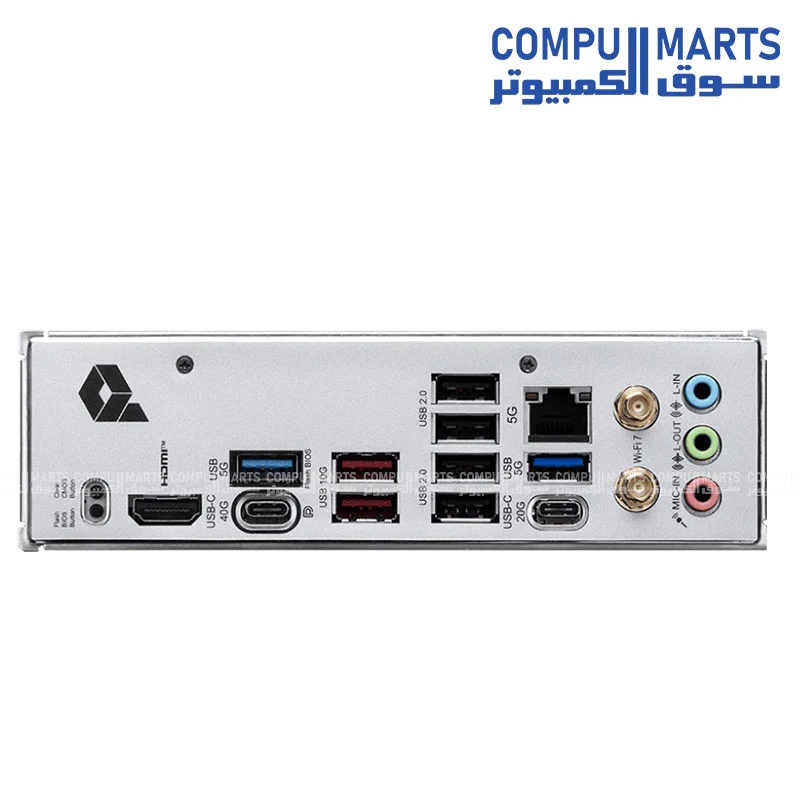

| Rear Panel Features | Clear CMOS & Flash BIOS Buttons, HDMI™, USB4, 5G LAN, Wi-Fi 7 Antenna |
| Form Factor | ATX (243.84mm x 304.8mm) |
| OS Support | Windows® 11 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5 UDIMM, Max 256GB. Supports up to 8200+ MT/s (OC). Dual-Channel, AMD EXPO™ & CUDIMM support. |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz), 1x Type-C DisplayPort (USB4® 4K 60Hz) |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (Chipset), 2x PCIe 3.0 x1 (Chipset) |
| Storage | 3x M.2 Slots (M.2_1 up to PCIe 5.0 x4), 4x SATA 6G. Supports RAID 0, 1, 5, 10. |
| USB Ports | 1x USB 40Gbps (Type-C), 1x USB 20Gbps (Type-C), 3x USB 10Gbps, 6x USB 5Gbps, 10x USB 2.0 (Total Rear + Front) |
| Networking | Realtek® 8126VB 5G LAN + Wi-Fi 7 (Up to 5.8Gbps) + Bluetooth 5.4 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Internal I/O | 8pin PCIe Power, 8x Fan Connectors, JARGB_V2, TPM 2.0 header, EZ Conn-header |
| Diagnostics | 4x EZ Debug LED, 1x EZ Memory Detection LED |
| Rear Panel Features | Clear CMOS & Flash BIOS Buttons, HDMI™, USB4, 5G LAN, Wi-Fi 7 Antenna |
| Form Factor | ATX (243.84mm x 304.8mm) |
| OS Support | Windows® 11 64-bit |
