$148.87

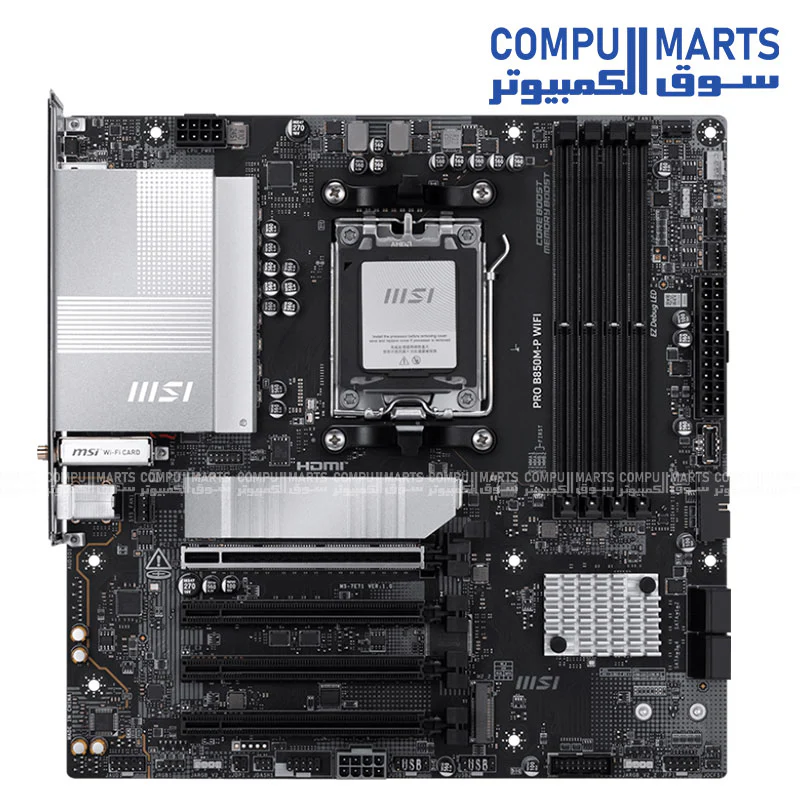

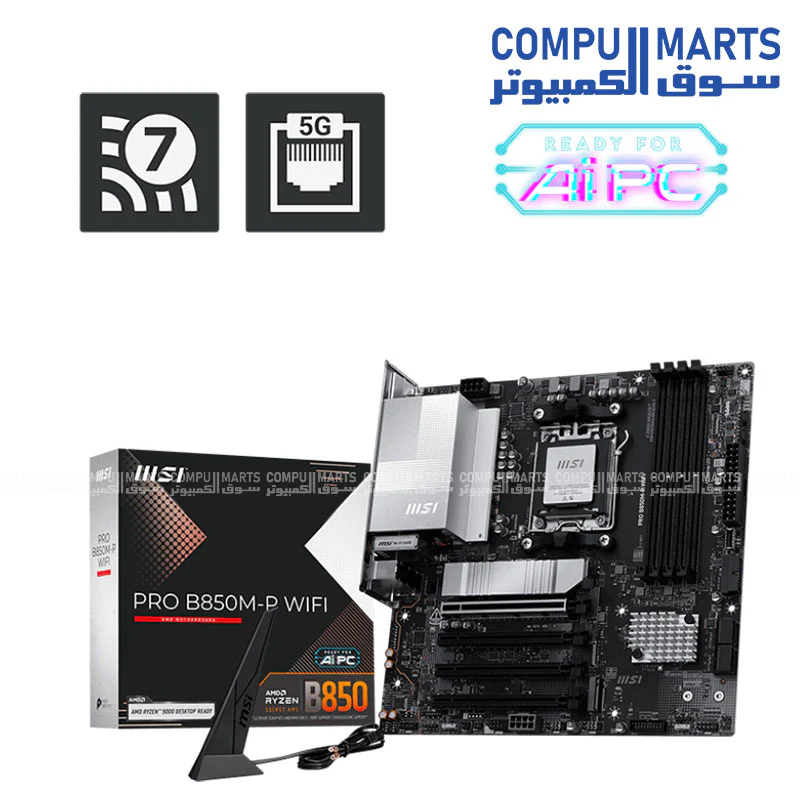

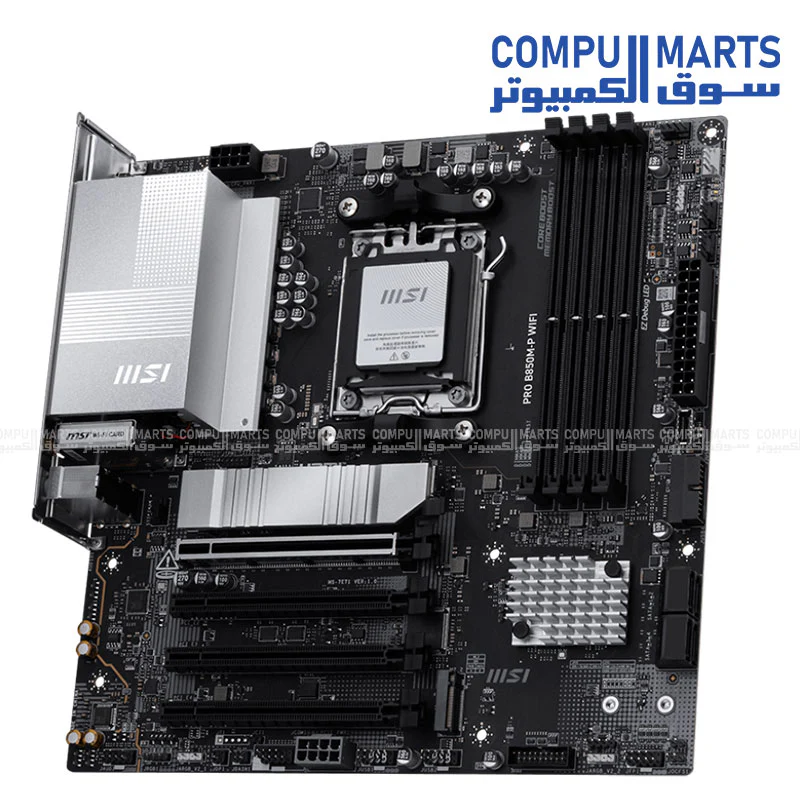

MSI PRO B850M-P WIFI AM5 Motherboard DDR5 PCIe 5.0 Wi-Fi 7—
$148.87
The Story
| Category | Specification Details |
|---|---|
| Chipset | AMD B850 |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Form Factor | mATX (243.84 × 243.84 mm) |
| Memory Slots | 4× DDR5 UDIMM |
| Max Memory | Up to 256GB |
| Memory Speed (OC) | DDR5 8200 – 5600 MT/s |
| Memory Speed (JEDEC) | DDR5 5600 – 4800 MT/s |
| Memory Features | EXPO™, Dual-Channel, Non-ECC, CUDIMM |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× DisplayPort 1.4 (4K@60Hz) |
| PCIe Slots | 1× PCIe 5.0 x16 (CPU), 3× PCIe 3.0 x1 |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| M.2 Slots | 3× M.2 (PCIe 5.0 x4 / PCIe 4.0 x4 / PCIe 4.0 x2) |
| SATA Ports | 4× SATA 6Gb/s |
| RAID Support | SATA: RAID 0/1/10 – M.2: RAID 0/1/5* |
| LAN | Realtek® 8126VB 5G LAN |
| Wireless | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), Bluetooth® 5.4 |
| USB (Rear + Front) | USB 2.0, USB 5Gbps, USB 10Gbps Type-A & Type-C |
| RGB Headers | 3× ARGB Gen2, 1× RGB |
| Debug Features | EZ Debug LED, EZ Memory Detection LED |

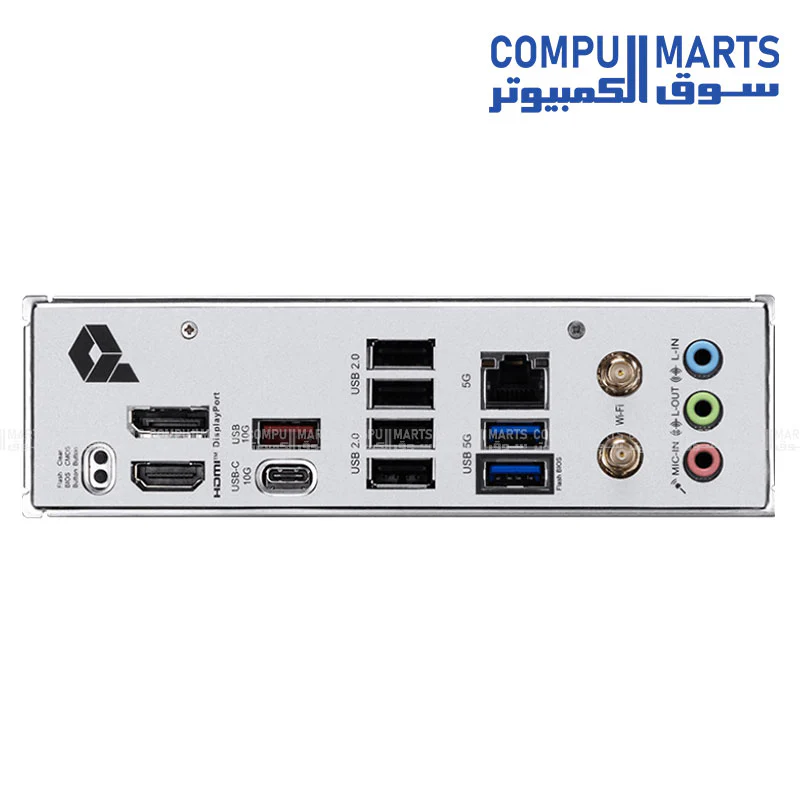

| Back Panel | HDMI, DP, USB-C 10Gbps, USB-A, 5G LAN, Wi-Fi, Audio |
| OS Support | Windows® 11 64-bit |
| Extras | Flash BIOS Button, Clear CMOS |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Chipset | AMD B850 |
| CPU Socket | AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series |
| Form Factor | mATX (243.84 × 243.84 mm) |
| Memory Slots | 4× DDR5 UDIMM |
| Max Memory | Up to 256GB |
| Memory Speed (OC) | DDR5 8200 – 5600 MT/s |
| Memory Speed (JEDEC) | DDR5 5600 – 4800 MT/s |
| Memory Features | EXPO™, Dual-Channel, Non-ECC, CUDIMM |
| Graphics Output | 1× HDMI 2.1 (4K@60Hz), 1× DisplayPort 1.4 (4K@60Hz) |
| PCIe Slots | 1× PCIe 5.0 x16 (CPU), 3× PCIe 3.0 x1 |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| M.2 Slots | 3× M.2 (PCIe 5.0 x4 / PCIe 4.0 x4 / PCIe 4.0 x2) |
| SATA Ports | 4× SATA 6Gb/s |
| RAID Support | SATA: RAID 0/1/10 – M.2: RAID 0/1/5* |
| LAN | Realtek® 8126VB 5G LAN |
| Wireless | Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), Bluetooth® 5.4 |
| USB (Rear + Front) | USB 2.0, USB 5Gbps, USB 10Gbps Type-A & Type-C |
| RGB Headers | 3× ARGB Gen2, 1× RGB |
| Debug Features | EZ Debug LED, EZ Memory Detection LED |
| Back Panel | HDMI, DP, USB-C 10Gbps, USB-A, 5G LAN, Wi-Fi, Audio |
| OS Support | Windows® 11 64-bit |
| Extras | Flash BIOS Button, Clear CMOS |
