$133.60
MSI PRO B840M-P WIFI6E – AM5 DDR5 Motherboard – Wi-Fi 6E & 2.5G LAN—
$133.60
The Story
| Category | Specification Details |
|---|---|
| Chipset | AMD B840 |
| CPU Support | AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5 UDIMM, Max 256GB. Supports up to 8000+ MT/s (OC). Dual-Channel, AMD EXPO™, CUDIMM Support. |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz) - Requires CPU with integrated graphics |
| Expansion Slots | 1x PCI-E x16 slot (Gen 4.0), 1x PCI-E x1 slot (Gen 3.0) |
| Storage | 2x M.2 (PCIe 4.0 x4), 4x SATA 6G. Supports RAID 0, 1, 10 for SATA/NVMe. |
| Wireless & BT | Wi-Fi 6E (2.4GHz/5GHz/6GHz), Bluetooth® 5.3 |
| LAN | Realtek® 8125D 2.5G LAN |

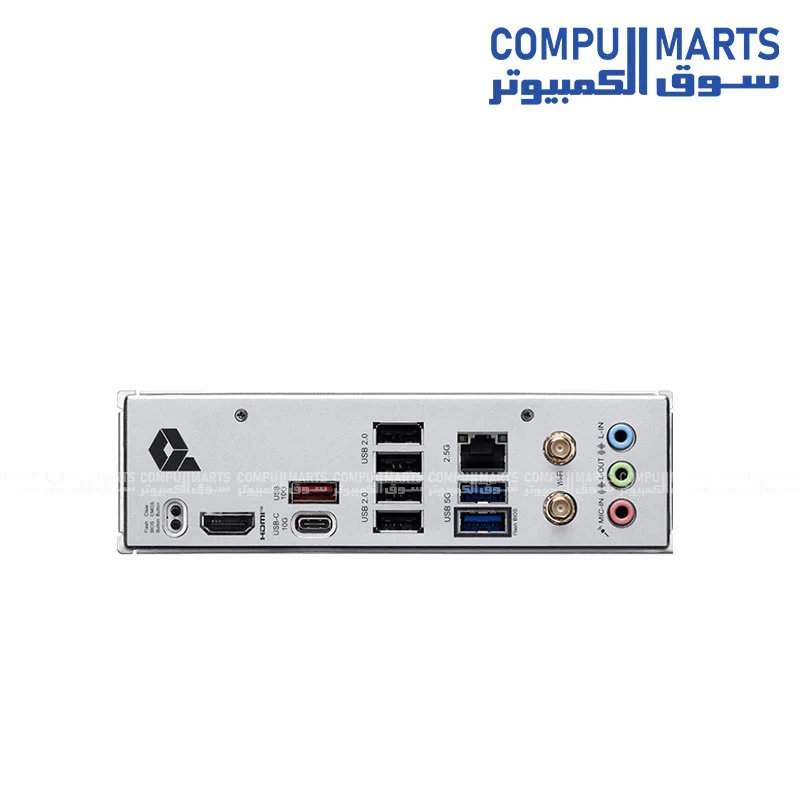

| Rear USB Ports | 1x USB 10Gbps (Type-C), 1x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A), 4x USB 2.0 |
| Front USB Ports | 1x USB 5Gbps (Type-C), 2x USB 5Gbps (Type-A), 4x USB 2.0 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Internal I/O | 1x CPU Fan, 1x Pump_Sys Fan, 3x System Fan, 3x ARGB V2, 1x RGB, TPM 2.0 |
| Features | Clear CMOS Button, Flash BIOS Button, EZ Debug LED, EZ Memory Detection |
| Form Factor | mATX (243.84mm x 243.84mm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Chipset | AMD B840 |
| CPU Support | AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5 UDIMM, Max 256GB. Supports up to 8000+ MT/s (OC). Dual-Channel, AMD EXPO™, CUDIMM Support. |
| Onboard Graphics | 1x HDMI™ 2.1 (4K 60Hz) - Requires CPU with integrated graphics |
| Expansion Slots | 1x PCI-E x16 slot (Gen 4.0), 1x PCI-E x1 slot (Gen 3.0) |
| Storage | 2x M.2 (PCIe 4.0 x4), 4x SATA 6G. Supports RAID 0, 1, 10 for SATA/NVMe. |
| Wireless & BT | Wi-Fi 6E (2.4GHz/5GHz/6GHz), Bluetooth® 5.3 |
| LAN | Realtek® 8125D 2.5G LAN |
| Rear USB Ports | 1x USB 10Gbps (Type-C), 1x USB 10Gbps (Type-A), 2x USB 5Gbps (Type-A), 4x USB 2.0 |
| Front USB Ports | 1x USB 5Gbps (Type-C), 2x USB 5Gbps (Type-A), 4x USB 2.0 |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Internal I/O | 1x CPU Fan, 1x Pump_Sys Fan, 3x System Fan, 3x ARGB V2, 1x RGB, TPM 2.0 |
| Features | Clear CMOS Button, Flash BIOS Button, EZ Debug LED, EZ Memory Detection |
| Form Factor | mATX (243.84mm x 243.84mm) |
