$110.70

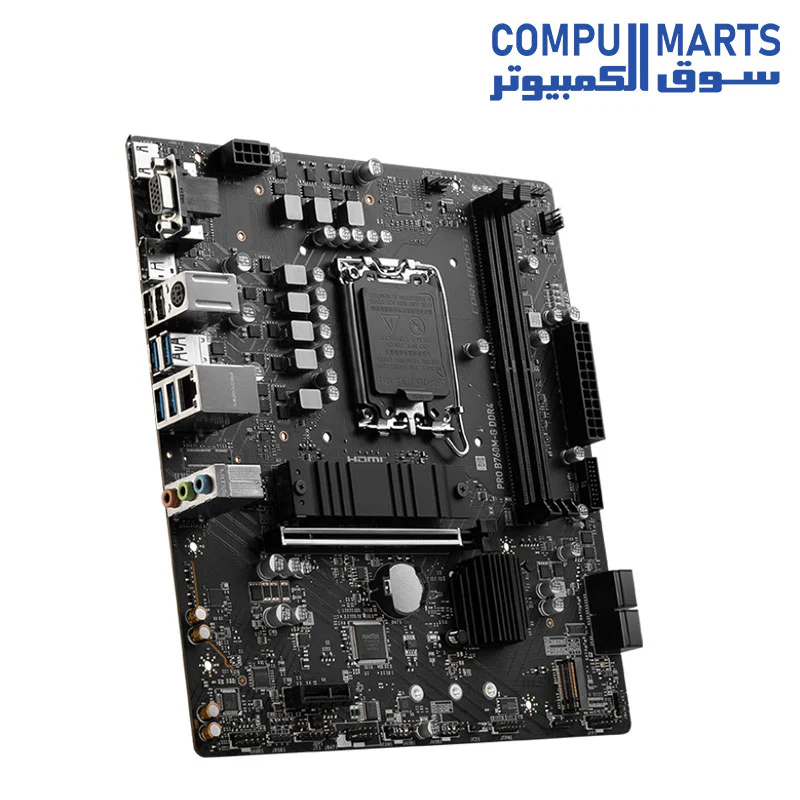

MSI PRO B760M-G DDR4 Motherboard—
$110.70
The Story
| Category | Specification Details |
|---|---|
| Model | MSI PRO B760M-G DDR4 Motherboard |
| CPU Support | Supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron Processors (LGA 1700) |
| Chipset | Intel B760 |
| Memory | 2x DDR4, Max 64GB | Supports up to 4800+(OC) MHz | Dual-Channel | Intel XMP Support |
| Expansion Slots | 1x PCI-E x16 (PCIe 4.0 from CPU) | 1x PCI-E x1 (PCIe 4.0 from Chipset) |

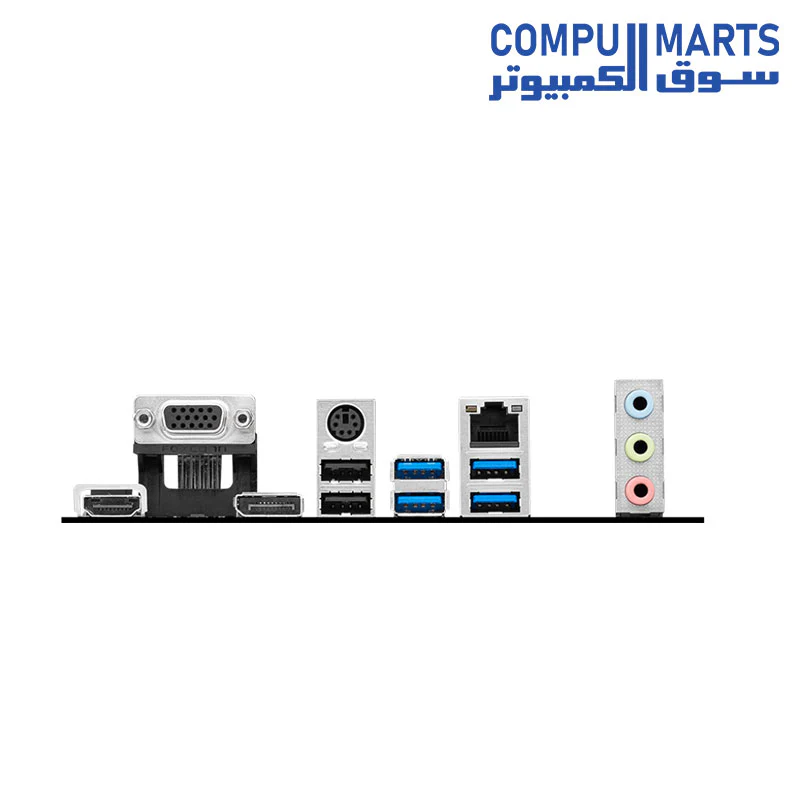

| Onboard Graphics | 1x HDMI 2.1 (4K 60Hz) | 1x DisplayPort 1.4 (4K 60Hz) | 1x VGA (2048x1536 50Hz) |
| Storage | 2x M.2 (PCIe 4.0 x4) | 4x SATA 6G | Supports RAID 0, 1, 5, 10 (SATA) |
| Networking | Realtek RTL8125B 2.5Gbps LAN |
| Audio | Realtek ALC897 Codec | 7.1-Channel HD Audio | Audio Boost |
| USB Ports | 4x USB 3.2 Gen1 Type A (Rear) | 2x USB 3.2 Gen1 Type A (Front) | 6x USB 2.0 (Total) |
| Internal I/O | 1x CPU Fan | 2x System Fan | 2x ARGB V2 | 1x RGB | TPM pin header | EZ Debug LED |
| Form Factor | mATX (220mm x 243.84mm) |
| OS Support | Windows 11 64-bit | Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | MSI PRO B760M-G DDR4 Motherboard |
| CPU Support | Supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron Processors (LGA 1700) |
| Chipset | Intel B760 |
| Memory | 2x DDR4, Max 64GB | Supports up to 4800+(OC) MHz | Dual-Channel | Intel XMP Support |
| Expansion Slots | 1x PCI-E x16 (PCIe 4.0 from CPU) | 1x PCI-E x1 (PCIe 4.0 from Chipset) |
| Onboard Graphics | 1x HDMI 2.1 (4K 60Hz) | 1x DisplayPort 1.4 (4K 60Hz) | 1x VGA (2048x1536 50Hz) |
| Storage | 2x M.2 (PCIe 4.0 x4) | 4x SATA 6G | Supports RAID 0, 1, 5, 10 (SATA) |
| Networking | Realtek RTL8125B 2.5Gbps LAN |
| Audio | Realtek ALC897 Codec | 7.1-Channel HD Audio | Audio Boost |
| USB Ports | 4x USB 3.2 Gen1 Type A (Rear) | 2x USB 3.2 Gen1 Type A (Front) | 6x USB 2.0 (Total) |
| Internal I/O | 1x CPU Fan | 2x System Fan | 2x ARGB V2 | 1x RGB | TPM pin header | EZ Debug LED |
| Form Factor | mATX (220mm x 243.84mm) |
| OS Support | Windows 11 64-bit | Windows 10 64-bit |
