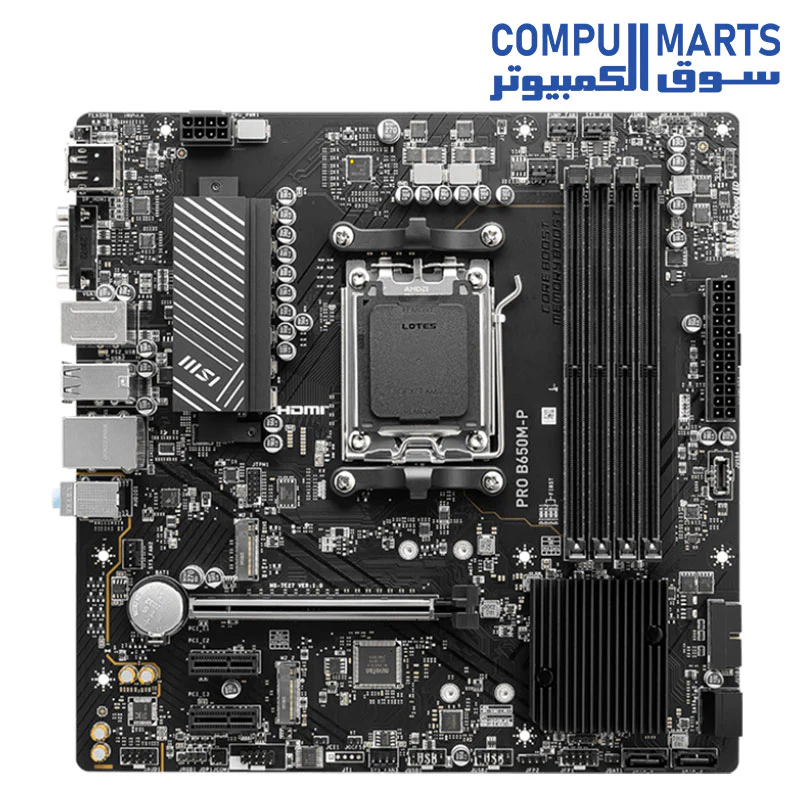

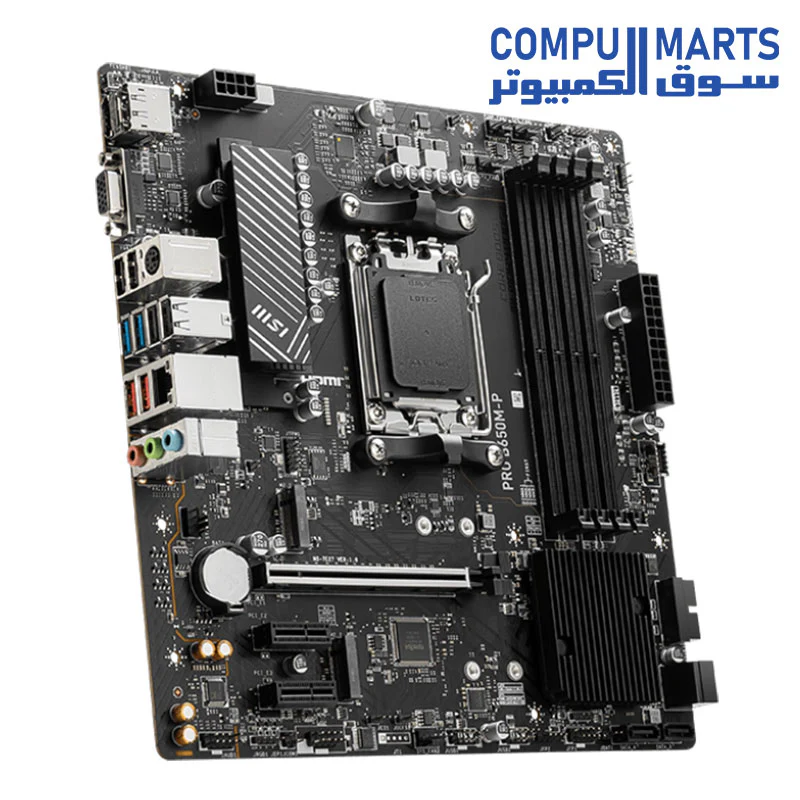

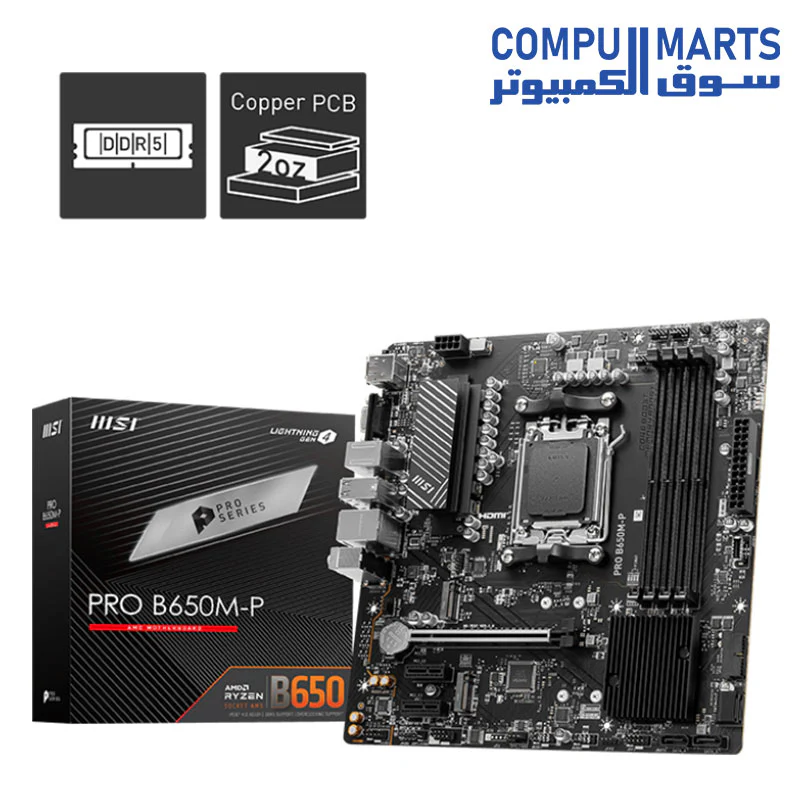

MSI PRO B650M-P ProSeries Motherboard (AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5, PCIe 4.0, M.2, SATA 6Gb/s, USB 3.2 Gen 2, HDMI/DP, 2.5Gbps LAN, mATX)
MSI PRO B650M-P ProSeries Motherboard (AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5, PCIe 4.0, M.2, SATA 6Gb/s, USB 3.2 Gen 2, HDMI/DP, 2.5Gbps LAN, mATX)
$112.61
MSI PRO B650M-P ProSeries Motherboard (AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5, PCIe 4.0, M.2, SATA 6Gb/s, USB 3.2 Gen 2, HDMI/DP, 2.5Gbps LAN, mATX)—
$112.61
The Story
| Category | Specification Details |
|---|---|
| Product Name | MSI PRO B650M-P |
| CPU Socket | Socket AM5 (AMD Ryzen™ 9000 / 8000 / 7000 Series) |
| Chipset | AMD B650 |
| Memory Support | 4x DDR5 DIMMs, Dual Channel (Up to 7200+ MHz OC) |
| Expansion Slots | 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1 slots |
| Storage Interface | 2x M.2 Gen4 x4 (64Gbps), 4x SATA 6Gbps |
| USB Connectivity | 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x Gen 1 |
| Display Output | HDMI™ 2.1 (4K/60Hz), DisplayPort 1.4, VGA |
| Networking | Realtek® 8125BG 2.5G LAN |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost |
| Form Factor | Micro-ATX (mATX) |
| Special Features | EZ Debug LED, Frozr AI Cooling, Core Boost |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Product Name | MSI PRO B650M-P |
| CPU Socket | Socket AM5 (AMD Ryzen™ 9000 / 8000 / 7000 Series) |
| Chipset | AMD B650 |
| Memory Support | 4x DDR5 DIMMs, Dual Channel (Up to 7200+ MHz OC) |
| Expansion Slots | 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1 slots |
| Storage Interface | 2x M.2 Gen4 x4 (64Gbps), 4x SATA 6Gbps |
| USB Connectivity | 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2 Type-A, 4x Gen 1 |
| Display Output | HDMI™ 2.1 (4K/60Hz), DisplayPort 1.4, VGA |
| Networking | Realtek® 8125BG 2.5G LAN |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost |
| Form Factor | Micro-ATX (mATX) |
| Special Features | EZ Debug LED, Frozr AI Cooling, Core Boost |
