$279.61

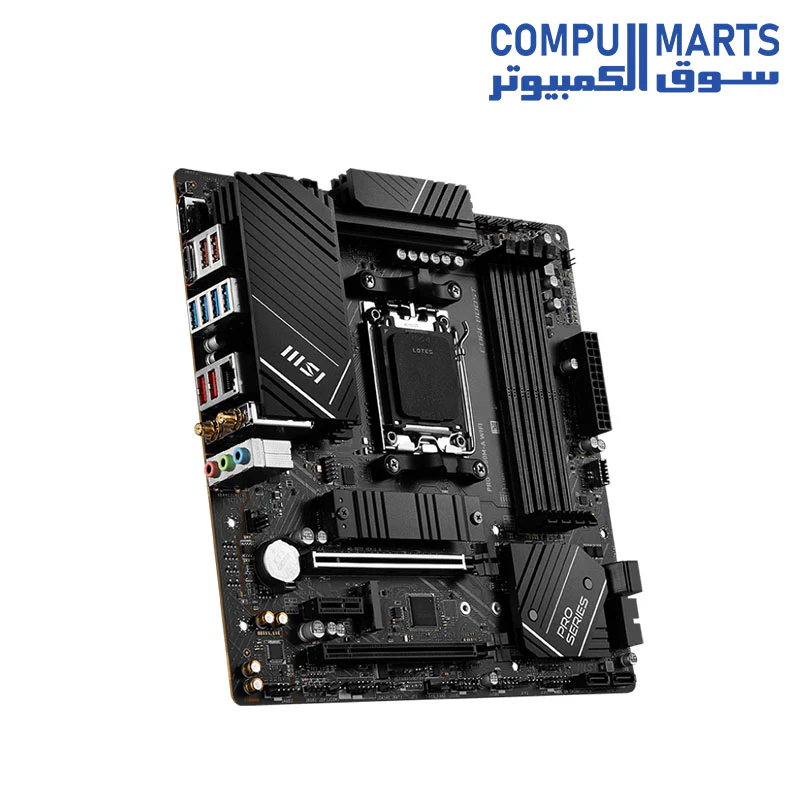

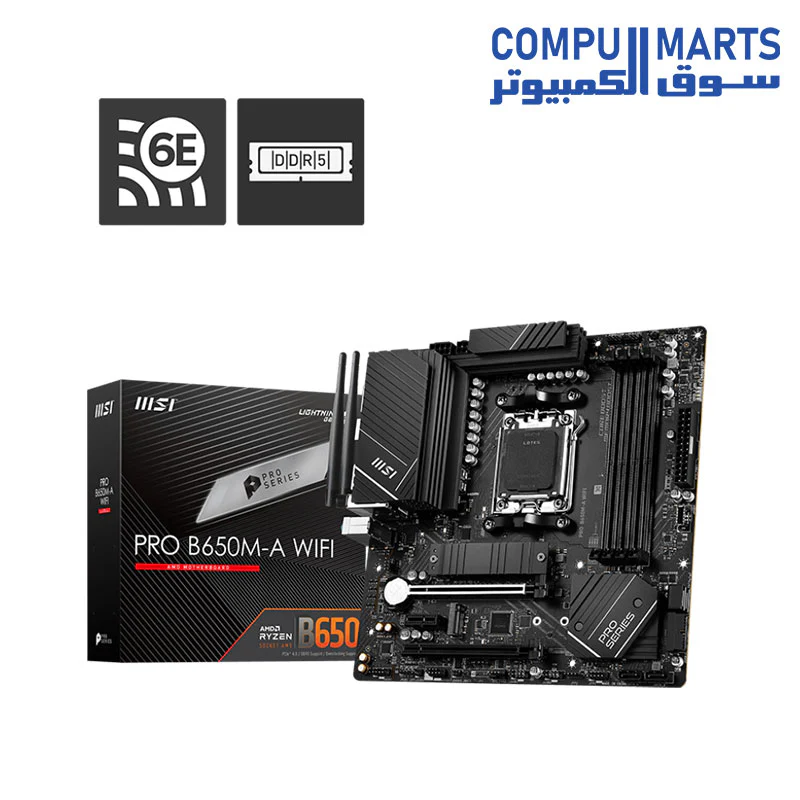

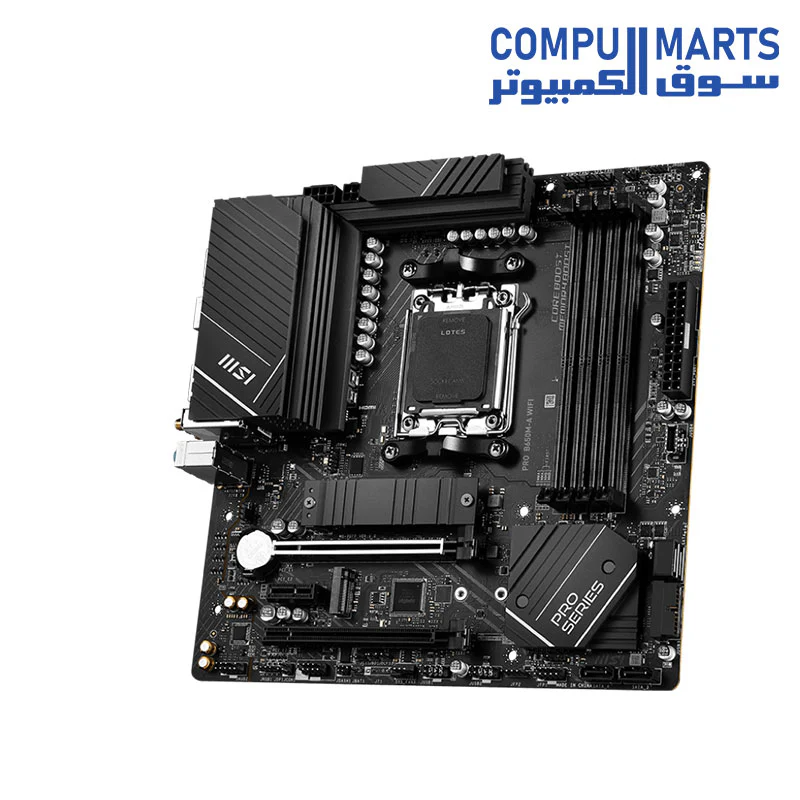

MSI PRO B650M A WIFI DDR5 AM5 Motherboard—
$279.61
The Story
| Category | Specification Details |
|---|---|
| Model | MSI PRO B650M-A WIFI (AM5) |
| Chipset & CPU | AMD B650 Chipset | Supports AMD Ryzen™ 7000/8000/9000 Series |
| Memory Support | 4x DDR5 DIMM (Max 128GB) | Supports up to 6400+ MHz (OC) / AMD EXPO |
| Power Design | 8+2+1 Duet Rail System | Core Boost & Memory Boost |
| Thermal Solution | Extended Heatsink | M.2 Shield Frozr | 7W/mK MOSFET Thermal Pads |
| Expansion Slots | 1x PCIe 4.0 x16 (CPU) | 1x PCIe 4.0 x4 (Chipset) | 1x PCIe 3.0 x1 |
| Storage | 2x M.2 PCIe 4.0 x4 Slots | 4x SATA 6G Ports | RAID 0, 1, 10 Support |
| Connectivity | Realtek 2.5G LAN | Wi-Fi 6E | Bluetooth 5.2 |

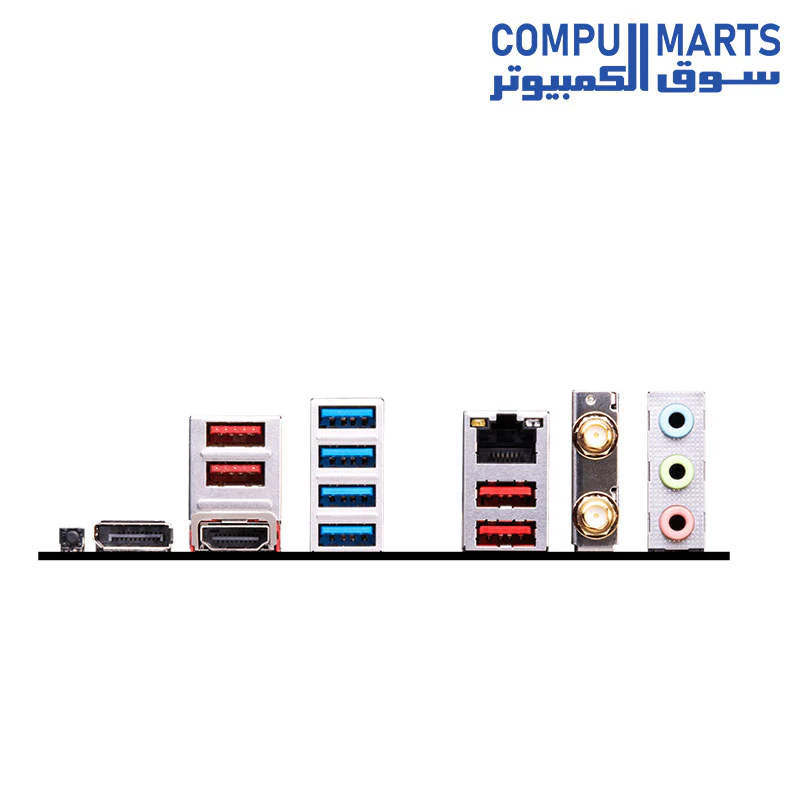

| Rear I/O Ports | 4x USB 3.2 Gen 2 | 4x USB 3.2 Gen 1 | HDMI 2.1 | DisplayPort 1.4 |
| Internal I/O | Front USB-C 3.2 Gen 2 | 2x ARGB Gen 2 Headers | 4x EZ Debug LEDs |
| Audio | 7.1-Channel HD Audio | Realtek ALC897 Codec | Audio Boost |
| PCB Construction | 6-Layer PCB | 2oz Thickened Copper |
| Form Factor | Micro-ATX (243.84 x 243.84 mm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | MSI PRO B650M-A WIFI (AM5) |
| Chipset & CPU | AMD B650 Chipset | Supports AMD Ryzen™ 7000/8000/9000 Series |
| Memory Support | 4x DDR5 DIMM (Max 128GB) | Supports up to 6400+ MHz (OC) / AMD EXPO |
| Power Design | 8+2+1 Duet Rail System | Core Boost & Memory Boost |
| Thermal Solution | Extended Heatsink | M.2 Shield Frozr | 7W/mK MOSFET Thermal Pads |
| Expansion Slots | 1x PCIe 4.0 x16 (CPU) | 1x PCIe 4.0 x4 (Chipset) | 1x PCIe 3.0 x1 |
| Storage | 2x M.2 PCIe 4.0 x4 Slots | 4x SATA 6G Ports | RAID 0, 1, 10 Support |
| Connectivity | Realtek 2.5G LAN | Wi-Fi 6E | Bluetooth 5.2 |
| Rear I/O Ports | 4x USB 3.2 Gen 2 | 4x USB 3.2 Gen 1 | HDMI 2.1 | DisplayPort 1.4 |
| Internal I/O | Front USB-C 3.2 Gen 2 | 2x ARGB Gen 2 Headers | 4x EZ Debug LEDs |
| Audio | 7.1-Channel HD Audio | Realtek ALC897 Codec | Audio Boost |
| PCB Construction | 6-Layer PCB | 2oz Thickened Copper |
| Form Factor | Micro-ATX (243.84 x 243.84 mm) |
