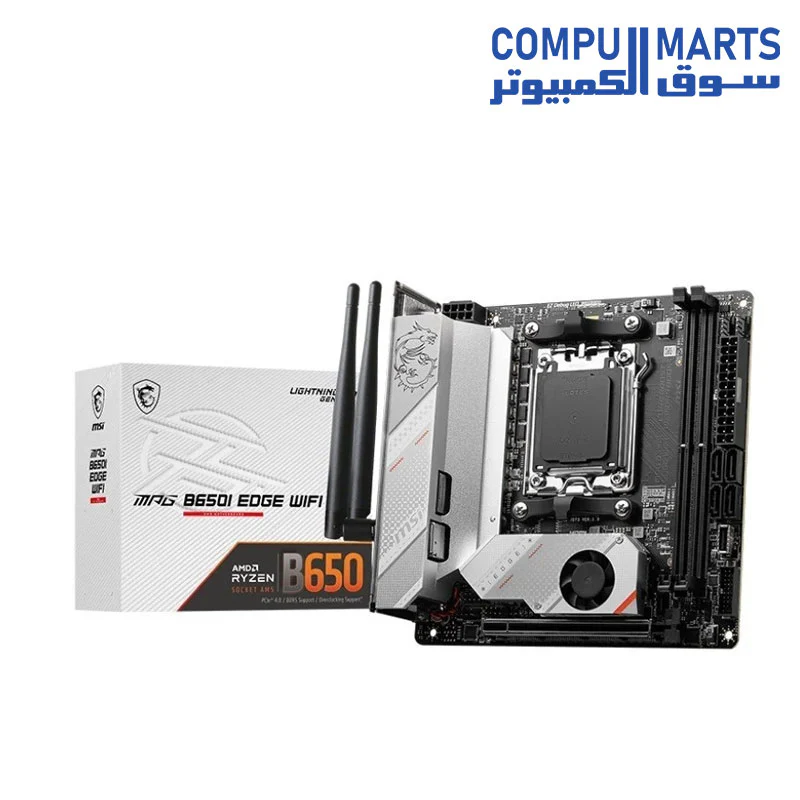

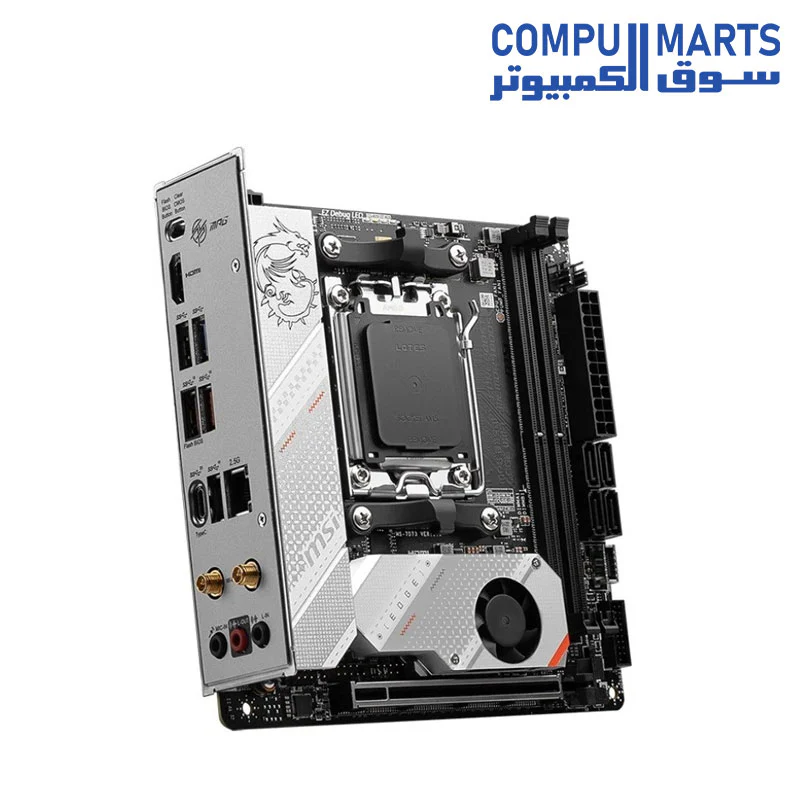

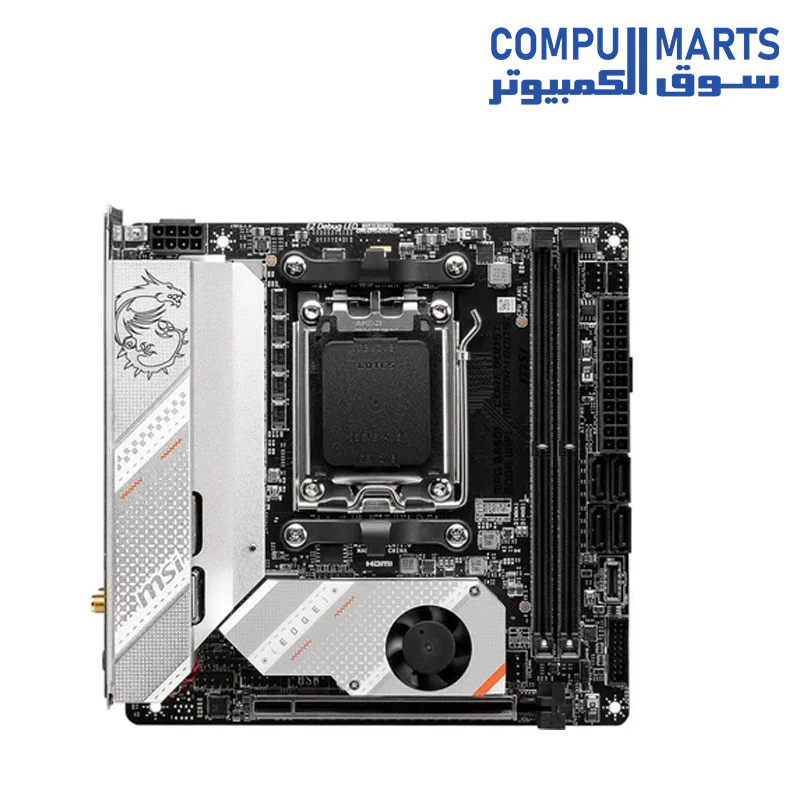

MSI MPG B650I EDGE WIFI AMD AM5 Mini ITX Motherboard

MSI

MPG B650I EDGE WIFI

AM5

Supports AMD Ryzen 7000 Series Desktop Processor

AMD B650

2x288pin (DDR5)

Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

64GB

Dual Channel

1x PCIe x16 slot (From CPU)

- Supports PCIe 4.0 x16

4 x SATA 6Gb/s

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Realtek ALC4080

7.1 Channels

1x Realtek RTL8125 2.5Gbps LAN controller

2.5Gbps

AMD Wi-Fi RZ616

- The Wireless module is pre-installed in the M.2 (Key-E) slot

1x Clear CMOS button

1x Flash BIOS button

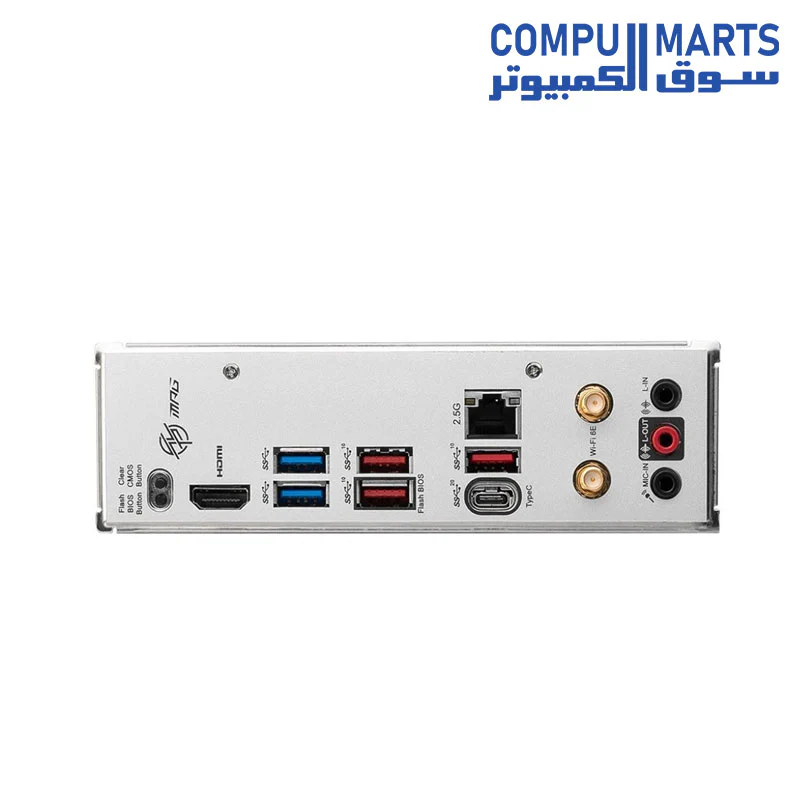

1x HDMI port

2x USB 3.2 Gen 1 5Gbps Type-A ports (From CPU)

2x USB 3.2 Gen 2 10Gbps Type-A port (From CPU)

1x USB 3.2 Gen 2 10Gbps Type-A port (From B650 chipset)

1x USB 3.2 Gen 2x2 20Gbps Type-C port (From ASM4242)

1x LAN (RJ45) jack

2x Wi-Fi Antenna connectors

3x Audio jacks

1x USB 3.2 Gen 2 10Gbps Type-C port (From B650 chipset)

1x USB 3.2 Gen 1 5Gbps connector (From B650 chipset)

- Supports additional 2 USB 3.2 Gen 1 5Gbps ports

1x USB 2.0 connector

- Supports additional 2 USB 2.0 ports (From B650 chipset)

Fan Connectors

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

1x 4-pin system fan connector

System Connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

LED Features

4x EZ Debug LED

1x 3-pin ARGB V2 LED connector

Mini ITX

RGB

6.7" x 6.7"

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

Supported

MSI Center Features

- Gaming Mode

- Smart Priority

- Game Highlights

- Mystic Light (Sync & control)

- Ambient link

- Frozr AI Cooling

- User Scenario

- True Color

- Live Update

- Hardware Monitoring

- Super Charger

- Device Speed Up

- Smart Image Finder

- MSI Companion

- System Diagnosis

- System Info

- Microsoft APP

- My Device

- MSI Display kit

Thermal Features

- Extended Heatsink Design

- MOSFET Baseplate

- M.2 Shield Frozr

- K7 MOSFET thermal pad/ Extra choke pad

- Fan headers (CPU + PUMP + SYSTEM)

Performance

- Core Boost

- VRM Power Design

- Memory Boost

- Lightning Gen 4 PCI-E/ M.2 Slot

- Front USB Type-C

- 2oz Copper thickened PCB

DIY Friendly

- PCI-E Steel Armor

- Pre-installed I/O Shield

- EZ DEBUG LED

- EZ LED Control

- Flash BIOS Button

RGB Soupport

- Mystic Light Extension (A-RAINBOW V2)

- Ambient Devices Support

Exclusive Software

- AIDA 64

- APP player
