MSI MAG Z790 TOMAHAWK WIFI DDR5 Motherboard
HomeStore

MSI MAG Z790 TOMAHAWK WIFI DDR5 Motherboard

MSI MAG Z790 TOMAHAWK WIFI DDR5 Motherboard

$379.81
MSI MAG Z790 TOMAHAWK WIFI DDR5 Motherboard—
$379.81

The Story

MSI MAG Z790 TOMAHAWK WIFI DDR5 Motherboard


  • Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

  • Supports DDR5 Memory, up to 7200+(OC) MHz

  • Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost

  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

CHIPSET

INTEL Z790

CPU SUPPORT

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

MEMORY

4x DDR5, Maximum Memory Capacity 192GB

Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS

1x HDMI

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

1x DisplayPort

Support DP 1.4, maximum resolution of 8K 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

2x PCI-E x16 slot

Supports x16/x4

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

7x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

* SATA_A1_A2 do not support RAID function.

USB

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

4x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Intel 2.5Gbps LAN

WIRELESS / BLUETOOTH

Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC4080 Codec

7.1-Channel USB High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

LED FEATURE

4x EZ Debug LED

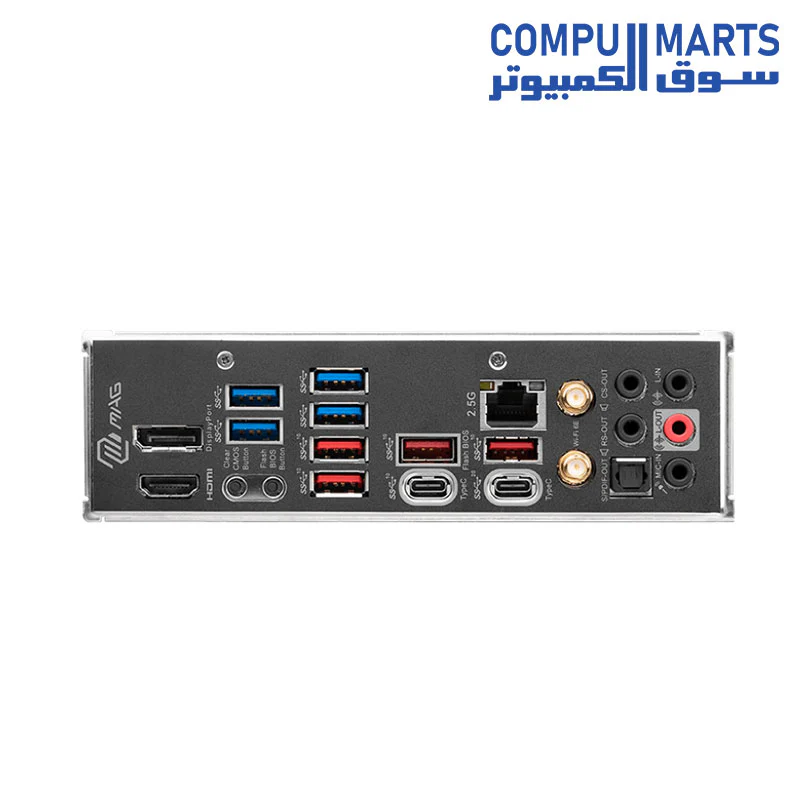

BACK PANEL PORTS

  1. DisplayPort 1.4

  2. USB 3.2 Gen 1 5Gbps Type-A

  3. USB 3.2 Gen 2 10Gbps Type-A

  4. 2.5G LAN Port,

  5. HD Audio Connectors

  6. HDMI 2.1 Port

  7. Clear CMOS Button

  8. Flash BIOS Button

  9. USB 3.2 Gen 2 10Gbps Type-C

  10. USB 3.2 Gen 2x2 20Gbps Type-C

  11. Wi-Fi / Bluetooth Antenna

  12. Optical S/PDIF OUT

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION

ATX

243.84mmx304.8mm

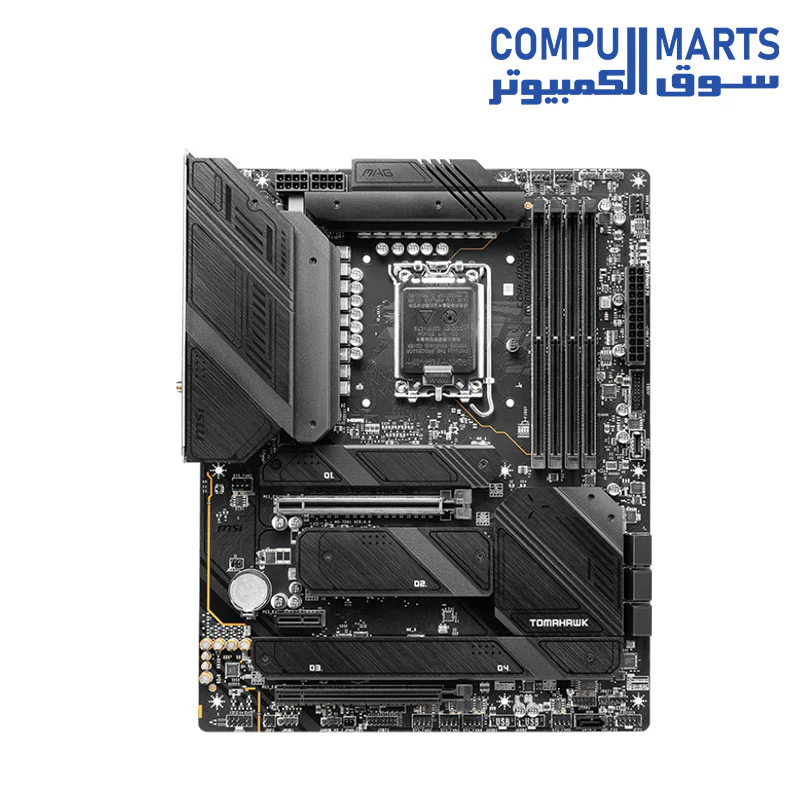

MSI MAG Z790 TOMAHAWK WIFI DDR5 Motherboard - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

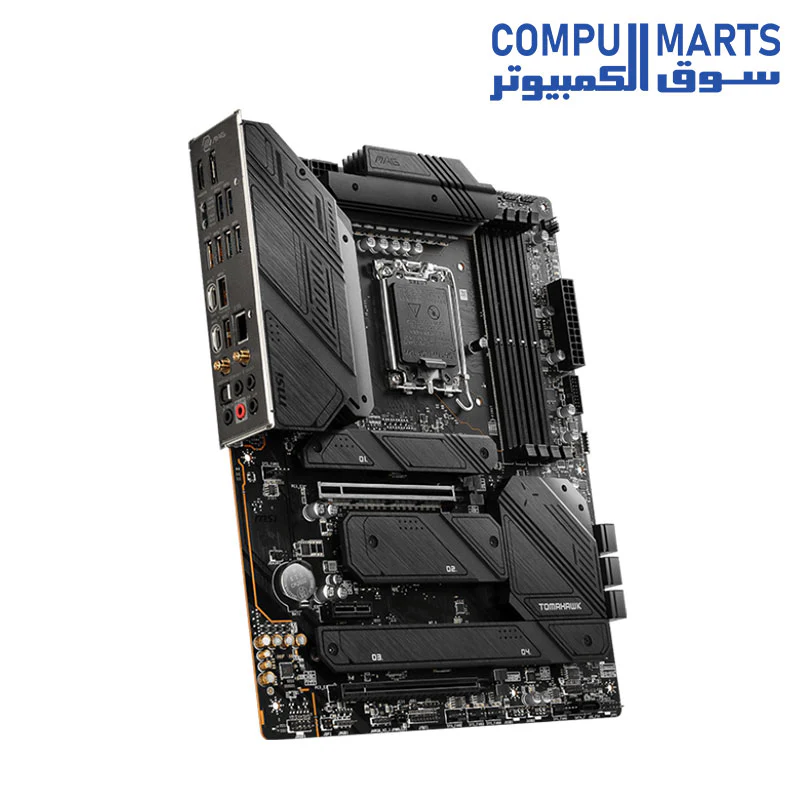

MSI MAG Z790 TOMAHAWK WIFI DDR5 Motherboard - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

MSI MAG Z790 TOMAHAWK WIFI DDR5 Motherboard - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

MSI MAG Z790 TOMAHAWK WIFI DDR5 Motherboard


  • Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

  • Supports DDR5 Memory, up to 7200+(OC) MHz

  • Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost

  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

CHIPSET

INTEL Z790

CPU SUPPORT

Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

MEMORY

4x DDR5, Maximum Memory Capacity 192GB

Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz

• 1DPC 2R Max speed up to 6600+ MHz

• 2DPC 1R Max speed up to 6400+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS

1x HDMI

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

1x DisplayPort

Support DP 1.4, maximum resolution of 8K 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

2x PCI-E x16 slot

Supports x16/x4

1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE

4x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

7x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

* SATA_A1_A2 do not support RAID function.

USB

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

4x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Intel 2.5Gbps LAN

WIRELESS / BLUETOOTH

Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC4080 Codec

7.1-Channel USB High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x TBT connector (JTBT, supports RTD3)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

LED FEATURE

4x EZ Debug LED

BACK PANEL PORTS

  1. DisplayPort 1.4

  2. USB 3.2 Gen 1 5Gbps Type-A

  3. USB 3.2 Gen 2 10Gbps Type-A

  4. 2.5G LAN Port,

  5. HD Audio Connectors

  6. HDMI 2.1 Port

  7. Clear CMOS Button

  8. Flash BIOS Button

  9. USB 3.2 Gen 2 10Gbps Type-C

  10. USB 3.2 Gen 2x2 20Gbps Type-C

  11. Wi-Fi / Bluetooth Antenna

  12. Optical S/PDIF OUT

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION

ATX

243.84mmx304.8mm
