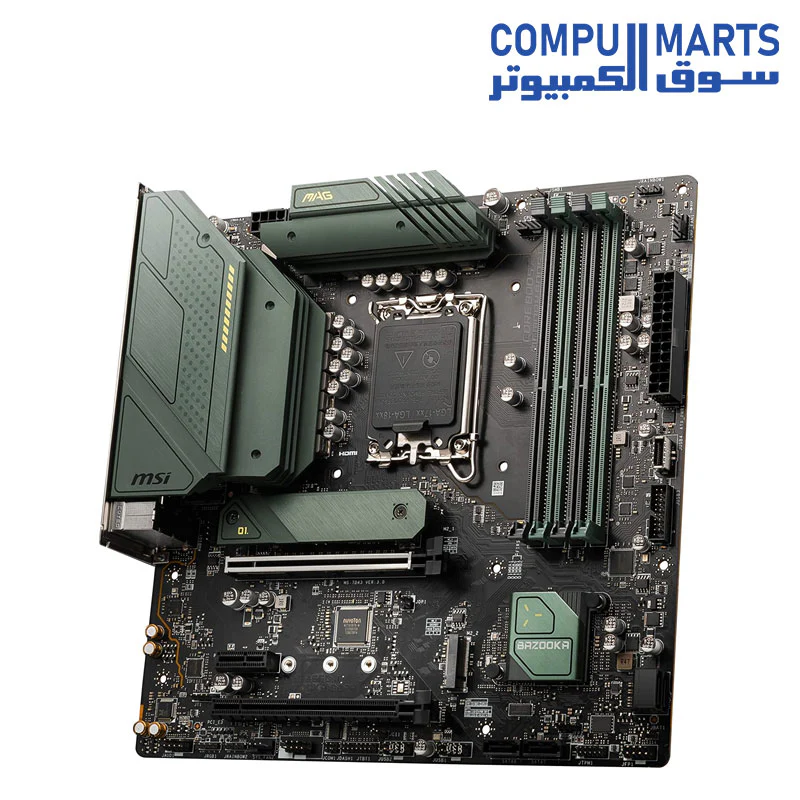

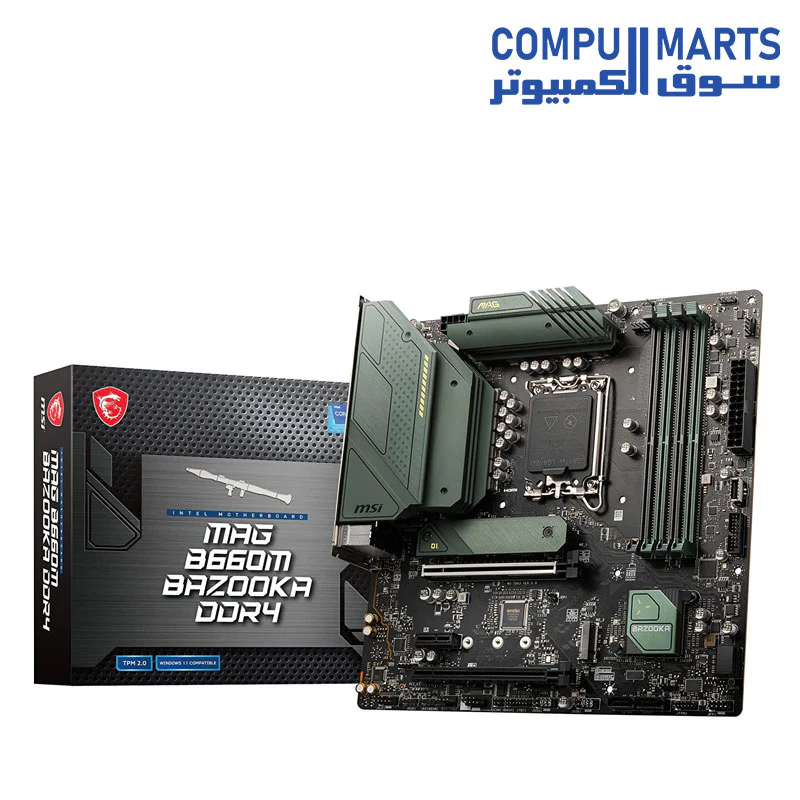

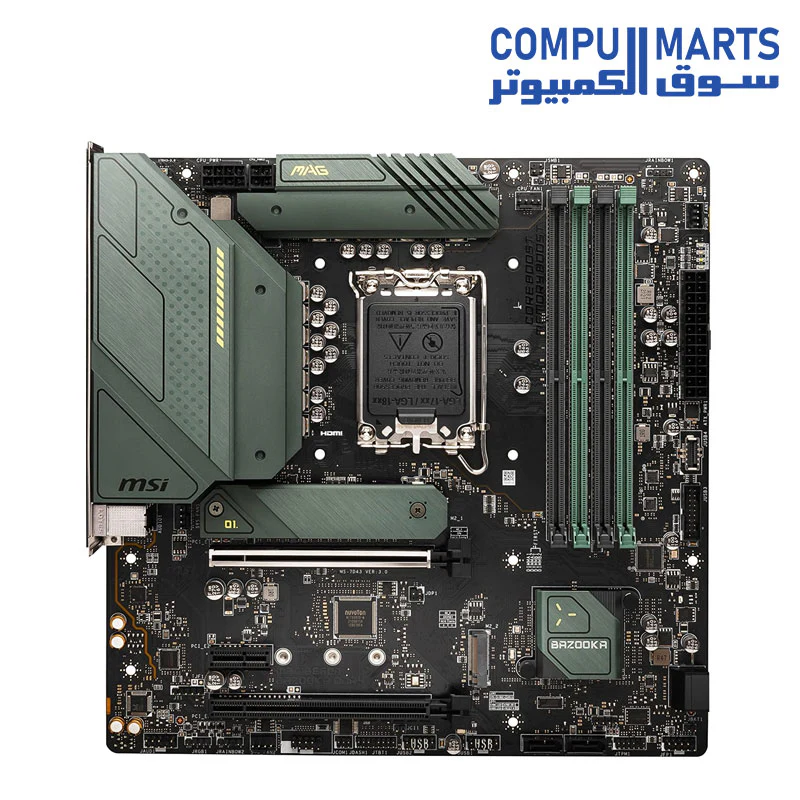

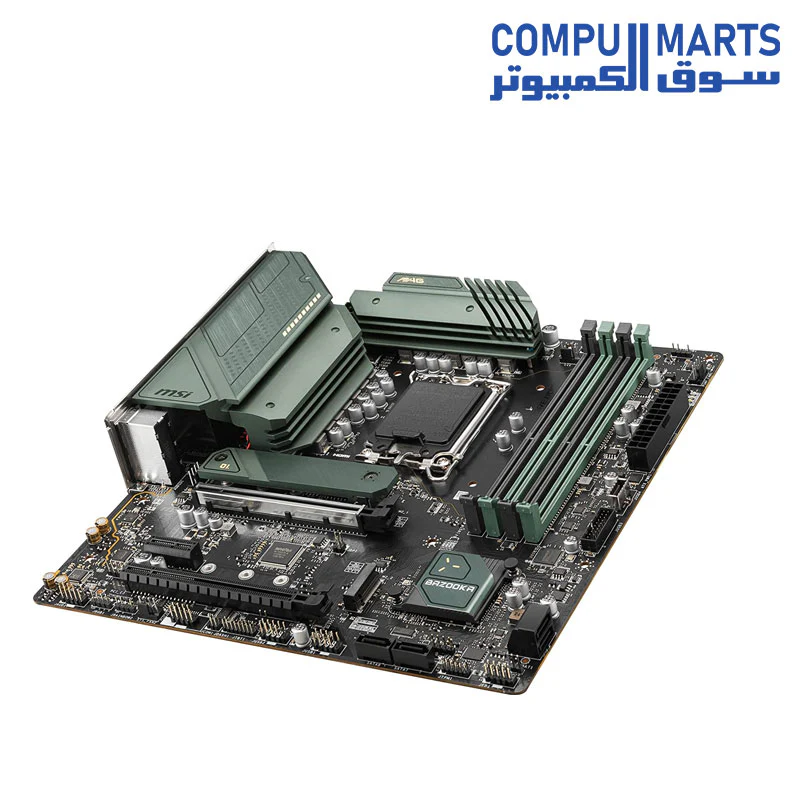

MSI MAG B660M Bazooka DDR4 Motherboard



MSI MAG B660M Bazooka DDR4 Motherboad

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

• Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

• Supports DDR4 Memory, up to 4800+(OC) MHz

• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

• Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag

• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs

• Audio Boost: Reward your ears with studio grade sound quality

• Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire

• SOCKET : 1700

• CHIPSET : Intel B660 Chipset

• MEMORY CHANNEL : Dual

• DIMM SLOTS : 4

• MAX MEMORY (GB) : 128

• PCI-E X16 : 2

• PCI-E X1 : 1

• SATAIII : 4

• M.2 SLOT : 2

• RAID :  0/1/5/10

• USB 3.2 PORTS (FRONT) : 1(Gen 1, Type C), 2(Gen 1, Type A)

• USB 3.2 PORTS (REAR) : 2(Gen 2, Type A), 2(Gen 1, Type A)

• USB 2.0 PORTS (FRONT) : 4

• USB 2.0 PORTS (REAR) : 2

• AUDIO PORTS (REAR) : Realtek ALC897

• DISPLAYPORT : 1

• HDMI : 1

• DIRECTX : 12

• CROSSFIRE : Y

• OPERATING SYSTEM : Support for Windows 11 64-bit, Windows 10 64-bit

• FORM FACTOR : MATX

PROCESSOR

• Supports 12th/ 13th Gen Intel Core Processors

• Processor socket LGA1700

CHIPSET Intel B660 Chipset MEMORY

• 4x DDR4 memory slots, support up to 128GB

• Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)

• Max overclocking frequency:

• 1DPC 1R Max speed up to 5333+ MHz

• 1DPC 2R Max speed up to 4000+ MHz

• 2DPC 1R Max speed up to 4000+ MHz

• 2DPC 2R Max speed up to 3600+ MHz

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel Extreme Memory Profile (XMP)

EXPANSION SLOT

• 2x PCIe x16 slots

• PCI_E1 slot (From CPU)

• Supports PCIe 4.0 x16

• PCI_E3 slot (From B660 Chipset)

• Supports PCIe 3.0 x4

• 1x PCIe 3.0 x1 slot (From B660 chipset)

MULTI-GPU

• Supports 2-Way AMD Cross Fire Technology

ONBOARD GRAPHICS

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

• 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

1. Available only on processors featuring integrated graphics.

2. Graphics specifications may vary depending on the CPU installed.

STORAGE

• 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)

• 2x M.2 slots (Key M)

• M2_1 slot (From CPU)

• Supports PCIe 4.0 x4

• Supports 2242/ 2260/ 2280 storage devices

• M2_2 slot (From B660 Chipset)

• Supports PCIe 4.0 x4

• Supports SATA 6Gb/s

• Supports 2242/ 2260/ 2280 storage devices

• Supports Intel Optane Memory

• Supports Intel Smart Response Technology for Intel Core processors

1. SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

• Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for SATA storage devices

USB

Intel B660 Chipset

• 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel

• 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector)

• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors)

Asmedia ASM1074 : 2x USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector

AUDIO Realtek ALC897 Codec : 7.1-Channel High Definition Audio LAN : 1x Realtek 8125BG 2.5Gbps LAN controller INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector

• 1x 8-pin ATX 12V power connector

• 1x 4-pin ATX 12V power connector

• 4x SATA 6Gb/s connectors

• 2x M.2 slots (M-Key)

• 1x USB 3.2 Gen 1 5Gbps Type-C port

• 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

• 1x 4-pin CPU fan connector

• 1x 4-pin water-pump fan connector

• 2x 4-pin system fan connectors

• 1x Front panel audio connector

• 2x System panel connectors

• 1x Chassis Intrusion connector

• 1x TPM module connector

• 1x Clear CMOS jumper

• 1x TBT connector (supports RTD3)

• 1x Serial port

• 1x Tuning Controller connector

LED FEATURE

• 1x 4-pin RGB LED connector

• 2x 3-pin RAINBOW LED connectors

• 4x EZ Debug LED

BACK PANEL PORTS

1. Keyboard / Mouse

2. DisplayPort

3. 2.5G LAN

4. Audio Connectors

5. USB 2.0

6. HDMI

7. USB 3.2 Gen 1 5Gbps Type-A

8. USB 3.2 Gen 2 10Gbps Type-A
