$149.83

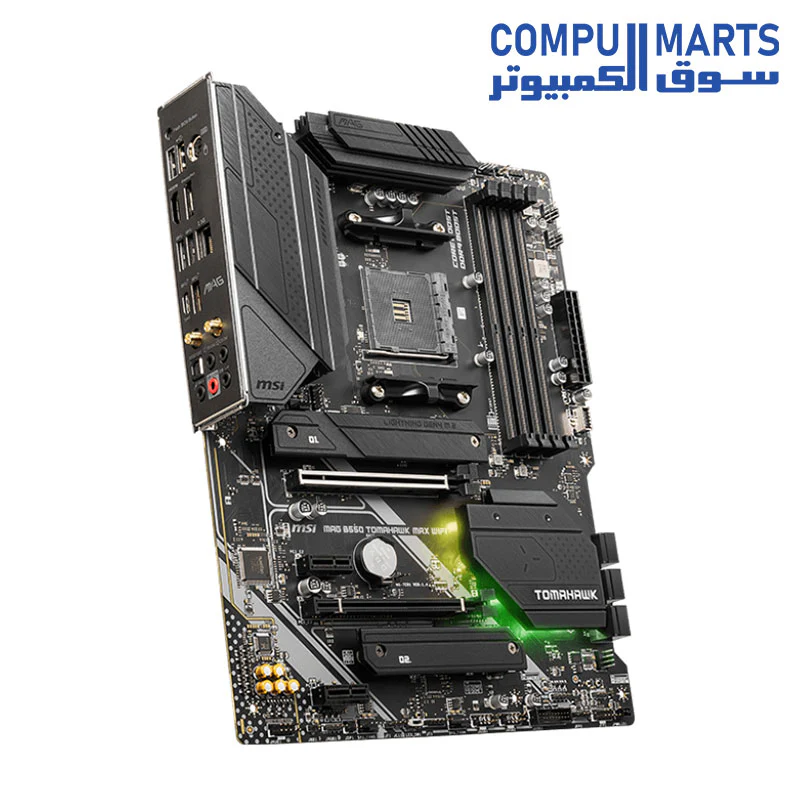

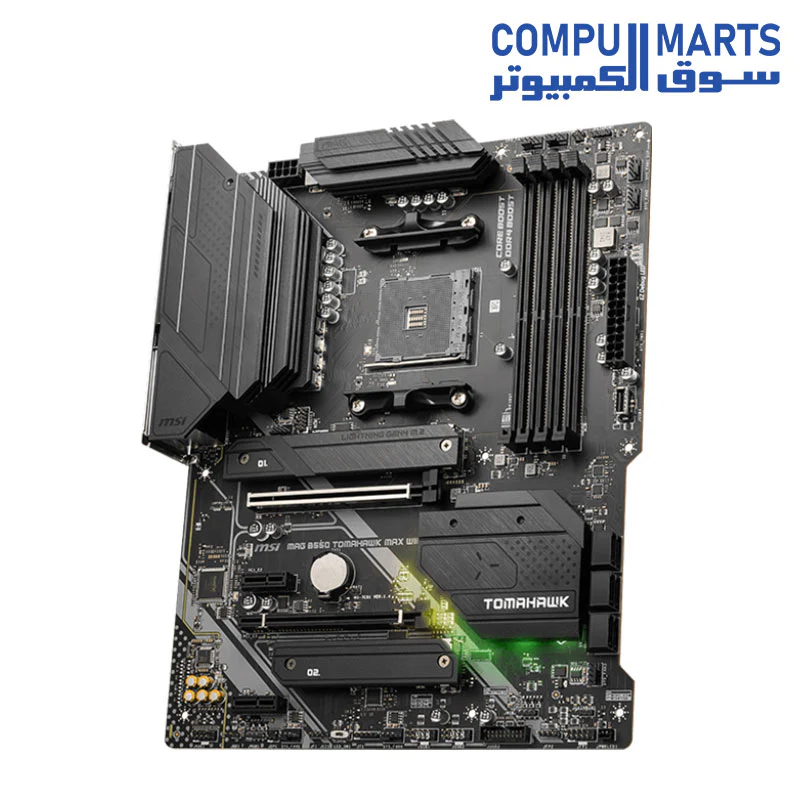

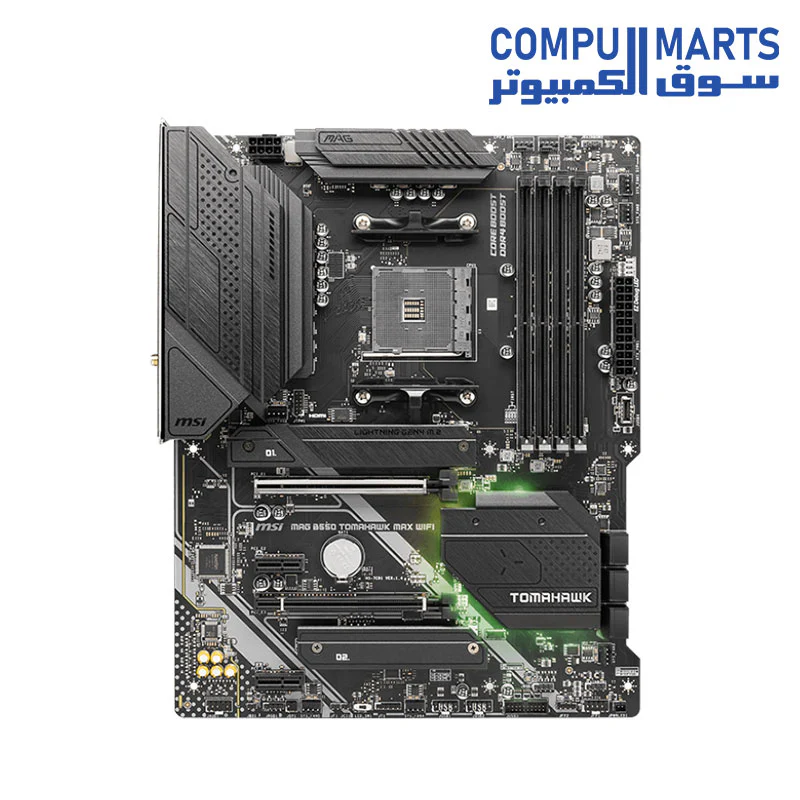

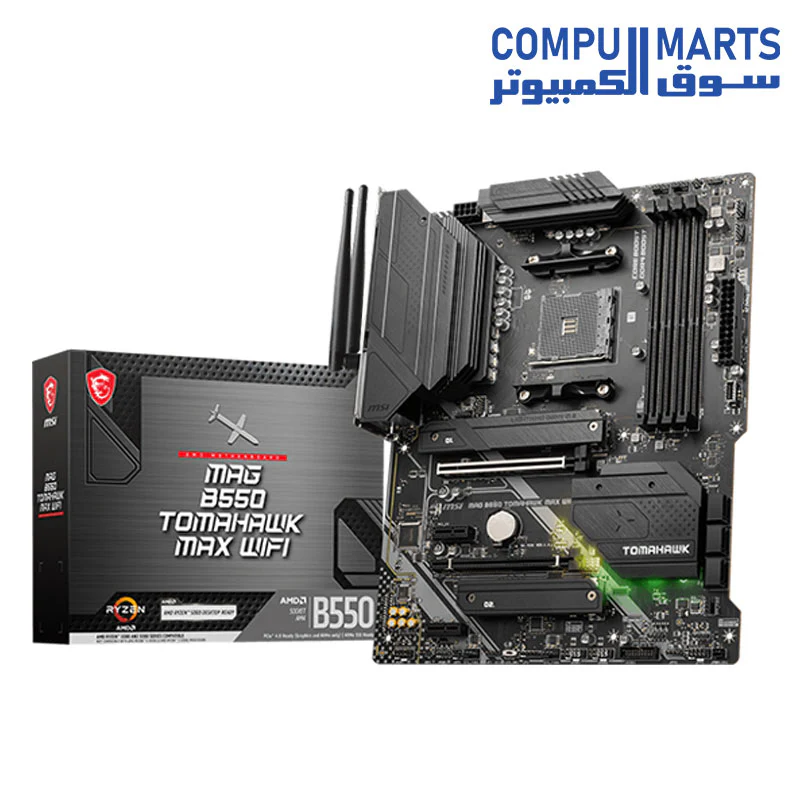

MSI MAG B550 TOMAHAWK MAX WIFI Gaming Motherboard—
$149.83
The Story
| Category | Specification Details |
|---|---|
| Model | MSI MAG B550 TOMAHAWK MAX WIFI |
| CPU Socket | Socket AM4; Supports AMD Ryzen™ 5000 Series, 5000-G Series, 4000-G Series and 3000 Series |
| Chipset | AMD B550 Chipset |
| Memory | 4 x DIMM slots, Max. 128GB, DDR4; Dual Channel Memory Architecture; Supports up to 5100+ MHz (OC) |
| Expansion Slots | 2 x PCIe x16 slots (supports PCIe 4.0/3.0); 2 x PCIe x1 slots; Supports 2-Way AMD CrossFire™ |
| Storage | 2 x M.2 slots (M2_1 supports PCIe 4.0 x4); 6 x SATA 6Gb/s ports; Supports RAID 0, 1, and 10 |
| Networking | 1 x Realtek® 2.5Gbps LAN; Wi-Fi 6E; Bluetooth 5.2 |

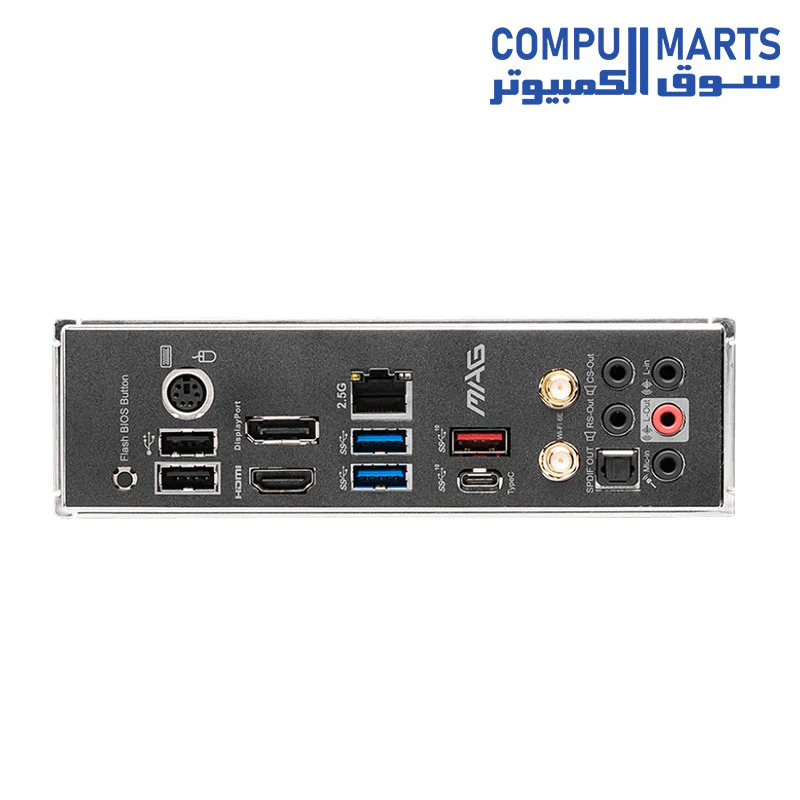

| USB (Rear) | 1 x USB 3.2 Gen 2 (Type-C), 1 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 |
| USB (Front) | 1 x USB 3.2 Gen 1 (Type-C), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 |
| Audio | 7.1-Channel High Definition Audio (Realtek ALC897 Codec); 5 x Audio jacks + Optical S/PDIF out |
| Video Output | 1 x HDMI 2.1 port; 1 x DisplayPort |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
| Special Features | Premium Thermal Solution (Extended Heatsink, 7W/mK Pad, M.2 Shield Frozr); Lightning Gen 4 PCIe/M.2; Audio Boost |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | MSI MAG B550 TOMAHAWK MAX WIFI |
| CPU Socket | Socket AM4; Supports AMD Ryzen™ 5000 Series, 5000-G Series, 4000-G Series and 3000 Series |
| Chipset | AMD B550 Chipset |
| Memory | 4 x DIMM slots, Max. 128GB, DDR4; Dual Channel Memory Architecture; Supports up to 5100+ MHz (OC) |
| Expansion Slots | 2 x PCIe x16 slots (supports PCIe 4.0/3.0); 2 x PCIe x1 slots; Supports 2-Way AMD CrossFire™ |
| Storage | 2 x M.2 slots (M2_1 supports PCIe 4.0 x4); 6 x SATA 6Gb/s ports; Supports RAID 0, 1, and 10 |
| Networking | 1 x Realtek® 2.5Gbps LAN; Wi-Fi 6E; Bluetooth 5.2 |
| USB (Rear) | 1 x USB 3.2 Gen 2 (Type-C), 1 x USB 3.2 Gen 2 (Type-A), 2 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0 |
| USB (Front) | 1 x USB 3.2 Gen 1 (Type-C), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 |
| Audio | 7.1-Channel High Definition Audio (Realtek ALC897 Codec); 5 x Audio jacks + Optical S/PDIF out |
| Video Output | 1 x HDMI 2.1 port; 1 x DisplayPort |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
| Special Features | Premium Thermal Solution (Extended Heatsink, 7W/mK Pad, M.2 Shield Frozr); Lightning Gen 4 PCIe/M.2; Audio Boost |
