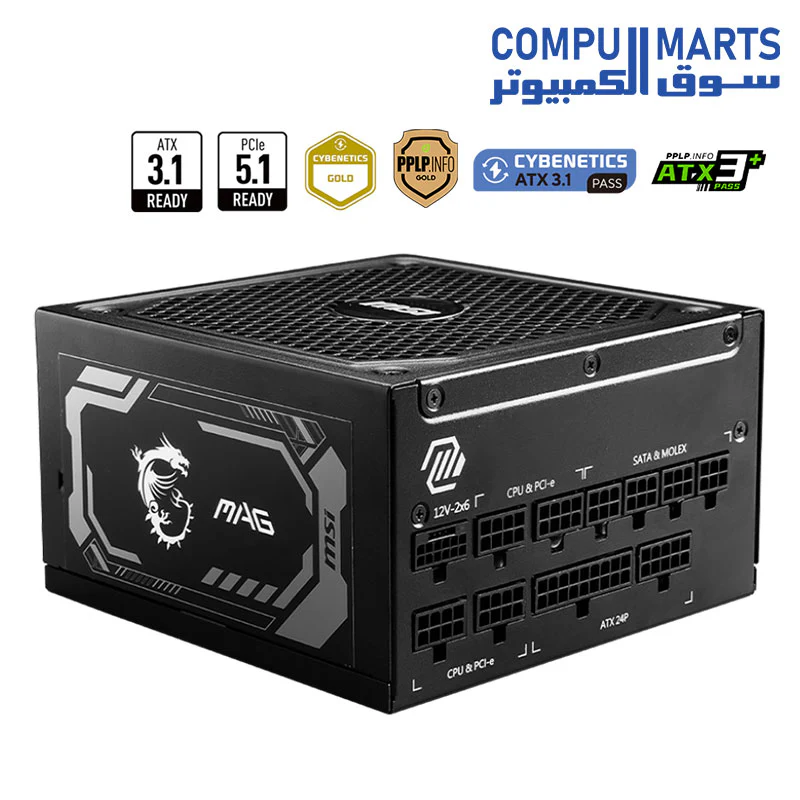

MSI MAG A1000GL PCIE 5 Gaming Power Supply - ATX 3.1 & PCIE 5.1 Ready - Full Modular - 80 Plus Gold Certified 1000W - Compact Size - ATX PSU

MSI MAG A1000GL PCIE 5 Gaming Power Supply - ATX 3.1 & PCIE 5.1 Ready - Full Modular - 80 Plus Gold Certified 1000W - Compact Size - ATX PSU





Efficiency Rating 80 PLUS Gold (up to 90%)
Modular Yes (fully modular)
Fan Size 135 mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (DxWxH) 150 x 150 x 86 mm
PFC Type Active PFC
Input Voltage Range 100-240V~
Power Watt 1000W
Power Excursion 2000W (*up to 200% of the PSU's rated power for
100μs)
Input Frequency Range 50-60Hz
Protection OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin) 1
EPS (4+4 pin) 2
PCI-E 5.1 (16 pin) 1 (600W)
PCI-E (6+2 pin) 4
SATA (15 pin) 12
PERIPHERAL (4 pin) 4
FDD (4 pin) 1
ATX 3.1 ready, native dual-color PCIe CEM
5.1 connector
Supports NVIDIA
GeForce RTX
40 series
graphics cards

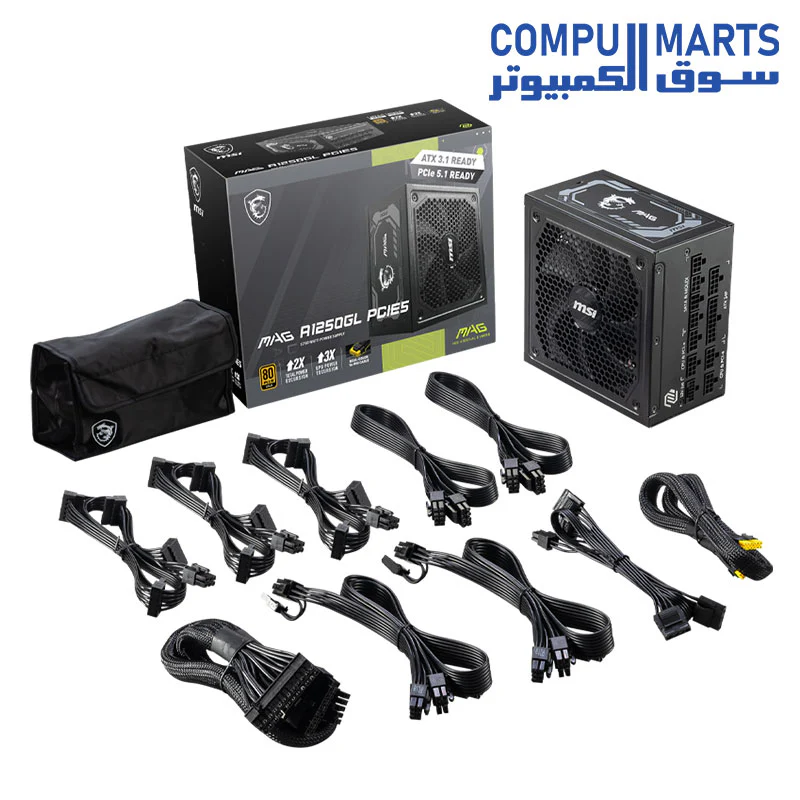

Fully modular design, flat cables
80 PLUS Gold certified for high efficiency
Active PFC design
Protection with OVP / OCP / OPP / OTP / SCP
/ UVP
135 mm fluid dynamic bearing fan
LLC half bridge topology with DC-to-DC
module design
