$216.63

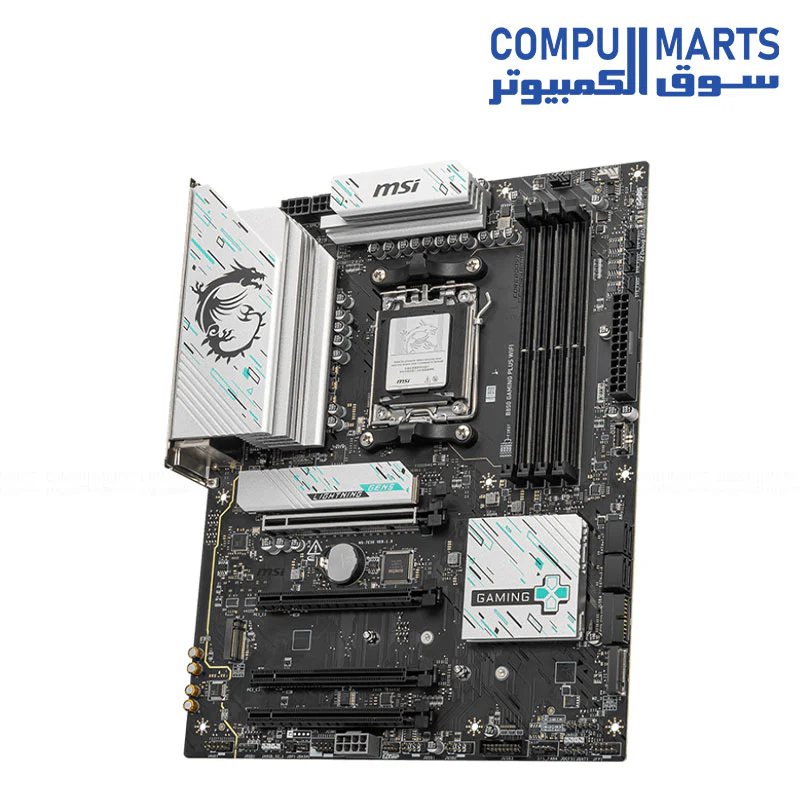

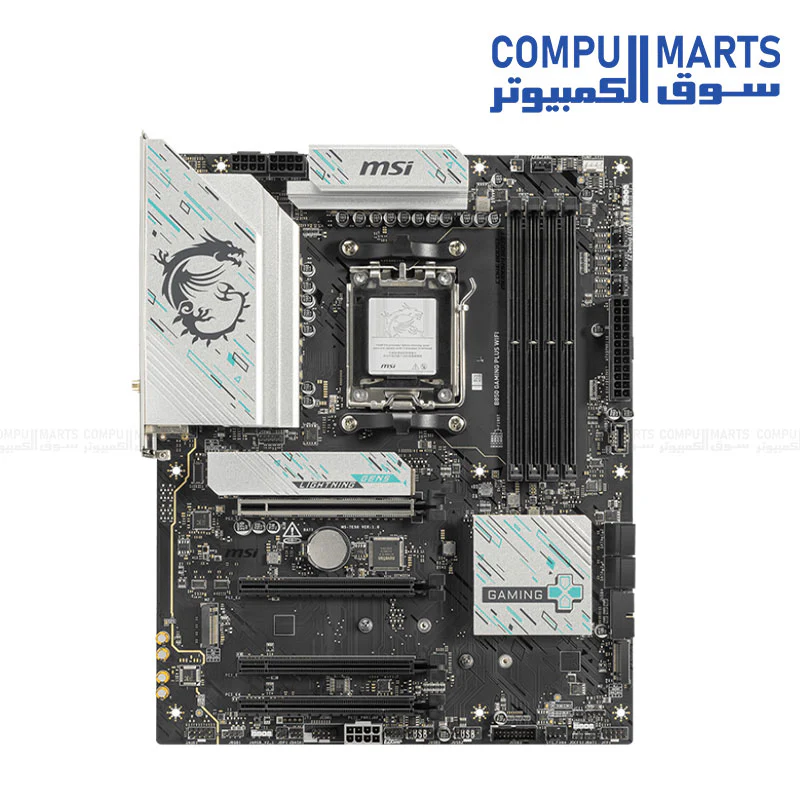

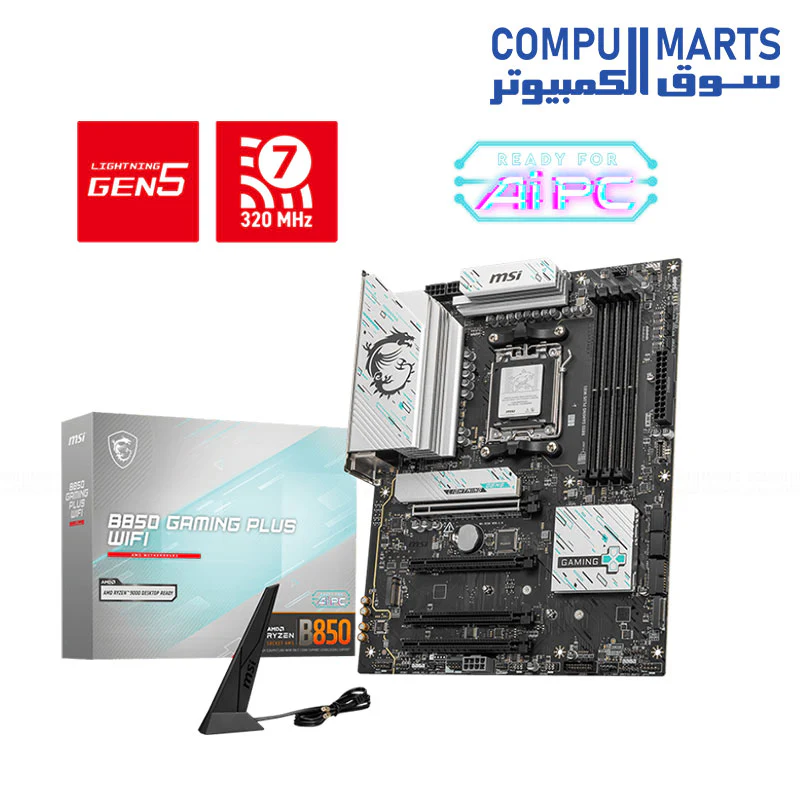

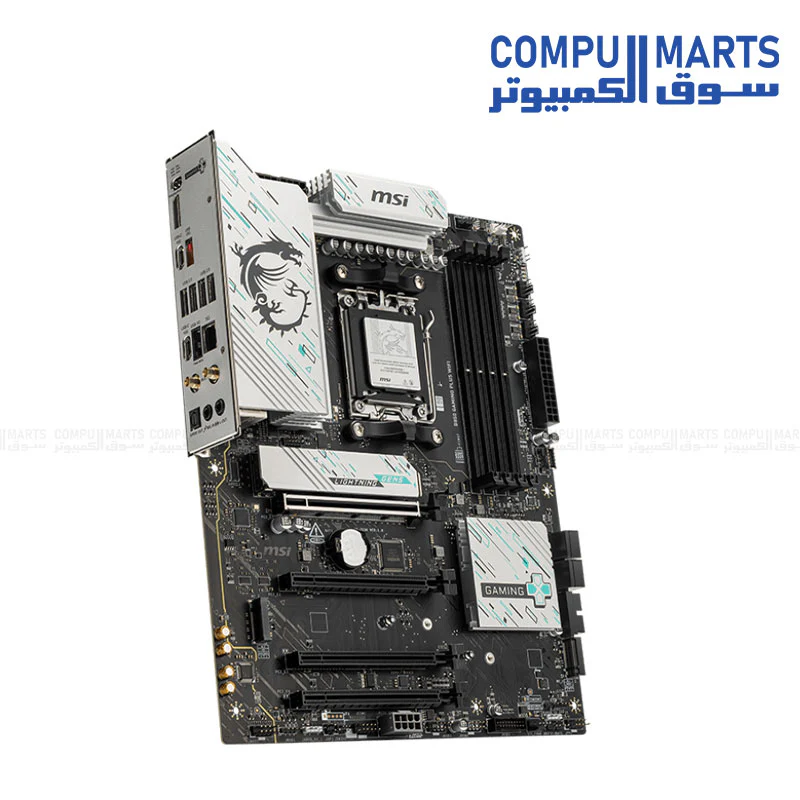

MSI B850 GAMING PLUS WIFI PZ – AM5 Motherboard with Wi‑Fi 7 & 5 Gb LAN—
$216.63
The Story
| Category | Specification Details |
|---|---|
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5, Max 256GB | Supports up to 8200+ MT/s (OC) | AMD EXPO™ & CUDIMM Support |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 2x PCIe 3.0 x1 |
| Storage | 3x M.2 Slots (1x Gen5 x4, 1x Gen4 x4, 1x Gen4 x2) | 4x SATA 6G |
| Wireless & BT | Wi-Fi 7 (Up to 5.8Gbps) | Bluetooth® 5.4 |
| LAN | Realtek® 5G LAN |
| Audio | Realtek® ALC897 7.1-Channel HD Audio | S/PDIF-OUT |
| Rear USB Ports | 2x USB 10Gbps (Type-C), 1x USB 10Gbps (Type-A), 1x USB 5Gbps (Type-A), 4x USB 2.0 |
| Front USB Ports | 1x USB 5Gbps (Type-C), 4x USB 5Gbps (Type-A), 4x USB 2.0 |
| Video Output | 1x DisplayPort 1.2 (Supports 4K 60Hz) |
| RAID Support | RAID 0, 1, 10 (SATA) | RAID 0, 1, 5 (NVMe - RAID 5 Ryzen 9000 only) |
| Form Factor | ATX (243.84mm x 304.8mm) |
| Special Features | Clear CMOS Button, Flash BIOS Button, EZ Debug LED, Wi-Fi 7 Solution |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5) |
| Memory | 4x DDR5, Max 256GB | Supports up to 8200+ MT/s (OC) | AMD EXPO™ & CUDIMM Support |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 2x PCIe 3.0 x1 |
| Storage | 3x M.2 Slots (1x Gen5 x4, 1x Gen4 x4, 1x Gen4 x2) | 4x SATA 6G |
| Wireless & BT | Wi-Fi 7 (Up to 5.8Gbps) | Bluetooth® 5.4 |
| LAN | Realtek® 5G LAN |
| Audio | Realtek® ALC897 7.1-Channel HD Audio | S/PDIF-OUT |
| Rear USB Ports | 2x USB 10Gbps (Type-C), 1x USB 10Gbps (Type-A), 1x USB 5Gbps (Type-A), 4x USB 2.0 |
| Front USB Ports | 1x USB 5Gbps (Type-C), 4x USB 5Gbps (Type-A), 4x USB 2.0 |
| Video Output | 1x DisplayPort 1.2 (Supports 4K 60Hz) |
| RAID Support | RAID 0, 1, 10 (SATA) | RAID 0, 1, 5 (NVMe - RAID 5 Ryzen 9000 only) |
| Form Factor | ATX (243.84mm x 304.8mm) |
| Special Features | Clear CMOS Button, Flash BIOS Button, EZ Debug LED, Wi-Fi 7 Solution |
