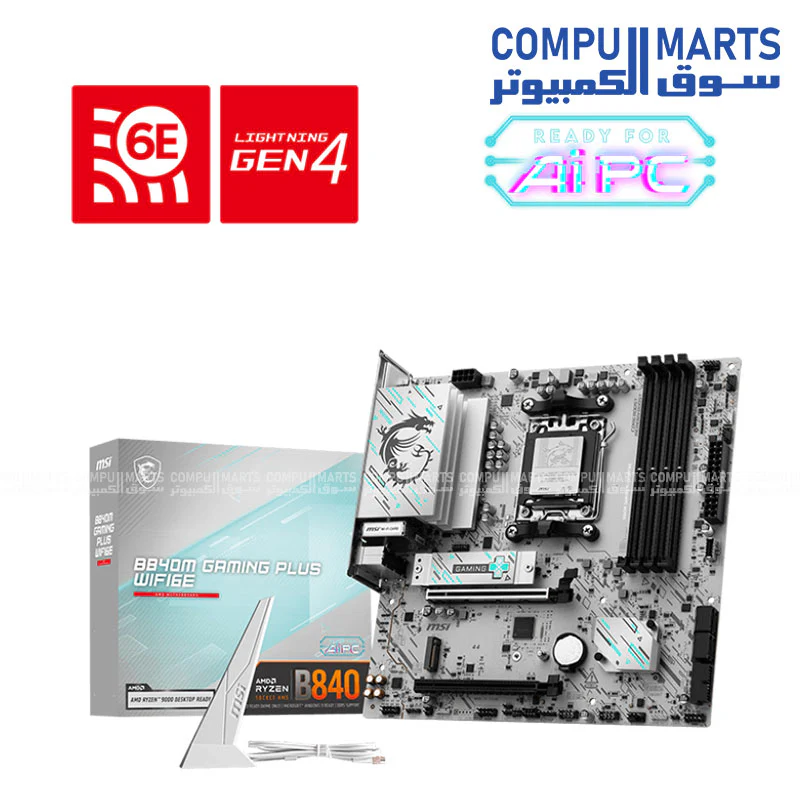

MSI B840M GAMING PLUS WIFI6E – AM5 DDR5 Micro-ATX Motherboard with Wi-Fi 6E & 2.5G LAN

MSI B840M GAMING PLUS WIFI6E – AM5 DDR5 Micro-ATX Motherboard with Wi-Fi 6E & 2.5G LAN



SPECIFICATIONS
Model Name B840M GAMING PLUS WIFI6E
CPU Support Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD B840 Chipset
Expansion slot 1x PCIe 4.0 x16 slot,
1x PCIe 3.0 x4 slot
Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort
1.4 – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5 - 8000+ MT/s (OC)
Storage 2 x M.2 Gen4 x4 64Gbps slots,
4 x SATA 6Gbps ports
USB ports 2 x USB 10Gbps (1 Type-A + 1 Type-C)
5 x USB 5Gbps (4 Type-A + 1 Type-C)
8 x USB 2.0
LAN Realtek
8125D 2.5G LAN
WIFI / BT Wi-Fi 6E module, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost
FEATURES
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online
gaming experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
CONNECTIONS
1. Clear CMOS Button
3. USB 2.0
5. Wi-Fi / Bluetooth
7. Flash BIOS Button
9. USB 10Gbps (Type-C)
2. USB 10Gbps (Type-A)
4. 2.5G LAN
6. Audio Connectors
8. HDMI
10. USB 5Gbps (Type-A)
