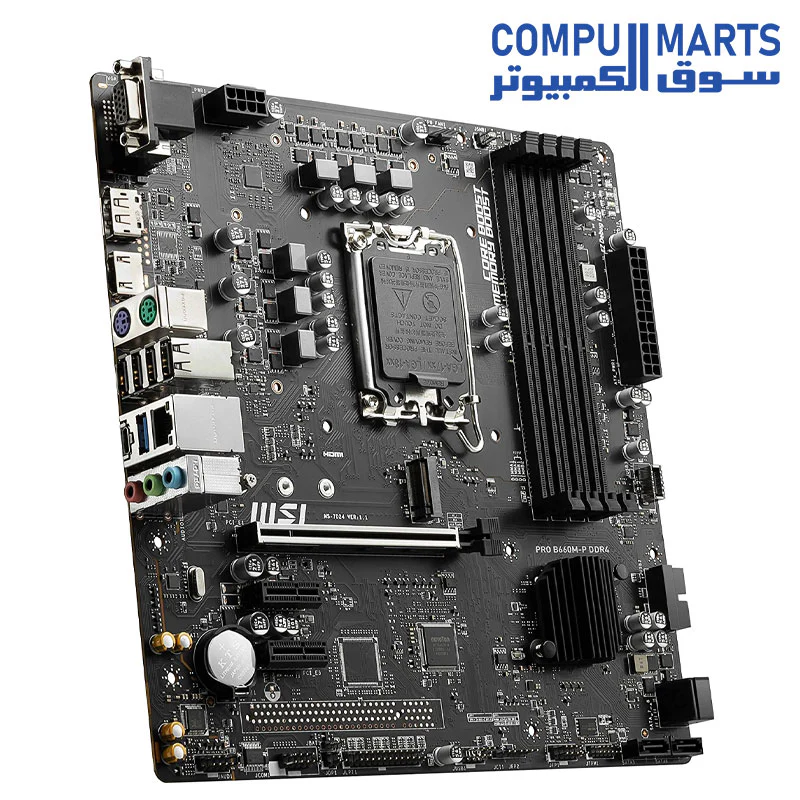

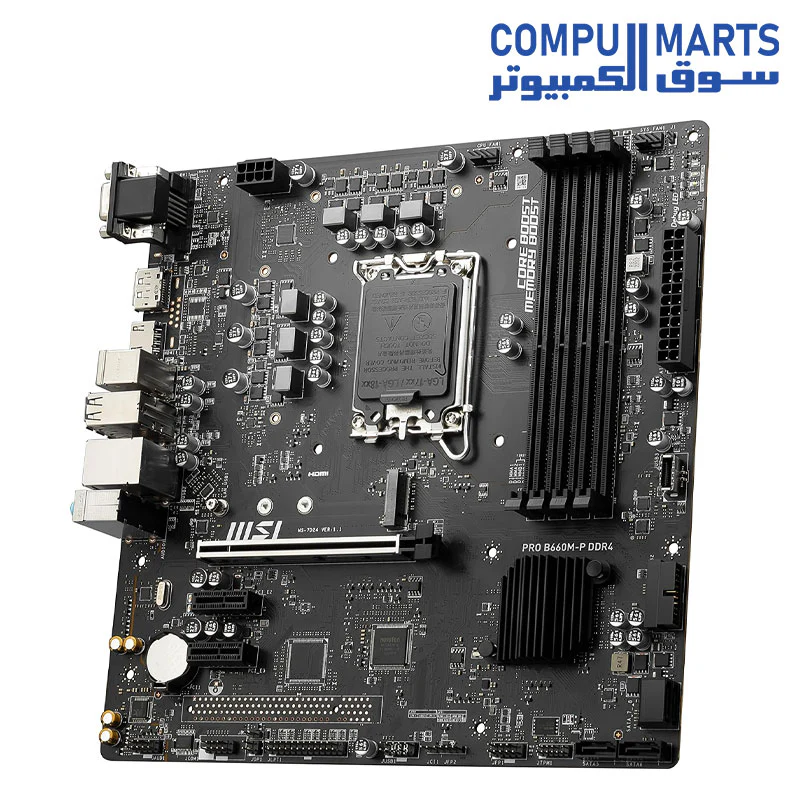

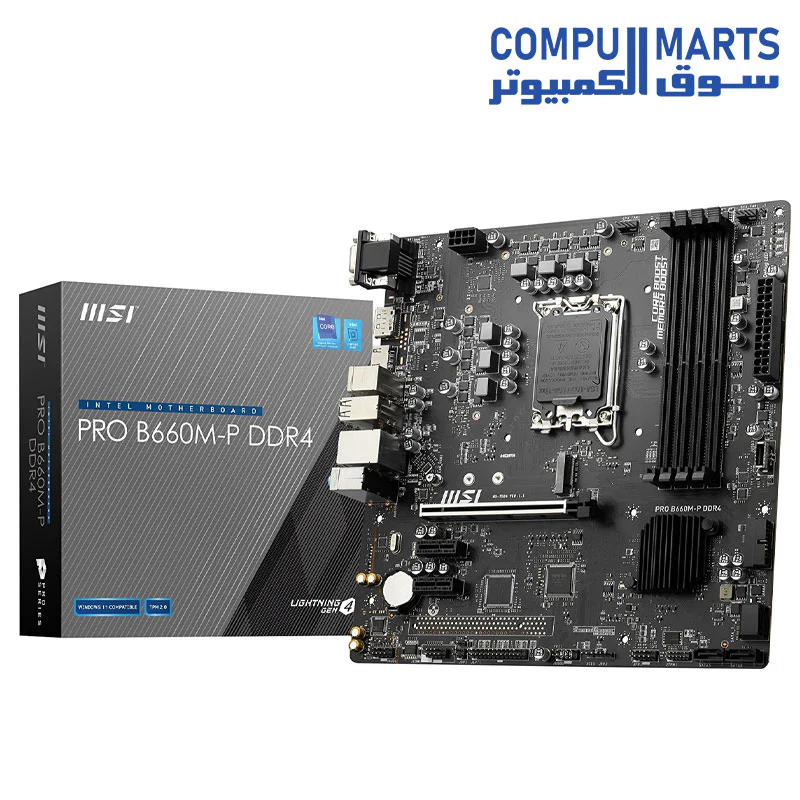

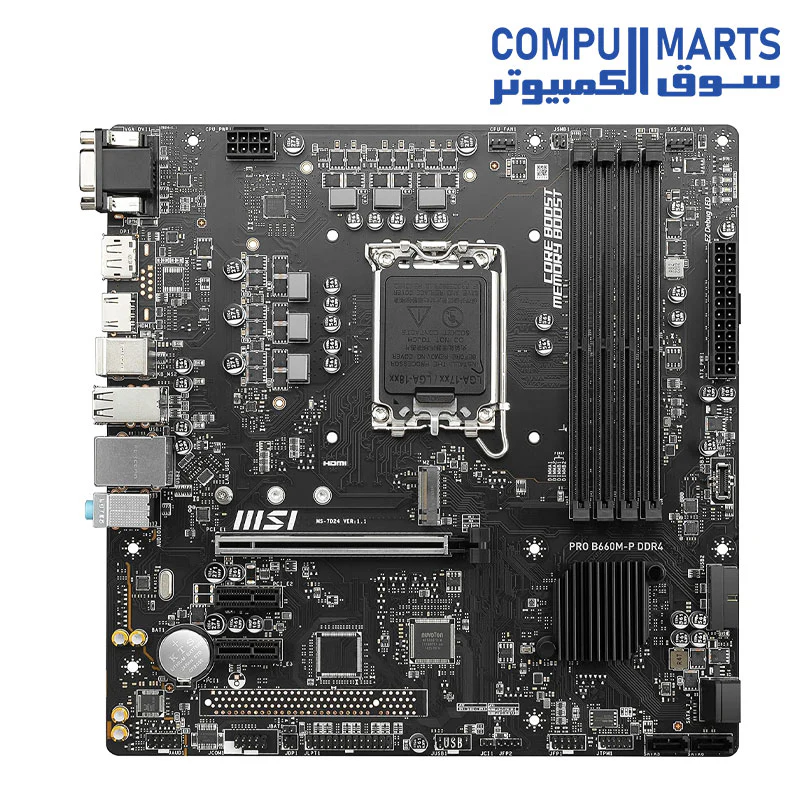

Motherboard MSI PRO B660M-P DDR4 LGA1700



Motherboard MSI PRO B660M-P DDR4 LGA1700

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

Performance mode

• Silent mode



MSI LAN MANAGER

• Allows you to change applications' traffic priority

• Allows you to customize bandwidth for each application

Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket



• Supports DDR4 Memory, up to 4600+(OC) MHz



• Core Boost : With premium layout and digital power design to support more cores and provide better performance



• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility



• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2



• Audio Boost: Reward your ears with studio grade sound quality



• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

• SOCKET : 1700

• CHIPSET : Intel B660 Chipset

• MEMORY CHANNEL : Dual

• DIMM SLOTS : 4

• MAX MEMORY (GB) : 128

• PCI-E X16 : 1

• PCI-E X1 : 2

• SATAIII : 4

• M.2 SLOT : 1

• RAID : 0/1/5/10

• TPM (HEADER) : 1

• USB 3.2 PORTS (FRONT) :  2(Gen 1, Type A), 1(Gen 1, Type C)

• USB 3.2 PORTS (REAR) :  1(Gen 2, Type C), 1(Gen 1, Type A)

• USB 2.0 PORTS (FRONT)  : 2

• USB 2.0 PORTS (REAR) : 4

• SERIAL PORTS(FRONT) : 1

• AUDIO PORTS (REAR) : Realtek ALC897 Codec

• DISPLAYPORT : 1

• VGA : 1

• HDMI : 1

• DIRECTX : 12

• OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows 10 64-bit

• FORM FACTOR : MATX

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

CPU

Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Processor socket LGA1700

CHIPSET

Intel B660 chipset

MEMORY

• 4x DDR4 memory slots, supporting up to 128GB

• Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)

• Max overclocking frequency:

• 1DPC 1R Max speed up to 4600+ MHz

• 1DPC 2R Max speed up to 4000+ MHz

• 2DPC 1R Max speed up to 4000+ MHz

• 2DPC 2R Max speed up to 3600+ MHz

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel Extreme Memory Profile (XMP)

EXPANSION SLOT

• 1x PCIe x16 slot

• PCI_E1 (From CPU)

• Supports up to PCIe 4.0 x16

• 2x PCIe x1 slots

• PCI_E2 & PCI_E3 (Fom B660 chipset)

• Supports up to PCIe 3.0

ONBOARD GRAPHICS

• 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz

• 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz

• 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

1. Available for the processor with integrated graphics.

2. Graphics specifications may vary depending on the CPU installed.

AUDIO

Realtek ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

1x Realtek RTL8111H 1Gbps LAN controller

STORAGE

• 4x SATA 6Gb/s ports (From B660 chipset)

• 1x M.2 slot (Key M)

• M2_1 slot (From B660 Chipset)

• Supports up to PCIe 4.0 x4

• Supports 2242/ 2260/ 2280 storage devices

• SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

FORM FACTOR

• M-ATX Form Factor

• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

BIOS FEATURES

• 1x 256 Mb flash

• UEFI AMI BIOS

• ACPI 6.4, SMBIOS 3.4

• Multi-language

POWER CONNECTORS

• 1x 24-pin ATX main power connector

• 1x 8-pin ATX 12V power connector

INTERNAL USB CONNECTORS

• 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)

• 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset)

• Supports additional 2 USB 3.2 Gen 1 5Gbps ports

• 1x USB 2.0 Type-A connector (From B660 chipset)

• Supports additional 2 USB 2.0 ports

FAN CONNECTORS

• 1x 4-pin CPU fan connector

• 1x 4-pin system fan connector

SYSTEM CONNECTORS

• 1x Front panel audio connector

• 2x System panel connectors

• 1x Chassis Intrusion connector

• 1x TPM module connector

• 1x parallel port connector

• 1x Serial port

JUMPERS

• 1x Clear CMOS jumper

LED FEATURE

• 4x EZ Debug LED

BACK PANEL CONNECTORS

1. VGA

2. DisplayPort

3. HDMI

4. Keyboard / Mouse

5. USB 2.0

6. LAN port

7. Audio connectors

8. USB 3.2 Gen 2 10Gbps Type-C

9. USB 3.2 Gen 1 5Gbps Type-A
