Motherboard Asus PRIME B660M-K D4 - Intel B660 (LGA 1700) mATX with PCIe 4.0, two M.2 slots, DDR4, HDMI



Motherboard Asus PRIME B660M-K D4 - Intel B660 (LGA 1700)

Brand	ASUS
CPU socket	LGA 1700
Ram memory technology	DDR4
Memory clock speed	2133 MHz
Platform	Windows 10
Memory storage capacity	12 GB
Graphics card interface	PCI Express
Memory slots available	2
Total USB ports	6

• Intel LGA 1700 socket: Ready for 12^th gen Intel processors

• Enhanced power solution: 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery

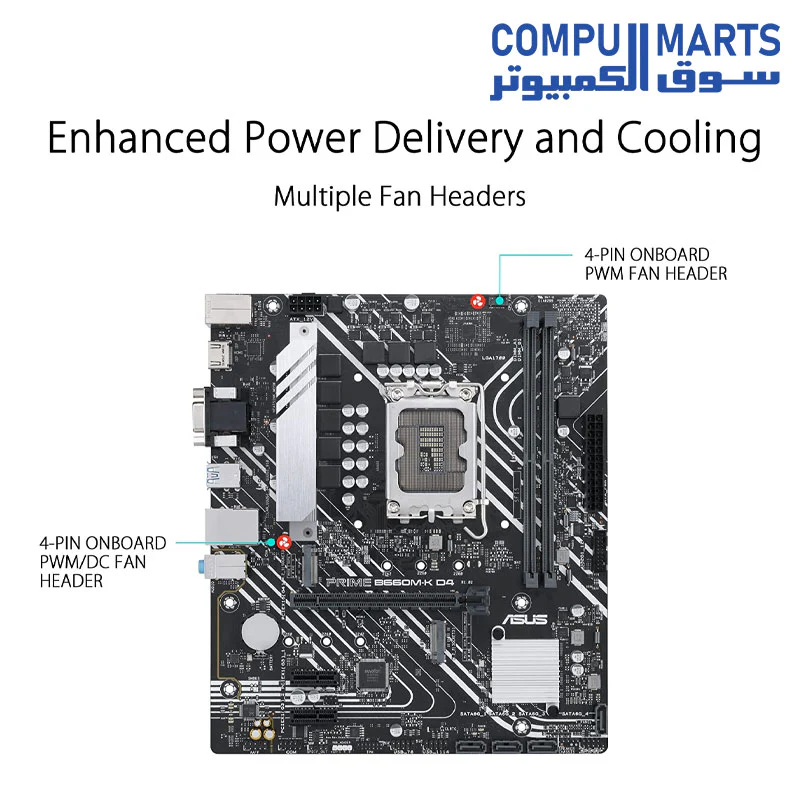

• Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert

• Ultrafast connectivity: PCIe 4.0, two M.2 slots and front USB 3.2 Gen 1



Model

PRIME B660M-K D4

CPU

Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Memory

2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

Graphics

1 x D-Sub port

1 x HDMI port

 Graphics specifications may vary between CPU types.

 Support 4K 60Hz as specified in HDMI 2.1.

Expansion Slots

Intel 13^th & 12^th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel B660 Chipset

2 x PCIe 3.0 x1 slots

Storage

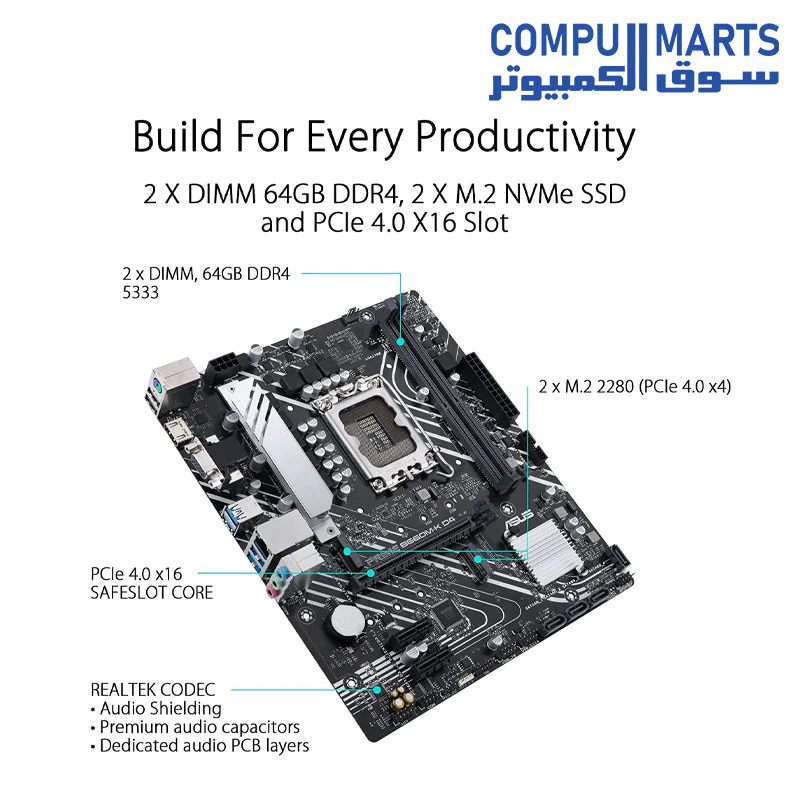

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel 13^th & 12^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

Intel B660 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

4 x SATA 6Gb/s ports

 Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

 Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Ethernet

1 x Realtek 1Gb Ethernet

ASUS LANGuard

USB

Rear USB: Total 6 ports

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A）

Front USB :Total 6 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMI® port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

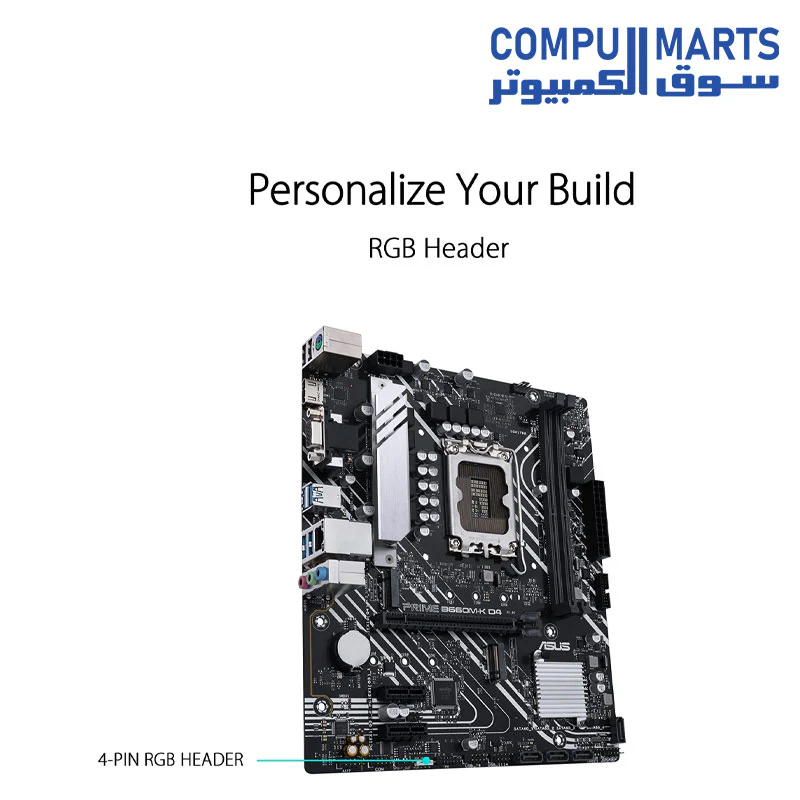

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS EZ DIY

- ProCool

ASUS Thermal Solution

- VRM heatsink design

ASUS Lighting Control

-RGB header

Software Features

ASUS Exclusive Software

Armoury Crate

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

2 x M.2 anchors

Installation Media

1 x Support DVD

Documentation

1 x User manual

Operating System

Windows 11, Windows 10 64-bit

Form Factor

micro ATX

24.4cm x 21.1cm
