$1,336.02
Lenovo Legion 5 15IRX10 (83LY0000US) | Intel Core i7-14700HX | RTX 5060 8GB | 16GB RAM | 1TB SSD | 15.1" WQXGA OLED 165Hz Gaming Laptop—
$1,336.02
The Story

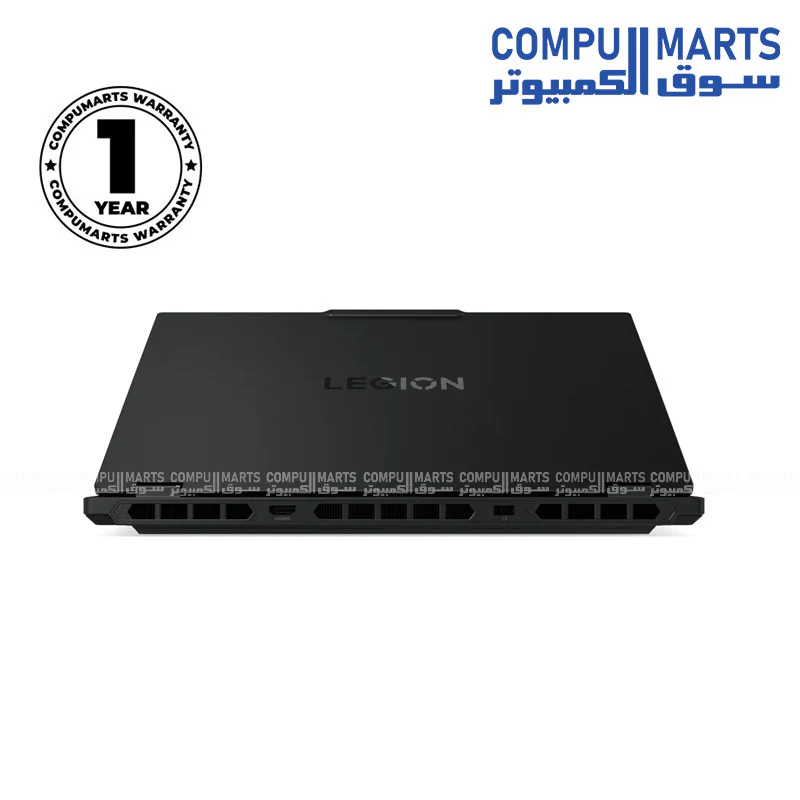

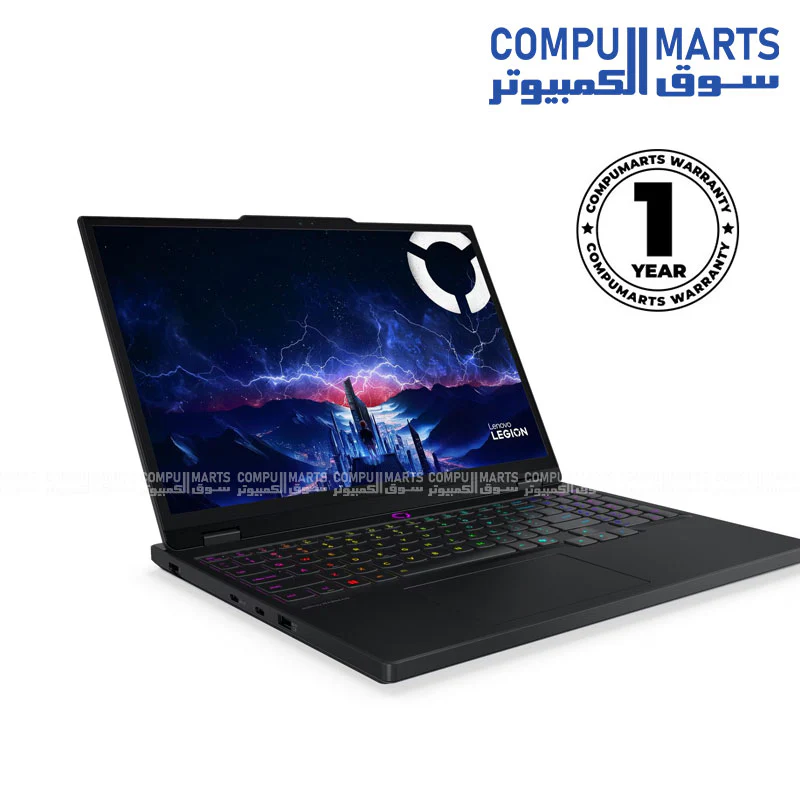

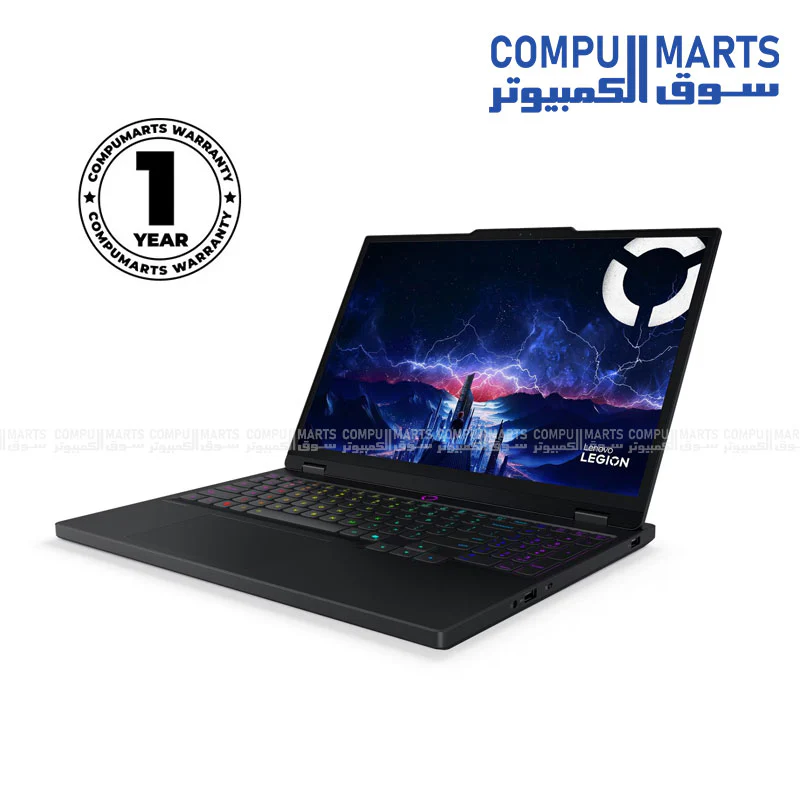

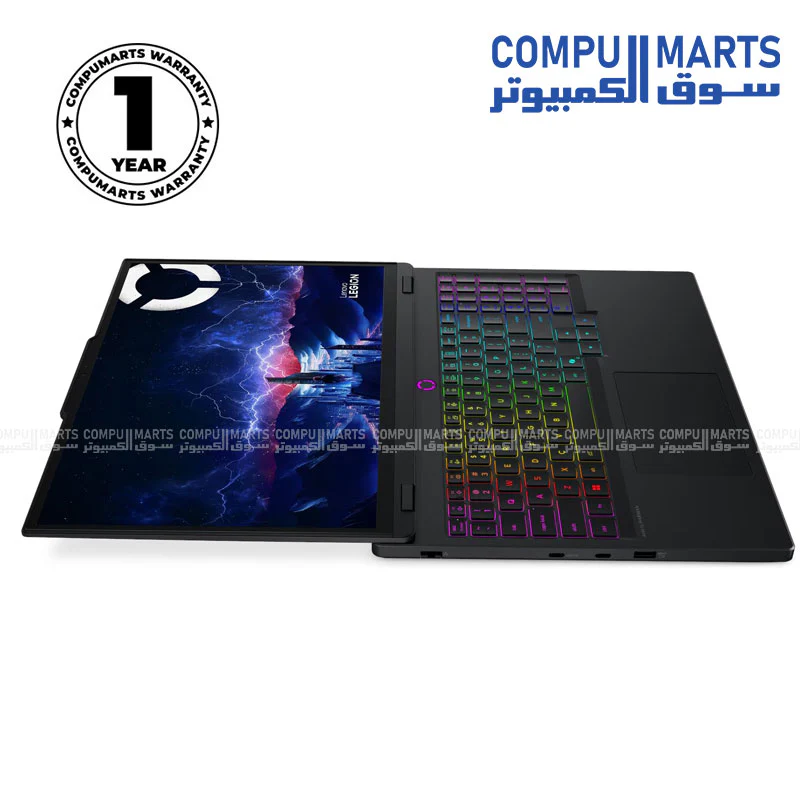

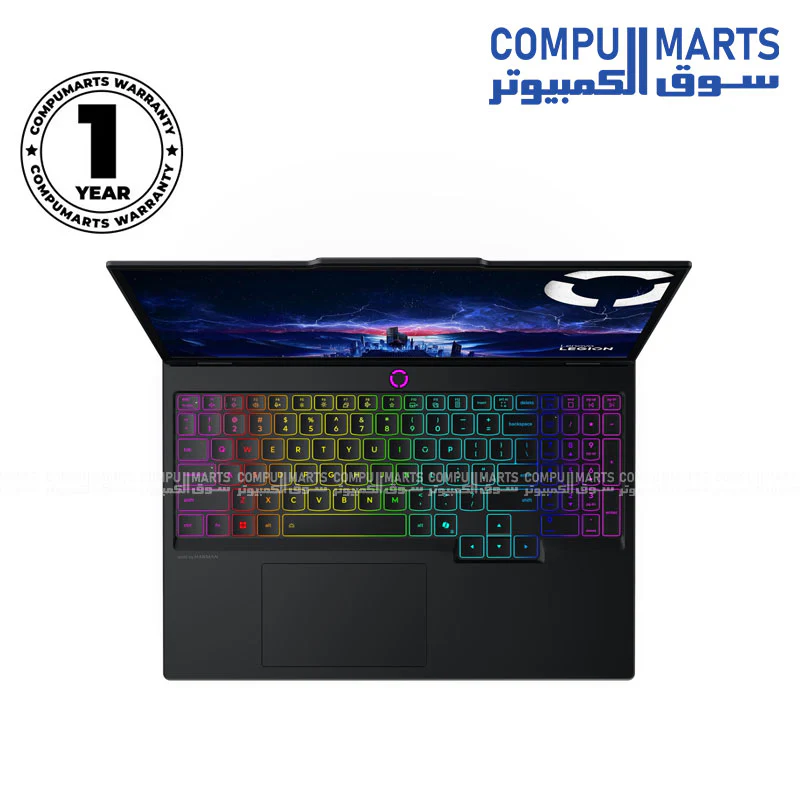

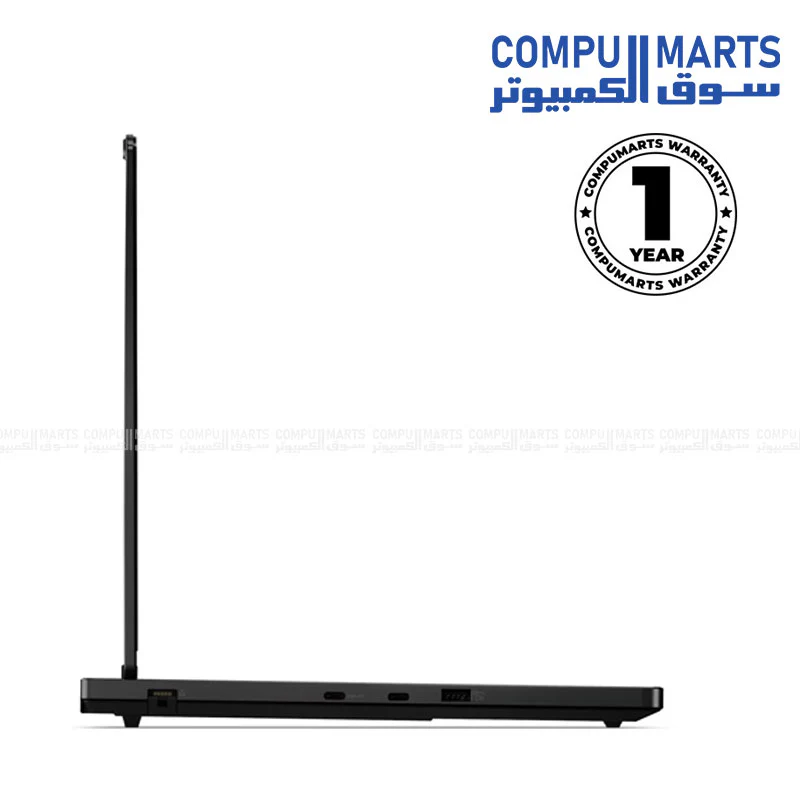

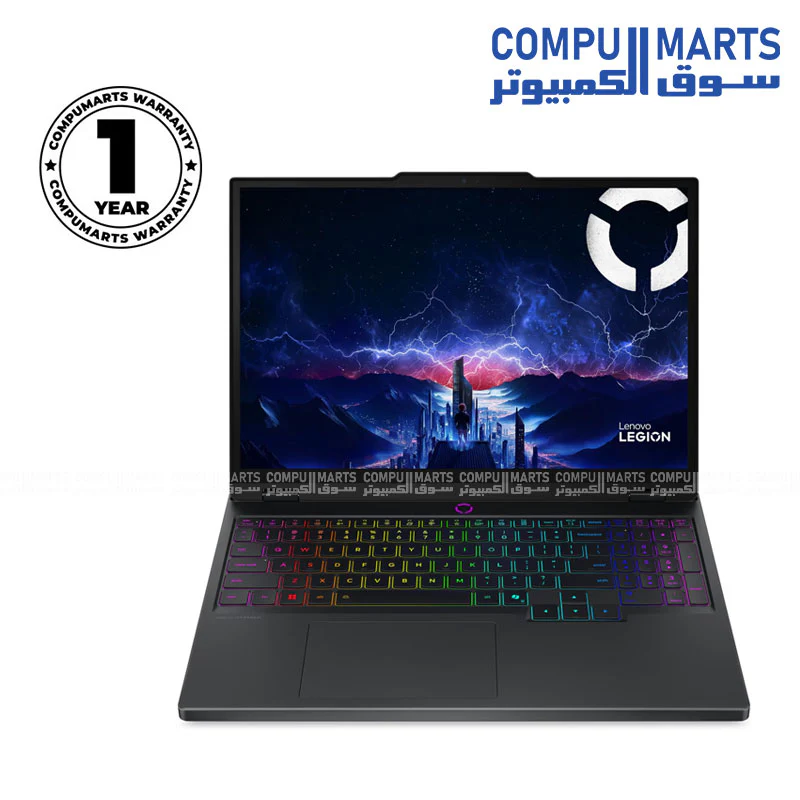

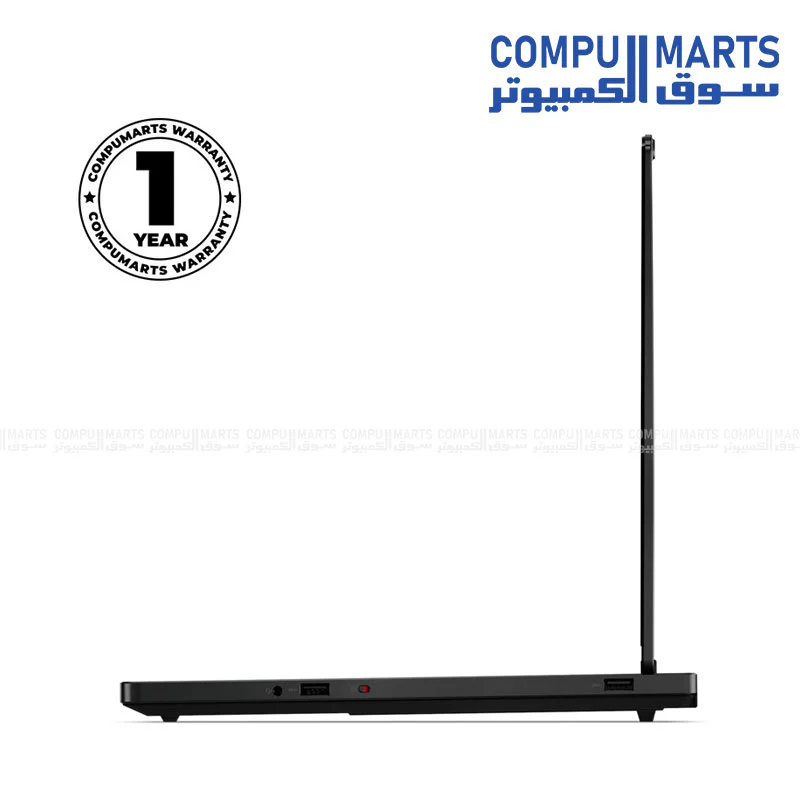

Lenovo Legion 5 15IRX10 (83LY0000US) | Intel Core i7-14700HX | RTX 5060 8GB | 16GB RAM | 1TB SSD | 15.1" WQXGA OLED 165Hz Gaming Laptop
Processor |
Intel Core i7-14700HX, 20C (8P + 12E) / 28T, P-core 2.1 / 5.5GHz, E-core 1.5 / 3.9GHz, 33MB |
AI PC Category |
AI-Powered Gaming PC |
NPU |
None |
Graphics |
NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS |
Chipset |
Intel HM770 Chipset |
Memory |
1x 16GB SO-DIMM DDR5-5600 |
Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
Max Memory |
Up to 32GB DDR5-5600 offering |
Storage |
1TB SSD M.2 2242 PCIe 4.0x4 NVMe |
Storage Slot |
Two M.2 2280 PCIe 4.0 x4 slots |
Max Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each |
Optical |
None |
Card Reader |
None |
Audio Chip |
High Definition (HD) Audio, Realtek ALC3287 codec |
Speakers |
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio |
Microphone |
2x, Array |
Camera |
5.0MP with E-shutter |
Battery |
80Wh |
Power Adapter |
245W Slim Tip (3-pin) |
Special Features |
AI Chip: LA1 |
DESIGN |
|
Display |
15.1" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) glossy, 100% DCI-P3, 165Hz, Dolby Vision, DisplayHDR True Black 600 |
Touchscreen |
None |
Screen-to-Body Ratio |
OLED models: 90% AAR (active area ratio) |
Color Calibration |
Factory Color Calibration |
Pen |
Pen Not Supported |
Keyboard |
24-Zone RGB Backlit, English |
Touchpad |
Buttonless Mylar surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
Dimensions (WxDxH) |
344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79-0.85 inches) |
Weight |
Starting at 1.9 kg (4.19 lbs) |
Case Color |
Eclipse Black |
Case Material |
Aluminium (Top), PC-ABS + 15% Talc (Bottom) |
Surface Treatment |
Aluminium Stamping (Anodized with Sandblasting) |
SOFTWARE |
|
Operating System |
Windows 11 Home, English |
Bundled Software |
Office Trial + Lenovo AI Now |
CONNECTIVITY |
|
WLAN + Bluetooth |
Wi-Fi 7, 802.11be 2x2 + BT5.4 |
WWAN |
Non-WWAN |
Ethernet |
100/1000M (RJ-45) |
Standard Ports |
|
Docking |
Various docking solutions supported via USB-C |
SECURITY & PRIVACY |
|
Security Chip |
Firmware TPM 2.0 Enabled |
Fingerprint Reader |
None |
Other Security |
E-shutter |
SERVICE |
|
Base Warranty |
1-year, Courier or Carry-in |
Included Upgrade |
None |
ACCESSORIES |
|
Bundled Accessories |
None |
CERTIFICATIONS |
|
Green Certifications |
|
Other Certifications |
|
MODEL INFORMATION |
|
Model |
83LY0000US |
Machine Type |
83LY |
Region |
NA |
Country/Region |
USA |
TopSeller |
No |
EAN / UPC / JAN |
198155802546 |
Announce Date |
2025-05-26 |
End of Support |
2057-02-07 |
