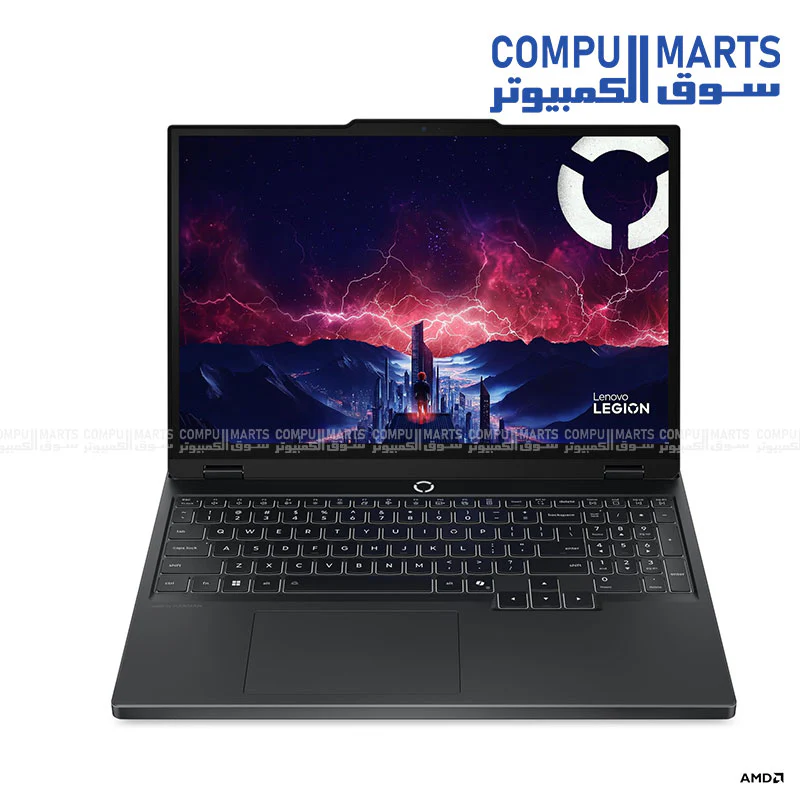

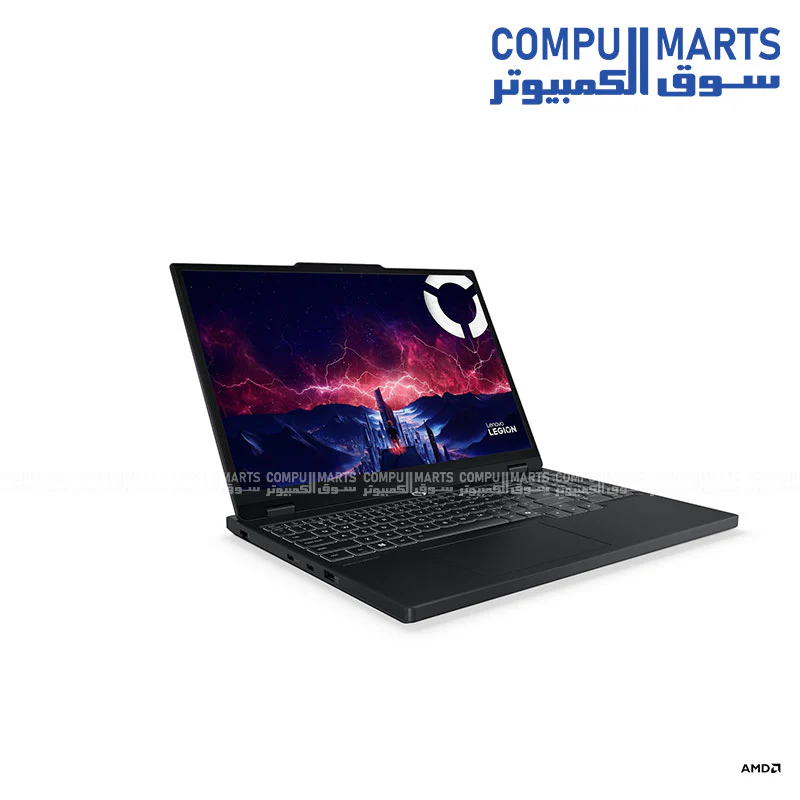

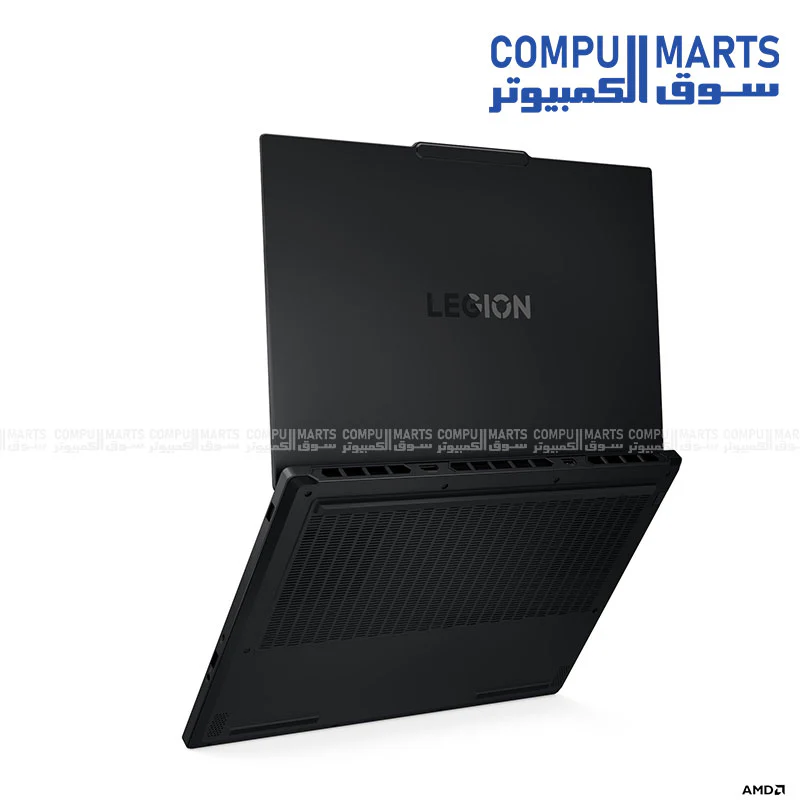

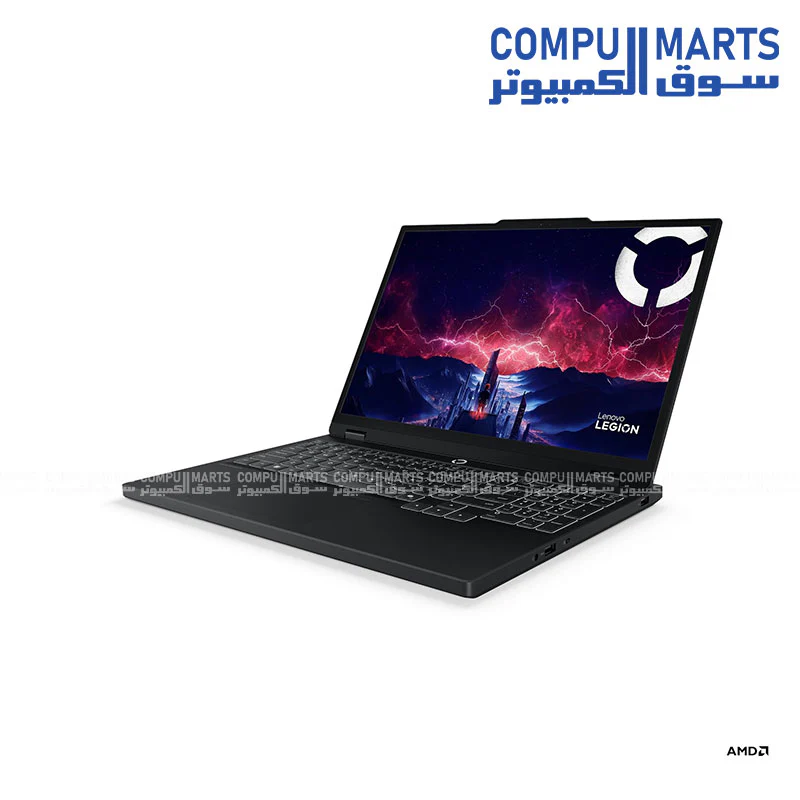

Lenovo Legion 5 15AHP10 (83M0004AUS) Gaming Laptop - AMD Ryzen 7 260- NVIDIA GeForce RTX 5060 8GB GDDR7- 15.1- WQXGA OLED 165Hz- 16GB DDR5- 512GB SSD- Windows 11 Home
Lenovo Legion 5 15AHP10 (83M0004AUS) Gaming Laptop - AMD Ryzen 7 260- NVIDIA GeForce RTX 5060 8GB GDDR7- 15.1- WQXGA OLED 165Hz- 16GB DDR5- 512GB SSD- Windows 11 Home
$0.02
Lenovo Legion 5 15AHP10 (83M0004AUS) Gaming Laptop - AMD Ryzen 7 260- NVIDIA GeForce RTX 5060 8GB GDDR7- 15.1- WQXGA OLED 165Hz- 16GB DDR5- 512GB SSD- Windows 11 Home—
$0.02
The Story
Lenovo Legion 5 15AHP10 (83M0004AUS) Ryzen 7 260 RTX 5060
PERFORMANCE |
|
Processor |
AMD Ryzen 7 260 (8C / 16T- 3.8 / 5.1GHz- 8MB L2 / 16MB L3) |
AI PC Category |
AI-Powered Gaming PC |
NPU |
Integrated AMD Ryzen AI- up to 16 TOPS |
Graphics |
NVIDIA GeForce RTX 5060 8GB GDDR7- Boost Clock 2497MHz- TGP 115W- 572 AI TOPS |
Chipset |
AMD SoC Platform |
Memory |
1x 16GB SO-DIMM DDR5-5600 |
Memory Slots |
Two DDR5 SO-DIMM slots- dual-channel capable |
Max Memory |
Up to 32GB DDR5-5600 offering |
Storage |
512GB SSD M.2 2242 PCIe 4.0x4 NVMe |
Storage Slot |
Two M.2 2280 PCIe 4.0 x4 slots |
Max Storage Support |
Up to two drives- 2x M.2 SSD • M.2 2242 SSD up to 1TB each |
Optical |
None |
Card Reader |
None |
Audio Chip |
High Definition (HD) Audio- Realtek ALC3287 codec |
Speakers |
Stereo speakers- 2W x2- audio by HARMAN- optimized with Nahimic Audio |
Microphone |
2x- Array |
Camera |
5.0MP with E-shutter |
Battery |
80Wh |
Power Adapter |
245W Slim Tip (3-pin) |
Special Features |
AI Chip: LA1 |
DESIGN |
|
Display |
15.1" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) glossy- 100% DCI-P3- 165Hz- Dolby Vision- DisplayHDR True Black 600 |
Touchscreen |
None |
Screen-to-Body Ratio |
OLED models: 90% AAR (active area ratio) |
Color Calibration |
Factory Color Calibration |
Pen |
Pen Not Supported |
Keyboard |
24-Zone RGB Backlit- English |
Touchpad |
Buttonless Mylar surface multi-touch touchpad- supports Precision TouchPad (PTP)- 75 x 120 mm (2.95 x 4.72 inches) |
Dimensions (WxDxH) |
344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79-0.85 inches) |
Weight |
Starting at 1.9 kg (4.19 lbs) |
Case Color |
Eclipse Black |
Case Material |
Aluminium (Top)- PC-ABS + 15% Talc (Bottom) |
Surface Treatment |
Aluminium Stamping (Anodized with Sandblasting) |
SOFTWARE |
|
Operating System |
Windows 11 Home- English |
Bundled Software |
Office Trial + Lenovo AI Now |
CONNECTIVITY |
|
WLAN + Bluetooth |
Wi-Fi 7- 802.11be 2x2 + BT5.4 |
WWAN |
Non-WWAN |
Ethernet |
100/1000M (RJ-45) |
Standard Ports |
|
Docking |
Various docking solutions supported via USB-C. |
SECURITY & PRIVACY |
|
Security Chip |
Firmware TPM 2.0 Enabled |
Fingerprint Reader |
None |
Other Security |
E-shutter |
SERVICE |
|
Base Warranty |
1-year- Courier or Carry-in |
Included Upgrade |
None |
ACCESSORIES |
|
Bundled Accessories |
None |
CERTIFICATIONS |
|
Green Certifications |
|
Other Certifications |
TÜV Rheinland Low Blue Light (Hardware Solution) |
MODEL INFORMATION |
|
Model |
83M0004AUS |
Machine Type |
83M0 |
Region |
NA |
Country/Region |
USA |
TopSeller |
No |
EAN / UPC / JAN |
199271341513 |
Announce Date |
2025-06-20 |
End of Support |
2031-06-16 |
