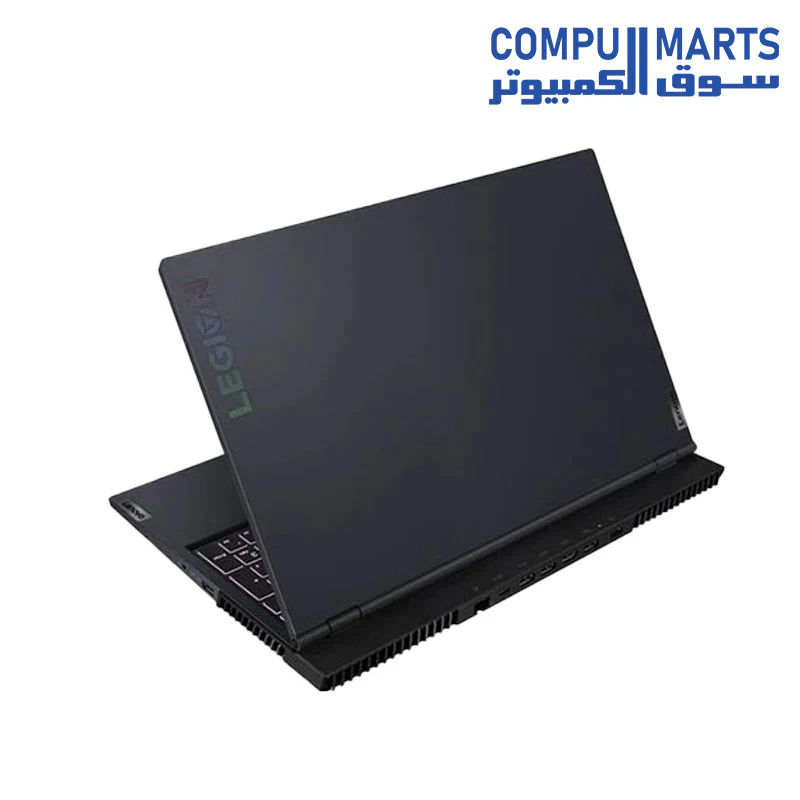

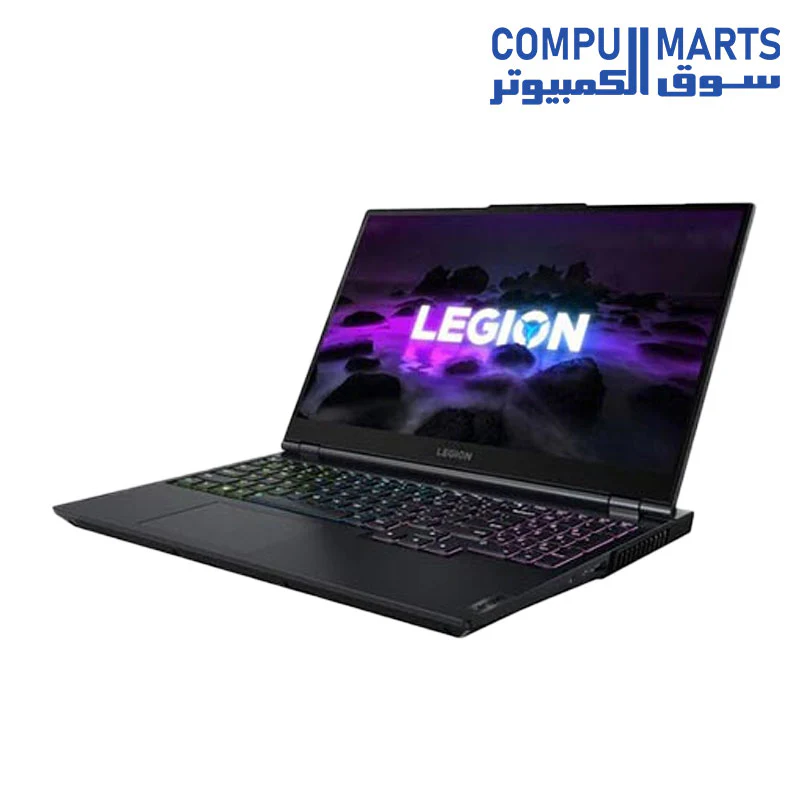

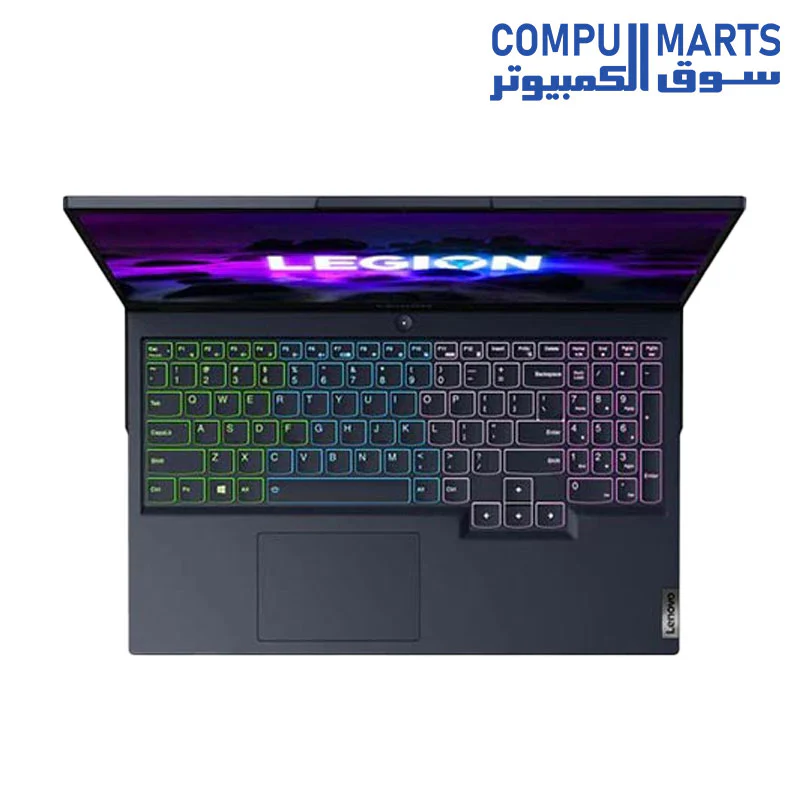

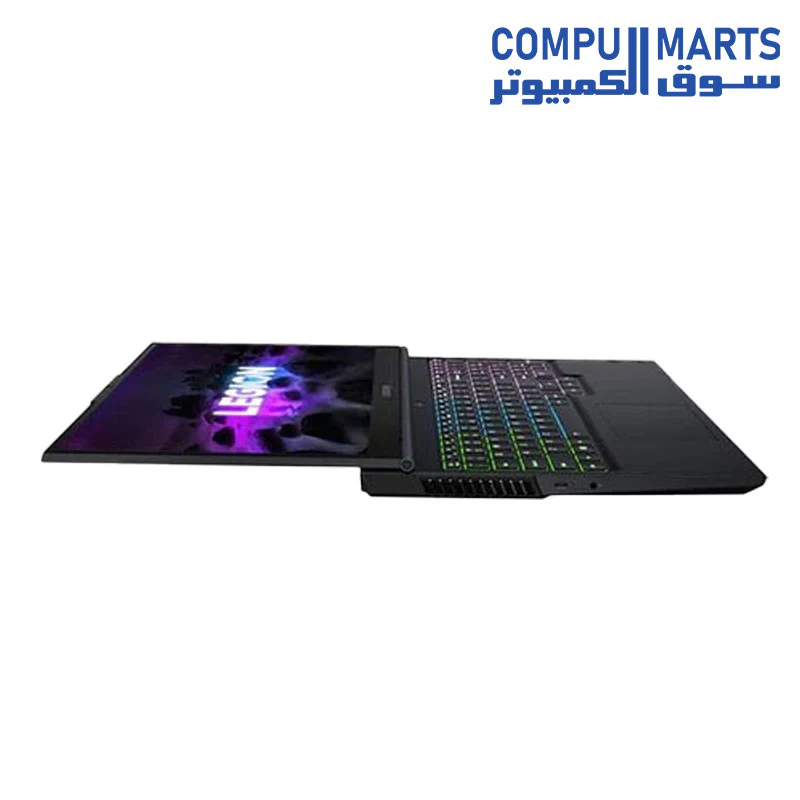

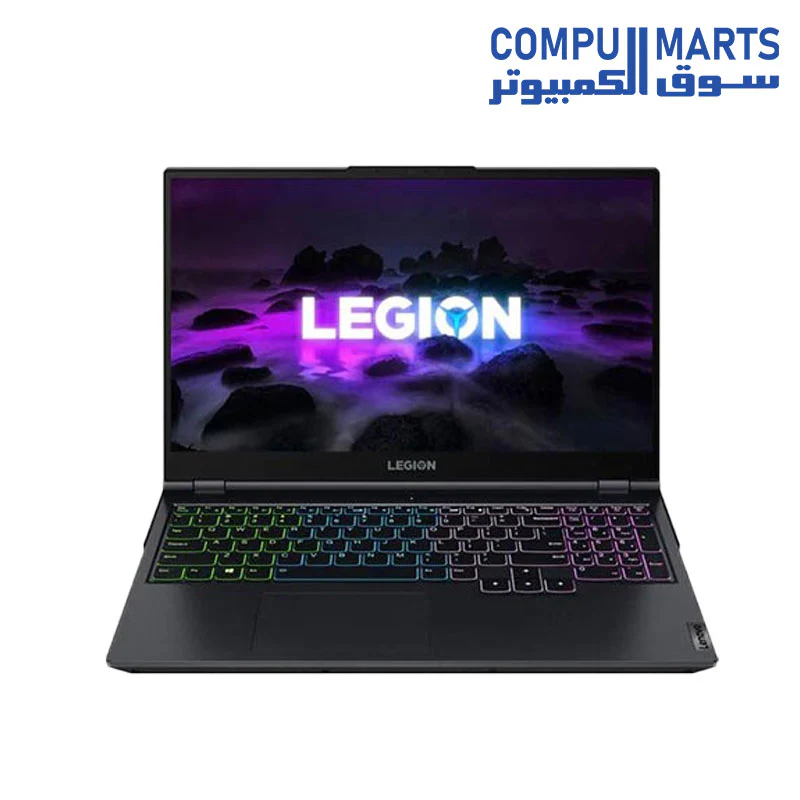

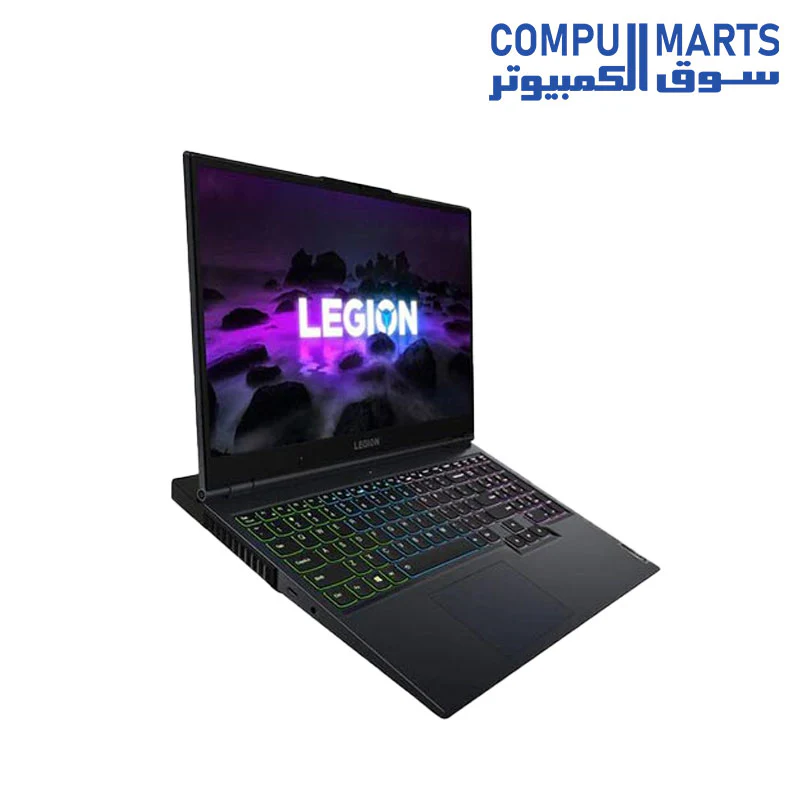

LENOVO Legion 5 15ACH6H 82JU01BEAX - AMD Ryzen 7 5800H RTX 3070 8GB 16GB DDR4-3200 512GB SSD M.2-15.6 IPS 165HZ

LENOVO LEGION 5 15ACH6H RYZEN 7 5800H-16G RAM 512GB SSD RTX 3070-15.6 FHD IPS 165Hz - 82JU01BEAX



PERFORMANCE

Processor AMD Ryzen 7 5800H (8C / 16T, 3.2 / 4.4GHz, 4MB L2 / 16MB L3)

Graphics NVIDIA GeForce RTX 3070 8GB GDDR6, Boost Clock 1560MHz, TGP 130W Chipset AMD SoC Platform

Memory

2x 8GB SO-DIMM DDR4-3200 Memory Slots Two DDR4 SO-DIMM slots, dual-channel capable

Max Memory Up to 32GB DDR4-3200 offering

Storage

512GB SSD M.2 2280 PCIe 3.0x4 NVMe

Storage Support Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB Storage Slot Two M.2 2280 PCIe 3.0 x4 slots

Card Reader: None

Optical: None

Audio Chip High Definition (HD)

Audio, Realtek ALC3306 codec Speakers Stereo speakers, 2W x2, Nahimic Audio

Camera HD 720p with E-shutter

Microphone : 2x, Array

Battery Integrated : 80Wh

Max Battery Life Mobile Mark 2018: 9.2 hr (80Wh)

Power Adapter : 300W Slim Tip (3-pin)

DESIGN

Display

15.6" FHD (1920x1080) IPS 300 nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision, Free Sync, G-SYNC

Touchscreen : None

Keyboard 4-Zone RGB Backlit, Arabic Case Color Phantom Blue (Top), Shadow Black (Bottom)

Surface Treatment

Painting

Case Material : PC-ABS (Top), PC-ABS (Bottom)

Dimensions : (WxDxH) 362.56 x 260.61 x 22.5-25.75 mm (14.27 x 10.26 x 0.89-1.01 inches)

Weight :  Around 2.4 kg (5.3 lbs)

SOFTWARE

Operating System: None

Bundled Software: None

CONNECTIVITY

Ethernet : 100/1000M (RJ-45)

WLAN + Bluetooth 11ac 2x2 + BT5.1

Standard Ports :

3x USB 3.2 Gen 1

1x USB 3.2 Gen 1 (Always On)

1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort 1.4)

1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery and DisplayPort1.4)

1x HDMI 2.1

 1x Ethernet (RJ-45)

1x Headphone / microphone combo jack (3.5mm)

1x Power connector SECURITY & PRIVACY

Security Chip :  Firmware TPM 2.0

Fingerprint Reader: None

Other Security : E-Camera shutter

Included Upgrade : None

ACCESSORIES Bundled Accessories : None

CERTIFICATIONS Green Certifications

• ErP Lot 3

• RoHS compliant
