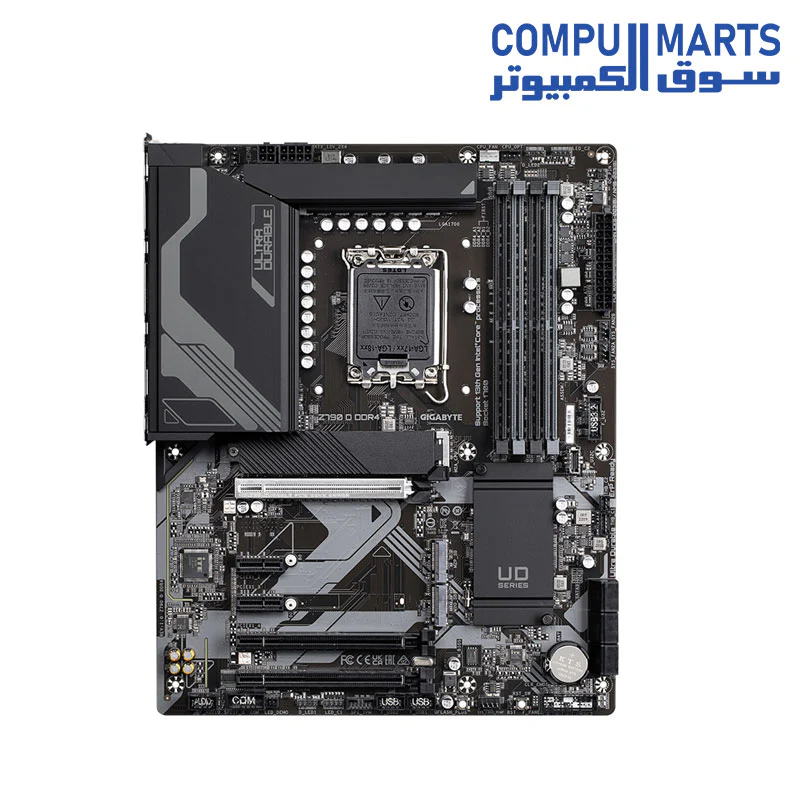

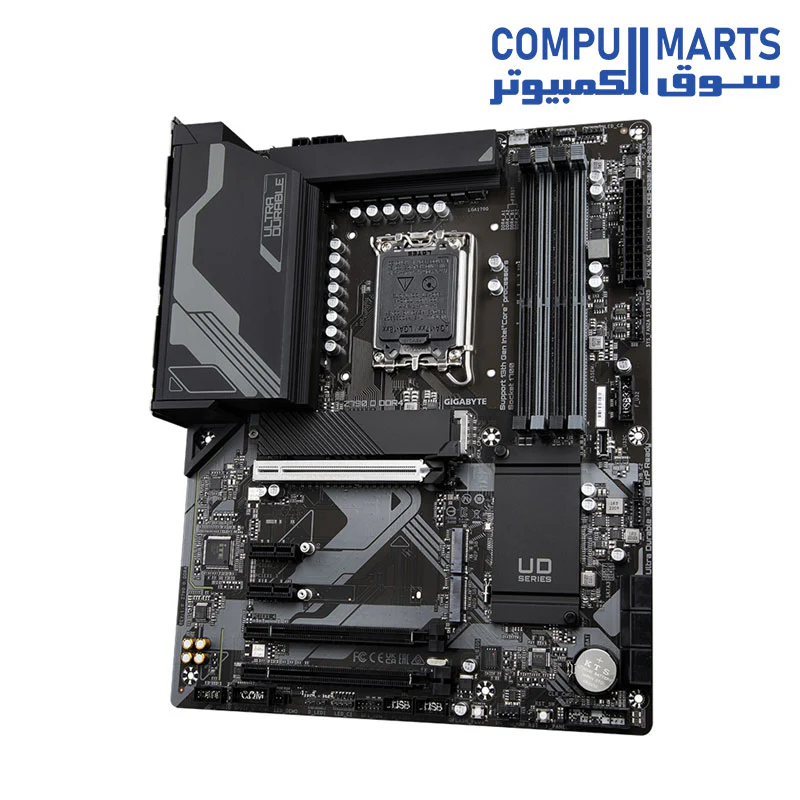

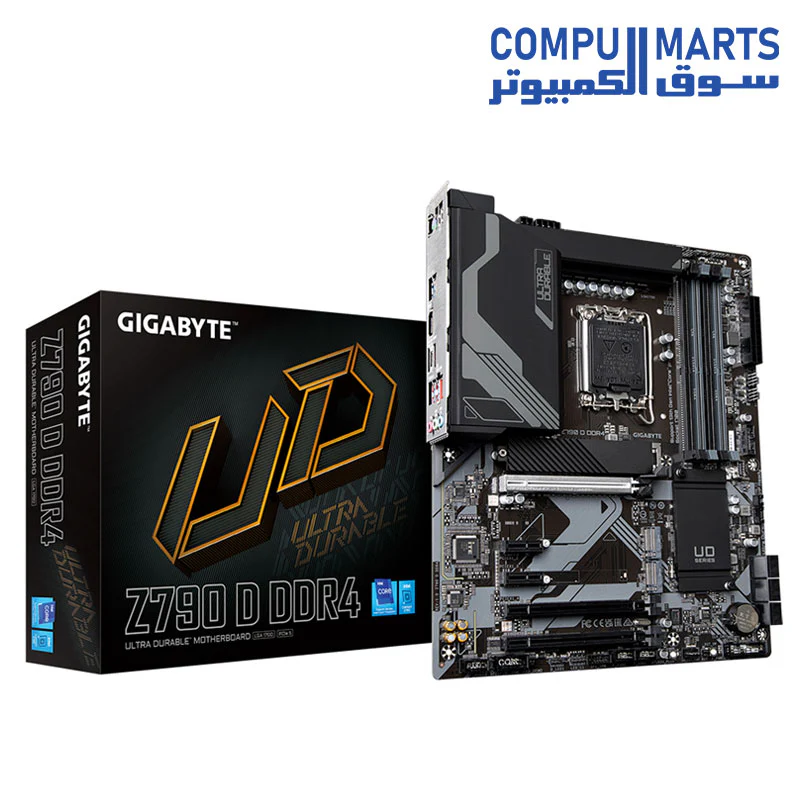

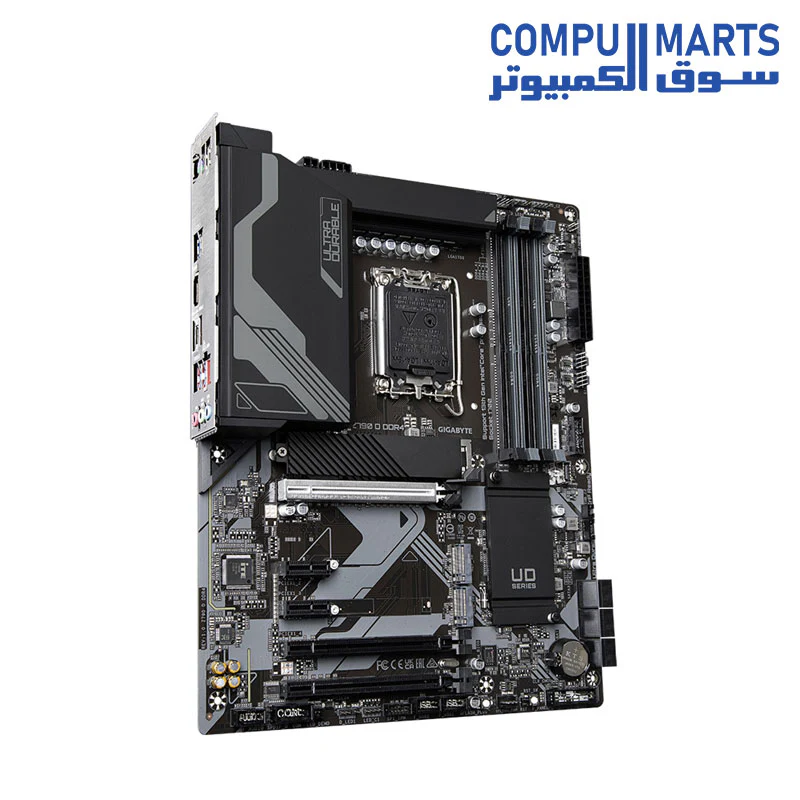

GIGABYTE Z790 D DDR4 Intel Socket 1700 Motherboard

GIGABYTE Z790 D DDR4 Intel Socket 1700 Motherboard

• Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors

• Unparalleled Performance：Twin 16+1+１ Phases Digital VRM Solution

• Dual Channel DDR4：4 SMD DIMMs with XMP 3.0 Memory Module Support

• Next Generation Storage：3 PCIe 4.0 x4 M.2 Connectors

• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance

• EZ-Latch：PCIe 5.0 x16 Slot with Quick Release & Screwless Design

• Fast Networks：2.5GbE LAN

• Extended Connectivity：HDMI, Front USB-C 5Gb/s, Rear USB-C 20Gb/s

• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

• CPU

  1. LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

  2. L3 cache varies with CPU

  (Please refer CPU Support List for more information.)

• Chipset

  1. Intel Z790 Express Chipset

• Memory

  1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer Memory Support List for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x216060 Hz

      Support for HDMI 2.0 version and HDCP 2.3.

  2. 1 x DisplayPort, supporting a maximum resolution of 4096x230460 Hz

      Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel

      You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  4. Support for S/PDIF Out

• LAN

  1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

      For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

  2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)

  3. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

  Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)

  2. 6 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  Chipset:

  1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support

  2. 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

  Chipset+1 USB 2.0 Hub:

  1. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x 4-pin ATX 12V power connector

  4. 1 x CPU fan header

  5. 1 x water cooling CPU fan header

  6. 3 x system fan headers

  7. 1 x system fan/water cooling pump header

  8. 2 x addressable LED strip headers

  9. 2 x RGB LED strip headers

  10. 3 x M.2 Socket 3 connectors

  11. 6 x SATA 6Gb/s connectors

  12. 1 x front panel header

  13. 1 x front panel audio header

  14. 1 x S/PDIF Out header

  15. 1 x USB Type-C header, with USB 3.2 Gen 1 support

  16. 1 x USB 3.2 Gen 1 header

  17. 2 x USB 2.0/1.1 headers

  18. 1 x serial port header

  19. 2 x Thunderbolt add-in card connectors

  20. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  21. 1 x reset button

  22. 1 x Q-Flash Plus button

  23. 1 x reset jumper

  24. 1 x Clear CMOS jumper

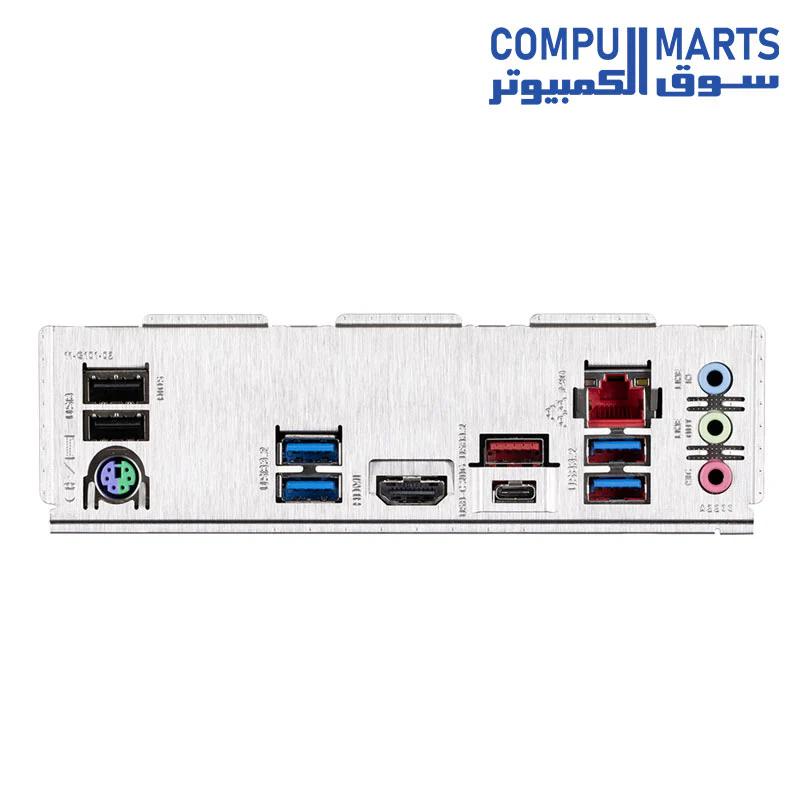

• Back Panel Connectors

  1. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support

  2. 1 x USB 3.2 Gen 2 Type-A port (red)

  3. 4 x USB 3.2 Gen 1 ports

  4. 2 x USB 2.0/1.1 ports

  5. 1 x HDMI 2.0 port

  6. 1 x RJ-45 port

  7. 3 x audio jacks

• I/O Controller

  1. iTE I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Water cooling flow rate detection

  5. Fan fail warning

  6. Fan speed control

      Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for GIGABYTE Control Center (GCC)

      Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  2. Support for Q-Flash

  3. Support for Q-Flash Plus

  4. Support for Smart Backup

• Bundled Software

  1. Norton Internet Security (OEM version)

  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Form Factor

  1. ATX Form Factor; 30.5cm x 24.4cm
