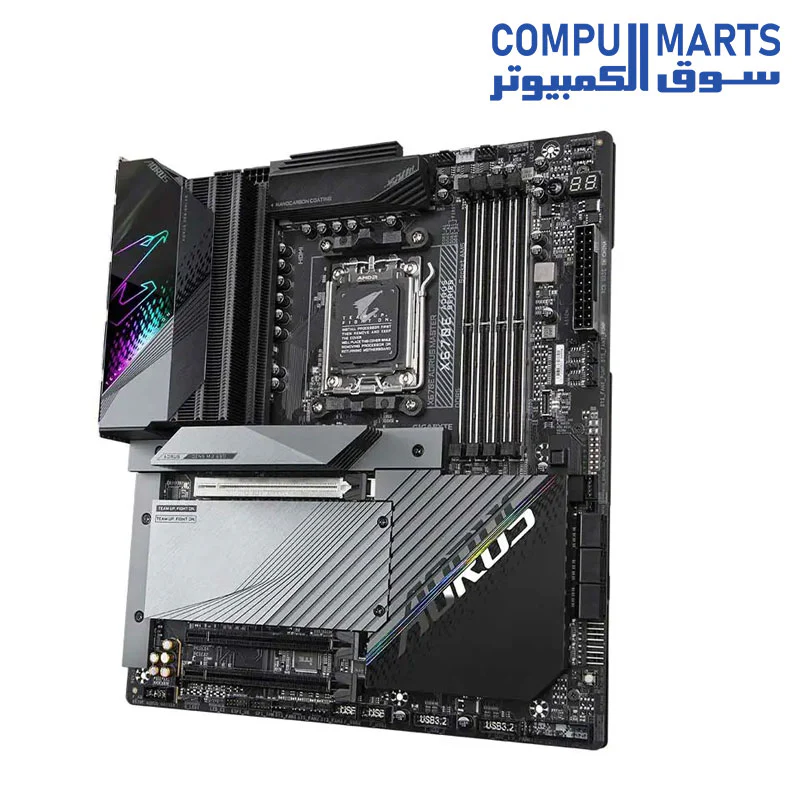

GIGABYTE X670E AORUS MASTER DDR5 Motherboard

GIGABYTE X670E AORUS MASTER DDR5 Motherboard



• AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors

• DDR5 Compatible: 4 SMD DIMMs with ECC/Non-ECC Unbuffered Memory

• Commanding Power Design: Direct 16+2+2 Phases Digital VRM Solution, 8-Layer 2X Copper PCB

• Cutting-Edge Thermal Design: Fins-Array III & M.2 Thermal Guard III, Ultra Durable Armor, NanoCarbon Aluminum Backplate, Aluminum IO Cover

• Next Gen Connectivity: PCIe 5.0, Quad NVMe x4 M.2, Dual USB-C, BT 5.3

• EZ-Latch Plus: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design

• Fast Networking: Intel 2.5GbE LAN, Intel WiFi 6E 802.11ax

• Dynamic Audio: DTS:X Ultra, ALC1220 CODEC

• CPU

  1. AMD Socket AM5, support for : AMD Ryzen 7000 Series Processors

  (Please refer CPU Support List for more information.)

• Chipset

  1. AMD X670

• Memory

  1. Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

• Onboard Graphics

  Integrated Graphics Processor:

  1. 1 x DisplayPort, supporting a maximum resolution of 3840×2160 144 Hz

  2. 1 x USB Type-C  port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840×2160 144 Hz




  3. 1 x HDMI port, supporting a maximum resolution of 4096×2160 60 Hz

  4.


  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek ALC1220-VB CODEC

     Support for DTS:X Ultra

  3. High Definition Audio

  4. 2/4/5.1/7.1-channel output

      You can change the functionality of an audio jack using the audio software. To configure

     7.1-channel audio, access the audio software for audio settings.

  5. Support for S/PDIF Out

• LAN

  1. Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

  Intel Wi-Fi 6E AX210

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.3

  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

     (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)




  Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

  2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

  Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)

  2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)

  Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)

  2. 6 x SATA 6Gb/s connectors

  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB

  CPU:

  1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  CPU + USB 2.0 Hub:

  1. 2 x USB 2.0/1.1 ports on the back panel

  Chipset:

  1. 2 x USB Type-C ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)

  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  3. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

  4. 4 x USB 2.0/1.1 ports available through the internal USB headers

  Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports on the back panel

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 2 x 8-pin ATX 12V power connectors

  3. 1 x CPU fan header

  4. 1 x water cooling CPU fan header

  5. 4 x system fan headers

  6. 4 x system fan/water cooling pump headers

  7. 2 x addressable LED strip headers

  8. 2 x RGB LED strip headers

  9. 1 x CPU cooler LED strip/RGB LED strip header

  10. 4 x M.2 Socket 3 connectors

  11. 6 x SATA 6Gb/s connectors

  12. 1 x front panel header

  13. 1 x front panel audio header

  14. 1 x USB Type-C header, with USB 3.2 Gen 2×2 support

  15. 2 x USB 3.2 Gen 1 headers

  16. 2 x USB 2.0/1.1 headers

  17. 1 x noise detection header

  18. 1 x THB_U4 add-in card connector

  19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  20. 1 x power button

  21. 1 x reset button

  22. 1 x reset jumper

  23. 1 x Clear CMOS jumper

  24. 2 x temperature sensor headers

  25. Voltage Measurement Points

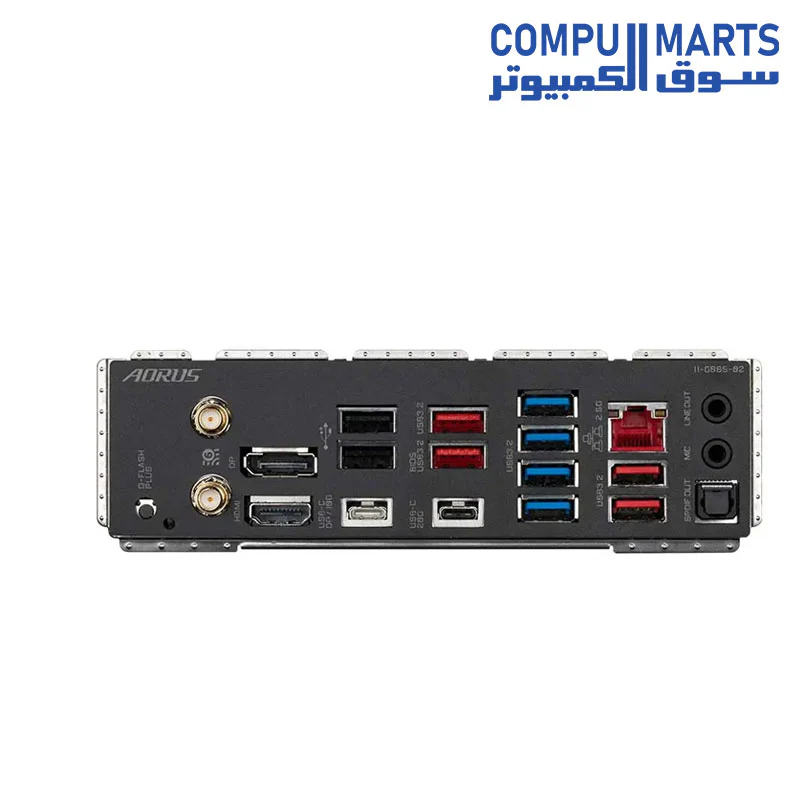

• Back Panel Connectors

  1. 1 x Q-Flash Plus button

  2. 2 x SMA antenna connectors (2T2R)

  3. 1 x DisplayPort

  4. 1 x HDMI port

  5. 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support

  6. 1 x USB Type-C port, with USB 3.2 Gen 2×2 support

  7. 4 x USB 3.2 Gen 2 Type-A ports (red)

  8. 4 x USB 3.2 Gen 1 ports

  9. 2 x USB 2.0/1.1 ports

  10. 1 x RJ-45 port

  11. 1 x optical S/PDIF Out connector

  12. 2 x audio jacks

• I/O Controller

  1. iTE I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Water cooling flow rate detection

  5. Fan fail warning

  6. Fan speed control

  7. Noise detection

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for GIGABYTE Control Center (GCC)

  2. Support for Q-Flash

  3. Support for Q-Flash Plus

  4. Support for Smart Backup

• Bundled Software

  1. Norton Internet Security (OEM version)

  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Form Factor

  1. E-ATX Form Factor; 30.5cm x 26.9cm
