$111.65
Original: $372.18

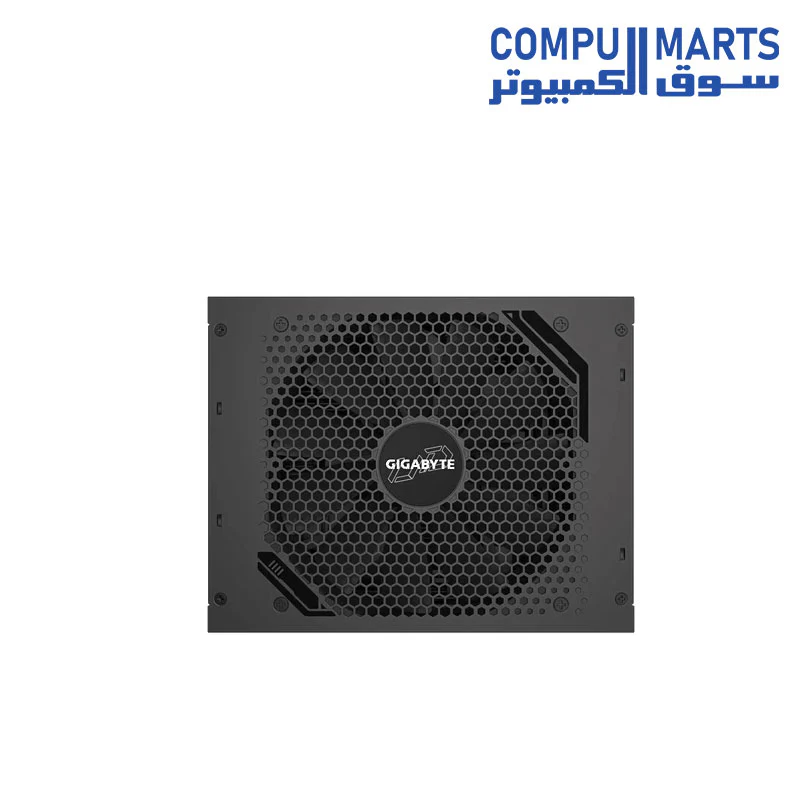

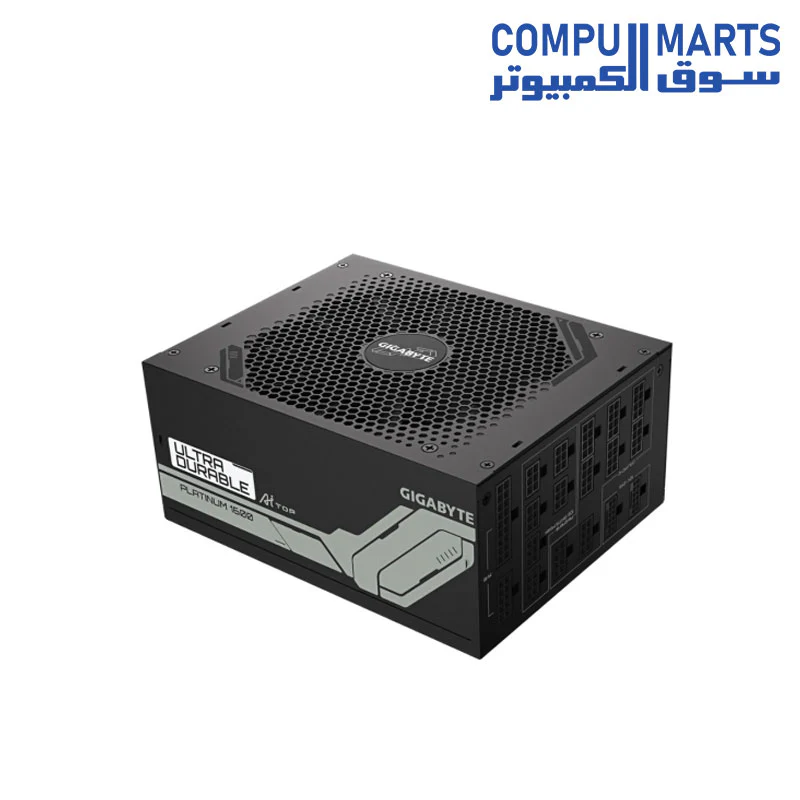

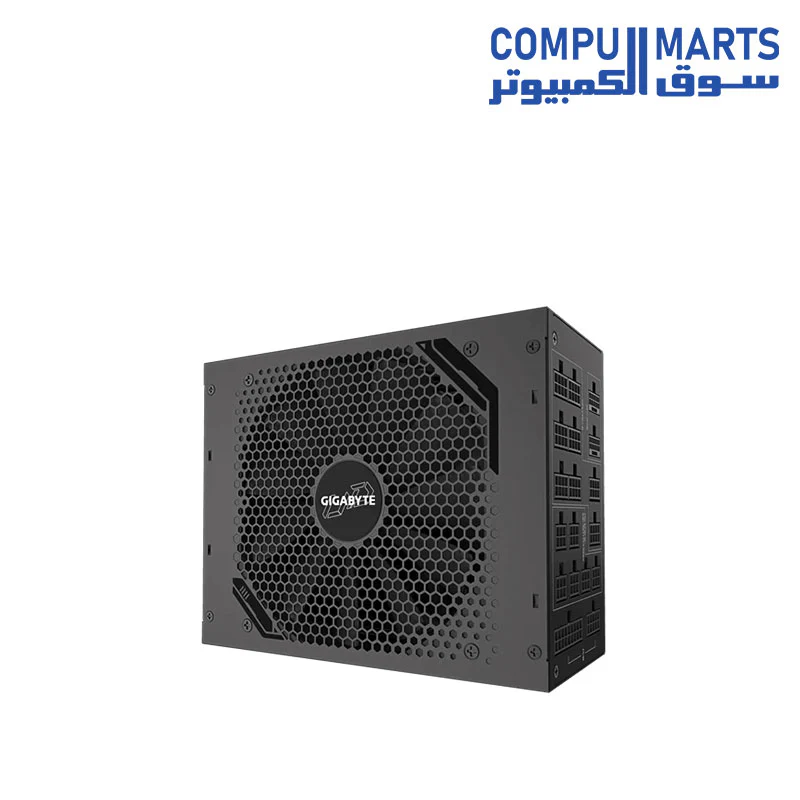

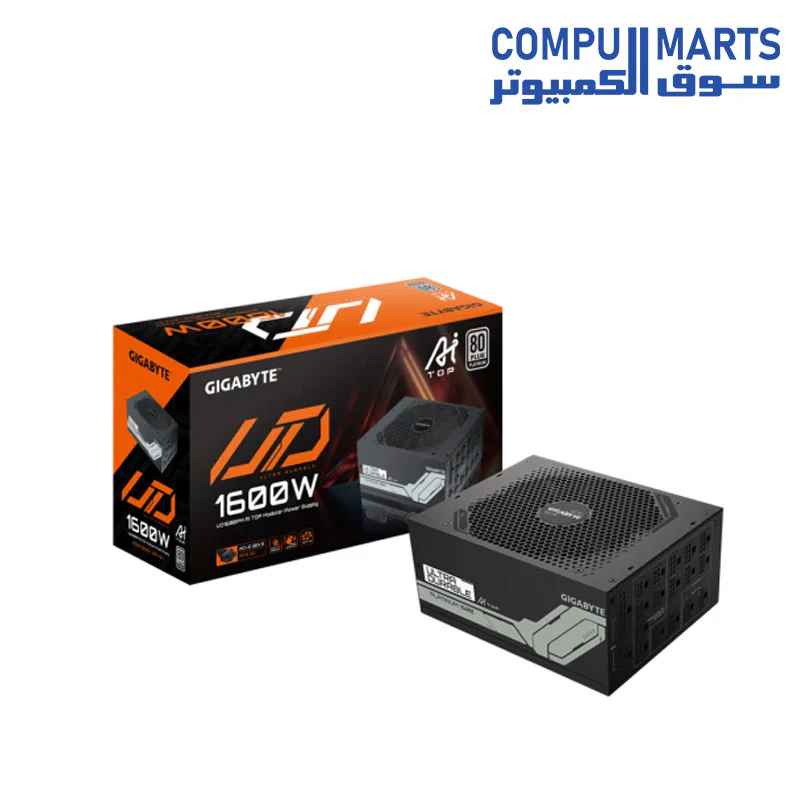

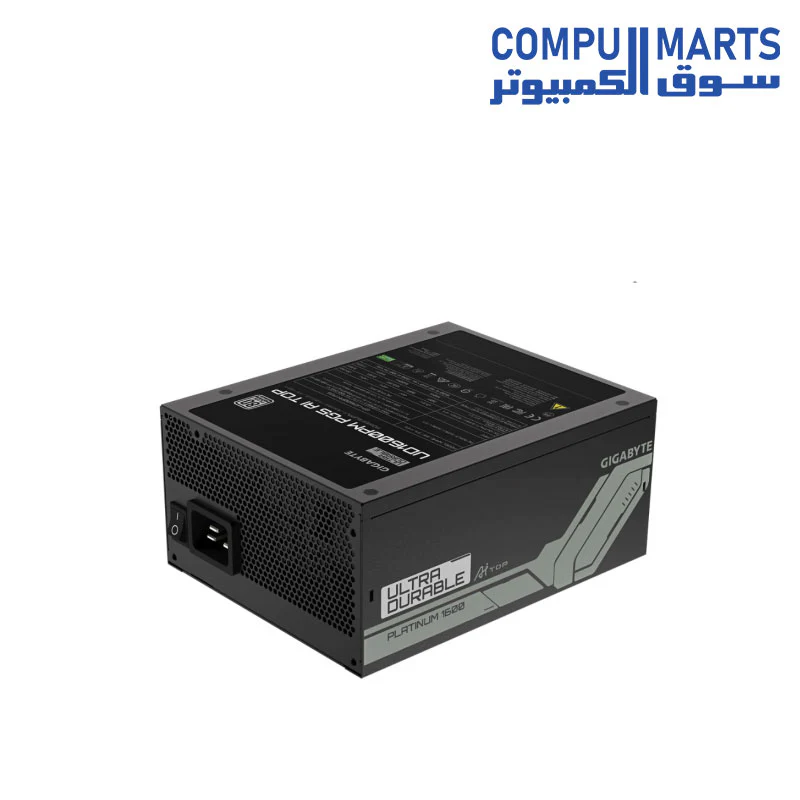

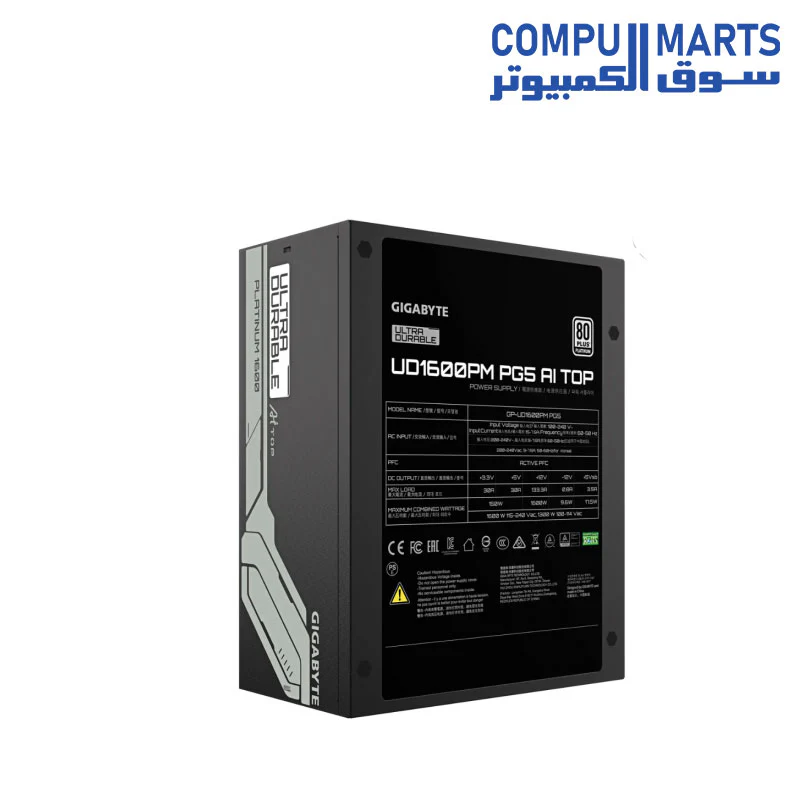

-70%Gigabyte UD1600PM PG5 ,1600W, 80PLUS Platinum, ATX 3.1 and PCIe Gen 5.0 ready, Japanese capacitors, Fully modular—
$372.18
$111.65The Story
| Category | Specification Details |
|---|---|
| Model | Gigabyte UD1600PM PG5 |
| Form Factor | Intel Form Factor ATX 12V v3.1 |
| Output Capacity | 1600 W |
| 80 PLUS Rating | Platinum |
| Efficiency | 92% at typical load |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-7.5 A |
| Input Frequency | 60-50 Hz |
| Dimension | 150 x 190 x 86 mm |
| Fan Type | 140 mm Double Ball Bearing fan |
| MTBF | >100,000 hours |
| Protection | OVP, OPP, SCP, UVP, OCP, OTP |
| Power Good Signal | 100-150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Flat, All black |

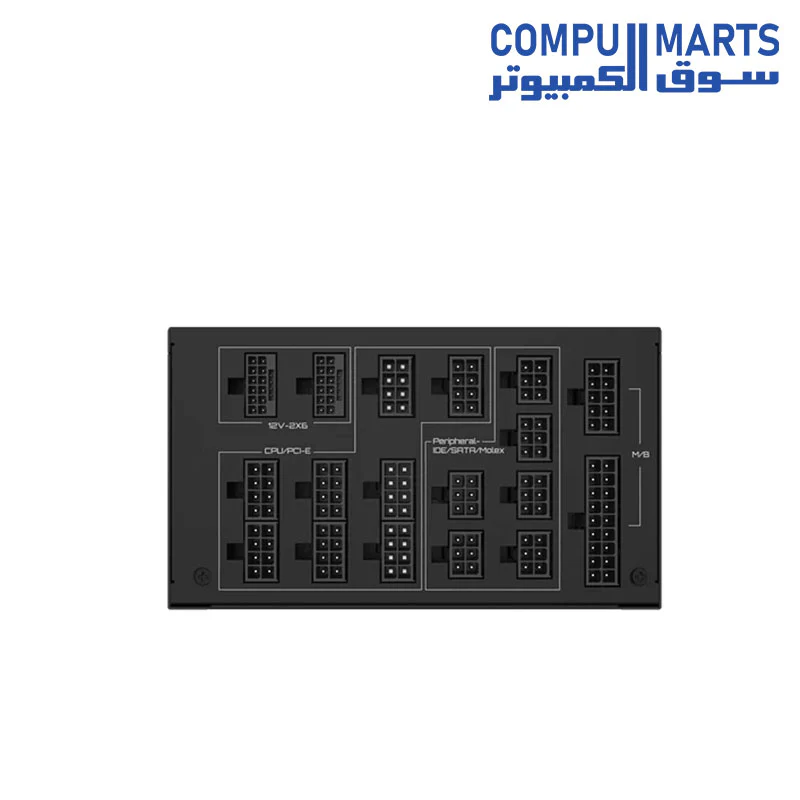

| ATX/MB 20+4 Pin | x 1 (610 mm) |
| CPU/EPS 4+4 Pin | x 2 (650 mm) |
| PCI-E 16 Pin | x 2 (700 mm) |
| PCI-E 16 Pin to PCI-E 8 Pin | x 2 (700 mm) |
| PCI-E 6+2 Pin | x 8 (650 mm + 150 mm) |
| SATA | x 16 (650 mm + 150 mm + 150 mm + 150 mm) |
| 4 Pin Peripheral | x 6 + 4 Pin Floppy x 2 (600 mm + 150 mm + 150 mm + 150 mm) |
| Special Features | ATX 3.1 and PCIe Gen 5.0 ready, Japanese capacitors, Fully modular |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| Model | Gigabyte UD1600PM PG5 |
| Form Factor | Intel Form Factor ATX 12V v3.1 |
| Output Capacity | 1600 W |
| 80 PLUS Rating | Platinum |
| Efficiency | 92% at typical load |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-7.5 A |
| Input Frequency | 60-50 Hz |
| Dimension | 150 x 190 x 86 mm |
| Fan Type | 140 mm Double Ball Bearing fan |
| MTBF | >100,000 hours |
| Protection | OVP, OPP, SCP, UVP, OCP, OTP |
| Power Good Signal | 100-150 ms |
| Hold Up Time | >16 ms |
| Cable Type | Flat, All black |
| ATX/MB 20+4 Pin | x 1 (610 mm) |
| CPU/EPS 4+4 Pin | x 2 (650 mm) |
| PCI-E 16 Pin | x 2 (700 mm) |
| PCI-E 16 Pin to PCI-E 8 Pin | x 2 (700 mm) |
| PCI-E 6+2 Pin | x 8 (650 mm + 150 mm) |
| SATA | x 16 (650 mm + 150 mm + 150 mm + 150 mm) |
| 4 Pin Peripheral | x 6 + 4 Pin Floppy x 2 (600 mm + 150 mm + 150 mm + 150 mm) |
| Special Features | ATX 3.1 and PCIe Gen 5.0 ready, Japanese capacitors, Fully modular |
