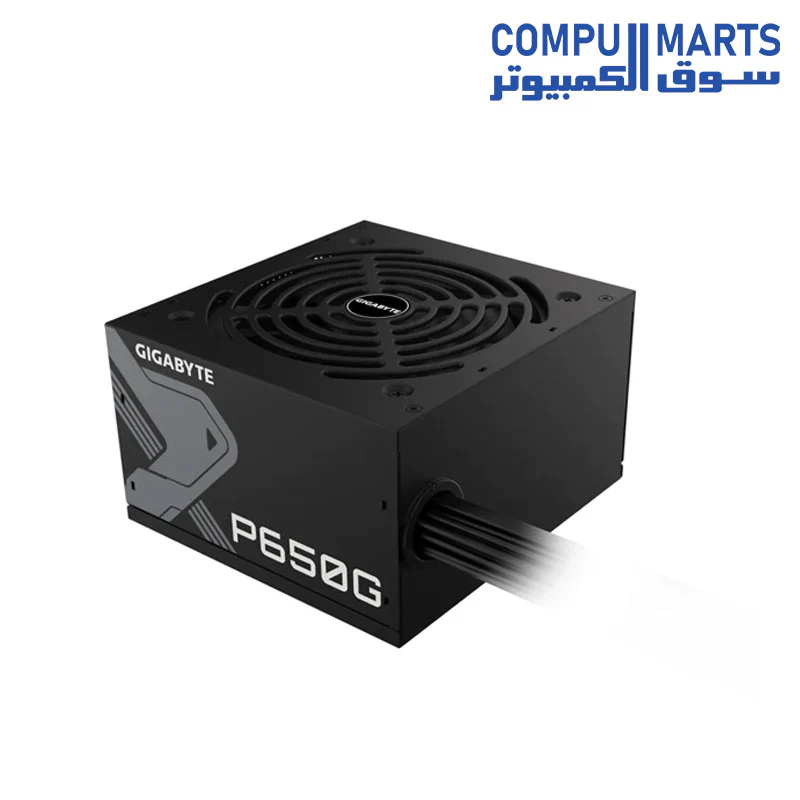

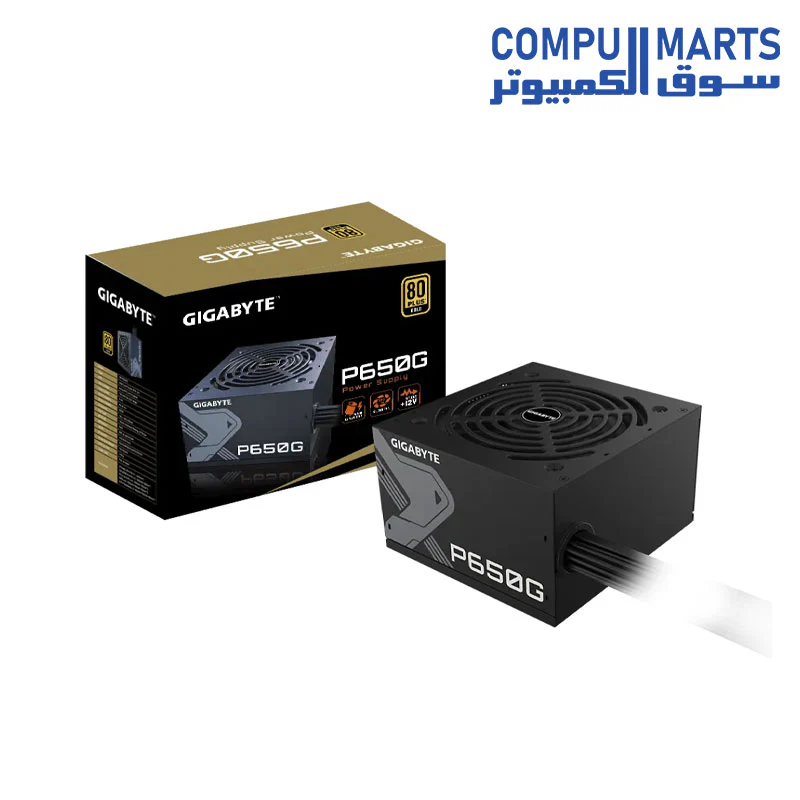

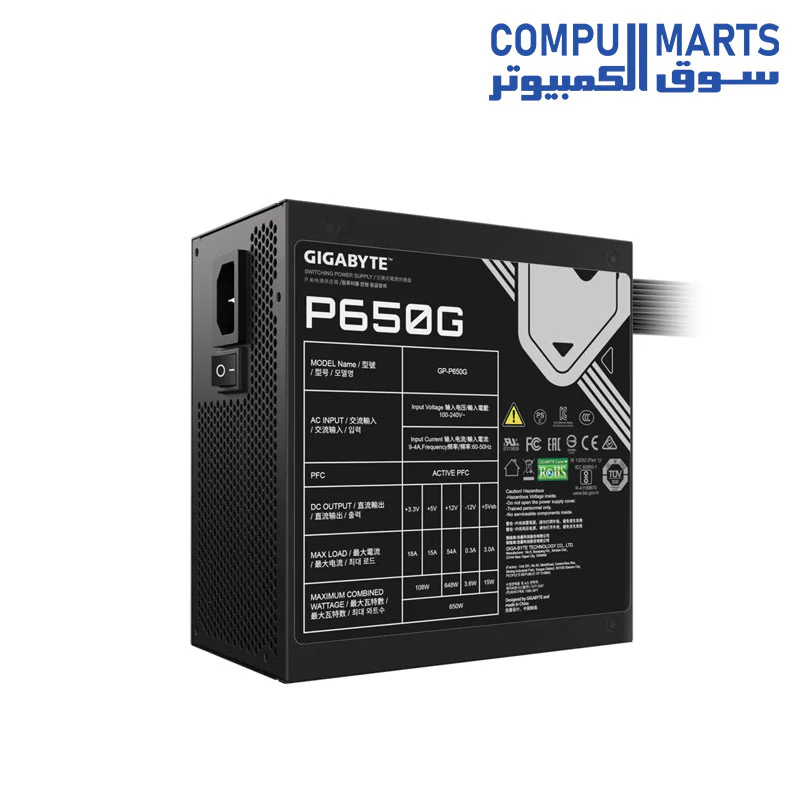

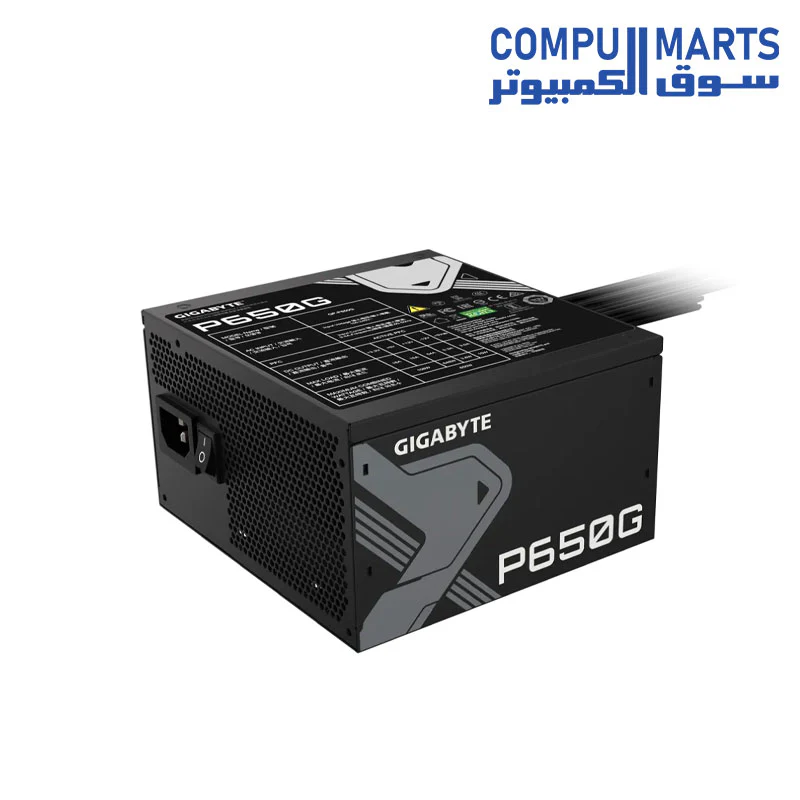

GIGABYTE GP-P650G 650W - ATX 12V v2.31 - 80 PLUS GOLD Certified - Active PFC - Power Supply

GIGABYTE GP-P650G 650W

• 80 PLUS Gold certified

• 120mm Smart Hydraulic Bearing (HYB) Fan

• Main Japanese capacitors

• Powerful single +12V rail

• OVP/OPP/SCP/UVP/OCP/OTP protection

• Compact size

• Model
  GP-P650G-US
• Type
  Intel Form Factor ATX 12V v2.31
• PFC
  Active PFC(>0.9 typical)
• Input Voltage
  100-240 Vac(full range)
• Input Current
  12-6A
• Input Frequency
  60-50 Hz
• Output Capacity
  650W
• Dimension
  150 x 140 x 86 mm
• Fan Type
  120mm Hydraulic Bearing (HYB) Fan
• 80 PLUS
  Gold
• Efficiency
  90% at typical load
• MTBF
  >100,000 hours
• Protection
  OVP/OPP/SCP/UVP/OCP/OTP
• Power Good Signal
  100-500ms
• Hold Up Time
  >16ms
• Cable Type
  Flat, All black
• Connectors

  ATX/MB 20+4 Pin x 1 : 600mm*1
  CPU/EPS 4+4 Pin x 1 : 600mm*1
  PCI-e 6+2 Pin x 4 : 500mm+150mm*2
  SATA x 6 : 500mm+150mm+150mm*2
  4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+150mm+150mm+150mm*1
