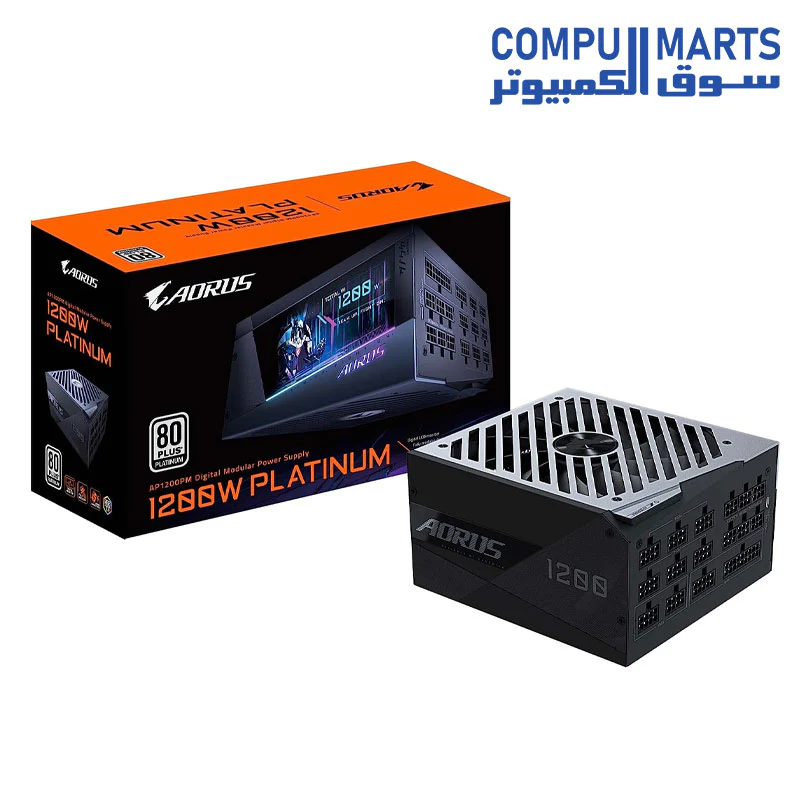

GIGABYTE GP-AP1200PM 1200W 80 Plus Platinum Certified Fully Modular Power Supply
HomeStore

GIGABYTE GP-AP1200PM 1200W 80 Plus Platinum Certified Fully Modular Power Supply

GIGABYTE GP-AP1200PM 1200W 80 Plus Platinum Certified Fully Modular Power Supply

$0.02
GIGABYTE GP-AP1200PM 1200W 80 Plus Platinum Certified Fully Modular Power Supply—
$0.02

The Story

GIGABYTE GP-AP1200PM 1200W 80 Plus Platinum Certified Fully Modular Power Supply



  • Model:

    GP-AP1200PM

  • Type

    Intel Form Factor ATX 12V v2.31

  • PFC

    Active PFC (>0.9 typical)

  • Input Voltage

    100-240 Vac (full range)

  • Input Current

    15-7.5A

  • Input Frequency

    60-50 Hz

  • Output Capacity

    1200W

  • Dimension

    150 x 160 x 86mm

  • Fan Type

    140mm Double ball bearing Fan

  • 80 PLUS

    Platinum

  • Efficiency

    92% at typical load

  • MTBF

    >100,000 hours

  • Protection

    OVP/OPP/SCP/UVP/OCP/OTP

  • Power Good Signal

    100-150ms

  • Hold Up Time

    >16ms

  • Cable Type

    Flat, All black

  • Connectors

    ATX/MB 20+4 Pin x 1 : 610mm*1
    CPU/EPS 4+4 Pin x 2 : 650mm*2
    PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2
    SATA x 16 : 650mm+150mm+150mm+150mm*4
    4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2

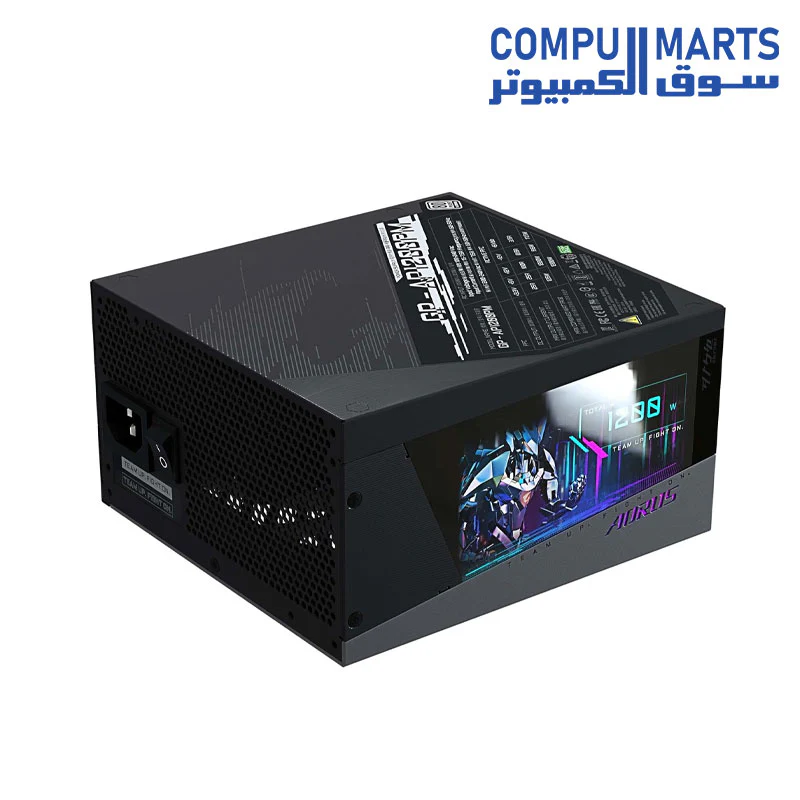

GIGABYTE GP-AP1200PM 1200W 80 Plus Platinum Certified Fully Modular Power Supply - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

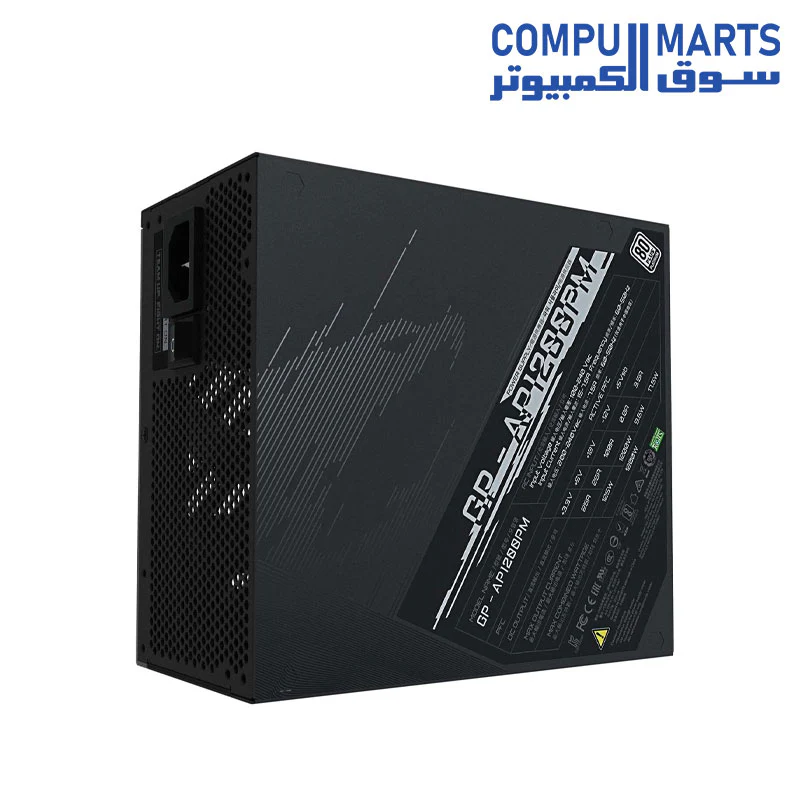

GIGABYTE GP-AP1200PM 1200W 80 Plus Platinum Certified Fully Modular Power Supply - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

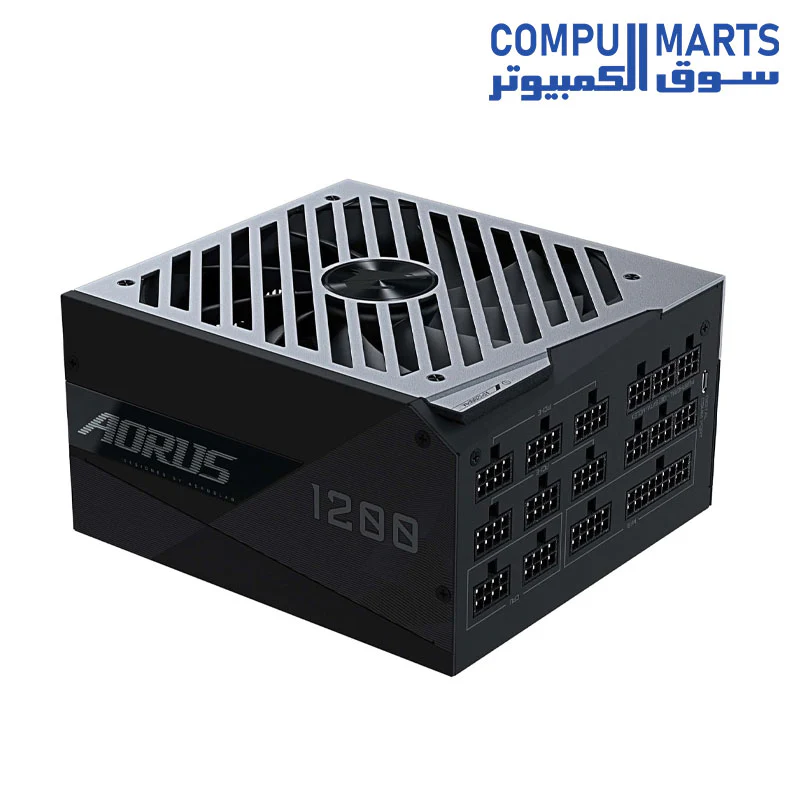

GIGABYTE GP-AP1200PM 1200W 80 Plus Platinum Certified Fully Modular Power Supply - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

GIGABYTE GP-AP1200PM 1200W 80 Plus Platinum Certified Fully Modular Power Supply



  • Model:

    GP-AP1200PM

  • Type

    Intel Form Factor ATX 12V v2.31

  • PFC

    Active PFC (>0.9 typical)

  • Input Voltage

    100-240 Vac (full range)

  • Input Current

    15-7.5A

  • Input Frequency

    60-50 Hz

  • Output Capacity

    1200W

  • Dimension

    150 x 160 x 86mm

  • Fan Type

    140mm Double ball bearing Fan

  • 80 PLUS

    Platinum

  • Efficiency

    92% at typical load

  • MTBF

    >100,000 hours

  • Protection

    OVP/OPP/SCP/UVP/OCP/OTP

  • Power Good Signal

    100-150ms

  • Hold Up Time

    >16ms

  • Cable Type

    Flat, All black

  • Connectors

    ATX/MB 20+4 Pin x 1 : 610mm*1
    CPU/EPS 4+4 Pin x 2 : 650mm*2
    PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2
    SATA x 16 : 650mm+150mm+150mm+150mm*4
    4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2
