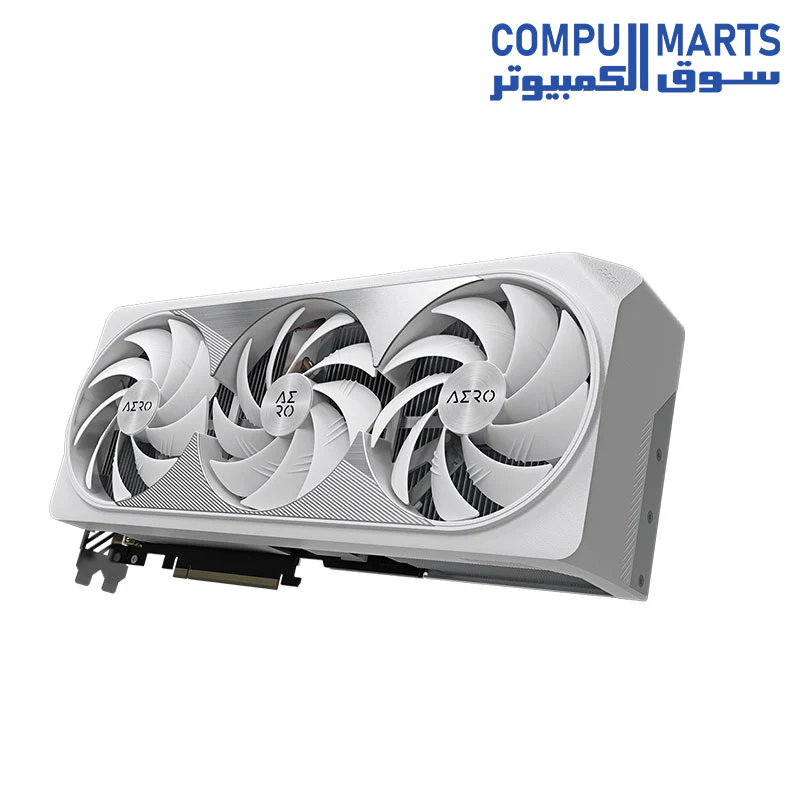

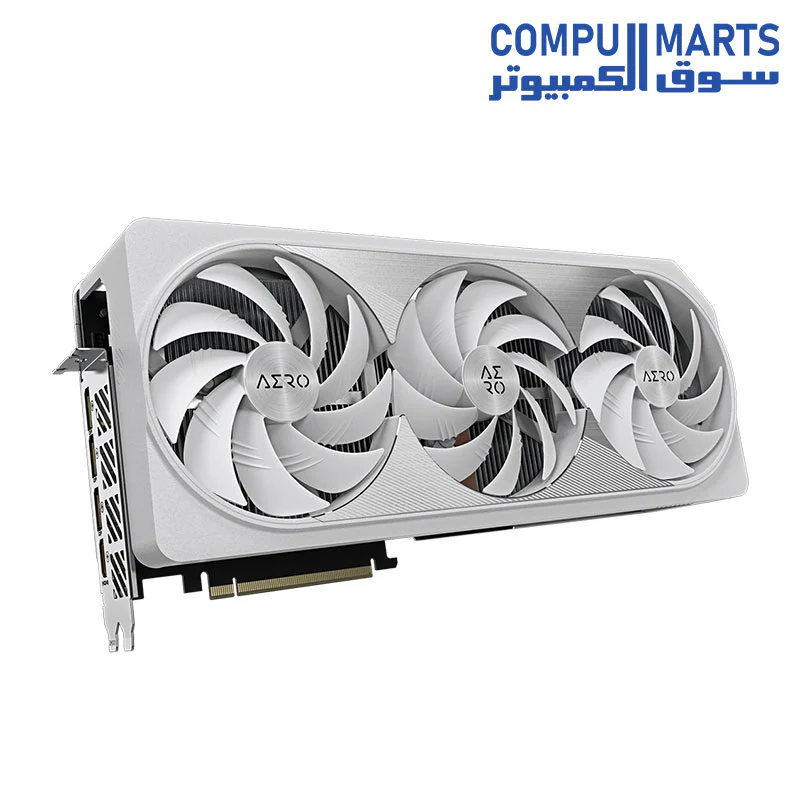

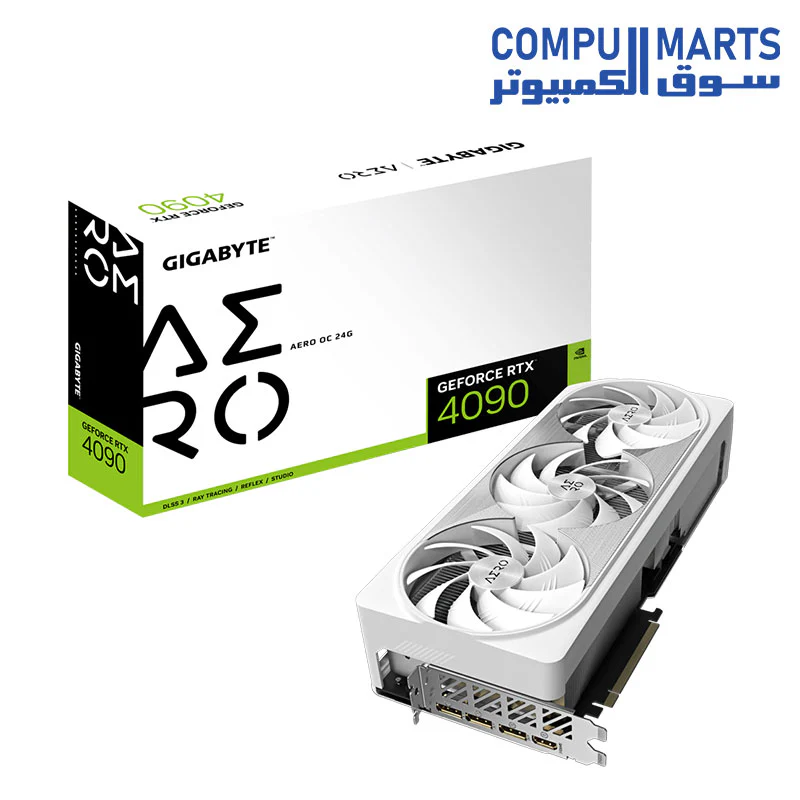

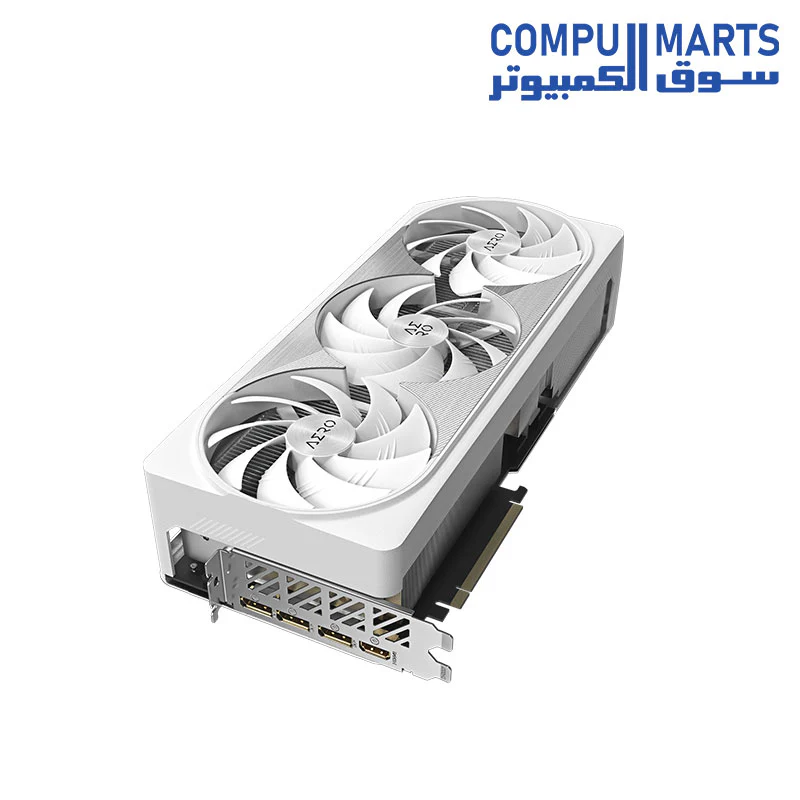

GIGABYTE GeForce RTX 4090 AERO OC 24G GV-4090 AERO OC-24GD

GIGABYTE GeForce RTX 4090 AERO OC 24G GV-4090 AERO OC-24GD



• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency

• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

• 3rd Generation RT Cores: Up to 2X ray tracing performance

• Powered by GeForce RTX 4090

• Integrated with 24GB GDDR6X 384-bit memory interface

• WINDFORCE cooling system

• RGB Fusion

• Dual BIOS

• Protection metal back plate

• Anti-sag bracket

Graphics Processing GeForce RTX 4090
Core Clock 2535 MHz (Reference Card: 2520 MHz)
CUDA Cores 16384
Memory Clock 21 Gbps
Memory Size 24 GB
Memory Type GDDR6X
Memory Bus 384 bit
Card Bus PCI-E 4.0
Digital max resolution 7680x4320
Multi-view 4
Card size L=342 W=150 H=75 mm
PCB Form ATX
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 1000W
Power Connectors 16 pin*1

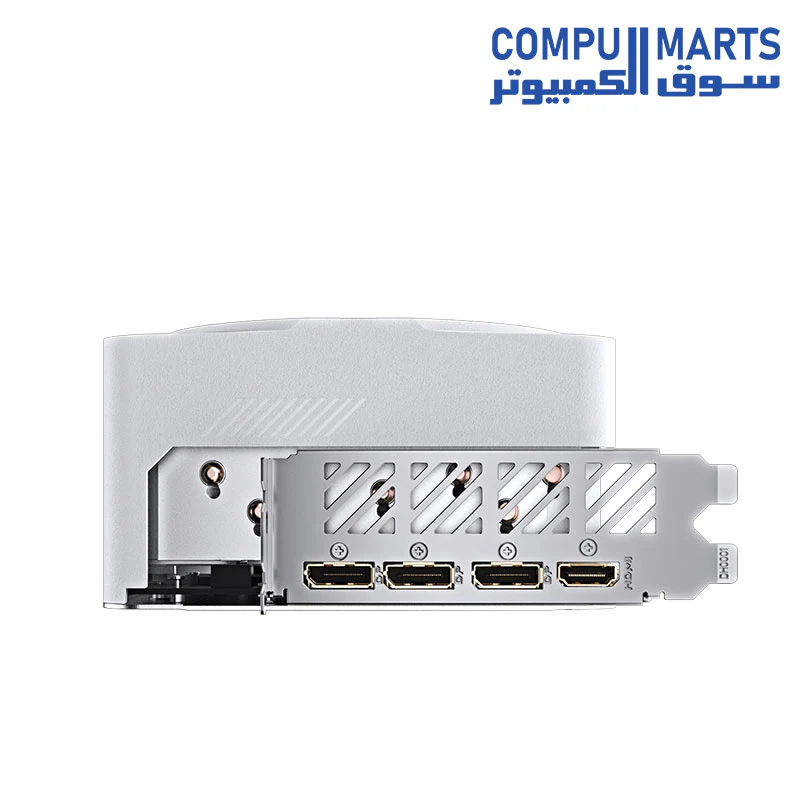

Output DisplayPort 1.4 *3
HDMI 2.1 *1
Accessories
1. Quick guide
2. Warranty registration
3. Anti-sag bracket
4. Anti-sag bracket installation guide
5. One 16-pin to four 8-pin power adaptor

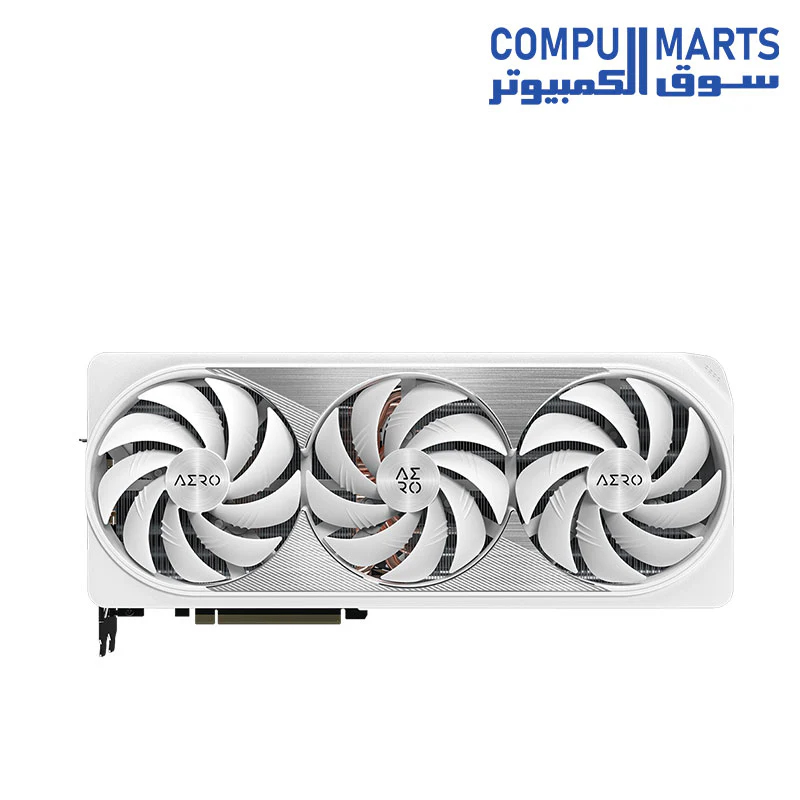

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

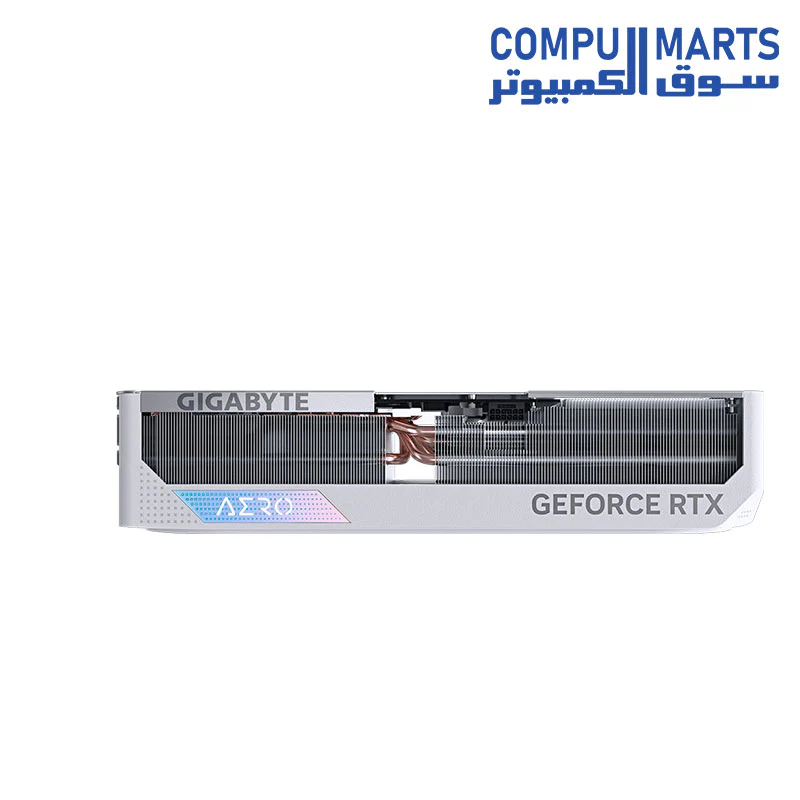

LARGE VAPOR CHAMBER & HEAT-PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

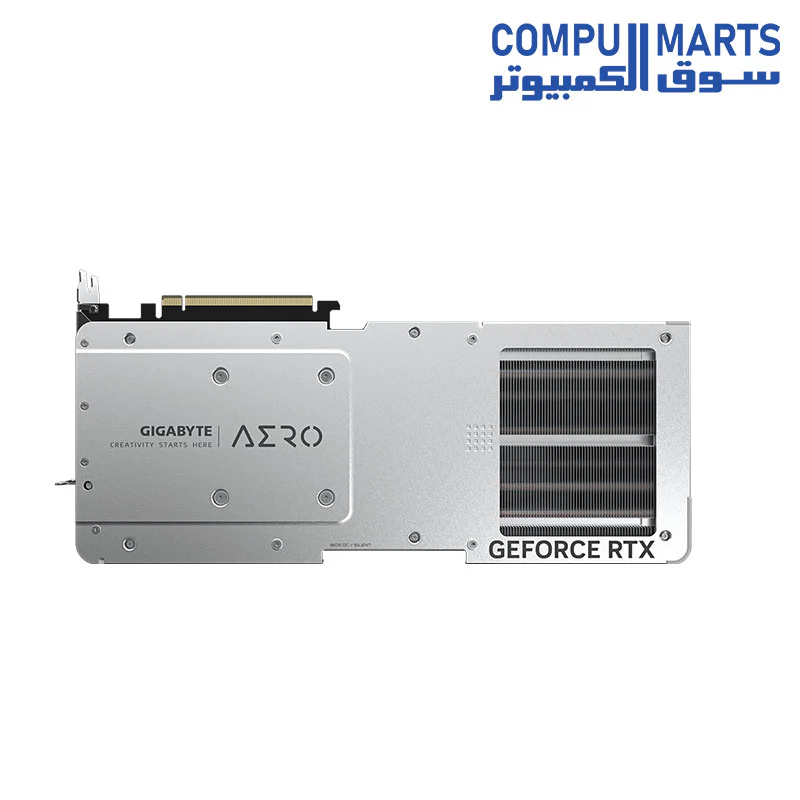

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

ANTI-SAG BRACKET

The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
