$286.29
GIGABYTE GeForce RTX 4060 WINDFORCE OC 8G GRAPHIC CARD—
$286.29
The Story
GIGABYTE GeForce RTX 4060 WINDFORCE OC 8G GRAPHIC CARD
-
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
-
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
-
3rd Generation RT Cores: Up to 2X ray tracing performance
-
Powered by GeForce RTX 4060
-
Integrated with 8GB GDDR6 128bit memory interface
-

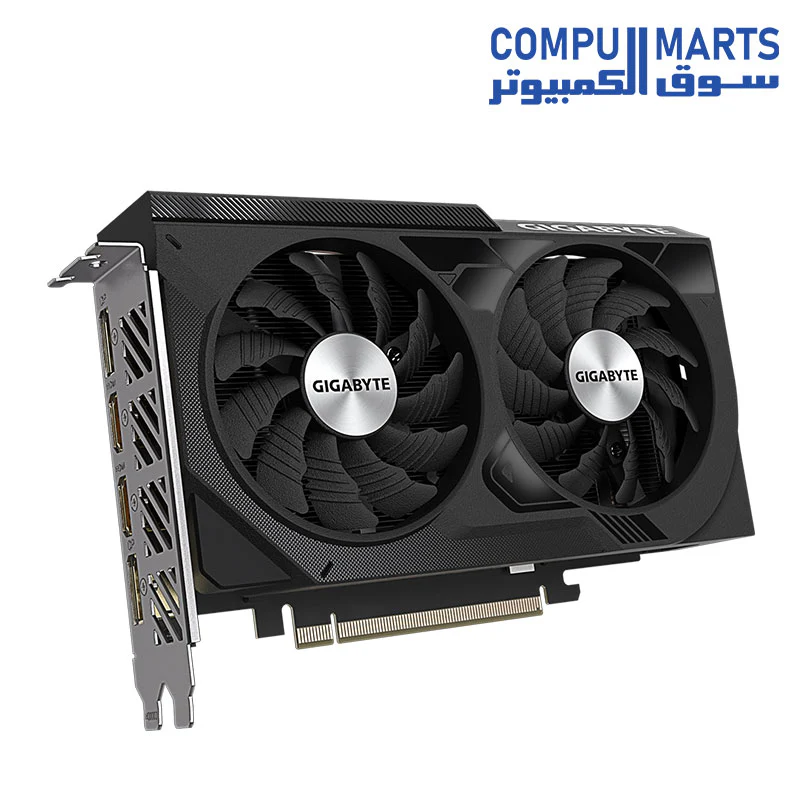

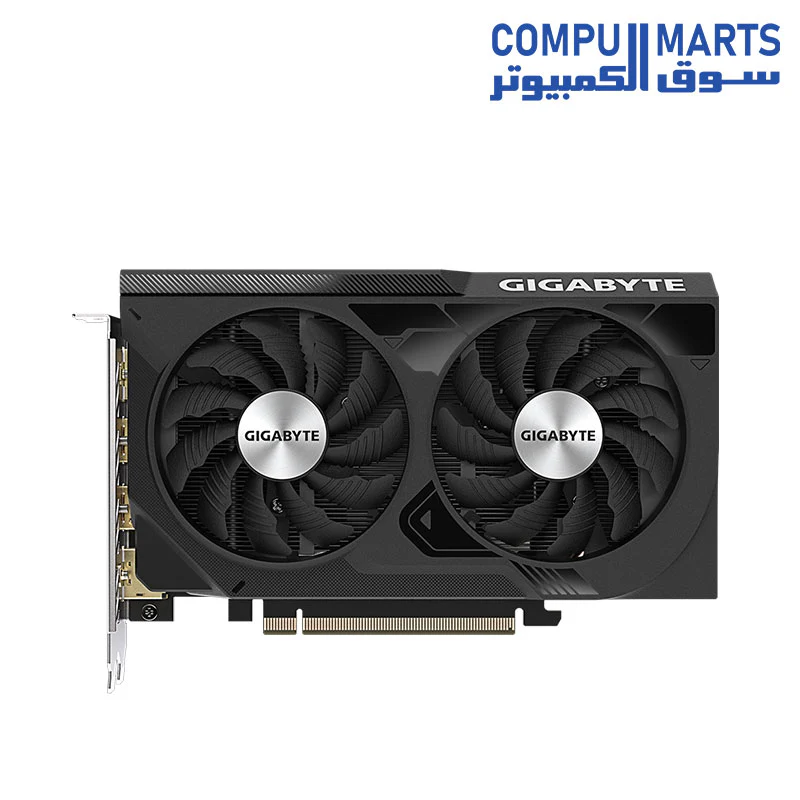

WINDFORCE Cooling System
-
Protection back plate
CORE CLOCK
2475 MHz (Reference card: 2460 MHz)
The WINDFORCE cooling system features two 80mm unique blade fans, alternate spinning, a composite copper heat pipe that directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

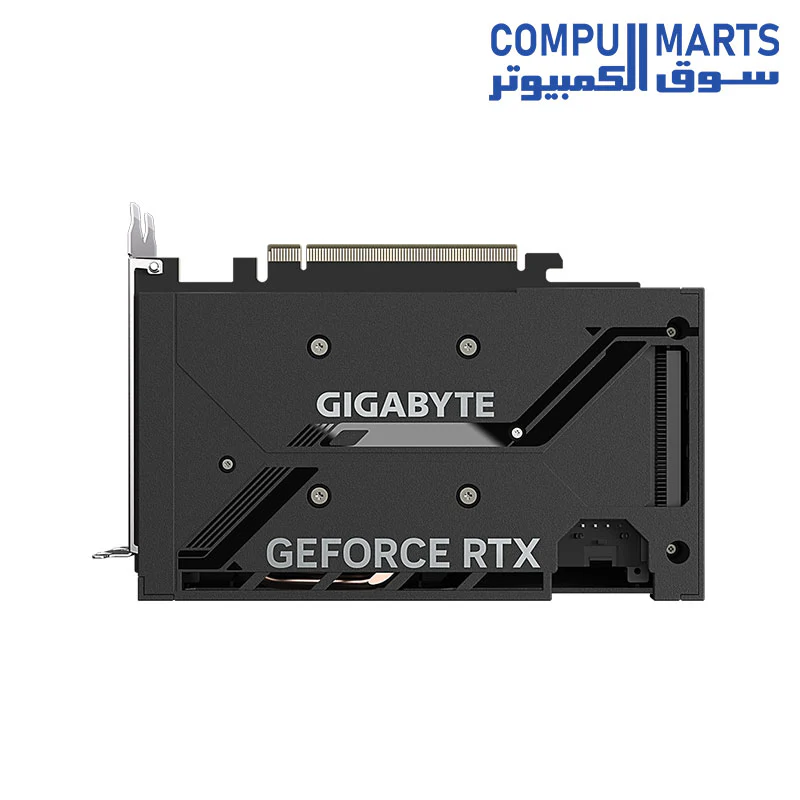

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
-
Graphics Processing
GeForce RTX 4060
-
Core Clock
2475 MHz (Reference card: 2460 MHz)
-
CUDA® Cores
3072
-
Memory Clock
17 Gbps
-
Memory Size
8 GB
-
Memory Type
GDDR6
-
Memory Bus
128 bit
-
Card Bus
PCI-E 4.0
-
Digital max resolution
7680x4320
-
Multi-view
4
-
Card size
L=192 W=120 H=41 mm
-
PCB Form
ATX
-
DirectX
12 Ultimate
-
OpenGL
4.6
-
Recommended PSU
450W
-
Power Connectors
8 pin*1
-

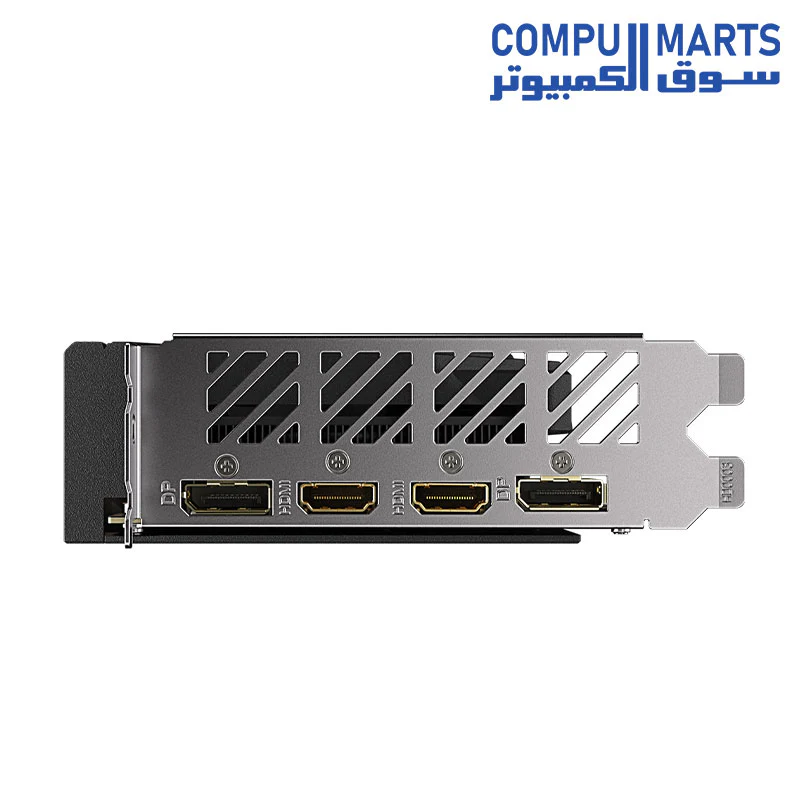

Output
DisplayPort 1.4a*2
HDMI 2.1a*2 -
Accessories
Quick guide
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
GIGABYTE GeForce RTX 4060 WINDFORCE OC 8G GRAPHIC CARD
-
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
-
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
-
3rd Generation RT Cores: Up to 2X ray tracing performance
-
Powered by GeForce RTX 4060
-
Integrated with 8GB GDDR6 128bit memory interface
-
WINDFORCE Cooling System
-
Protection back plate
CORE CLOCK
2475 MHz (Reference card: 2460 MHz)
The WINDFORCE cooling system features two 80mm unique blade fans, alternate spinning, a composite copper heat pipe that directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
-
Graphics Processing
GeForce RTX 4060
-
Core Clock
2475 MHz (Reference card: 2460 MHz)
-
CUDA® Cores
3072
-
Memory Clock
17 Gbps
-
Memory Size
8 GB
-
Memory Type
GDDR6
-
Memory Bus
128 bit
-
Card Bus
PCI-E 4.0
-
Digital max resolution
7680x4320
-
Multi-view
4
-
Card size
L=192 W=120 H=41 mm
-
PCB Form
ATX
-
DirectX
12 Ultimate
-
OpenGL
4.6
-
Recommended PSU
450W
-
Power Connectors
8 pin*1
-
Output
DisplayPort 1.4a*2
HDMI 2.1a*2 -
Accessories
Quick guide
