$48.10
Original: $160.32

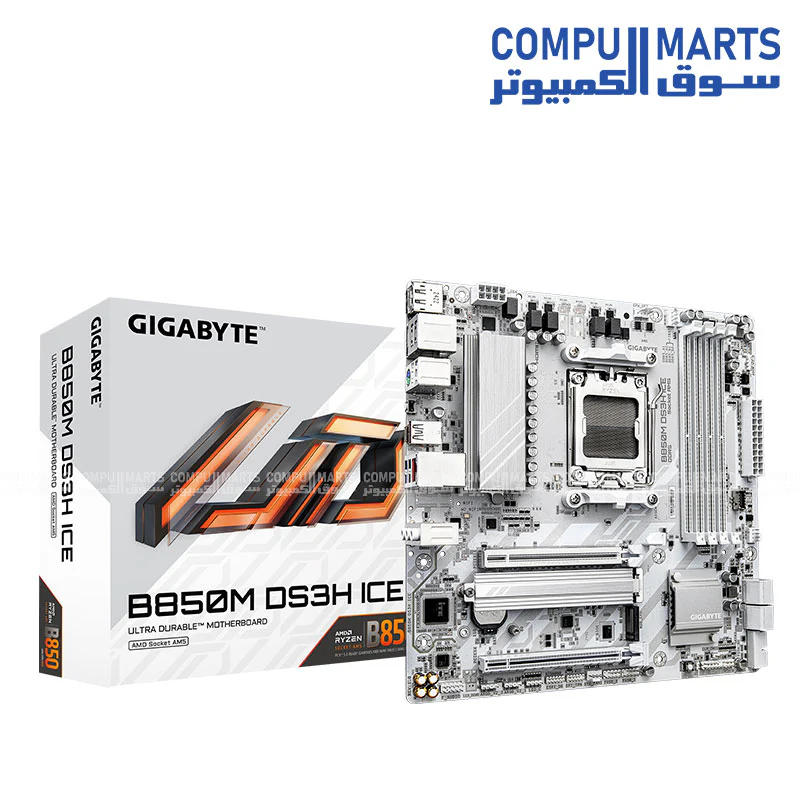

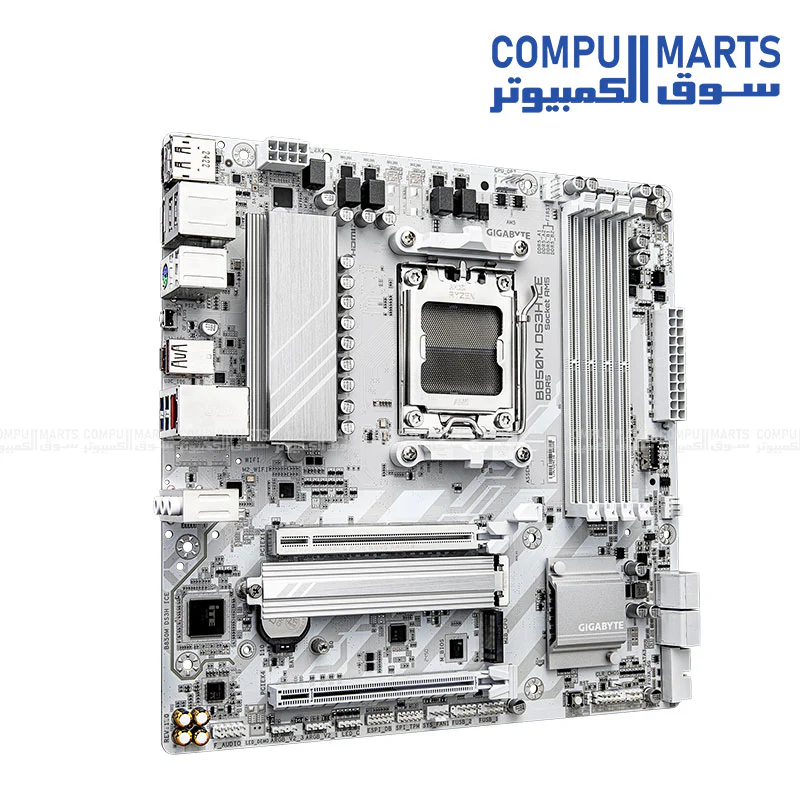

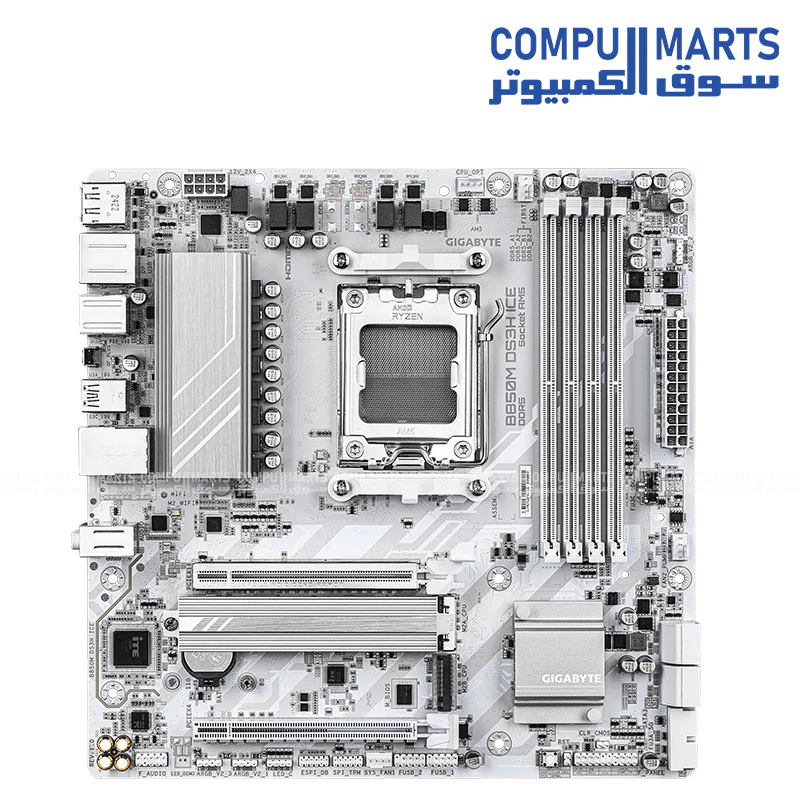

-70%GIGABYTE B850M DS3H ICE – AM5 DDR5 Motherboard – Micro ATX – PCIe 5.0 – HDMI & DP – USB-C – 2.5GbE LAN—
$160.32
$48.10The Story
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5: Supports Ryzen™ 9000, 8000, and 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM (Up to 256GB); Supports up to DDR5 8200(OC); AMD EXPO™ & Intel® XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4K@60Hz), 2 x DisplayPort 1.4 (4K@144Hz); Triple-display support |
| Audio | Realtek® Audio CODEC; 2/4/5.1/7.1-channel High Definition Audio |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000); 1 x PCIe 3.0 x4 |
| Storage (M.2) | 1 x M.2 PCIe 5.0 x4/x2 (M2A_CPU); 1 x M.2 PCIe 4.0 x4/x2 (M2B_CPU) |
| SATA & RAID | 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support for NVMe (RAID 5 for Ryzen 9000 only) |

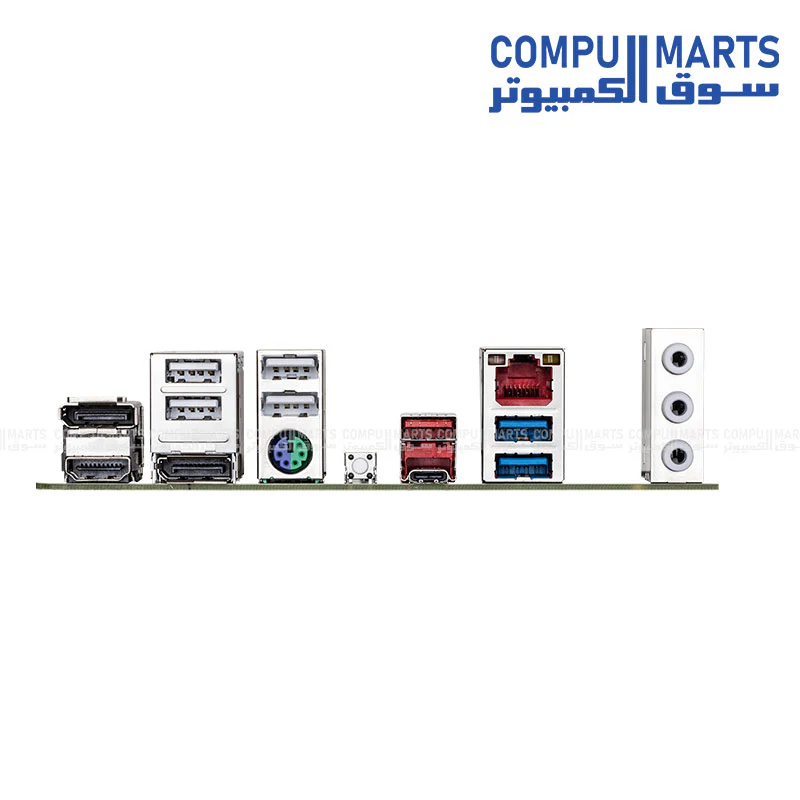

| USB (Rear) | 1 x USB Type-C® (3.2 Gen 2), 1 x USB 3.2 Gen 2 (Red), 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal I/O | 1 x USB Type-C® (3.2 Gen 2), 1 x USB 3.2 Gen 1 header, 3 x ARGB Gen2 headers, 1 x Reset button |
| Special Features | Q-Flash Plus, GIGABYTE Control Center (GCC), Smart Backup |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5: Supports Ryzen™ 9000, 8000, and 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM (Up to 256GB); Supports up to DDR5 8200(OC); AMD EXPO™ & Intel® XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4K@60Hz), 2 x DisplayPort 1.4 (4K@144Hz); Triple-display support |
| Audio | Realtek® Audio CODEC; 2/4/5.1/7.1-channel High Definition Audio |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000); 1 x PCIe 3.0 x4 |
| Storage (M.2) | 1 x M.2 PCIe 5.0 x4/x2 (M2A_CPU); 1 x M.2 PCIe 4.0 x4/x2 (M2B_CPU) |
| SATA & RAID | 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support for NVMe (RAID 5 for Ryzen 9000 only) |
| USB (Rear) | 1 x USB Type-C® (3.2 Gen 2), 1 x USB 3.2 Gen 2 (Red), 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal I/O | 1 x USB Type-C® (3.2 Gen 2), 1 x USB 3.2 Gen 1 header, 3 x ARGB Gen2 headers, 1 x Reset button |
| Special Features | Q-Flash Plus, GIGABYTE Control Center (GCC), Smart Backup |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
