$62.98
Original: $209.95

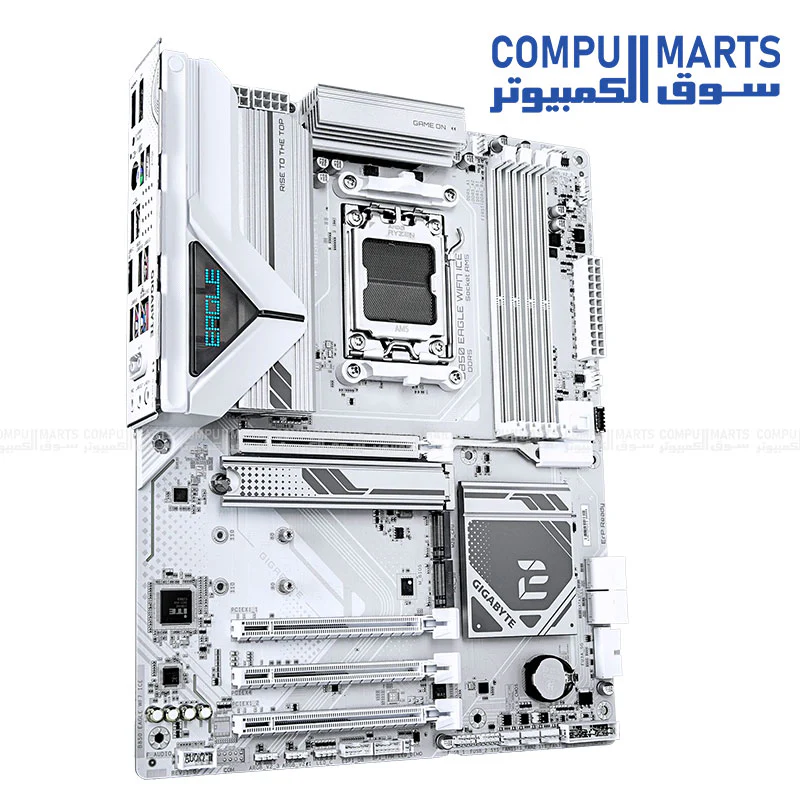

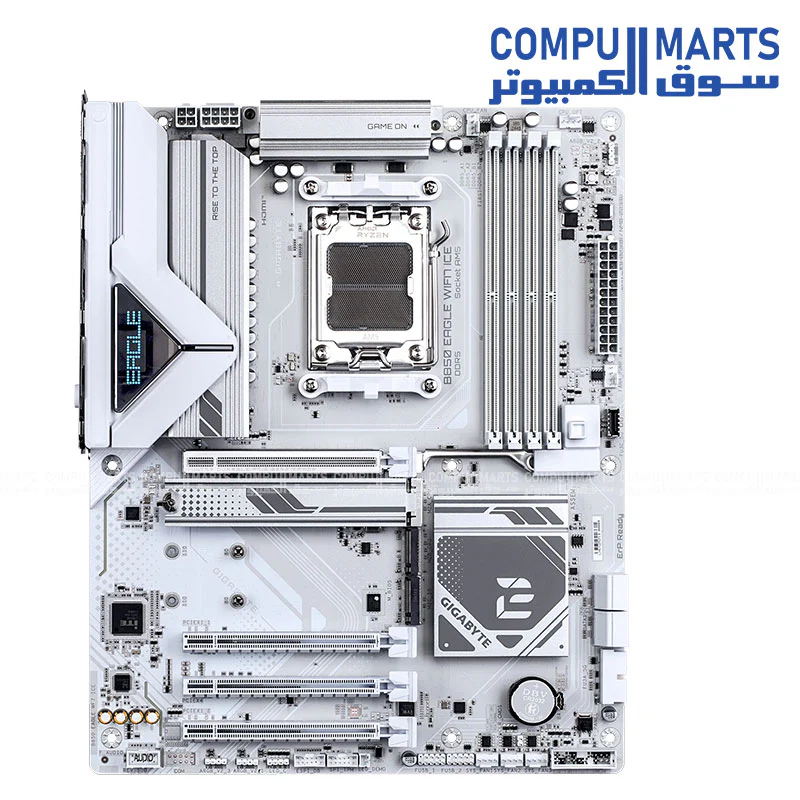

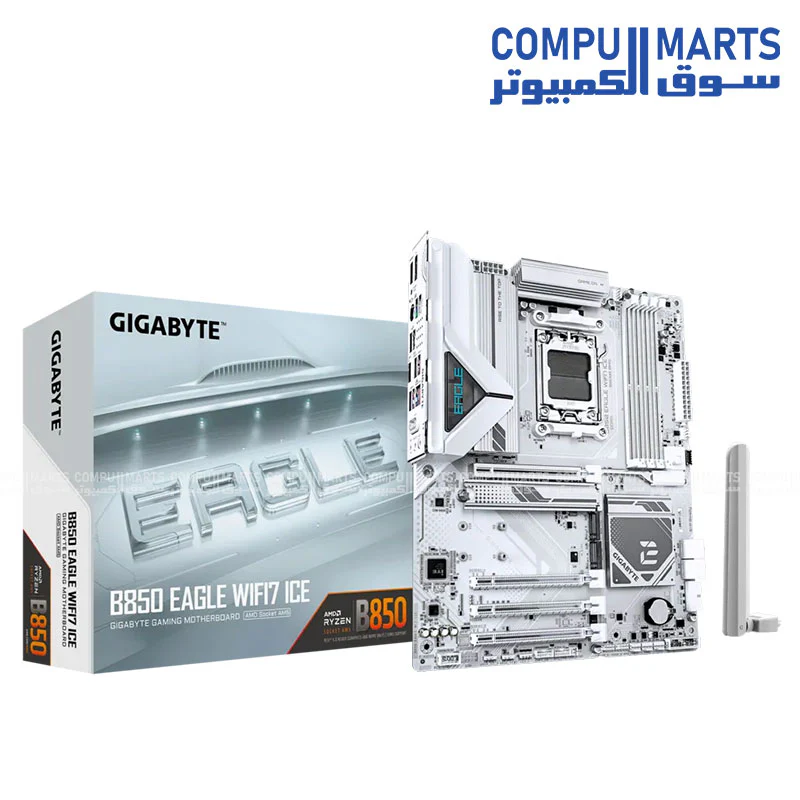

-70%GIGABYTE B850 EAGLE WiFi7 ICE – AM5 DDR5 up to 8200 MT/s OC, PCIe 5.0, 3× M.2, Wi‑Fi 7, 2.5 GbE LAN—
$209.95
$62.98The Story
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors. |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Support for up to DDR5 8200(O.C.); Supports AMD EXPO™ & Intel® XMP modules; Dual Channel Architecture. |
| Onboard Graphics | 1 x DisplayPort (3840x2160@144 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz); Supports HDR and HDCP 2.3. |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel support. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). |
| Wireless & Bluetooth | Realtek® Wi-Fi 7 RTL8922AE (2.4/5/6 GHz); Bluetooth 5.4; Supports 11be 160MHz wireless standard. |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000); 1 x PCIe 4.0 x4 (Chipset); 2 x PCIe 3.0 x1 (Shared bandwidth with SATA). |
| Storage Interface | 1 x M.2 PCIe 5.0 x4 (M2A_CPU); 1 x M.2 PCIe 4.0 x4 (M2B_CPU); 1 x M.2 PCIe 4.0 x2 (Chipset); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support. |
| USB Ports | Rear: 1 x USB-C (3.2 Gen 1), 2 x USB 3.2 Gen 2 (Red), 2 x USB 3.2 Gen 1, 4 x USB 2.0; Internal: 1 x USB-C (3.2 Gen 1), 2 x USB 3.2 Gen 1, 4 x USB 2.0. |
| Internal I/O | 1 x 24-pin ATX power, 1 x 8-pin + 1 x 4-pin 12V power; 1 x CPU Fan, 1 x Water Pump header; 3 x ARGB Gen2, 1 x RGB LED headers; Reset Button; Clear CMOS jumper. |

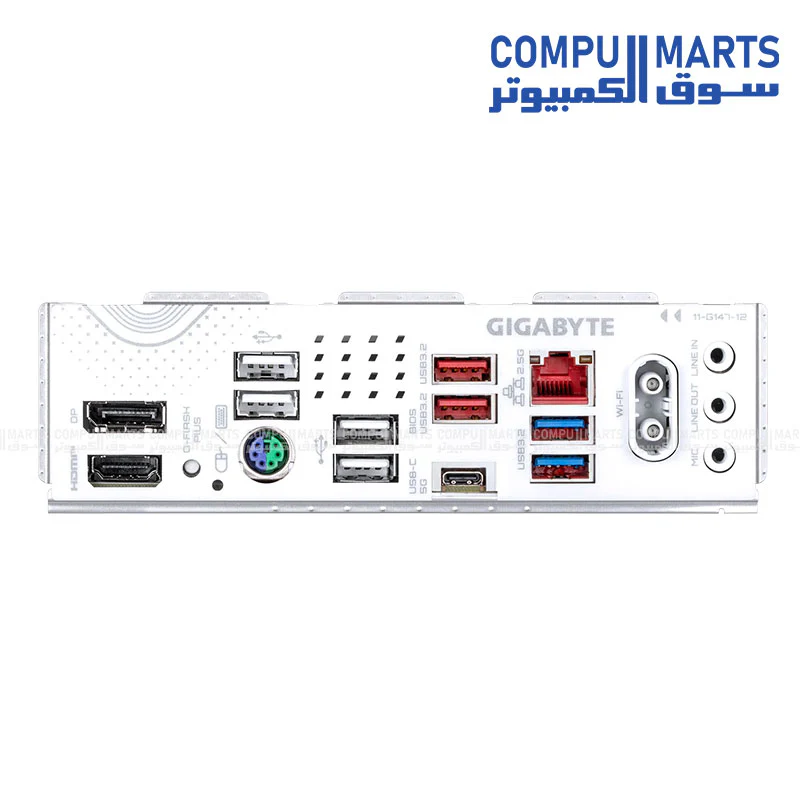

| Back Panel Connectors | DP, HDMI, Q-Flash Plus Button, PS/2 Keyboard/Mouse, RJ-45, 2 x Antenna, 3 x Audio Jacks. |
| Unique Features | GIGABYTE Control Center (GCC) support; Q-Flash & Q-Flash Plus; Smart Backup; BIOS: 256 Mbit flash UEFI. |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm). |
| Operating System | Windows 11 64-bit support. |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors. |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Support for up to DDR5 8200(O.C.); Supports AMD EXPO™ & Intel® XMP modules; Dual Channel Architecture. |
| Onboard Graphics | 1 x DisplayPort (3840x2160@144 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz); Supports HDR and HDCP 2.3. |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel support. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). |
| Wireless & Bluetooth | Realtek® Wi-Fi 7 RTL8922AE (2.4/5/6 GHz); Bluetooth 5.4; Supports 11be 160MHz wireless standard. |
| Expansion Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000); 1 x PCIe 4.0 x4 (Chipset); 2 x PCIe 3.0 x1 (Shared bandwidth with SATA). |
| Storage Interface | 1 x M.2 PCIe 5.0 x4 (M2A_CPU); 1 x M.2 PCIe 4.0 x4 (M2B_CPU); 1 x M.2 PCIe 4.0 x2 (Chipset); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support. |
| USB Ports | Rear: 1 x USB-C (3.2 Gen 1), 2 x USB 3.2 Gen 2 (Red), 2 x USB 3.2 Gen 1, 4 x USB 2.0; Internal: 1 x USB-C (3.2 Gen 1), 2 x USB 3.2 Gen 1, 4 x USB 2.0. |
| Internal I/O | 1 x 24-pin ATX power, 1 x 8-pin + 1 x 4-pin 12V power; 1 x CPU Fan, 1 x Water Pump header; 3 x ARGB Gen2, 1 x RGB LED headers; Reset Button; Clear CMOS jumper. |
| Back Panel Connectors | DP, HDMI, Q-Flash Plus Button, PS/2 Keyboard/Mouse, RJ-45, 2 x Antenna, 3 x Audio Jacks. |
| Unique Features | GIGABYTE Control Center (GCC) support; Q-Flash & Q-Flash Plus; Smart Backup; BIOS: 256 Mbit flash UEFI. |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm). |
| Operating System | Windows 11 64-bit support. |
