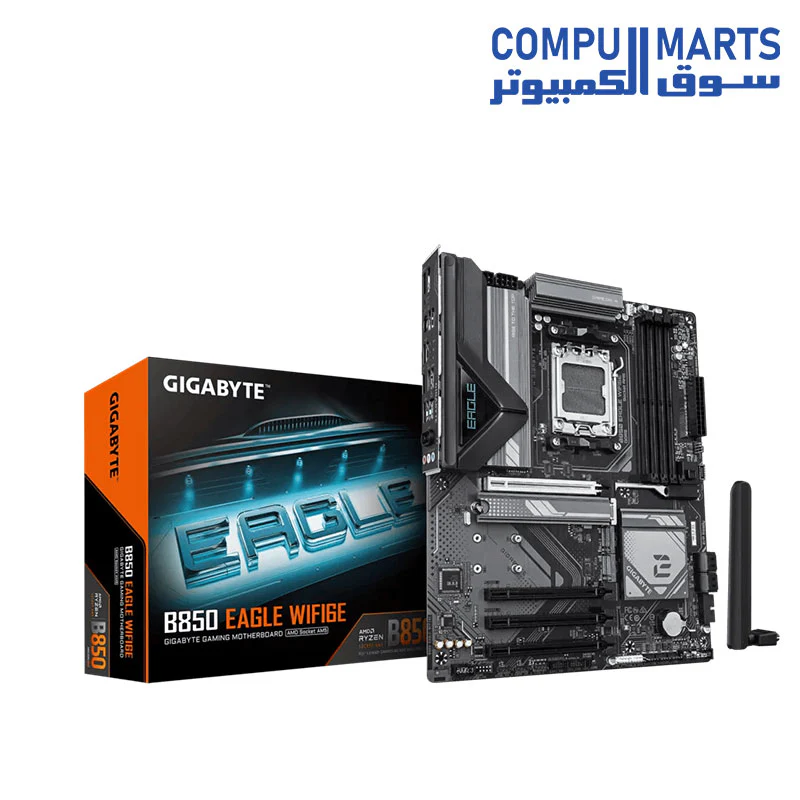

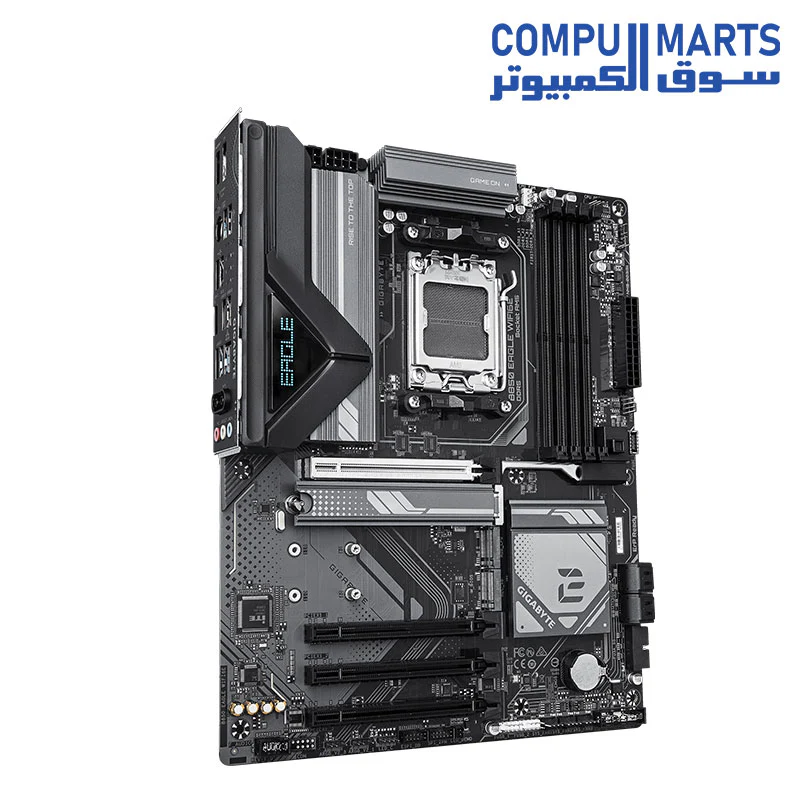

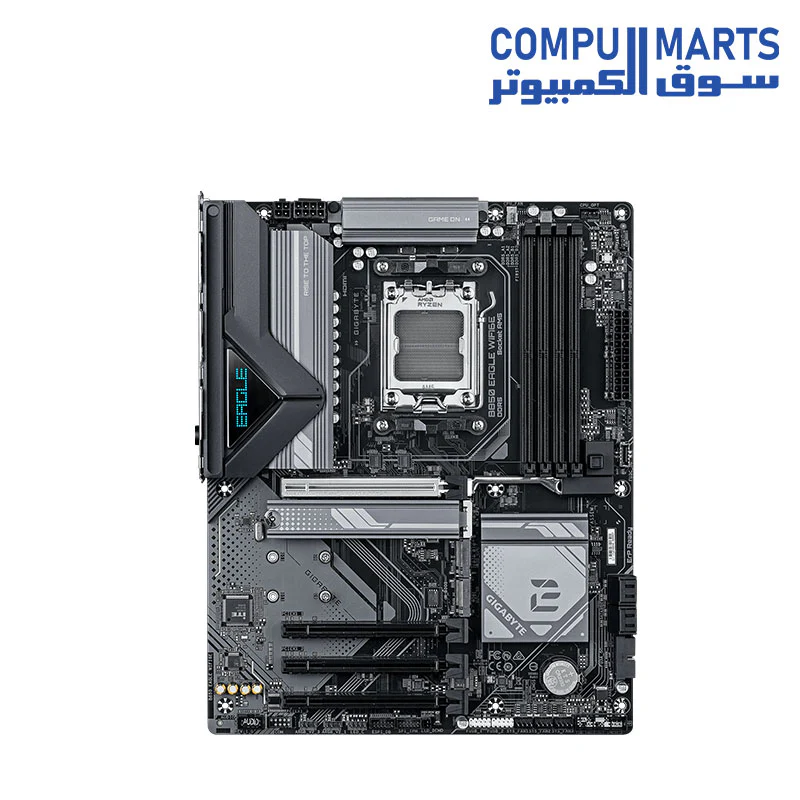

Gigabyte B850 EAGLE WIFI6E ATX Motherboard AMD Socket AM5
Specifications:
CPU |
AMD Socket AM5, support for AMD Ryzen 9000, 8000, 7000 Series Processors (Check GIGABYTE's website for the latest CPU support list) |
Chipset |
AMD B850 |
Memory |
DDR5 8200(O.C.) to 4800 (O.C.), 4 x DDR5 DIMM sockets, up to 256 GB, Dual Channel, non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, Support for AMD EXPO and XMP memory modules |
Onboard Graphics |
AMD Radeon Graphics support, 1 x DisplayPort (3840x2160 144 Hz), 1 x HDMI port (4096x2160 60 Hz), Support for DisplayPort 1.4, HDMI 2.1, HDCP 2.3, HDR |
Audio |
Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
LAN |
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
Wireless Communication |
Intel Wi-Fi 6E AX210 or Realtek Wi-Fi 6E RTL8852CE, Wi-Fi 6 (a, b, g, n, ac, ax, 2.4/5/6 GHz), Bluetooth 5.3, 11ax 160MHz wireless standard |
Expansion Slots |
1 x PCI Express x16 slot (PCIEX16), 3 x PCI Express x16 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3) |
Storage Interface |
1 x M.2 connector (M2A_CPU) PCIe 5.0 x4/x2, 1 x M.2 connector (M2B_CPU) PCIe 4.0 x4/x2, 1 x M.2 connector (M2C_SB) PCIe 4.0 x2, 4 x SATA 6Gb/s connectors |
USB |
1 x USB Type-C (USB 3.2 Gen 1), 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0/1.1 (CPU+USB 2.0 Hub), 4 x USB 3.2 Gen 1 (Chipset) |
Internal I/O Connectors |
24-pin ATX power, 8-pin ATX 12V, 4-pin ATX 12V, CPU fan headers, 3 system fan headers, RGB LED strip headers, 3 x M.2 connectors, 4 x SATA 6Gb/s connectors |

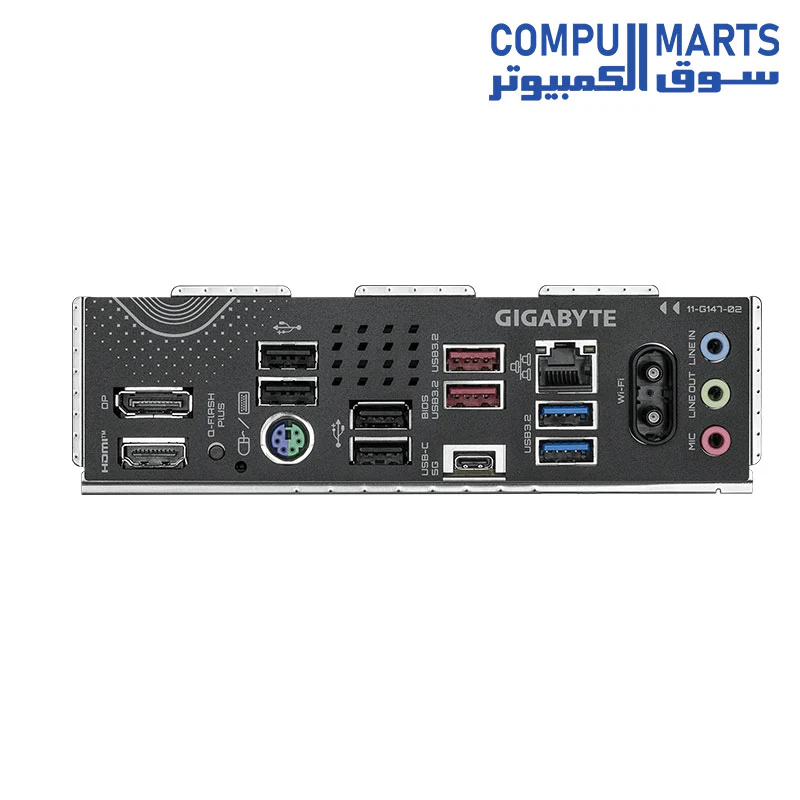

Back Panel Connectors |
1 x DisplayPort, 1 x HDMI port, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1, 1 x PS/2 port, 2 x USB 3.2 Gen 2 Type-A (red), 1 x USB Type-C (USB 3.2 Gen 1), 1 x RJ-45 port |
I/O Controller |
iTE I/O Controller Chip |
H/W Monitoring |
Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control |
BIOS |
256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
Bundled Software |
Norton Internet Security (OEM version), LAN bandwidth management software |
Operating System |
Support for Windows 11 64-bit, Windows 10 64-bit |
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
