$417.98

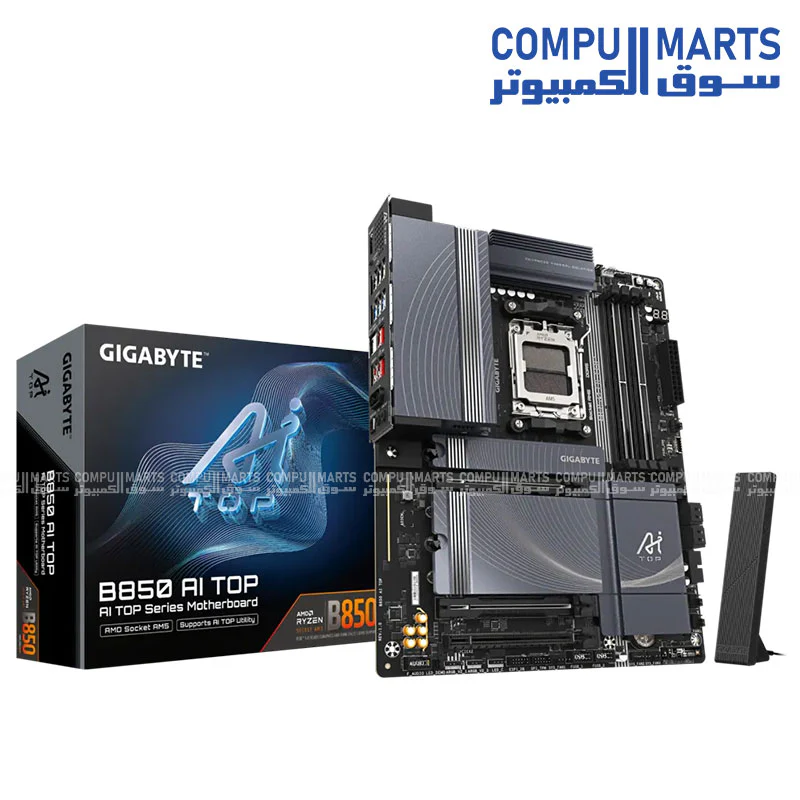

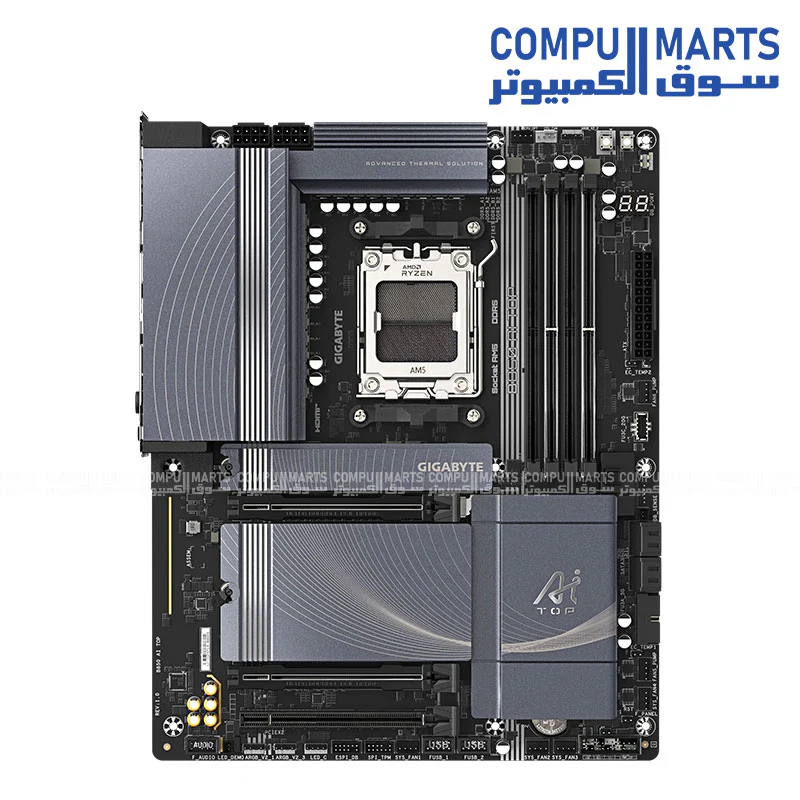

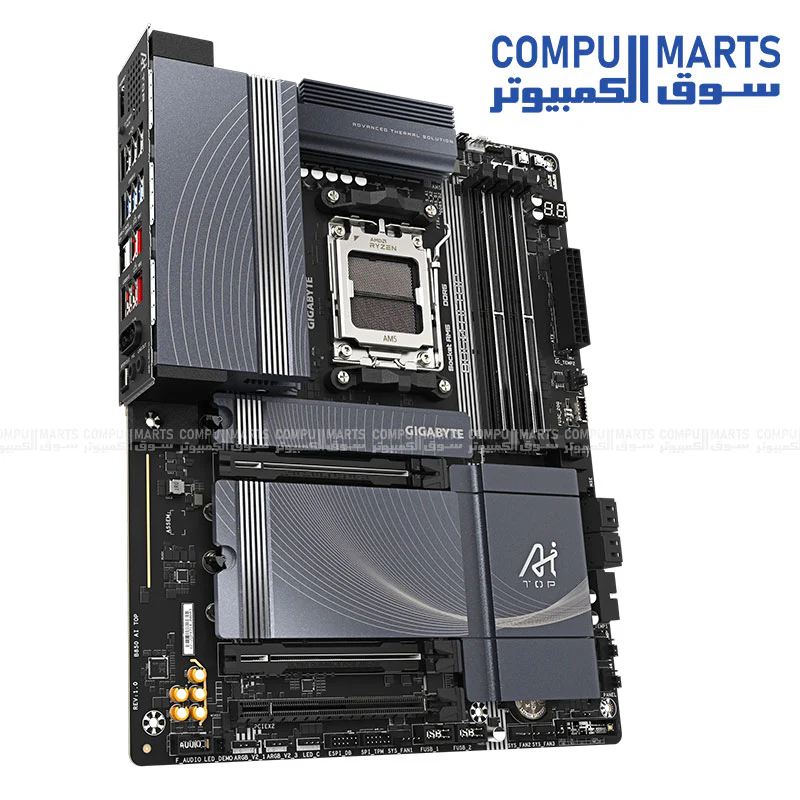

GIGABYTE B850 AI TOP – AM5 ATX DDR5 OC up to 8600MT/s, PCIe 5.0, USB‑C Gen 2×2, Wi‑Fi 7, Dual 10GbE LAN—
$417.98
The Story
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5: Supports Ryzen™ 9000, 8000, and 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | 4x DDR5 DIMM (Up to 256GB); Supports up to DDR5 8600(OC); AMD EXPO™ & Intel® XMP |
| Onboard Graphics | 1x USB Type-C (DP 1.4, 4K 144Hz); 1x HDMI 2.1 (4K 60Hz) |
| Audio | Realtek® ALC1220 CODEC; 7.1-Channel High Definition Audio; S/PDIF Out |
| Ethernet (LAN) | Dual 10GbE LAN: 2x Marvell® AQtion AQC113C (10G/5G/2.5G/1G/100M) |
| Wireless & BT | Realtek® Wi-Fi 7 RTL8922AE (2.4/5/6 GHz); Bluetooth 5.4 |
| Expansion Slots | 1x PCIe 5.0 x16; 1x PCIe 5.0 x8 (Shared); 1x PCIe 4.0 x2 (Chipset) |
| Storage Interface | 2x M.2 (PCIe 5.0 x4); 1x M.2 (PCIe 4.0 x2); 4x SATA 6Gb/s; NVMe RAID 0/1/5/10 |

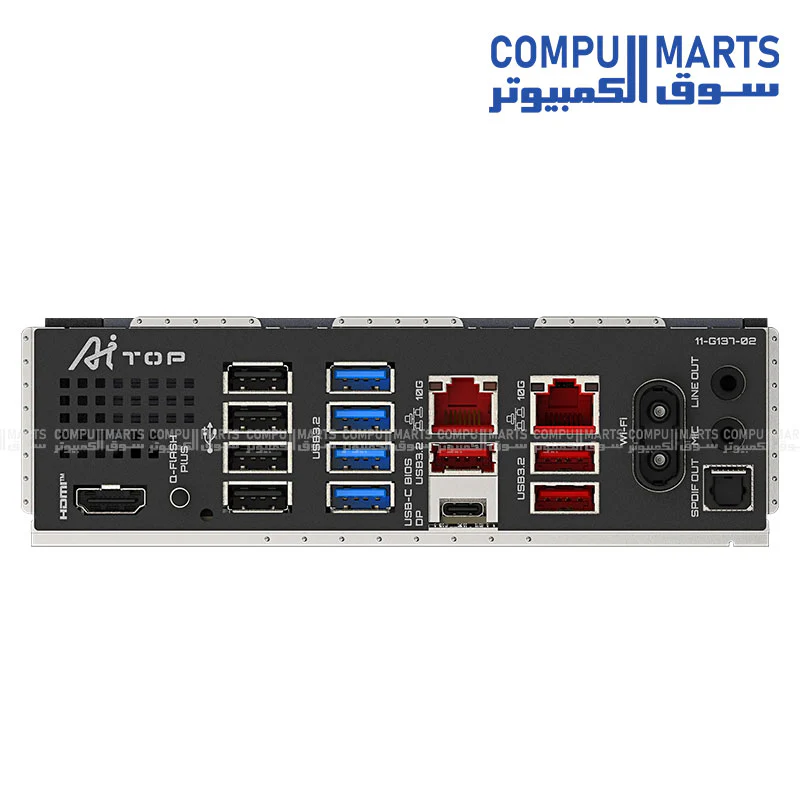

| Rear USB Ports | 1x USB-C (up to 40Gbps); 3x USB 3.2 Gen 2 (Red); 4x USB 3.2 Gen 1; 4x USB 2.0 |
| Internal I/O | 1x USB-C Gen 2x2 Header; 3x Addressable RGB Gen2; 2x 8-pin Power; Noise Detection Header |
| Special Features | Q-Flash Plus; Smart Backup; GIGABYTE Control Center (GCC) Support |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5: Supports Ryzen™ 9000, 8000, and 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | 4x DDR5 DIMM (Up to 256GB); Supports up to DDR5 8600(OC); AMD EXPO™ & Intel® XMP |
| Onboard Graphics | 1x USB Type-C (DP 1.4, 4K 144Hz); 1x HDMI 2.1 (4K 60Hz) |
| Audio | Realtek® ALC1220 CODEC; 7.1-Channel High Definition Audio; S/PDIF Out |
| Ethernet (LAN) | Dual 10GbE LAN: 2x Marvell® AQtion AQC113C (10G/5G/2.5G/1G/100M) |
| Wireless & BT | Realtek® Wi-Fi 7 RTL8922AE (2.4/5/6 GHz); Bluetooth 5.4 |
| Expansion Slots | 1x PCIe 5.0 x16; 1x PCIe 5.0 x8 (Shared); 1x PCIe 4.0 x2 (Chipset) |
| Storage Interface | 2x M.2 (PCIe 5.0 x4); 1x M.2 (PCIe 4.0 x2); 4x SATA 6Gb/s; NVMe RAID 0/1/5/10 |
| Rear USB Ports | 1x USB-C (up to 40Gbps); 3x USB 3.2 Gen 2 (Red); 4x USB 3.2 Gen 1; 4x USB 2.0 |
| Internal I/O | 1x USB-C Gen 2x2 Header; 3x Addressable RGB Gen2; 2x 8-pin Power; Noise Detection Header |
| Special Features | Q-Flash Plus; Smart Backup; GIGABYTE Control Center (GCC) Support |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
