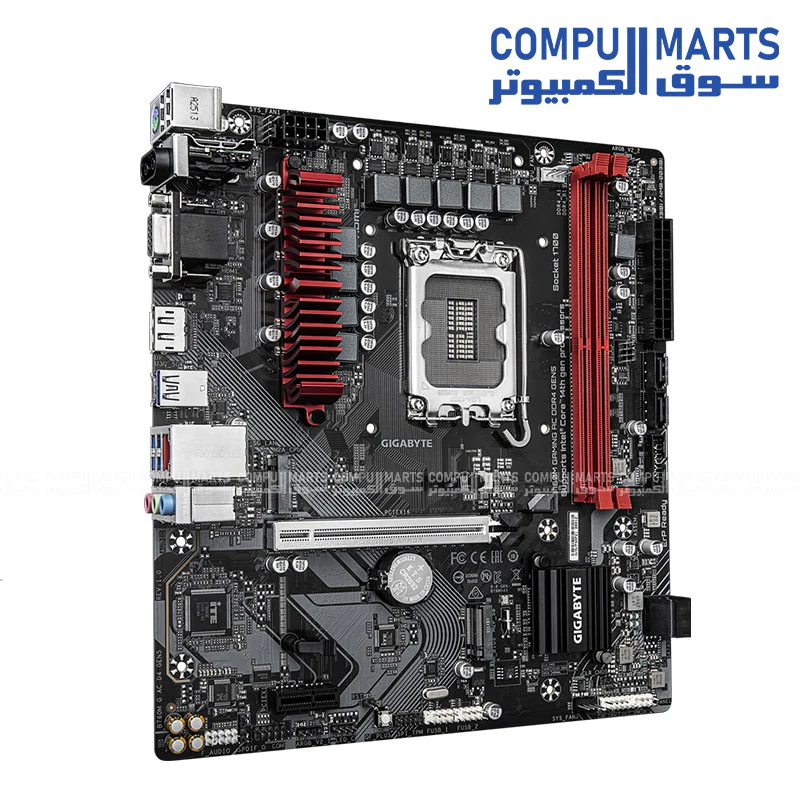

GIGABYTE B760M G AC D4 GEN5 (rev. 1.0) Motherboard – Intel LGA1700 – Micro-ATX – DDR4 – PCIe 5.0 – M.2 – WiFi AC – USB 3.2 – Supports Intel 14th / 13th / 12th Gen
HomeStore

GIGABYTE B760M G AC D4 GEN5 (rev. 1.0) Motherboard – Intel LGA1700 – Micro-ATX – DDR4 – PCIe 5.0 – M.2 – WiFi AC – USB 3.2 – Supports Intel 14th / 13th / 12th Gen

GIGABYTE B760M G AC D4 GEN5 (rev. 1.0) Motherboard – Intel LGA1700 – Micro-ATX – DDR4 – PCIe 5.0 – M.2 – WiFi AC – USB 3.2 – Supports Intel 14th / 13th / 12th Gen

$37.79

Original: $125.97

-70%
GIGABYTE B760M G AC D4 GEN5 (rev. 1.0) Motherboard – Intel LGA1700 – Micro-ATX – DDR4 – PCIe 5.0 – M.2 – WiFi AC – USB 3.2 – Supports Intel 14th / 13th / 12th Gen—

$125.97

$37.79

The Story

Category Specification Details
CPU Support LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® B760 Express Chipset
Memory 2 x DDR4 DIMM (Up to 64 GB); Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s; Dual Channel; XMP Support
Onboard Graphics 1 x HDMI 2.1 (4096x2160@60Hz), 1 x DisplayPort 1.2 (4096x2304@60Hz), 1 x D-Sub (1920x1200@60Hz); Triple-display support
Audio Realtek® Audio CODEC; 2/4/5.1/7.1-channel; High Definition Audio; S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless & Bluetooth Realtek® Wi-Fi AC (802.11 a/b/g/n/ac) 2.4/5 GHz Dual-Band; Bluetooth 5.0
Expansion Slots 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 3.0 x1 (Chipset)
Storage Interface 2 x M.2 connectors (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support
USB 1 x USB Type-C (3.2 Gen 1); 5 x USB 3.2 Gen 1 (3 rear, 2 internal); 6 x USB 2.0/1.1 (2 rear, 4 internal)
Internal Connectors Q-Flash Plus button, 2 x Addressable RGB Gen2 headers, 1 x RGB LED header, 3 x System fan headers
Back Panel I/O 2 x Antenna, PS/2 Port, HDMI, DP, D-Sub, 1 x USB-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45, 3 x Audio Jacks
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm

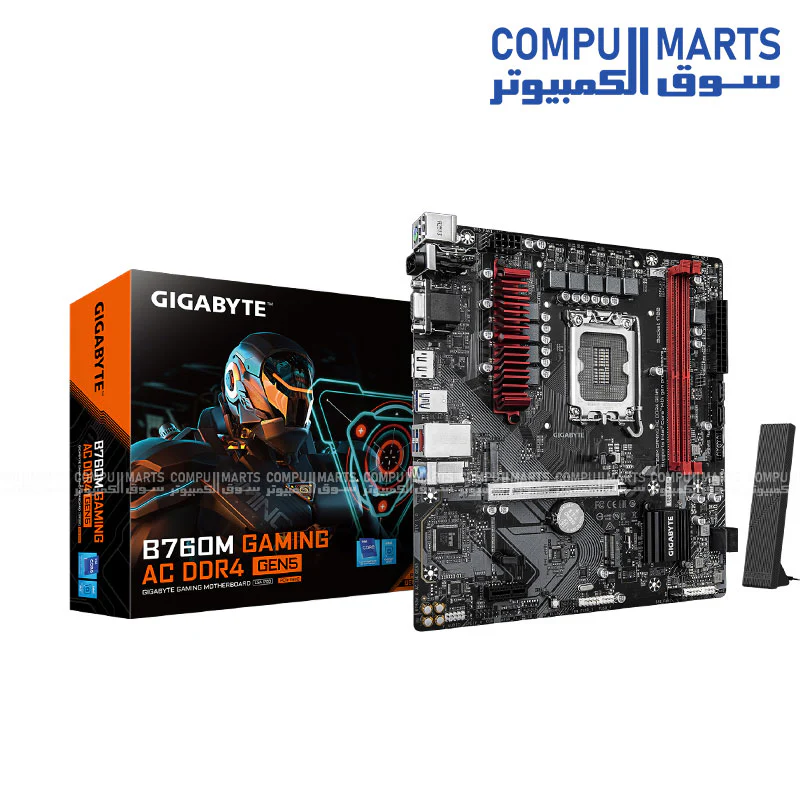

GIGABYTE B760M G AC D4 GEN5 (rev. 1.0) Motherboard – Intel LGA1700 – Micro-ATX – DDR4 – PCIe 5.0 – M.2 – WiFi AC – USB 3.2 – Supports Intel 14th / 13th / 12th Gen - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
CPU Support LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset Intel® B760 Express Chipset
Memory 2 x DDR4 DIMM (Up to 64 GB); Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s; Dual Channel; XMP Support
Onboard Graphics 1 x HDMI 2.1 (4096x2160@60Hz), 1 x DisplayPort 1.2 (4096x2304@60Hz), 1 x D-Sub (1920x1200@60Hz); Triple-display support
Audio Realtek® Audio CODEC; 2/4/5.1/7.1-channel; High Definition Audio; S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless & Bluetooth Realtek® Wi-Fi AC (802.11 a/b/g/n/ac) 2.4/5 GHz Dual-Band; Bluetooth 5.0
Expansion Slots 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 3.0 x1 (Chipset)
Storage Interface 2 x M.2 connectors (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support
USB 1 x USB Type-C (3.2 Gen 1); 5 x USB 3.2 Gen 1 (3 rear, 2 internal); 6 x USB 2.0/1.1 (2 rear, 4 internal)
Internal Connectors Q-Flash Plus button, 2 x Addressable RGB Gen2 headers, 1 x RGB LED header, 3 x System fan headers
Back Panel I/O 2 x Antenna, PS/2 Port, HDMI, DP, D-Sub, 1 x USB-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45, 3 x Audio Jacks
Form Factor Micro ATX Form Factor; 24.4cm x 22.5cm
