$129.78

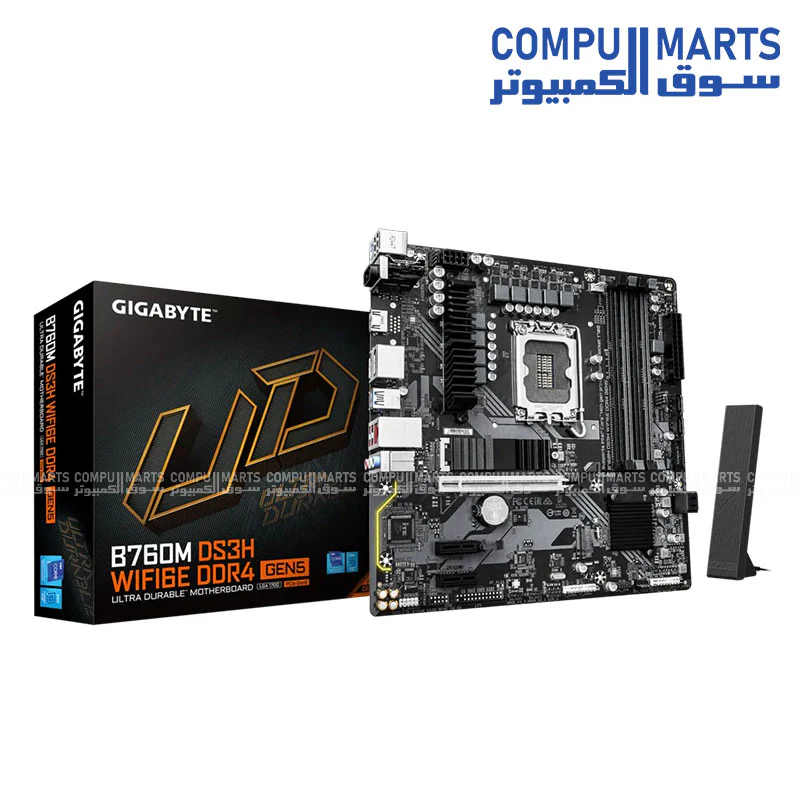

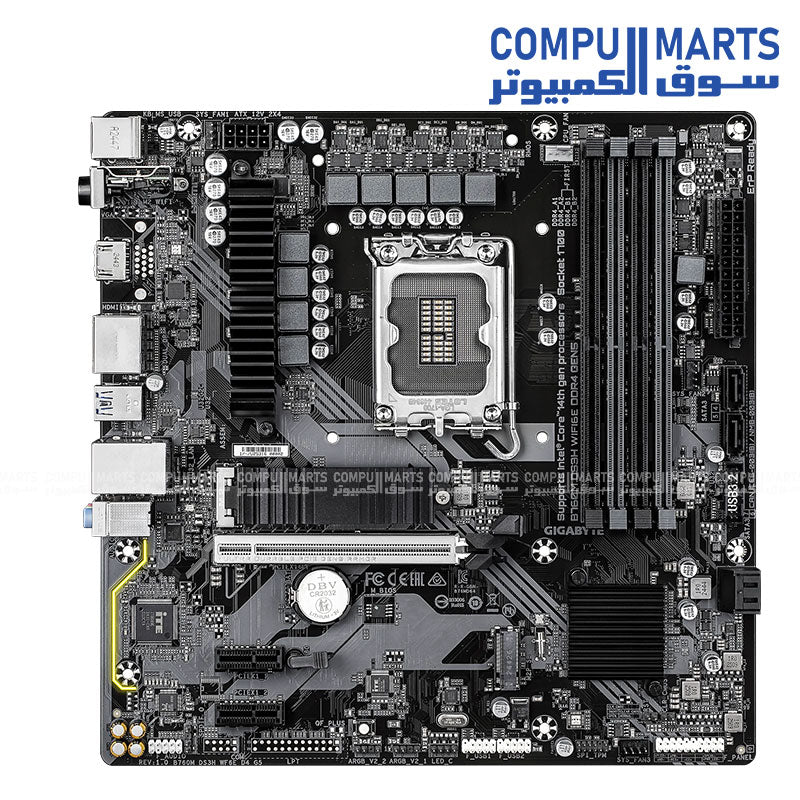

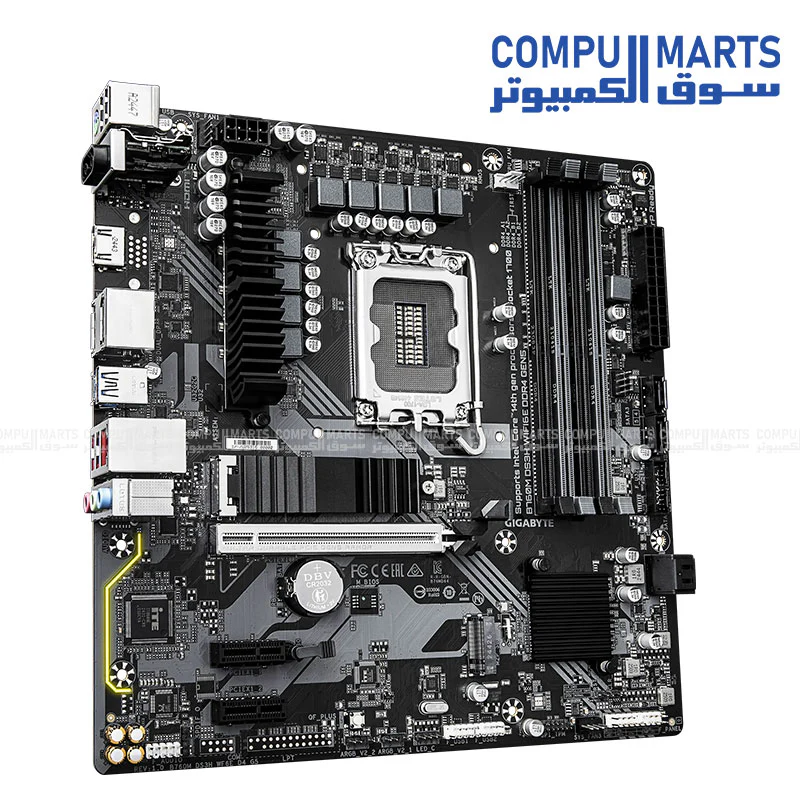

GIGABYTE B760M DS3H WiFi6E DDR4 Gen5 – LGA 1700, DDR4 XMP to 5333MHz, PCI‑E 5.0, Dual M.2, Wi‑Fi 6E & 2.5 GbE LAN—
$129.78
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR4 DIMM (Up to 128GB); Supports up to 3200 MT/s; Dual Channel; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4K@60Hz), 2 x DisplayPort 1.2 (4K@60Hz); Supports up to triple-display |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | Intel® Wi-Fi 6E AX210; 802.11ax (2.4/5/6 GHz); Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 3.0 x1 (Chipset) |
| Storage | 2 x M.2 PCIe 4.0 x4/x2; 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support |

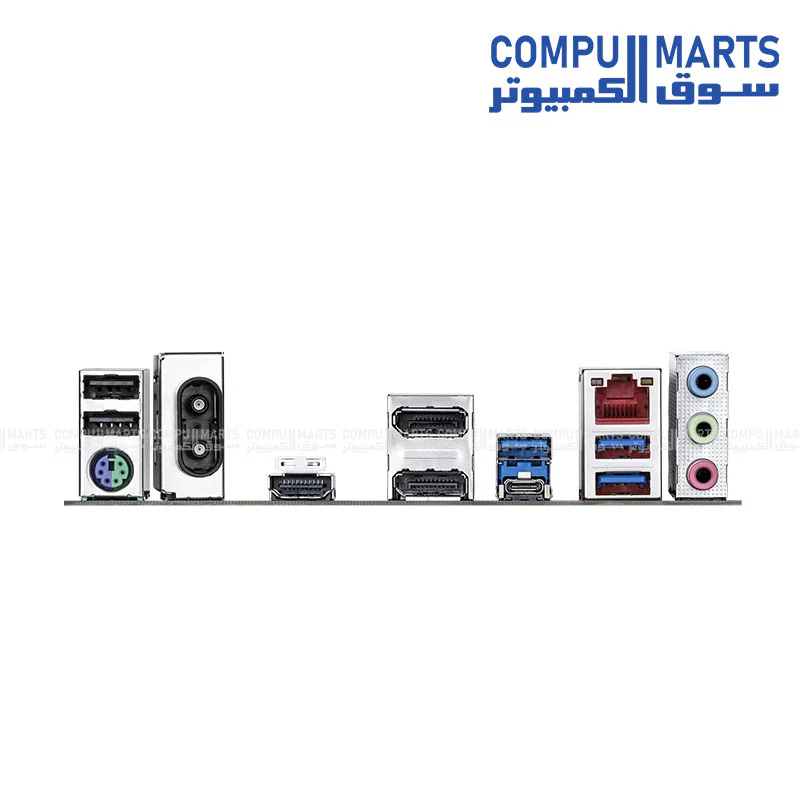

| USB (Rear) | 1 x USB Type-C® (3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal I/O | 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 2 x Addressable RGB Gen2, 1 x RGB LED strip header, Q-Flash Plus button |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR4 DIMM (Up to 128GB); Supports up to 3200 MT/s; Dual Channel; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4K@60Hz), 2 x DisplayPort 1.2 (4K@60Hz); Supports up to triple-display |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | Intel® Wi-Fi 6E AX210; 802.11ax (2.4/5/6 GHz); Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 3.0 x1 (Chipset) |
| Storage | 2 x M.2 PCIe 4.0 x4/x2; 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 support |
| USB (Rear) | 1 x USB Type-C® (3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| Internal I/O | 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 2 x Addressable RGB Gen2, 1 x RGB LED strip header, Q-Flash Plus button |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
| Operating System | Windows 11 64-bit / Windows 10 64-bit |
