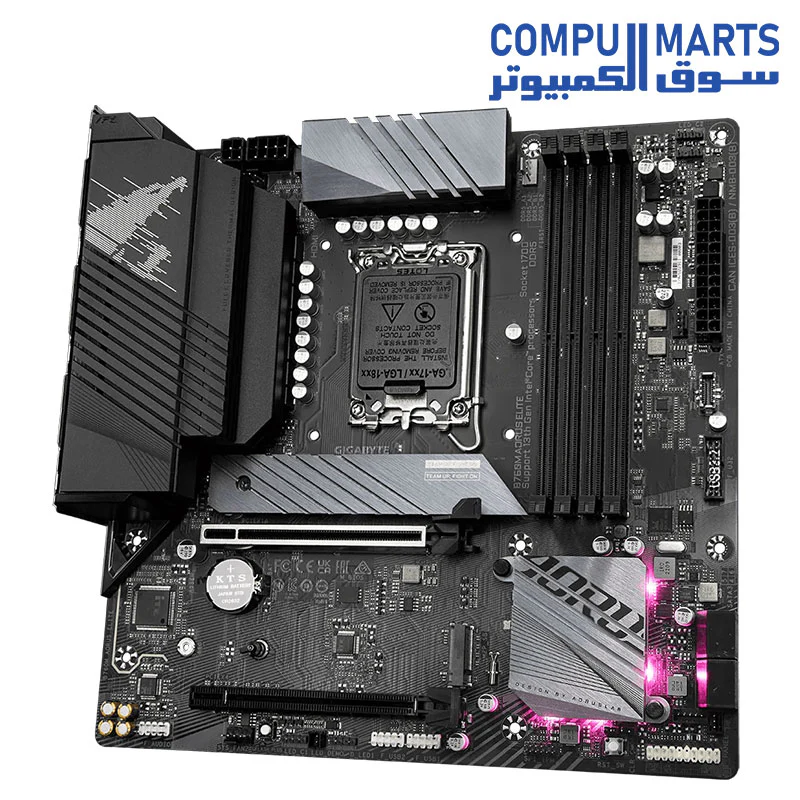

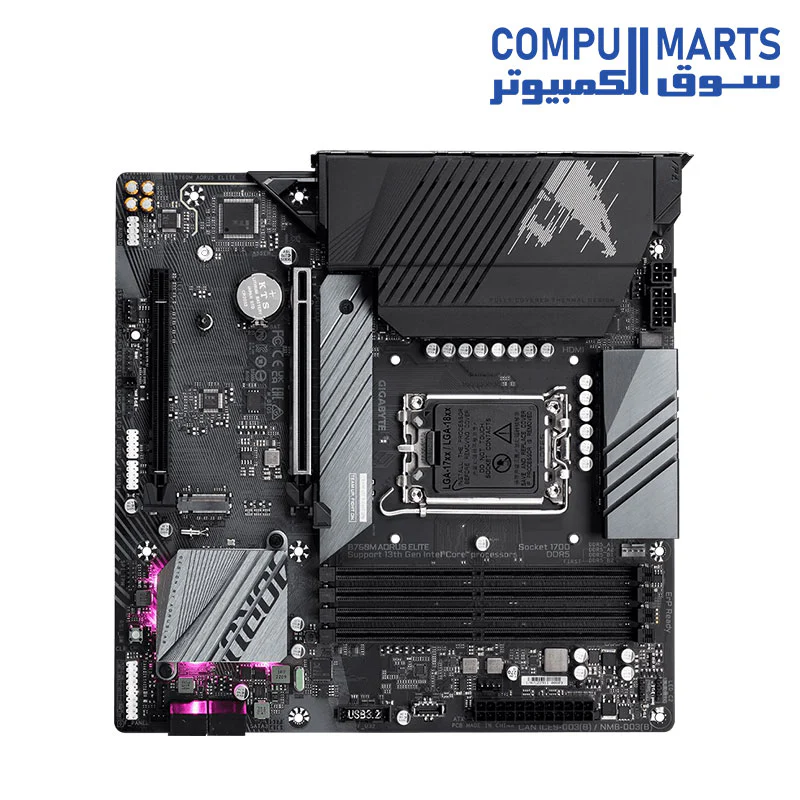

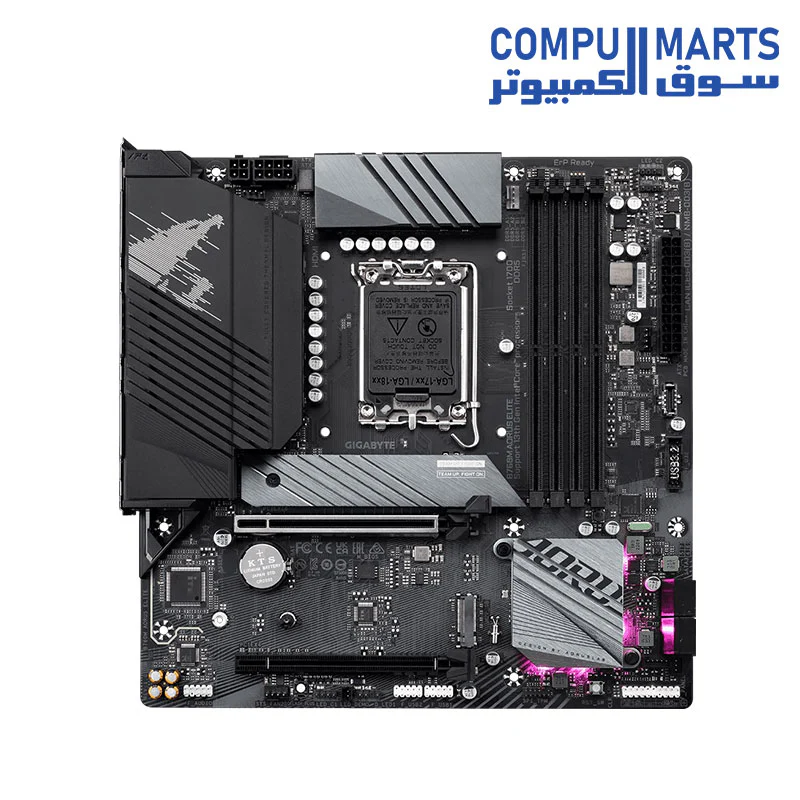

GIGABYTE B760M AORUS ELITE

GIGABYTE B760M AORUS ELITE  Supports Intel Core 14th/ 13th /12th processors - Dual Channel DDR5 - Advanced Thermal Design & M.2 Thermal Guard - 2.5GbE LAN

• Supports Intel Core 14th/ 13th /12th processors

• Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution

• Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support

• Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors

• Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance

• EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design

• Fast Networks：2.5GbE LAN

• Extended Connectivity：Front USB-C 10Gb/s, Rear USB-C 20Gb/s, DP, HDMI

• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

• CPU

  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

  2. L3 cache varies with CPU

• Chipset

  1. Intel B760 Express Chipset

• Memory

  1. Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

  2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules

• Onboard Graphics

  1. 1 x HDMI port, supporting a maximum resolution of 4096x216060 Hz

     Support for HDMI 2.1 version and HDCP 2.3.

      Support native HDMI 2.1 TMDS compatible ports.

  2. 1 x DisplayPort, supporting a maximum resolution of 4096x230460 Hz

      Support for DisplayPort 1.2 version and HDCP 2.3Integrated Graphics Processor-Intel HD Graphics support:

• Audio

  1. Realtek Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel

      You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  4. Support for S/PDIF Out

• LAN

  1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

     * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

  Support for AMD CrossFireX technology

• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

  2. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  Chipset:

  1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support

  2. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

  3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  4. 1 x USB 3.2 Gen 1 port on the back panel

  5. 4 x USB 2.0/1.1 ports available through the internal USB headers

  Chipset+USB 3.2 Gen 1 Hub:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  Chipset+USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports on the back panel

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x 4-pin ATX 12V power connector

  4. 1 x CPU fan header

  5. 3 x system fan headers

  6. 2 x addressable LED strip headers

  7. 2 x RGB LED strip headers

  8. 2 x M.2 Socket 3 connectors

  9. 4 x SATA 6Gb/s connectors

  10. 1 x front panel header

  11. 1 x front panel audio header

  12. 1 x USB Type-C header, with USB 3.2 Gen 2 support

  13. 1 x USB 3.2 Gen 1 header

  14. 2 x USB 2.0/1.1 headers

  15. 2 x Thunderbolt add-in card connectors

  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  17. 1 x Q-Flash Plus button

  18. 1 x reset button

  19. 1 x reset jumper

  20. 1 x Clear CMOS jumper

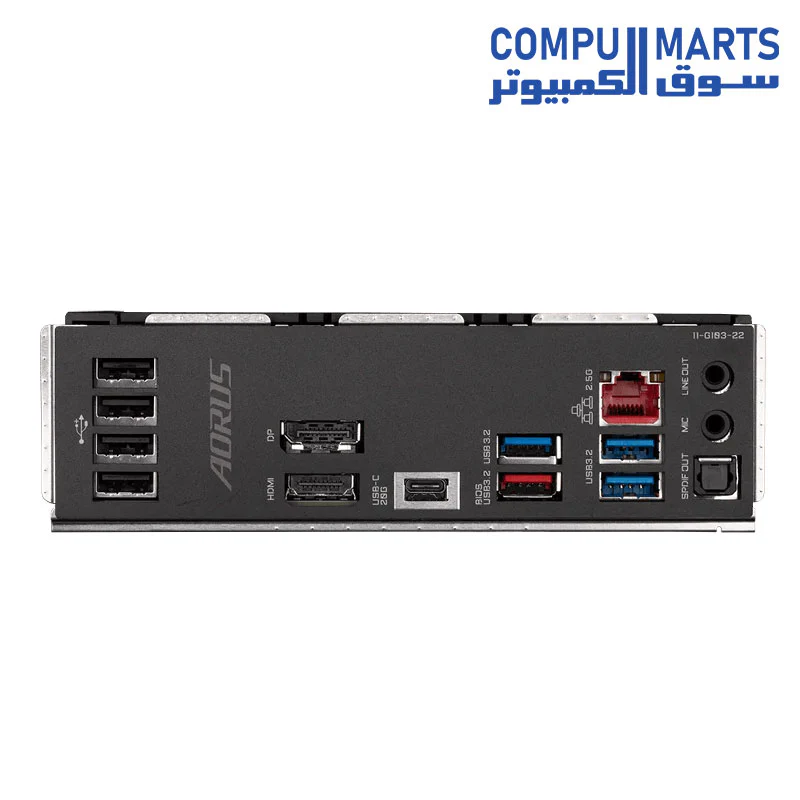

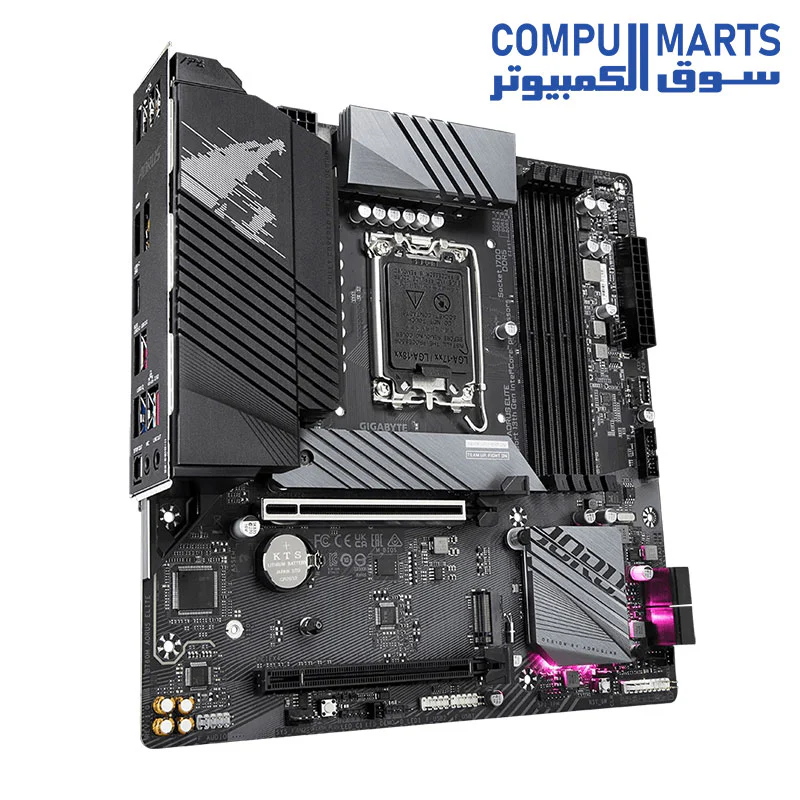

• Back Panel Connectors

  1. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support

  2. 1 x USB 3.2 Gen 2 Type-A port (red)

  3. 3 x USB 3.2 Gen 1 ports

  4. 4 x USB 2.0/1.1 ports

  5. 1 x HDMI port

  6. 1 x DisplayPort

  7. 1 x RJ-45 port

  8. 1 x optical S/PDIF Out connector

  9. 2 x audio jacks

• I/O Controller

  1. iTE I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Water cooling flow rate detection

  5. Fan fail warning

  6. Fan speed control

     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for GIGABYTE Control Center (GCC)

     * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  2. Support for Q-Flash

  3. Support for Q-Flash Plus

• Bundled Software

  1. Norton Internet Security (OEM version)

  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 24.4cm x 24.4cm
