GIGABYTE B760 GAMING X DDR5 Motherboard

GIGABYTE B760 GAMING X DDR5 Motherboard

$160.32
GIGABYTE B760 GAMING X DDR5 Motherboard—
$160.32

The Story

GIGABYTE B760 GAMING X Motherboard



  • Supports Intel Core 14th/ 13th /12th processors

  • Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution

  • Dual Channel DDR5：4 DIMMs XMP Memory Module Support

  • Next Generation Storage：3 PCIe 4.0 x4 M.2 Connectors

  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance

  • EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design

  • Fast Networks：2.5GbE LAN

  • Extended Connectivity：Front USB-C 10Gb/s, DP, HDMI

  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.



OUTSTANDING THERMAL DESIGN

GIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.


  • CPU

    1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

    2. L3 cache varies with CPU

    Chipset

    1. Intel B760 Express Chipset

  • Memory

    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

    3. Dual channel memory architecture

    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    6. Support for Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel HD Graphics support:

    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

      * Support for DisplayPort 1.2 version and HDCP 2.3

    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.0 version and HDCP 2.3.

    (Graphics specifications may vary depending on CPU support.)

  • Audio

    1. Realtek Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

    4. Support for S/PDIF Out

       You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Expansion Slots

    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

       For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

  • Storage Interface

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

    2. 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

  • USB

    Chipset:

    1. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

    3. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

    4. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

    5. 1 x USB 2.0/1.1 port on the back panel

    Chipset+2 USB 2.0 Hubs:

    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector

    2. 1 x 8-pin ATX 12V power connector

    3. 1 x CPU fan header

    4. 1 x CPU fan/water cooling pump header

    5. 3 x system fan headers

    6. 1 x system fan/water cooling pump header

    7. 2 x addressable LED strip headers

    8. 2 x RGB LED strip headers

    9. 3 x M.2 Socket 3 connectors

    10. 4 x SATA 6Gb/s connectors

    11. 1 x front panel header

    12. 1 x front panel audio header

    13. 1 x S/PDIF Out header

    14. 1 x USB Type-C header, with USB 3.2 Gen 2 support

    15. 1 x USB 3.2 Gen 1 header

    16. 2 x USB 2.0/1.1 headers

    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    18. 1 x serial port header

    19. 1 x Q-Flash Plus button

    20. 1 x reset jumper

    21. 1 x Clear CMOS jumper

  • Back Panel Connectors

    1. 1 x USB 3.2 Gen 2 Type-A port (red)

    2. 1 x USB Type-C port, with USB 3.2 Gen 1 support

    3. 1 x USB 3.2 Gen 1 port

    4. 5 x USB 2.0/1.1 ports

    5. 1 x DisplayPort

    6. 1 x HDMI port

    7. 1 x RJ-45 port

    8. 6 x audio jacks

  • I/O Controller

    1. iTE I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Water cooling flow rate detection

    5. Fan fail warning

    6. Fan speed control

       Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

  • BIOS

    1. 1 x 256 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    2. Support for Q-Flash

    3. Support for Q-Flash Plus

  • Bundled Software

    1. Norton Internet Security (OEM version)

    2. LAN bandwidth management software

  • Operating System

    1. Support for Windows 11 64-bit

    2. Support for Windows 10 64-bit

  • Form Factor

    1. ATX Form Factor; 30.5cm x 24.4cm

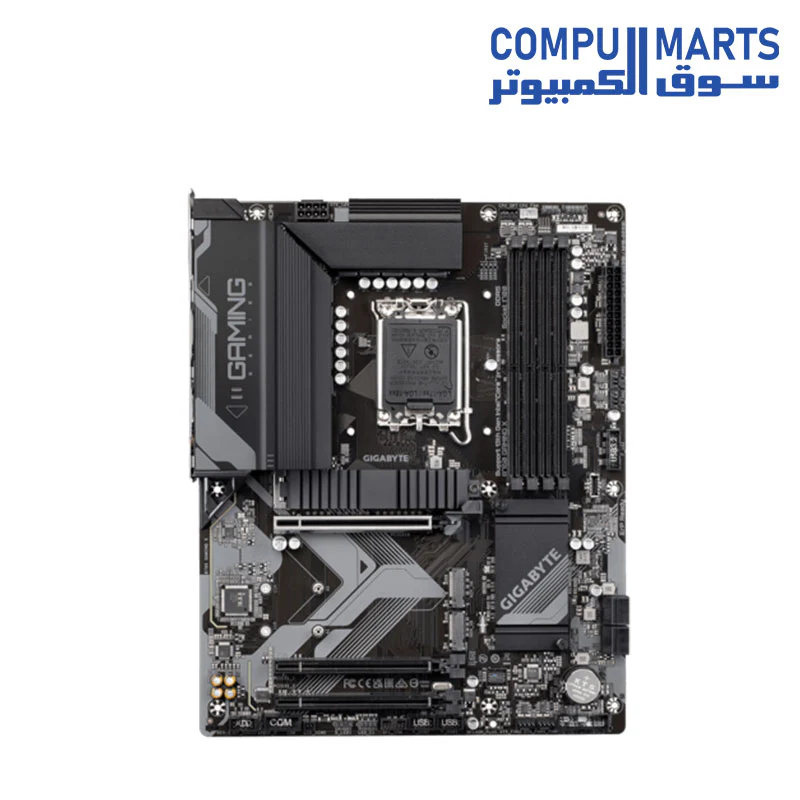

GIGABYTE B760 GAMING X DDR5 Motherboard - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

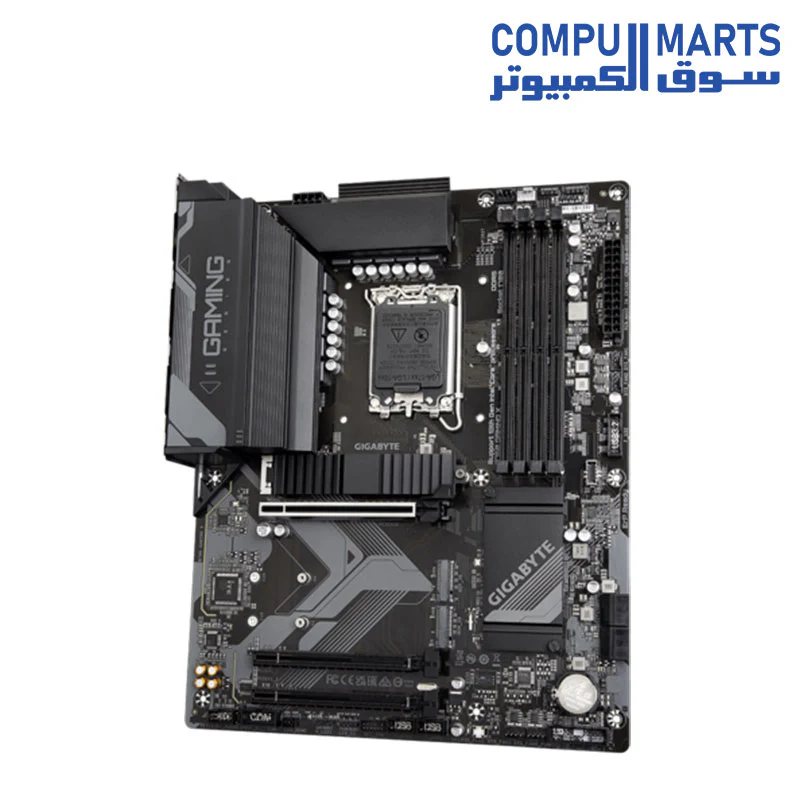

GIGABYTE B760 GAMING X DDR5 Motherboard - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

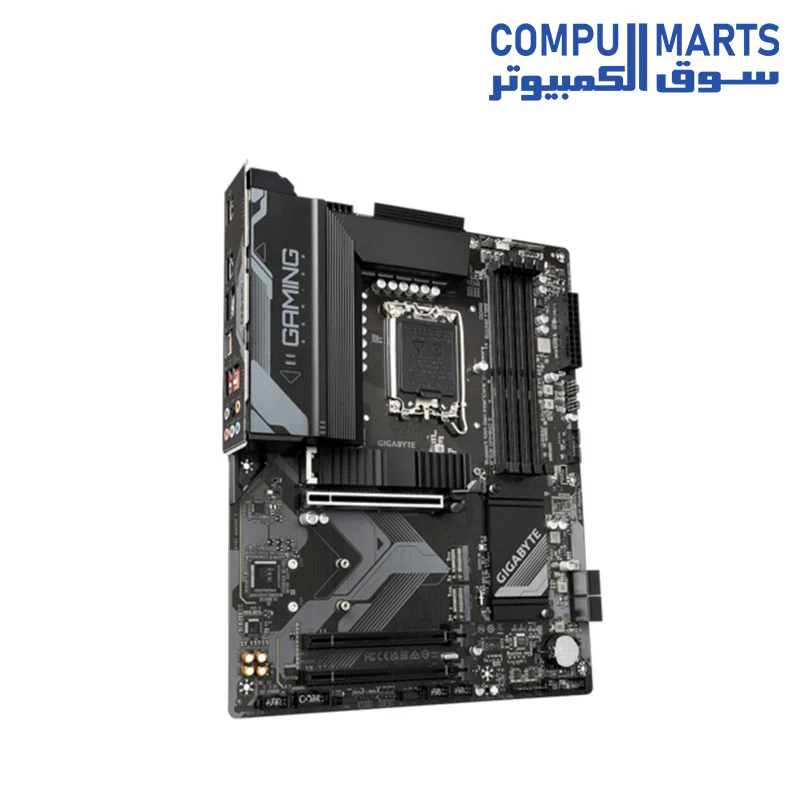

GIGABYTE B760 GAMING X DDR5 Motherboard - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

GIGABYTE B760 GAMING X Motherboard



  • Supports Intel Core 14th/ 13th /12th processors

  • Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution

  • Dual Channel DDR5：4 DIMMs XMP Memory Module Support

  • Next Generation Storage：3 PCIe 4.0 x4 M.2 Connectors

  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance

  • EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design

  • Fast Networks：2.5GbE LAN

  • Extended Connectivity：Front USB-C 10Gb/s, DP, HDMI

  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.



OUTSTANDING THERMAL DESIGN

GIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.


  • CPU

    1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

    2. L3 cache varies with CPU

    Chipset

    1. Intel B760 Express Chipset

  • Memory

    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules

    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

    3. Dual channel memory architecture

    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    6. Support for Extreme Memory Profile (XMP) memory modules

    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel HD Graphics support:

    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

      * Support for DisplayPort 1.2 version and HDCP 2.3

    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.0 version and HDCP 2.3.

    (Graphics specifications may vary depending on CPU support.)

  • Audio

    1. Realtek Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

    4. Support for S/PDIF Out

       You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Expansion Slots

    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

       For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

  • Storage Interface

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

    2. 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

  • USB

    Chipset:

    1. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

    3. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

    4. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

    5. 1 x USB 2.0/1.1 port on the back panel

    Chipset+2 USB 2.0 Hubs:

    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector

    2. 1 x 8-pin ATX 12V power connector

    3. 1 x CPU fan header

    4. 1 x CPU fan/water cooling pump header

    5. 3 x system fan headers

    6. 1 x system fan/water cooling pump header

    7. 2 x addressable LED strip headers

    8. 2 x RGB LED strip headers

    9. 3 x M.2 Socket 3 connectors

    10. 4 x SATA 6Gb/s connectors

    11. 1 x front panel header

    12. 1 x front panel audio header

    13. 1 x S/PDIF Out header

    14. 1 x USB Type-C header, with USB 3.2 Gen 2 support

    15. 1 x USB 3.2 Gen 1 header

    16. 2 x USB 2.0/1.1 headers

    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    18. 1 x serial port header

    19. 1 x Q-Flash Plus button

    20. 1 x reset jumper

    21. 1 x Clear CMOS jumper

  • Back Panel Connectors

    1. 1 x USB 3.2 Gen 2 Type-A port (red)

    2. 1 x USB Type-C port, with USB 3.2 Gen 1 support

    3. 1 x USB 3.2 Gen 1 port

    4. 5 x USB 2.0/1.1 ports

    5. 1 x DisplayPort

    6. 1 x HDMI port

    7. 1 x RJ-45 port

    8. 6 x audio jacks

  • I/O Controller

    1. iTE I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Water cooling flow rate detection

    5. Fan fail warning

    6. Fan speed control

       Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

  • BIOS

    1. 1 x 256 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    2. Support for Q-Flash

    3. Support for Q-Flash Plus

  • Bundled Software

    1. Norton Internet Security (OEM version)

    2. LAN bandwidth management software

  • Operating System

    1. Support for Windows 11 64-bit

    2. Support for Windows 10 64-bit

  • Form Factor

    1. ATX Form Factor; 30.5cm x 24.4cm

You may also like

-70%
Thumbnail 1Thumbnail 2

Motherboard Gigabyte B660M GAMING AC DDR4 intel

$100.20

$30.06

Thumbnail 1Thumbnail 2

Gigabyte B560M H Micro ATX Motherboard for Intel LGA 1200 CPUs

$155.55

-70%
Thumbnail 1Thumbnail 2

GIGABYTE Intel H510M H Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0 Design, Realtek GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

$54.40

$16.32

Thumbnail 1Thumbnail 2

GIGABYTE GeForc GTX 1660 Ti OC 6G GRAPHIC CARD

$195.63

Thumbnail 1Thumbnail 2

Motherboard GIGABYTE Z790 AORUS ELITE DDR4 LGA 1700 Intel Z790 ATX

$265.30

-70%
Thumbnail 1Thumbnail 2

GIGABYTE Radeon RX 6500 XT EAGLE 4G Graphics Card

$143.14

$42.94

-70%
Thumbnail 1Thumbnail 2

GIGABYTE GAMING OC Radeon RX 6500 XT 4GB GDDR6 GRAPHIC CARD

$156.93

$47.08

-70%
Thumbnail 1Thumbnail 2

AORUS WATERFORCE X 280, All-in-one Liquid Cooler with Circular LCD Display, RGB Fusion 2.0, 140mm ARGB Fans

$162.23

$48.67

-70%
Thumbnail 1Thumbnail 2

Z790 AORUS ELITE AX Motherboard

$290.11

$87.03

-70%
Thumbnail 1Thumbnail 2

GIGABYTE GeForce RTX 4070 Ti AERO OC 12GB GDDR6X - Graphics Card

$877.94

$263.38

-70%
Thumbnail 1Thumbnail 2

GIGABYTE Z790 AERO G DDR5 Motherboard

$353.09

$105.93

-70%
Thumbnail 1Thumbnail 2

Graphic Card GIGABYTE GeForce RTX 3050 GAMING OC 8G

$227.10

$68.13
