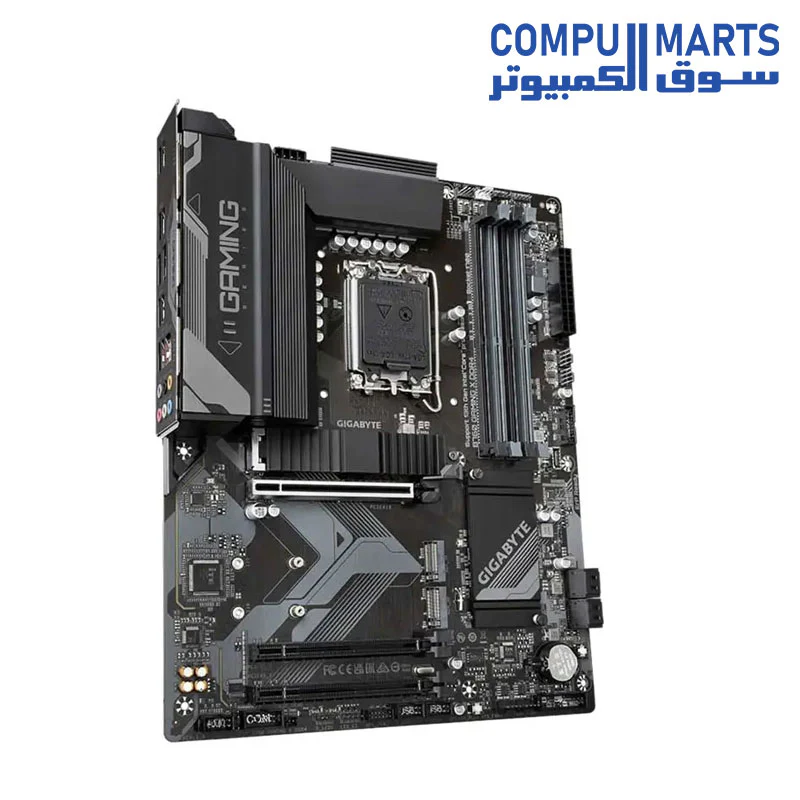

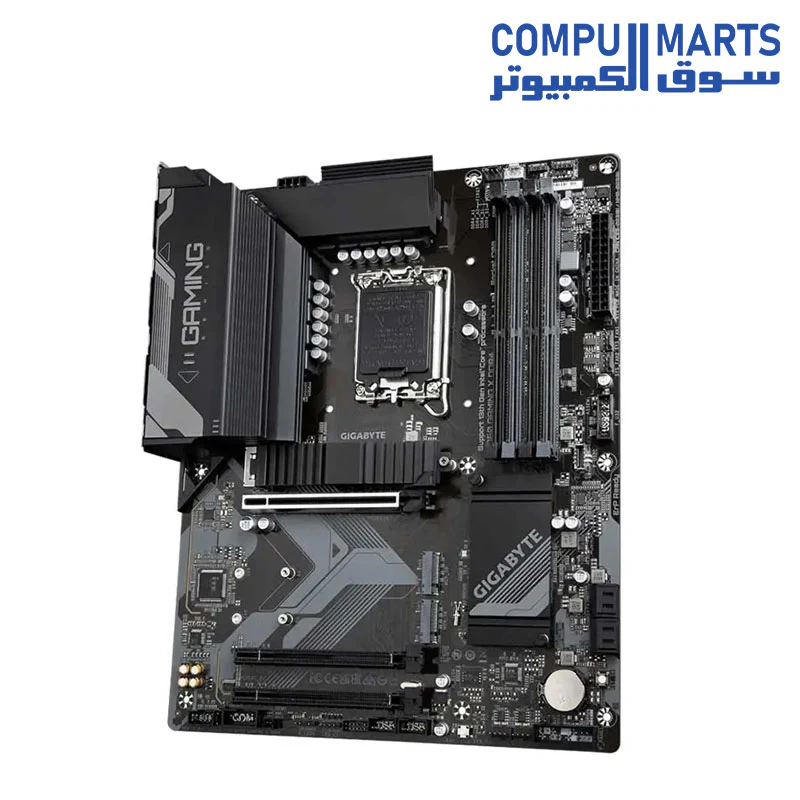

GIGABYTE B760 GAMING X DDR4 Motherboard—
$139.33
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 up to 5333(O.C.), Dual Channel, XMP Support |
| Onboard Graphics | 1 x DisplayPort (4096x2304@60 Hz), 1 x HDMI 2.1 (4096x2160@60 Hz) |
| Storage Interface | 3 x M.2 connectors (PCIe 4.0 x4/x2 support), 4 x SATA 6Gb/s (RAID 0, 1, 5, 10 support) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 2 x PCIe 3.0 x16 running at x1 (Chipset) |
| Ethernet / LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB Connectors | Rear: 1x USB 3.2 Gen 2 (Type-A), 2x USB 3.2 Gen 1, 5x USB 2.0 | Front: USB Type-C® 3.2 Gen 2 support |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| Special Features | Q-Flash Plus Button, RGB FUSION (Addressable/RGB LED headers), Smart Fan 6 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Operating System | Support for Windows 11 64-bit & Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 up to 5333(O.C.), Dual Channel, XMP Support |
| Onboard Graphics | 1 x DisplayPort (4096x2304@60 Hz), 1 x HDMI 2.1 (4096x2160@60 Hz) |
| Storage Interface | 3 x M.2 connectors (PCIe 4.0 x4/x2 support), 4 x SATA 6Gb/s (RAID 0, 1, 5, 10 support) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU), 2 x PCIe 3.0 x16 running at x1 (Chipset) |
| Ethernet / LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB Connectors | Rear: 1x USB 3.2 Gen 2 (Type-A), 2x USB 3.2 Gen 1, 5x USB 2.0 | Front: USB Type-C® 3.2 Gen 2 support |
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support |
| Special Features | Q-Flash Plus Button, RGB FUSION (Addressable/RGB LED headers), Smart Fan 6 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Operating System | Support for Windows 11 64-bit & Windows 10 64-bit |
