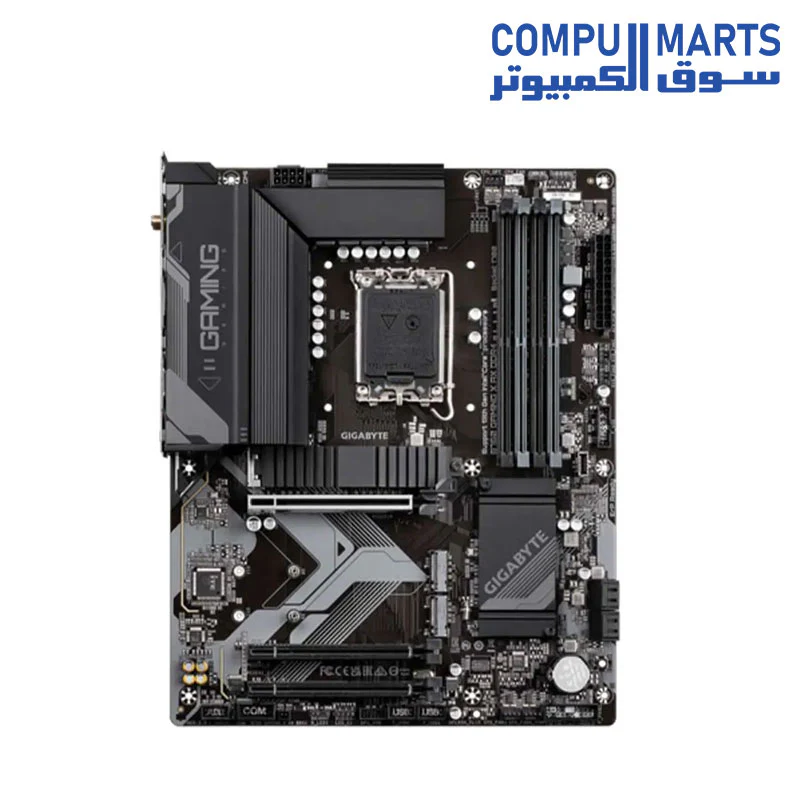

GIGABYTE B760 GAMING X AX DDR4 Motherboard

GIGABYTE B760 GAMING X AX DDR4 Motherboard

• Intel Socket LGA 1700：Support 13th and 12th Gen Series Processors

• Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution

• Dual Channel DDR4：4*DIMMs XMP Memory Module Support

• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors

• Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance

• EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design

• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

• Extended Connectivity：Front USB-C 10Gb/s, DP, HDMI

• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

• CPU

  1. LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

  2. L3 cache varies with CPU

  (Please refer “CPU Support List” for more information.)

• Chipset

  1. Intel B760 Express Chipset

• Memory

  1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel HD Graphics support:

  1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

     * Support for DisplayPort 1.2 version and HDCP 2.3

  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

     * Support for HDMI 2.0 version and HDCP 2.3.

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel

  4. Support for S/PDIF Out

     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication module

  AMD Wi-Fi 6E RZ608 (MT7921K)

  1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2. BLUETOOTH 5.2

  3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate

  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots

  CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

• Storage Interface

  CPU:

  1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

  2. 4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• USB

  Chipset:

  1. 1 x USB Type-C  port with USB 3.2 Gen 2 support, available through the internal USB header

  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  3. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  4. 1 x USB 2.0/1.1 port on the back panel

  Chipset+2 USB 2.0 Hubs:

  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x CPU fan header

  4. 1 x CPU fan/water cooling pump header

  5. 3 x system fan headers

  6. 1 x system fan/water cooling pump header

  7. 2 x addressable LED strip headers

  8. 2 x RGB LED strip headers

  9. 3 x M.2 Socket 3 connectors

  10. 4 x SATA 6Gb/s connectors

  11. 1 x front panel header

  12. 1 x front panel audio header

  13. 1 x S/PDIF Out header

  14. 1 x USB Type-C  header, with USB 3.2 Gen 2 support

  15. 1 x USB 3.2 Gen 1 header

  16. 2 x USB 2.0/1.1 headers

  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  18. 1 x serial port header

  19. 1 x Q-Flash Plus button

  20. 1 x reset button

  21. 1 x reset jumper

  22. 1 x Clear CMOS jumper

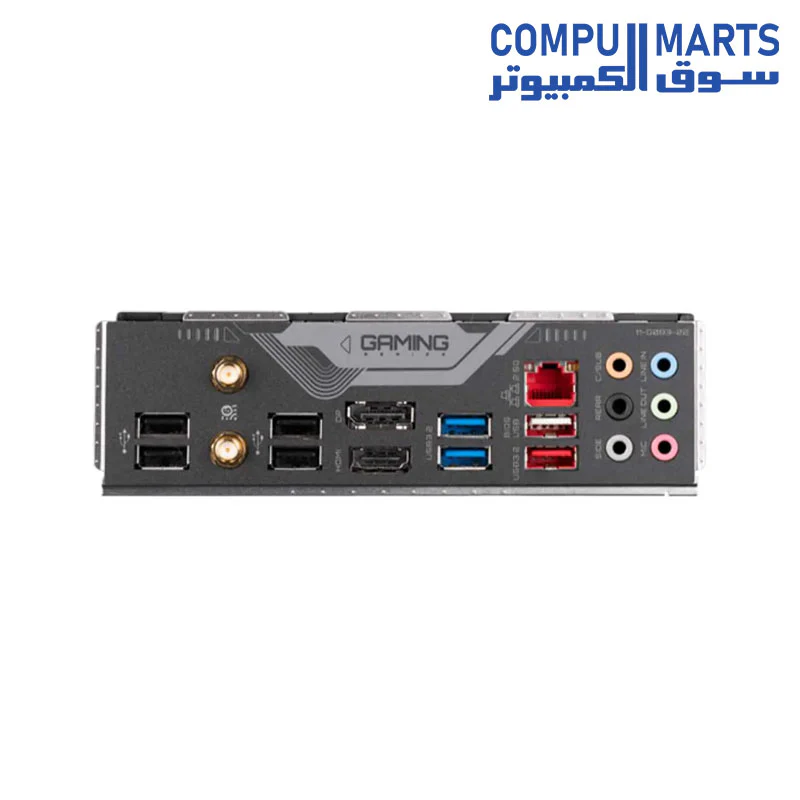

• Back Panel Connectors

  1. 1 x USB 3.2 Gen 2 Type-A port (red)

  2. 2 x USB 3.2 Gen 1 ports

  3. 5 x USB 2.0/1.1 ports

  4. 2 x SMA antenna connectors (2T2R)

  5. 1 x DisplayPort

  6. 1 x HDMI port

  7. 1 x RJ-45 port

  8. 6 x audio jacks

• I/O Controller

  1. iTE  I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Water cooling flow rate detection

  5. Fan fail warning

  6. Fan speed control

     * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for GIGABYTE Control Center (GCC)

     * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  2. Support for Q-Flash

  3. Support for Q-Flash Plus

• Bundled Software

  1. Norton  Internet Security (OEM version)

  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Form Factor

  1. ATX Form Factor; 30.5cm x 24.4cm
