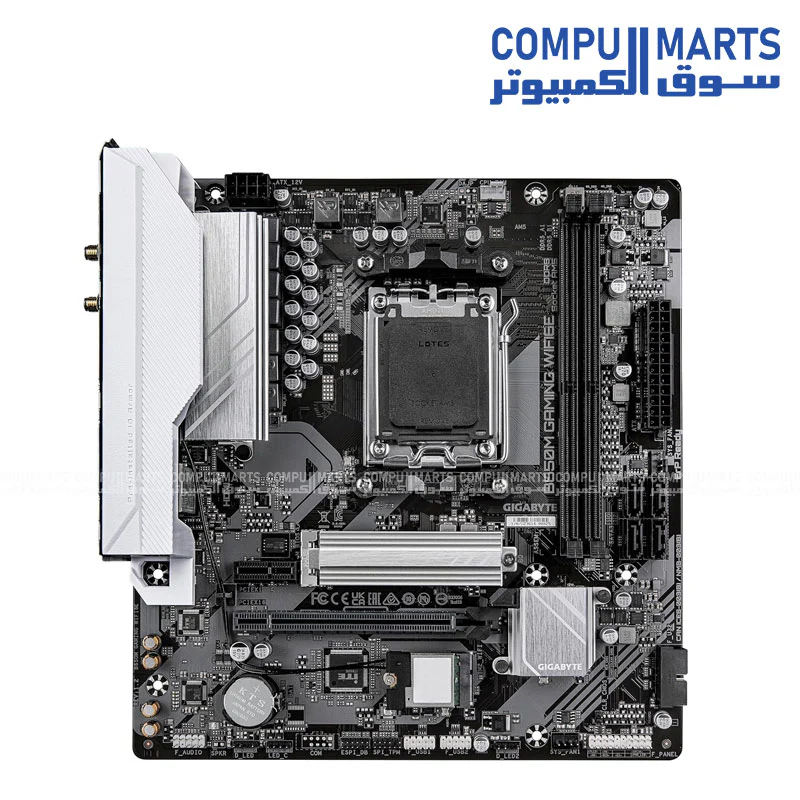

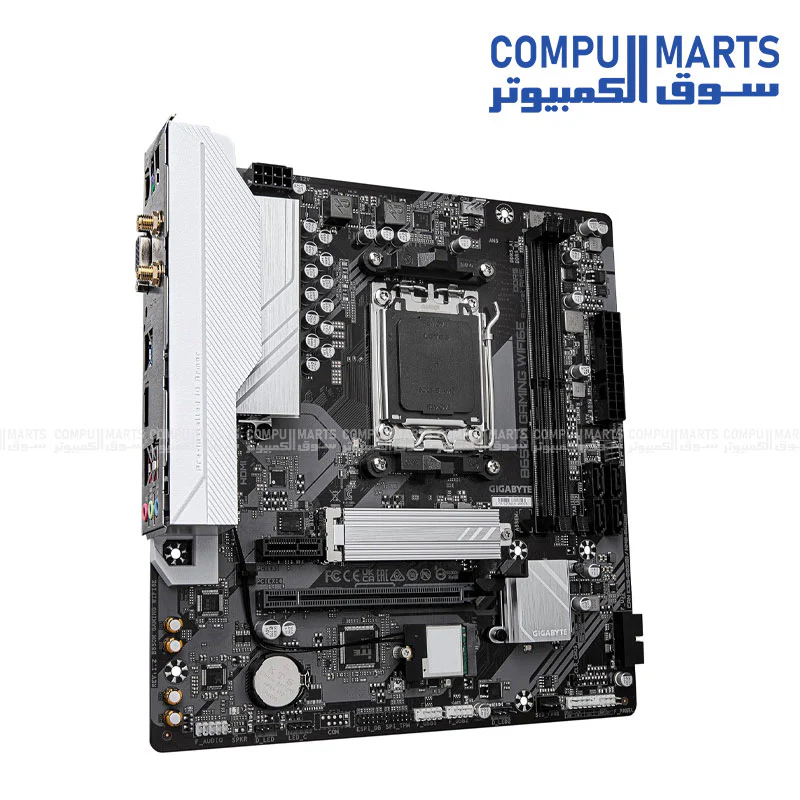

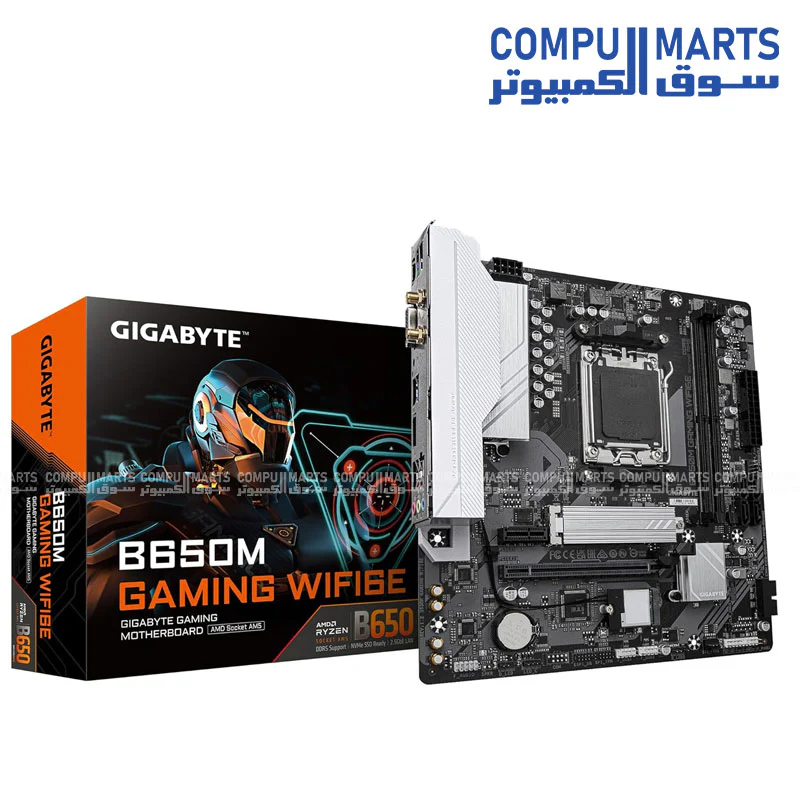

-70%GIGABYTE B650M Gaming WiFi6E – AMD AM5 Micro-ATX DDR5 Motherboard with PCIe 5.0 & Wi-Fi 6E—
$124.06
$37.22The Story
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | 2 x DDR5 DIMM (up to 128GB); Supports up to DDR5 6400(OC); Dual Channel; AMD EXPO™ & Intel® XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60Hz); 1 x D-Sub (1920x1200@60Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | Realtek Wi-Fi 6E RTL8852CE; Tri-band 2.4/5/6 GHz; Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (integrated in CPU); 1 x PCIe 3.0 x1 slot (Chipset) |
| Storage | 1 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; NVMe/SATA RAID 0, 1, 10 support |
| USB (Rear) | 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 |
| USB (Internal) | 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers (supporting 4 ports) |

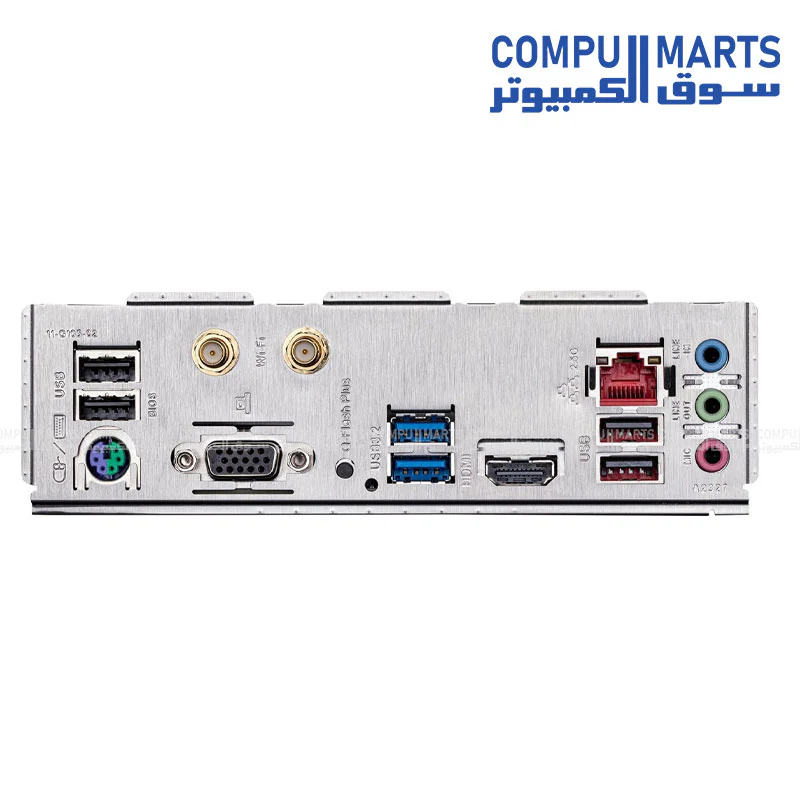

| Back Panel I/O | PS/2 Port, Q-Flash Plus button, RJ-45, 3 x Audio jacks, HDMI, D-Sub |
| Internal I/O | 2 x Addressable LED headers; 1 x RGB LED header; 1 x CPU fan header; 2 x System fan headers |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash Plus; BIOS Flashback |
| Form Factor | Micro ATX Form Factor; 24.0cm x 22.5cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B650 |
| Memory | 2 x DDR5 DIMM (up to 128GB); Supports up to DDR5 6400(OC); Dual Channel; AMD EXPO™ & Intel® XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60Hz); 1 x D-Sub (1920x1200@60Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | Realtek Wi-Fi 6E RTL8852CE; Tri-band 2.4/5/6 GHz; Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 4.0 x16 slot (integrated in CPU); 1 x PCIe 3.0 x1 slot (Chipset) |
| Storage | 1 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; NVMe/SATA RAID 0, 1, 10 support |
| USB (Rear) | 2 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 |
| USB (Internal) | 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers (supporting 4 ports) |
| Back Panel I/O | PS/2 Port, Q-Flash Plus button, RJ-45, 3 x Audio jacks, HDMI, D-Sub |
| Internal I/O | 2 x Addressable LED headers; 1 x RGB LED header; 1 x CPU fan header; 2 x System fan headers |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash Plus; BIOS Flashback |
| Form Factor | Micro ATX Form Factor; 24.0cm x 22.5cm |
