GIGABYTE B650M D3HP (rev. 1.0) MOTHERBOAED
HomeStore

GIGABYTE B650M D3HP (rev. 1.0) MOTHERBOAED

GIGABYTE B650M D3HP (rev. 1.0) MOTHERBOAED

$45.81

Original: $152.69

-70%
GIGABYTE B650M D3HP (rev. 1.0) MOTHERBOAED—

$152.69

$45.81

The Story

Category Specification Details
CPU Support AMD Socket AM5 for Ryzen™ 7000 / 8000 / 9000 Series Processors
Chipset AMD B650
Memory 4x DDR5 DIMM (Up to 256GB); Supports up to 8000(OC) MT/s; AMD EXPO™ & Intel® XMP Support
Onboard Graphics 2x DisplayPort 1.4 (3840x2160@144Hz); 1x HDMI 2.1 (4096x2160@60Hz); Triple-display support
Expansion Slots 1x PCIe 4.0 x16 (Supports x16/x8/x4 based on CPU); 1x PCIe 3.0 x1
Storage Interface 1x M.2 (CPU PCIe 4.0 x4/x2); 1x M.2 (Chipset PCIe 4.0 x4/x2); 4x SATA 6Gb/s; NVMe/SATA RAID 0, 1, 10
Ethernet / LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
USB Connectors Back: 1x USB-C (3.2 Gen 1), 3x USB 3.2 Gen 1, 2x USB 2.0; Internal: 1x USB-C (3.2 Gen 1), 2x USB 3.2 Gen 1, 4x USB 2.0
Internal I/O 1x CPU Fan, 2x System Fans, 2x Addressable LED, 1x RGB LED, Q-Flash Plus Button, TPM Header
Back Panel I/O PS/2 Port, HDMI, 2x DP, RJ-45, 3x Audio Jacks, 6x USB Ports (including Type-C)
Form Factor Micro ATX Form Factor (24.4cm x 24.4cm)
OS Support Windows 11 64-bit / Windows 10 64-bit

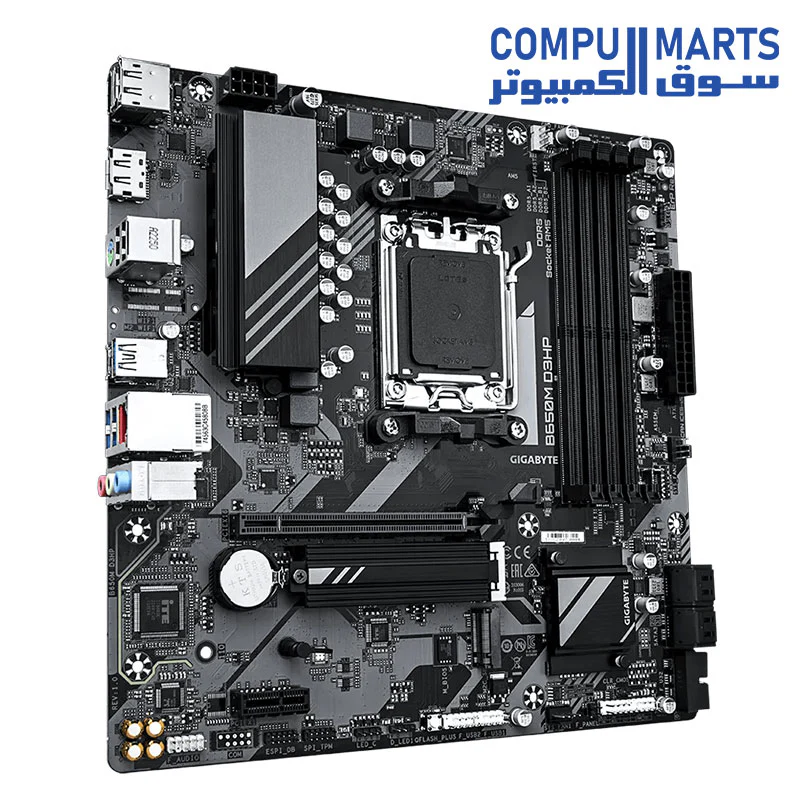

GIGABYTE B650M D3HP (rev. 1.0) MOTHERBOAED - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

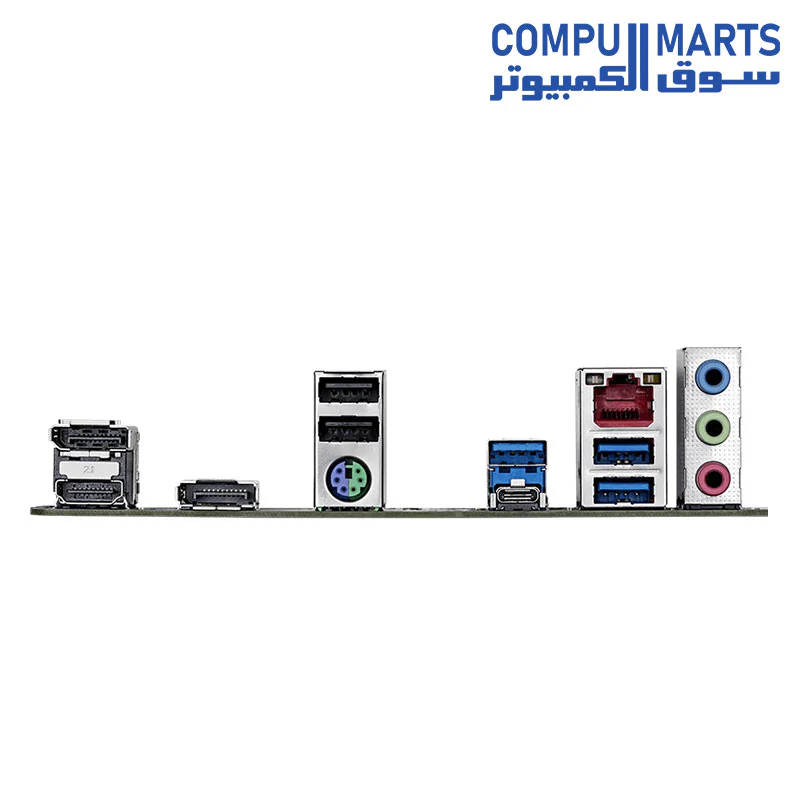

GIGABYTE B650M D3HP (rev. 1.0) MOTHERBOAED - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
CPU Support AMD Socket AM5 for Ryzen™ 7000 / 8000 / 9000 Series Processors
Chipset AMD B650
Memory 4x DDR5 DIMM (Up to 256GB); Supports up to 8000(OC) MT/s; AMD EXPO™ & Intel® XMP Support
Onboard Graphics 2x DisplayPort 1.4 (3840x2160@144Hz); 1x HDMI 2.1 (4096x2160@60Hz); Triple-display support
Expansion Slots 1x PCIe 4.0 x16 (Supports x16/x8/x4 based on CPU); 1x PCIe 3.0 x1
Storage Interface 1x M.2 (CPU PCIe 4.0 x4/x2); 1x M.2 (Chipset PCIe 4.0 x4/x2); 4x SATA 6Gb/s; NVMe/SATA RAID 0, 1, 10
Ethernet / LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
USB Connectors Back: 1x USB-C (3.2 Gen 1), 3x USB 3.2 Gen 1, 2x USB 2.0; Internal: 1x USB-C (3.2 Gen 1), 2x USB 3.2 Gen 1, 4x USB 2.0
Internal I/O 1x CPU Fan, 2x System Fans, 2x Addressable LED, 1x RGB LED, Q-Flash Plus Button, TPM Header
Back Panel I/O PS/2 Port, HDMI, 2x DP, RJ-45, 3x Audio Jacks, 6x USB Ports (including Type-C)
Form Factor Micro ATX Form Factor (24.4cm x 24.4cm)
OS Support Windows 11 64-bit / Windows 10 64-bit
