GIGABYTE B650M AORUS PRO AX – AMD AM5 Micro-ATX DDR5 Motherboard with PCIe 5.0, Wi-Fi 6E & RGB Fusion
HomeStore

GIGABYTE B650M AORUS PRO AX – AMD AM5 Micro-ATX DDR5 Motherboard with PCIe 5.0, Wi-Fi 6E & RGB Fusion

GIGABYTE B650M AORUS PRO AX – AMD AM5 Micro-ATX DDR5 Motherboard with PCIe 5.0, Wi-Fi 6E & RGB Fusion

$72.72

Original: $242.39

-70%
GIGABYTE B650M AORUS PRO AX – AMD AM5 Micro-ATX DDR5 Motherboard with PCIe 5.0, Wi-Fi 6E & RGB Fusion—

$242.39

$72.72

The Story

Category Specification Details
CPU Support AMD Socket AM5: Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors
Chipset AMD B650
Memory 4 x DDR5 DIMM (Up to 256 GB); Supports Dual Channel DDR5 up to 8000(OC) MT/s; AMD EXPO™ & XMP support
Onboard Graphics 1 x DisplayPort (3840x2160 @144 Hz); 1 x HDMI 2.1 (4096x2160 @60 Hz)
Audio Realtek® Audio CODEC; High Definition 2/4/5.1/7.1-channel; S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Wi-Fi 6E (802.11ax) 2.4/5/6 GHz; Bluetooth 5.2/5.3 (Depending on PCB Rev)
Expansion Slots 1 x PCIe 4.0 x16 (integrated in CPU); 1 x PCIe 4.0 x4 (from Chipset)
Storage Interface 1 x M.2 (PCIe 5.0/4.0 x4); 1 x M.2 (PCIe 4.0 x4); 4 x SATA 6Gb/s; RAID 0, 1, 10 support
Back USB Ports 1 x USB-C (3.2 Gen 2); 2 x USB 3.2 Gen 2 (Red); 5 x USB 3.2 Gen 1; 4 x USB 2.0/1.1
Internal USB 1 x USB-C (3.2 Gen 2x2); 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers
Unique Features Q-Flash Plus; GIGABYTE Control Center (GCC); RGB Fusion support
Form Factor Micro ATX (24.4cm x 24.4cm)

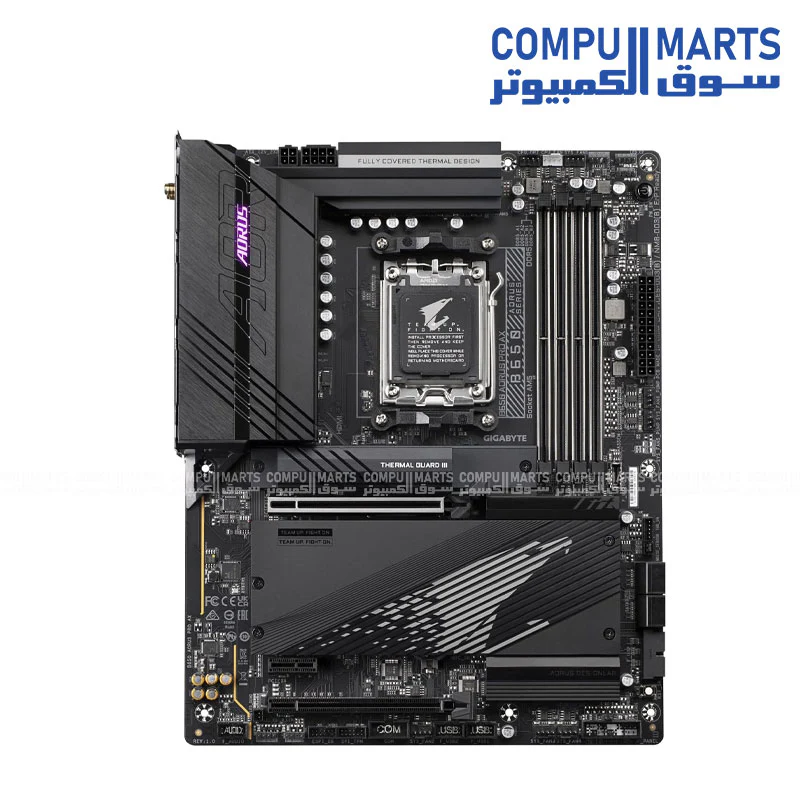

GIGABYTE B650M AORUS PRO AX – AMD AM5 Micro-ATX DDR5 Motherboard with PCIe 5.0, Wi-Fi 6E & RGB Fusion - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

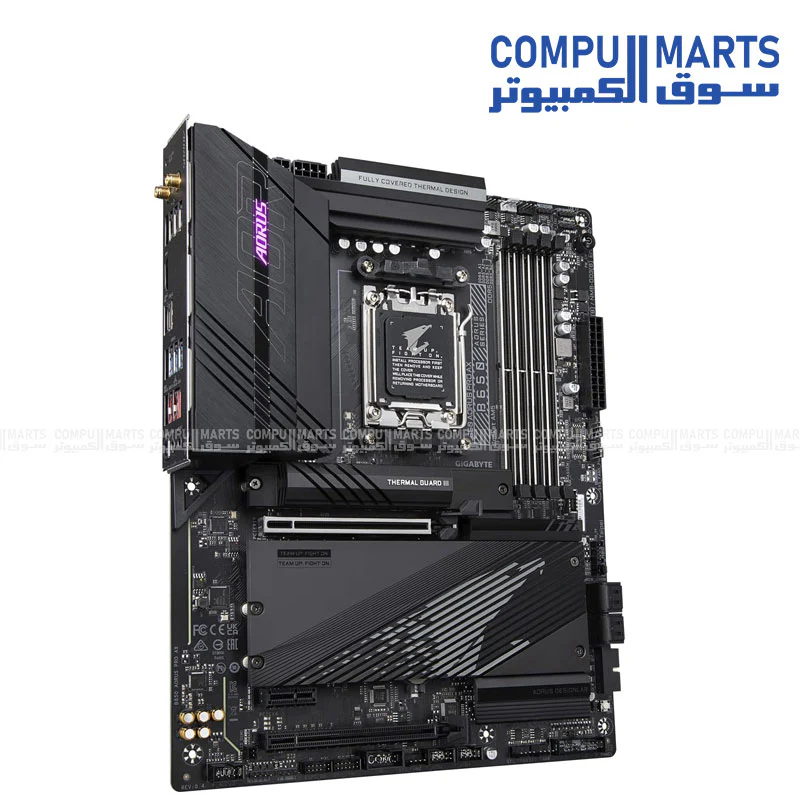

GIGABYTE B650M AORUS PRO AX – AMD AM5 Micro-ATX DDR5 Motherboard with PCIe 5.0, Wi-Fi 6E & RGB Fusion - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

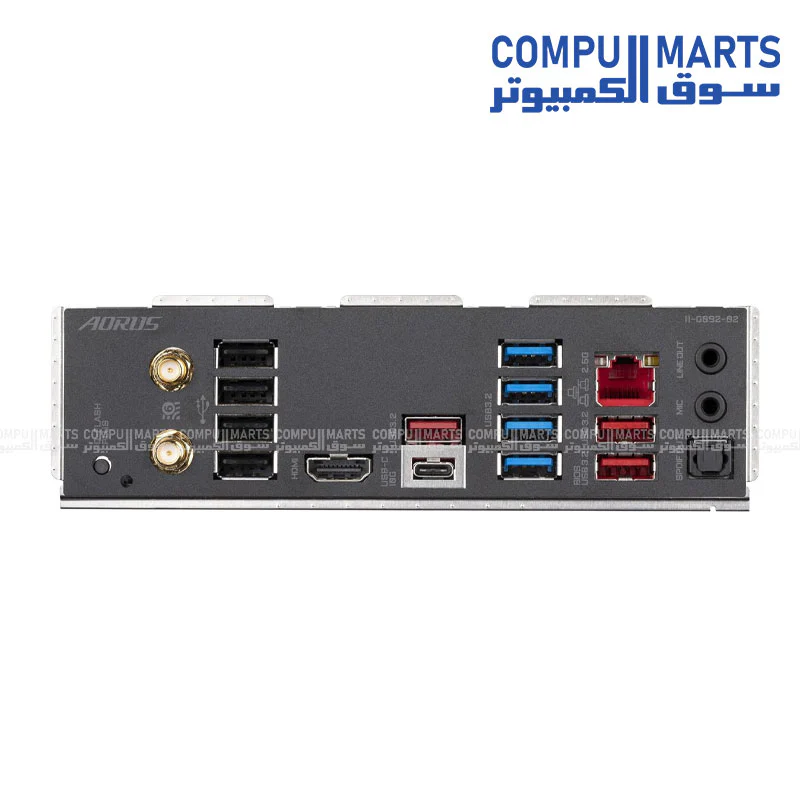

GIGABYTE B650M AORUS PRO AX – AMD AM5 Micro-ATX DDR5 Motherboard with PCIe 5.0, Wi-Fi 6E & RGB Fusion - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
CPU Support AMD Socket AM5: Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors
Chipset AMD B650
Memory 4 x DDR5 DIMM (Up to 256 GB); Supports Dual Channel DDR5 up to 8000(OC) MT/s; AMD EXPO™ & XMP support
Onboard Graphics 1 x DisplayPort (3840x2160 @144 Hz); 1 x HDMI 2.1 (4096x2160 @60 Hz)
Audio Realtek® Audio CODEC; High Definition 2/4/5.1/7.1-channel; S/PDIF Out support
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Wi-Fi 6E (802.11ax) 2.4/5/6 GHz; Bluetooth 5.2/5.3 (Depending on PCB Rev)
Expansion Slots 1 x PCIe 4.0 x16 (integrated in CPU); 1 x PCIe 4.0 x4 (from Chipset)
Storage Interface 1 x M.2 (PCIe 5.0/4.0 x4); 1 x M.2 (PCIe 4.0 x4); 4 x SATA 6Gb/s; RAID 0, 1, 10 support
Back USB Ports 1 x USB-C (3.2 Gen 2); 2 x USB 3.2 Gen 2 (Red); 5 x USB 3.2 Gen 1; 4 x USB 2.0/1.1
Internal USB 1 x USB-C (3.2 Gen 2x2); 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers
Unique Features Q-Flash Plus; GIGABYTE Control Center (GCC); RGB Fusion support
Form Factor Micro ATX (24.4cm x 24.4cm)
