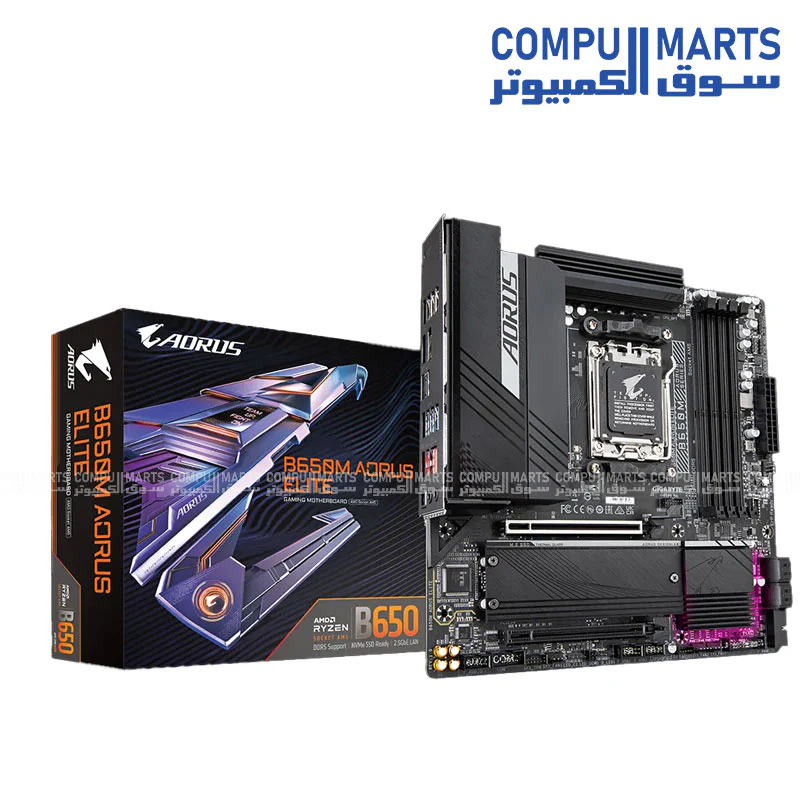

GIGABYTE B650M AORUS ELITE Motherboard – AMD AM5 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – USB 3.2 – Ryzen 7000 / 8000 / 9000 Ready
HomeStore

GIGABYTE B650M AORUS ELITE Motherboard – AMD AM5 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – USB 3.2 – Ryzen 7000 / 8000 / 9000 Ready

GIGABYTE B650M AORUS ELITE Motherboard – AMD AM5 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – USB 3.2 – Ryzen 7000 / 8000 / 9000 Ready

$162.23
GIGABYTE B650M AORUS ELITE Motherboard – AMD AM5 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – USB 3.2 – Ryzen 7000 / 8000 / 9000 Ready—
$162.23

The Story

Category Specification Details
CPU Support AMD Socket AM5: Supports Ryzen™ 7000 / 8000 / 9000 Series Processors
Chipset AMD B650
Memory 4 x DDR5 DIMM (Up to 256GB); Supports up to 8000(OC) MT/s; AMD EXPO™ & Intel® XMP Support
Onboard Graphics 1 x DisplayPort 1.4 (4K @144Hz); 1 x HDMI 2.1 (4K @60Hz)
Audio Realtek® Audio CODEC; 2/4/5.1/7.1-channel; High Definition Audio; S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots 1 x PCIe 4.0 x16 (CPU); 1 x PCIe 4.0 x4 (Chipset)
Storage Interface 1 x M.2 (PCIe 5.0 x4/x2); 1 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 10 Support
USB (Rear) 1 x USB Type-C (3.2 Gen 2); 2 x USB 3.2 Gen 2 (Red); 5 x USB 3.2 Gen 1; 4 x USB 2.0/1.1
Internal I/O 1 x USB Type-C (3.2 Gen 2x2 header); 2 x Addressable LED headers; 2 x RGB LED headers
Unique Features Q-Flash Plus; GIGABYTE Control Center (GCC); Smart Fan 6
Form Factor Micro ATX Form Factor (24.4cm x 24.4cm)

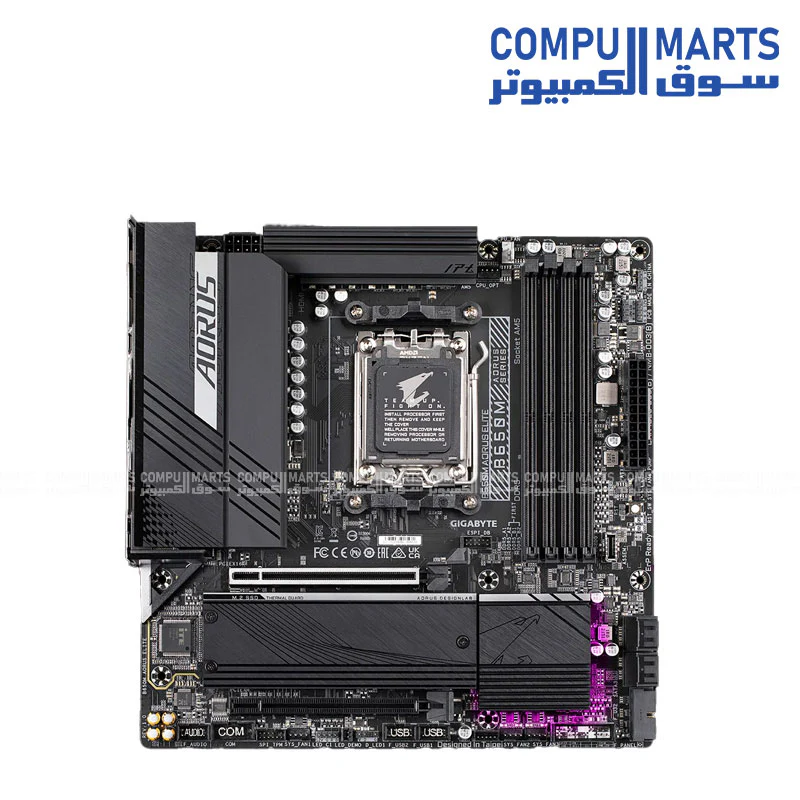

GIGABYTE B650M AORUS ELITE Motherboard – AMD AM5 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – USB 3.2 – Ryzen 7000 / 8000 / 9000 Ready - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

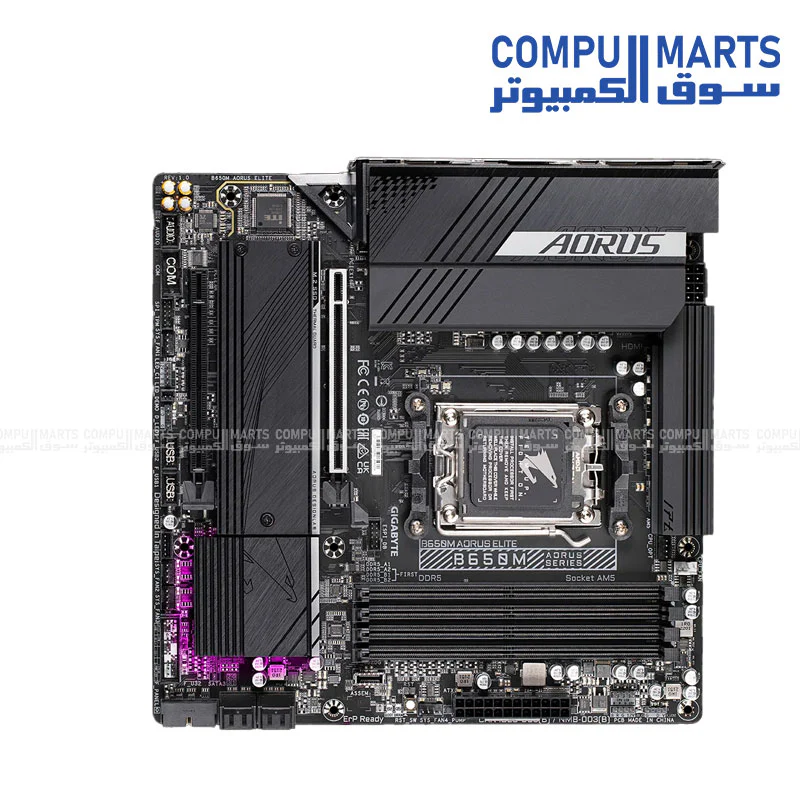

GIGABYTE B650M AORUS ELITE Motherboard – AMD AM5 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – USB 3.2 – Ryzen 7000 / 8000 / 9000 Ready - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

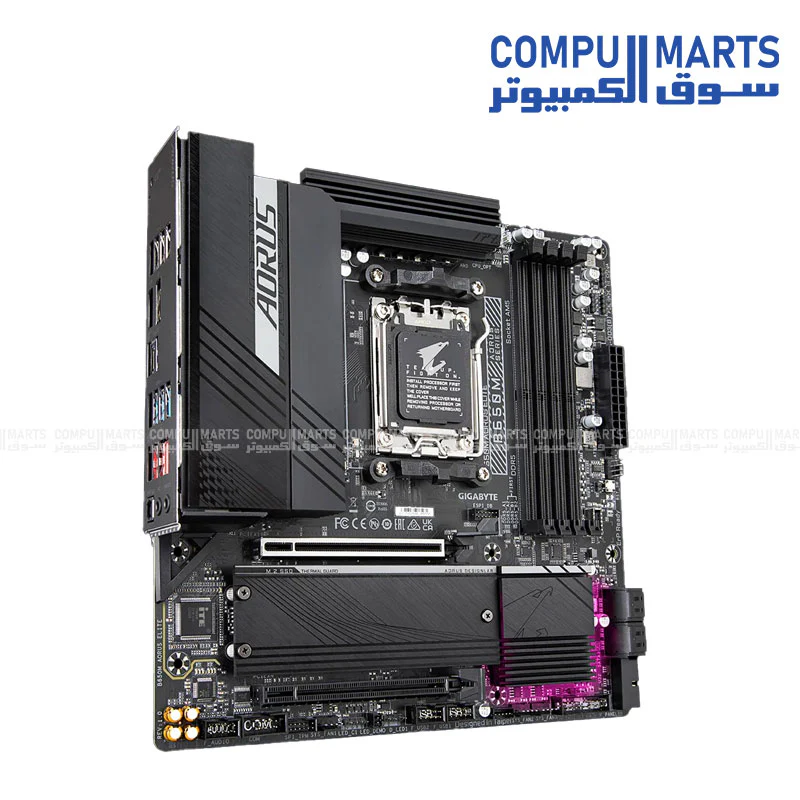

GIGABYTE B650M AORUS ELITE Motherboard – AMD AM5 – Micro-ATX – DDR5 – PCIe 5.0 – M.2 – USB 3.2 – Ryzen 7000 / 8000 / 9000 Ready - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Category Specification Details
CPU Support AMD Socket AM5: Supports Ryzen™ 7000 / 8000 / 9000 Series Processors
Chipset AMD B650
Memory 4 x DDR5 DIMM (Up to 256GB); Supports up to 8000(OC) MT/s; AMD EXPO™ & Intel® XMP Support
Onboard Graphics 1 x DisplayPort 1.4 (4K @144Hz); 1 x HDMI 2.1 (4K @60Hz)
Audio Realtek® Audio CODEC; 2/4/5.1/7.1-channel; High Definition Audio; S/PDIF Out
LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots 1 x PCIe 4.0 x16 (CPU); 1 x PCIe 4.0 x4 (Chipset)
Storage Interface 1 x M.2 (PCIe 5.0 x4/x2); 1 x M.2 (PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0, 1, 10 Support
USB (Rear) 1 x USB Type-C (3.2 Gen 2); 2 x USB 3.2 Gen 2 (Red); 5 x USB 3.2 Gen 1; 4 x USB 2.0/1.1
Internal I/O 1 x USB Type-C (3.2 Gen 2x2 header); 2 x Addressable LED headers; 2 x RGB LED headers
Unique Features Q-Flash Plus; GIGABYTE Control Center (GCC); Smart Fan 6
Form Factor Micro ATX Form Factor (24.4cm x 24.4cm)
