$91.61
Original: $305.38

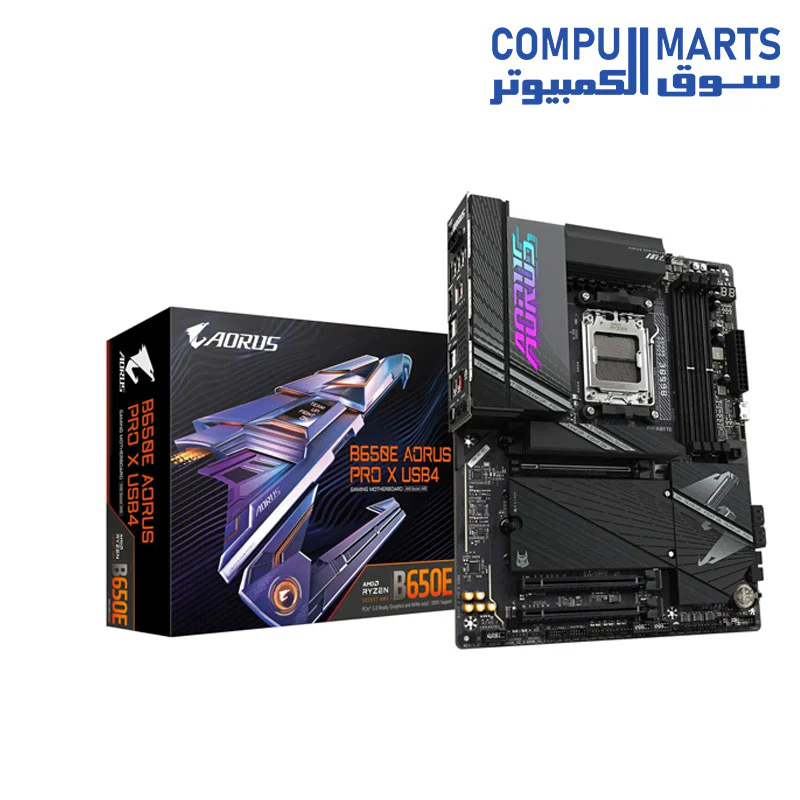

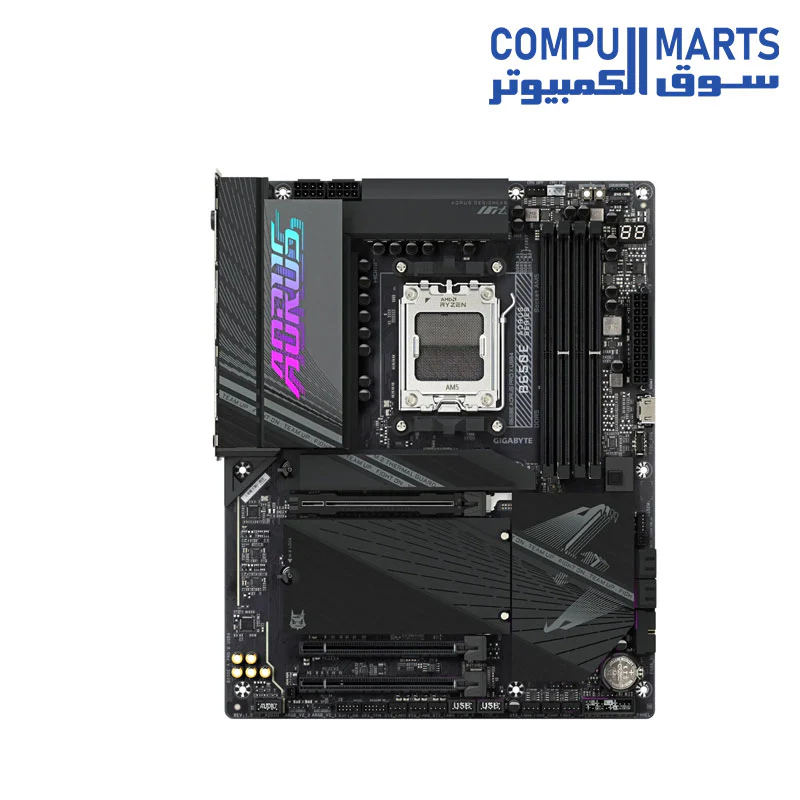

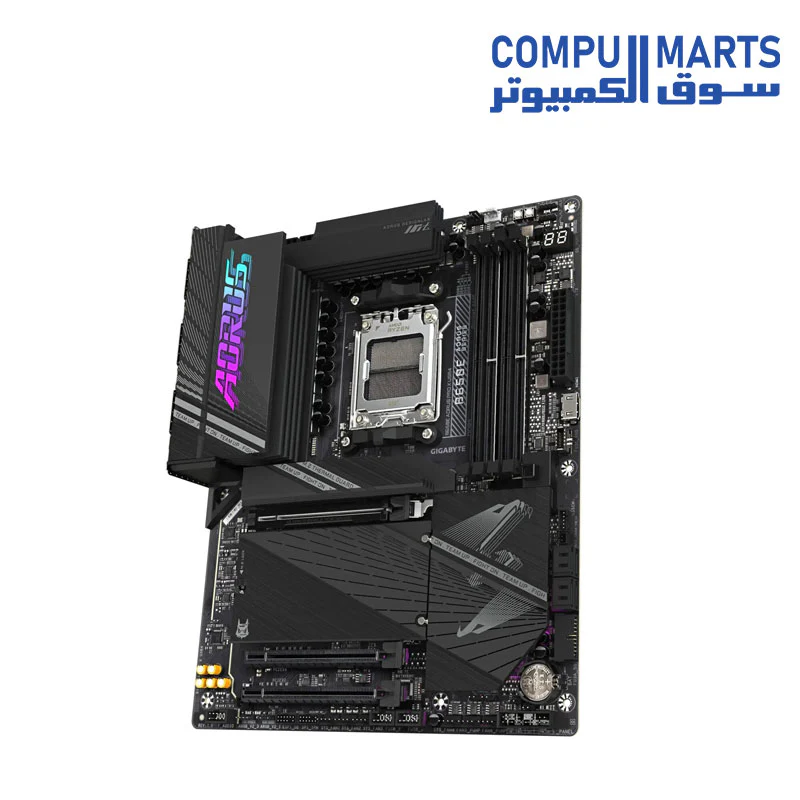

-70%GigaByte B650E Aorus Pro X USB4—
$305.38
$91.61The Story
| Category | Specification Details |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / 8000 / 9000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4 x DDR5 DIMM (up to 256 GB); Support for DDR5 8000(OC) through 4400 MT/s; Dual channel; AMD EXPO™ & Intel® XMP support |
| Onboard Graphics | 2 x USB4® Type-C® (3840x2160@240 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x Internal Front HDMI (1080p@30 Hz) |
| Audio | Realtek® ALC1220 codec; 2/4/5.1/7.1-channel High Definition Audio; Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | MediaTek Wi-Fi 7 MT7925; 2.4/5/6 GHz bands; Bluetooth 5.4; Support for 11be 160MHz |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x4 (Chipset); 1 x PCIe 3.0 x2 (Chipset) |
| Storage Interface | 3 x M.2 PCIe 5.0 (CPU dependent); 1 x M.2 PCIe 4.0 (Chipset); 4 x SATA 6Gb/s; RAID 0, 1, 10 support |

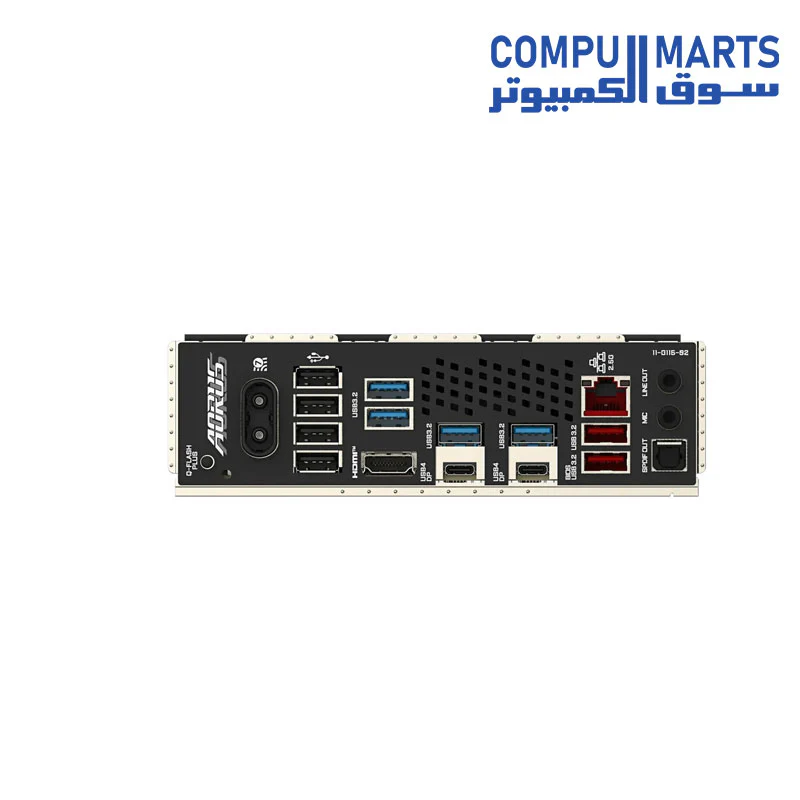

| Back Panel I/O | 2 x USB4® Type-C®; 2 x USB 3.2 Gen 2; 4 x USB 3.2 Gen 1; 4 x USB 2.0; 1 x HDMI; 1 x RJ-45; 1 x Optical S/PDIF; 2 x Audio jacks; Q-Flash Plus button |
| Internal I/O | 1 x USB 3.2 Gen 2x2 Type-C® header; 3 x Addressable RGB headers; 1 x RGB header; Noise detection; THB_U4 card connector |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / 8000 / 9000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4 x DDR5 DIMM (up to 256 GB); Support for DDR5 8000(OC) through 4400 MT/s; Dual channel; AMD EXPO™ & Intel® XMP support |
| Onboard Graphics | 2 x USB4® Type-C® (3840x2160@240 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz); 1 x Internal Front HDMI (1080p@30 Hz) |
| Audio | Realtek® ALC1220 codec; 2/4/5.1/7.1-channel High Definition Audio; Support for S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless & BT | MediaTek Wi-Fi 7 MT7925; 2.4/5/6 GHz bands; Bluetooth 5.4; Support for 11be 160MHz |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x4 (Chipset); 1 x PCIe 3.0 x2 (Chipset) |
| Storage Interface | 3 x M.2 PCIe 5.0 (CPU dependent); 1 x M.2 PCIe 4.0 (Chipset); 4 x SATA 6Gb/s; RAID 0, 1, 10 support |
| Back Panel I/O | 2 x USB4® Type-C®; 2 x USB 3.2 Gen 2; 4 x USB 3.2 Gen 1; 4 x USB 2.0; 1 x HDMI; 1 x RJ-45; 1 x Optical S/PDIF; 2 x Audio jacks; Q-Flash Plus button |
| Internal I/O | 1 x USB 3.2 Gen 2x2 Type-C® header; 3 x Addressable RGB headers; 1 x RGB header; Noise detection; THB_U4 card connector |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
