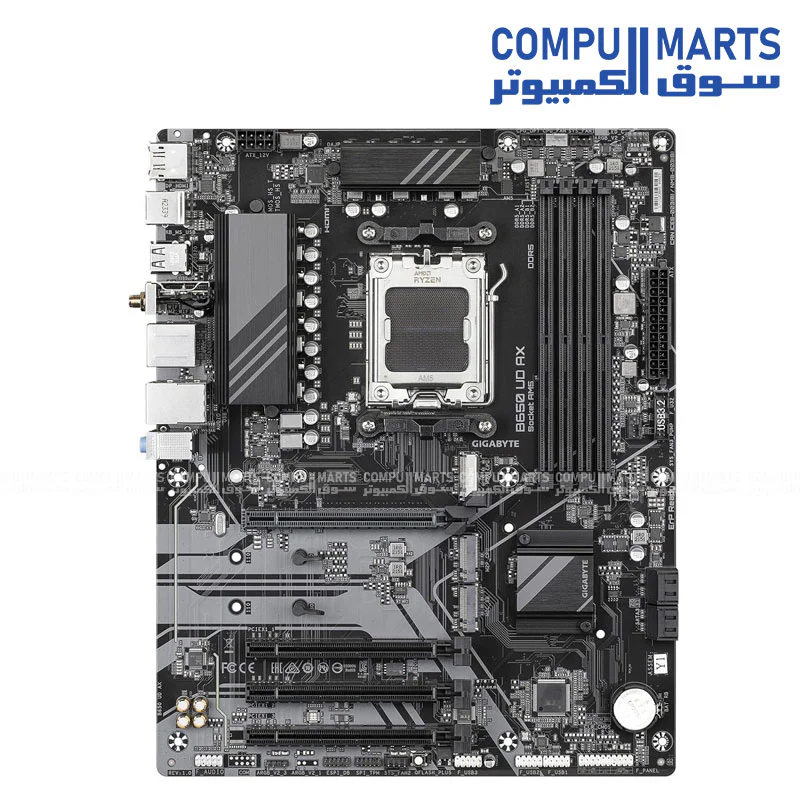

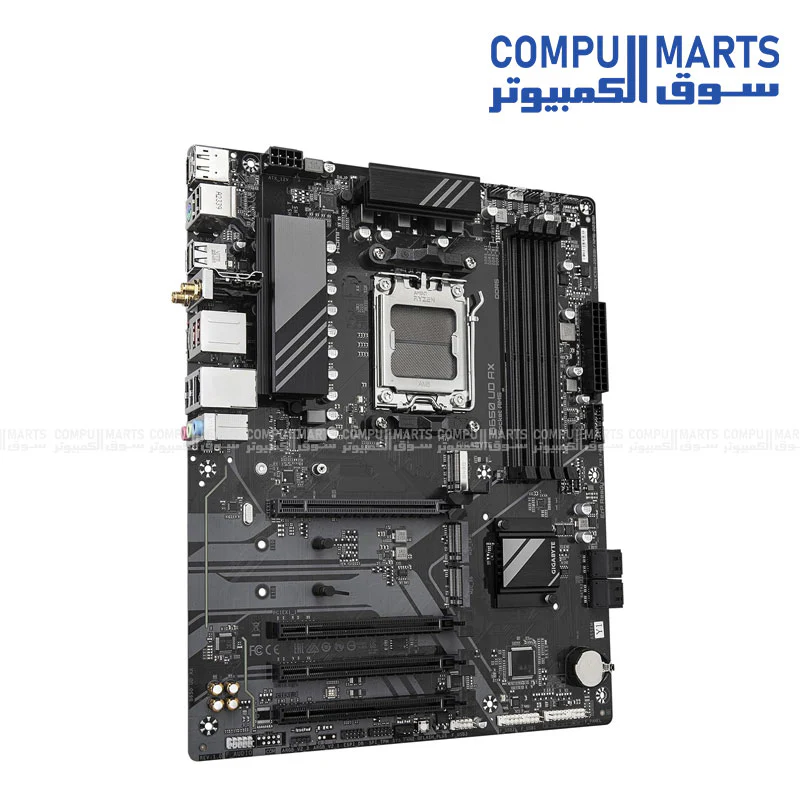

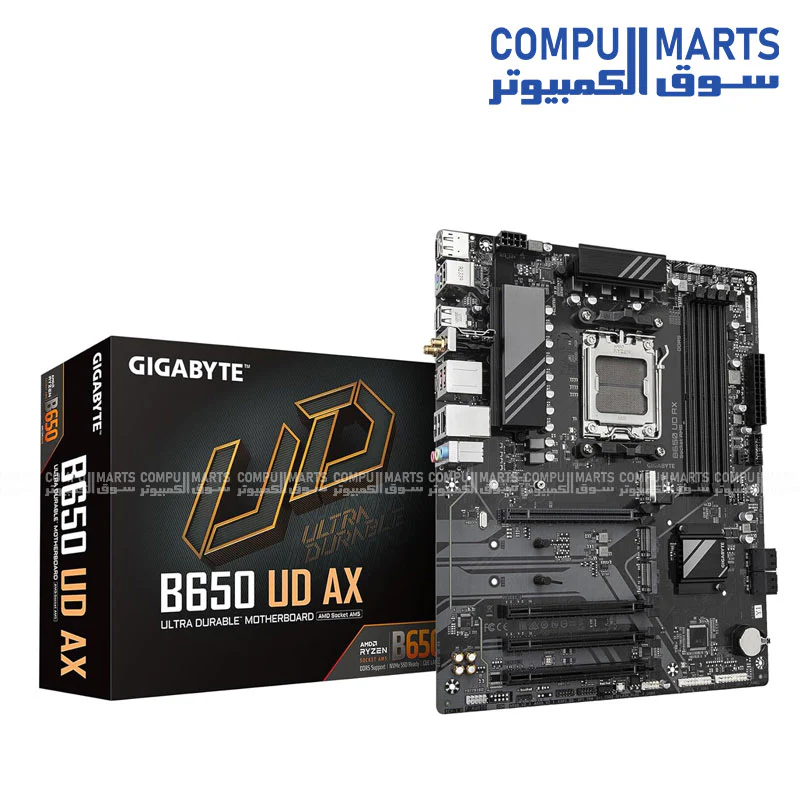

-70%GIGABYTE B650 UD AX – AMD AM5 ATX DDR5 Motherboard with PCIe 5.0 & Wi-Fi 6—
$148.87
$44.66The Story
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5: Supports Ryzen™ 7000 / 8000 / 9000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4 x DDR5 DIMM (Up to 256GB); Supports up to DDR5 8000(OC); AMD EXPO™ & Intel® XMP Support |
| Graphics Output | 1 x DisplayPort 1.4 (3840x2160 @ 144Hz); 1 x HDMI 2.1 (4096x2160 @ 60Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN & Wireless | Realtek® GbE LAN (1 Gbps); Wi-Fi 6 (802.11ax) Dual-Band; Bluetooth 5.0 |
| Expansion Slots | 1 x PCIe 4.0 x16; 2 x PCIe 3.0 x1 (integrated in CPU); 1 x PCIe 3.0 x1 (integrated in Chipset) |
| Storage Interface | 3 x M.2 Sockets (1x PCIe 5.0 x4/x2, 2x PCIe 4.0 x4/x2); 4 x SATA 6Gb/s; RAID 0/1/10 Support |
| USB (Rear) | 2 x USB 3.2 Gen 2 Type-A (Red); 1 x USB Type-C (3.2 Gen 1); 6 x USB 2.0/1.1 |
| Internal I/O | 1 x Front USB Type-C (3.2 Gen 1); 1 x RGB LED strip header; 1 x Addressable Gen2 LED header |
| Unique Features | Q-Flash Plus Button; GIGABYTE Control Center (GCC); H/W Monitoring (Voltage, Temp, Fan) |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
