$49.82
Original: $166.05

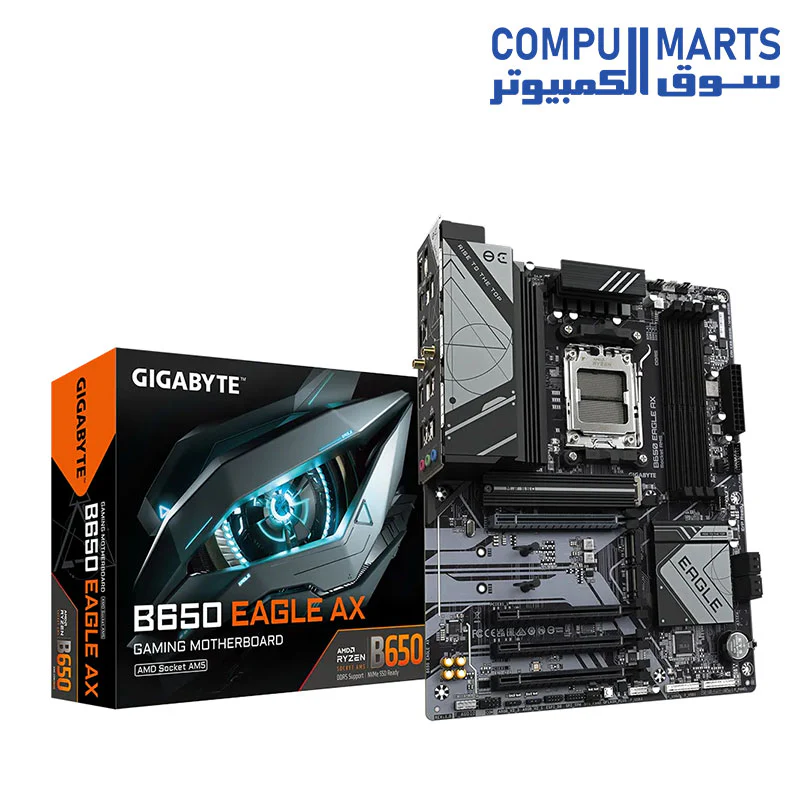

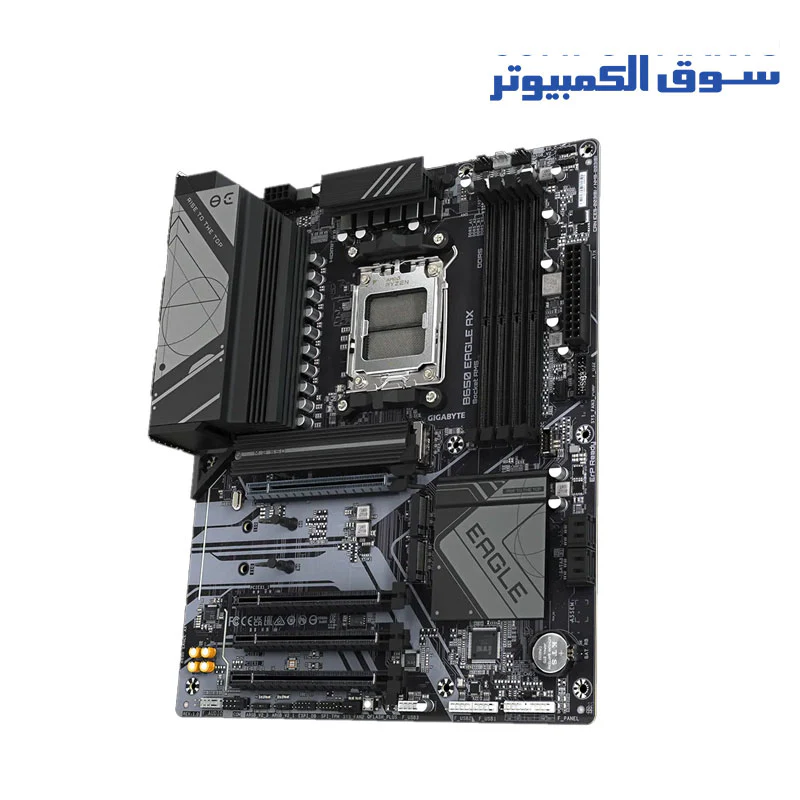

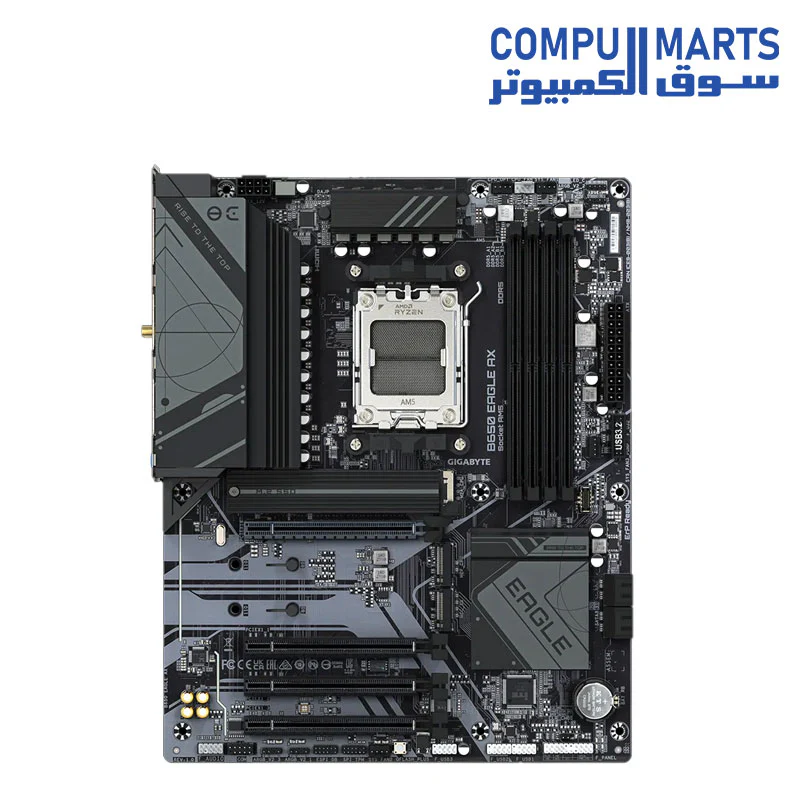

-70%GIGABYTE B650 EAGLE AX AM5 LGA 1718 AMD B650 ATX DDR5 Triple M.2, PCIe 5.0, USB 3.2 Gen2x2 Type-C, AMD Wi-Fi 6E, Realtek GbE LAN—
$166.05
$49.82The Story
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5, supporting AMD Ryzen™ 7000 and 8000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4 x DDR5 DIMM sockets (up to 192 GB); Support for up to DDR5 7600(OC); Dual Channel; AMD EXPO™ & Intel® XMP support |
| Onboard Graphics | 1 x DisplayPort (3840x2160@144 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Wireless & BT | Realtek Wi-Fi 6E RTL8852CE; 2.4/5/6 GHz bands; Bluetooth 5.3; 11ax 160MHz support |
| Expansion Slots | 1 x PCIe 4.0 x16 (varies by CPU); 2 x PCIe 3.0 x1 slots |
| Storage Interface | 1 x M.2 (PCIe 5.0/4.0 x4); 1 x M.2 (PCIe 4.0 x2); 1 x M.2 (PCIe 4.0 x4 from Chipset); 4 x SATA 6Gb/s; RAID 0/1/10 support |

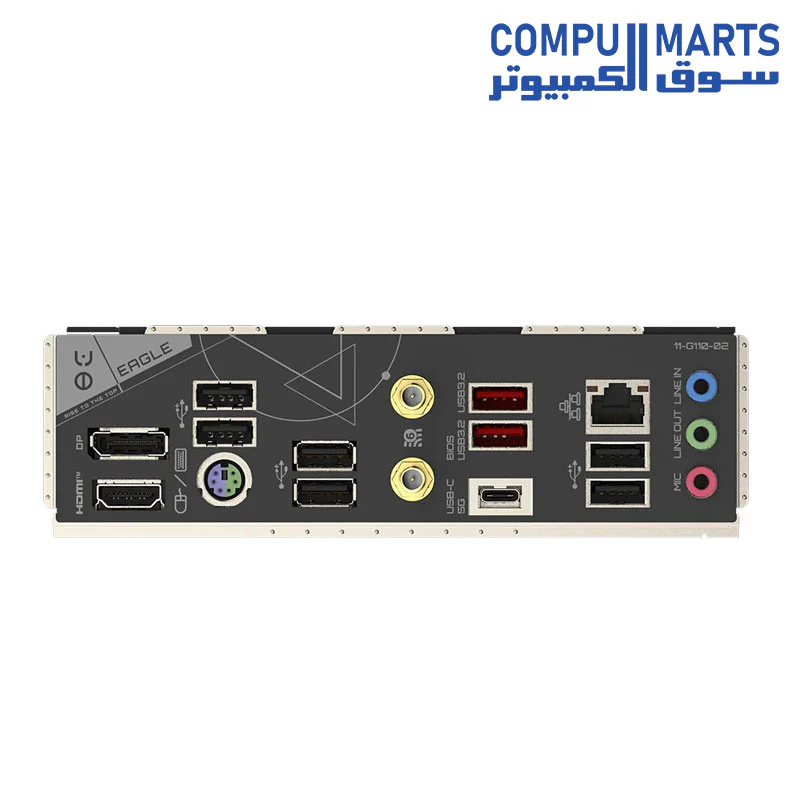

| Back Panel USB | 2 x USB 3.2 Gen 2 Type-A (Red); 1 x USB Type-C (Gen 1); 6 x USB 2.0/1.1 |
| Internal I/O | 1 x USB Type-C (Gen 1); 1 x USB 3.2 Gen 1 header; 3 x USB 2.0/1.1 headers; 4 x Fan/Pump headers; 4 x RGB/ARGB LED headers |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus (Update BIOS without CPU/RAM) |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM5, supporting AMD Ryzen™ 7000 and 8000 Series Processors |
| Chipset | AMD B650 |
| Memory | 4 x DDR5 DIMM sockets (up to 192 GB); Support for up to DDR5 7600(OC); Dual Channel; AMD EXPO™ & Intel® XMP support |
| Onboard Graphics | 1 x DisplayPort (3840x2160@144 Hz); 1 x HDMI 2.1 (4096x2160@60 Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Wireless & BT | Realtek Wi-Fi 6E RTL8852CE; 2.4/5/6 GHz bands; Bluetooth 5.3; 11ax 160MHz support |
| Expansion Slots | 1 x PCIe 4.0 x16 (varies by CPU); 2 x PCIe 3.0 x1 slots |
| Storage Interface | 1 x M.2 (PCIe 5.0/4.0 x4); 1 x M.2 (PCIe 4.0 x2); 1 x M.2 (PCIe 4.0 x4 from Chipset); 4 x SATA 6Gb/s; RAID 0/1/10 support |
| Back Panel USB | 2 x USB 3.2 Gen 2 Type-A (Red); 1 x USB Type-C (Gen 1); 6 x USB 2.0/1.1 |
| Internal I/O | 1 x USB Type-C (Gen 1); 1 x USB 3.2 Gen 1 header; 3 x USB 2.0/1.1 headers; 4 x Fan/Pump headers; 4 x RGB/ARGB LED headers |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus (Update BIOS without CPU/RAM) |
| Form Factor | ATX Form Factor (30.5cm x 24.4cm) |
