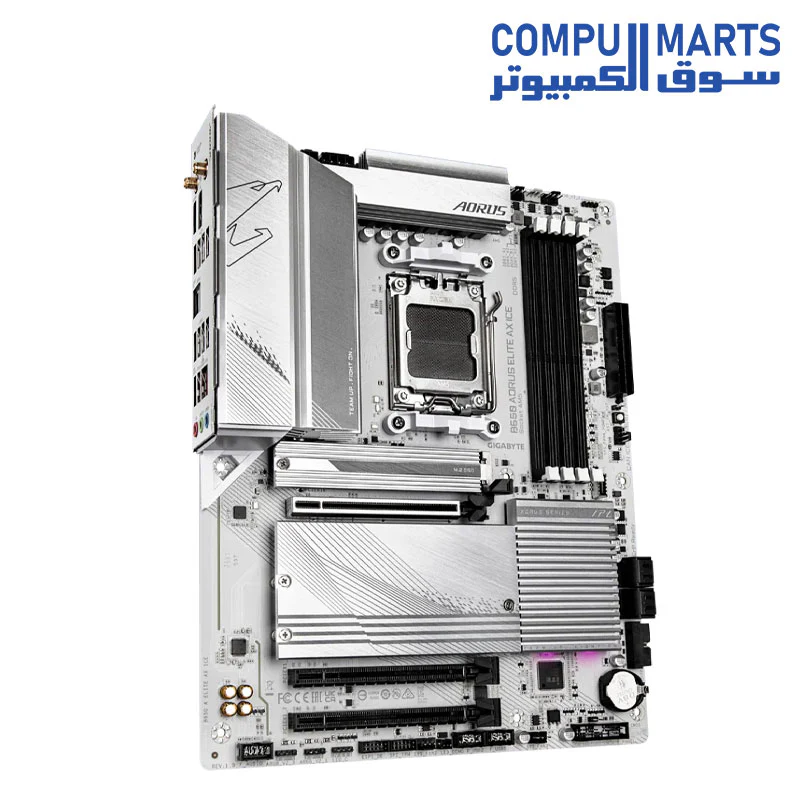

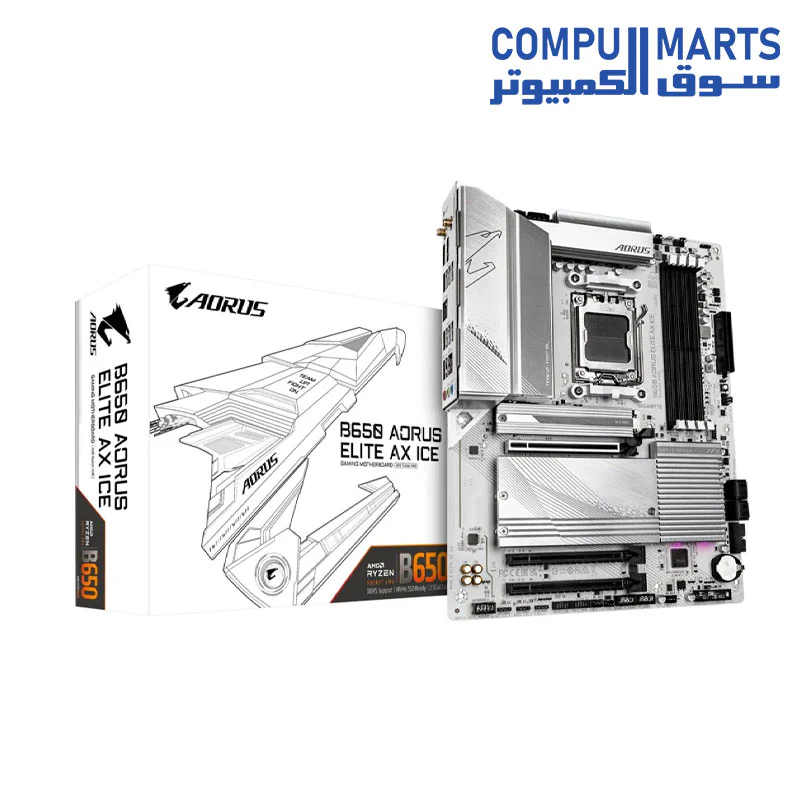

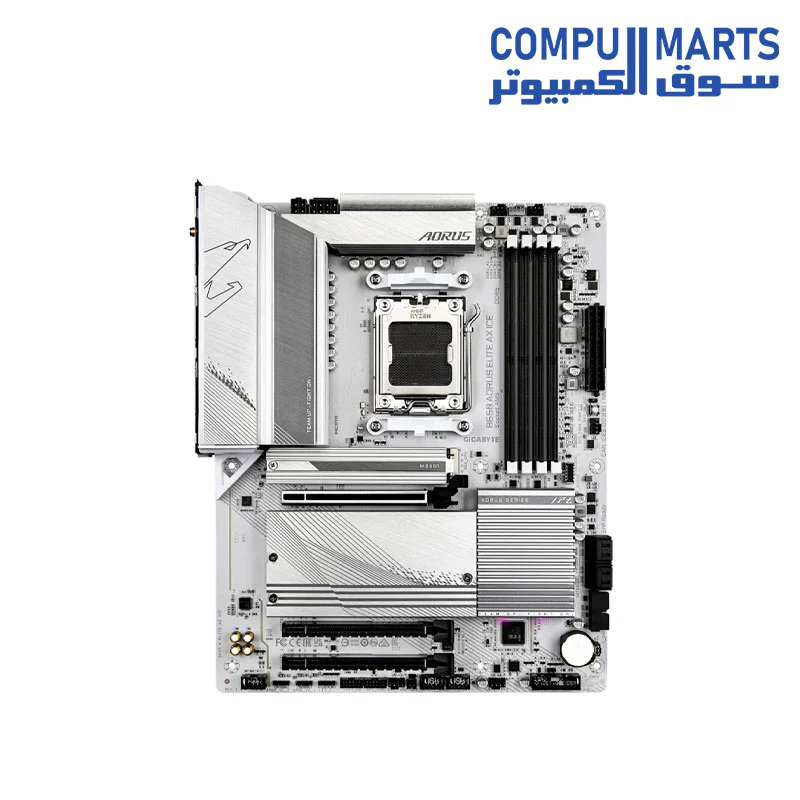

GIGABYTE B650 AORUS Elite AX ICE - AM5, LGA 1718, AMD, ATX, DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6E/ 2.5GbE LAN, Snow White, EZ-Latch

GIGABYTE B650 AORUS Elite AX ICE

• AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors

• Unparalleled Performance：Twin 12+2+2 Phases Digital VRM Solution

• Dual Channel DDR5：4*DIMMs with AMD EXPO & Intel XMP Memory Module Support

• Superfast Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors

• Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance

• EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design

• Fast Networks：2.5GbE LAN & Wi-Fi 6E

• Extended Connectivity：HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s

• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

• CPUAMD Socket AM5, support for:

  AMD Ryzen 7000/ Ryzen 8000 Series Processors

  * Please refer to "CPU Support List" for more information.

• ChipsetAMD B650

• MemorySupport for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

  4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

  Dual channel memory architecture

  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

• Onboard GraphicsIntegrated Graphics Processor with AMD Radeon Graphics support:

  - 1 x DisplayPort, supporting a maximum resolution of 3840x2160 144 Hz

  - 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.

  (Graphics specifications may vary depending on CPU support.)

• AudioRealtek Audio CODEC

  High Definition Audio

  2/4/5.1/7.1-channel

  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LANRealtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication moduleRealtek Wi-Fi 6E RTL8852CE

  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  - BLUETOOTH 5.3

  - Support for 11ax 160MHz wireless

  (Actual data rate may vary depending on environment and equipment.)

• Expansion Slots1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode

  - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

  - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

• Storage Interface1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs

  - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

  - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

  - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

  - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs

  4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USBCPU:

  - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  CPU + USB 2.0 Hub:

  - 4 x USB 2.0/1.1 ports on the back panel

  Chipset:

  - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header

  - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

  - 4 x USB 2.0/1.1 ports available through the internal USB headers

  Chipset+USB 3.2 Gen 1 Hub:

  - 4 x USB 3.2 Gen 1 ports on the back panel

• Internal I/O Connectors1 x 24-pin ATX main power connector

  1 x 8-pin ATX 12V power connector

  1 x 4-pin ATX 12V power connector

  1 x CPU fan header

  1 x CPU fan/water cooling pump header

  3 x system fan headers

  1 x system fan/water cooling pump header

  3 x addressable RGB Gen2 LED strip headers

  1 x RGB LED strip header

  3 x M.2 Socket 3 connectors

  4 x SATA 6Gb/s connectors

  1 x front panel header

  1 x front panel audio header

  1 x USB Type-C header, with USB 3.2 Gen 2x2 support

  1 x USB 3.2 Gen 1 header

  2 x USB 2.0/1.1 headers

  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

  1 x reset button

  1 x reset jumper

  1 x Clear CMOS jumper

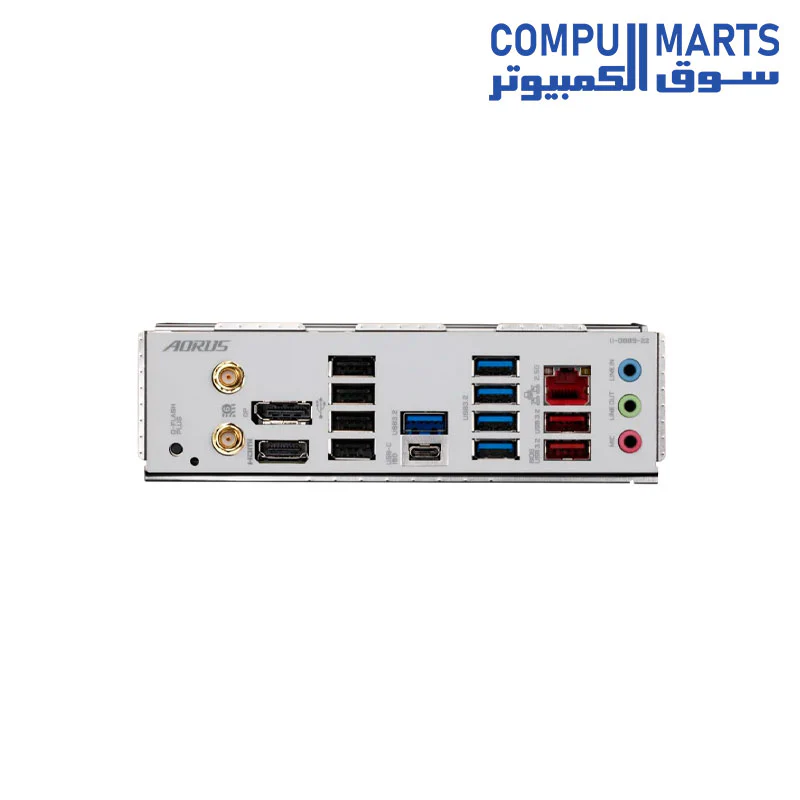

• Back Panel Connectors1 x Q-Flash Plus button

  2 x SMA antenna connectors (2T2R)jk

  1 x DisplayPort

  1 x HDMI port

  1 x USB Type-C port, with USB 3.2 Gen 2 support

  2 x USB 3.2 Gen 2 Type-A ports (red)

  5 x USB 3.2 Gen 1 ports

  4 x USB 2.0/1.1 ports

  1 x RJ-45 port

  3 x audio jacks

• I/O ControlleriTE I/O Controller Chip

• H/W MonitoringVoltage detection

  Temperature detection

  Fan speed detection

  Water cooling flow rate detection

  Fan fail warning

  Fan speed control

  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS1 x 256 Mbit flash

  Use of licensed AMI UEFI BIOS

  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique FeaturesSupport for GIGABYTE Control Center (GCC)

  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash

  Support for Q-Flash Plus

• Bundled SoftwareNorton Internet Security (OEM version)

  LAN bandwidth management software

• Operating SystemSupport for Windows 11 64-bit

  Support for Windows 10 64-bit

• Form Factor

  ATX Form Factor; 30.5cm x 24.4cm
