$155.55

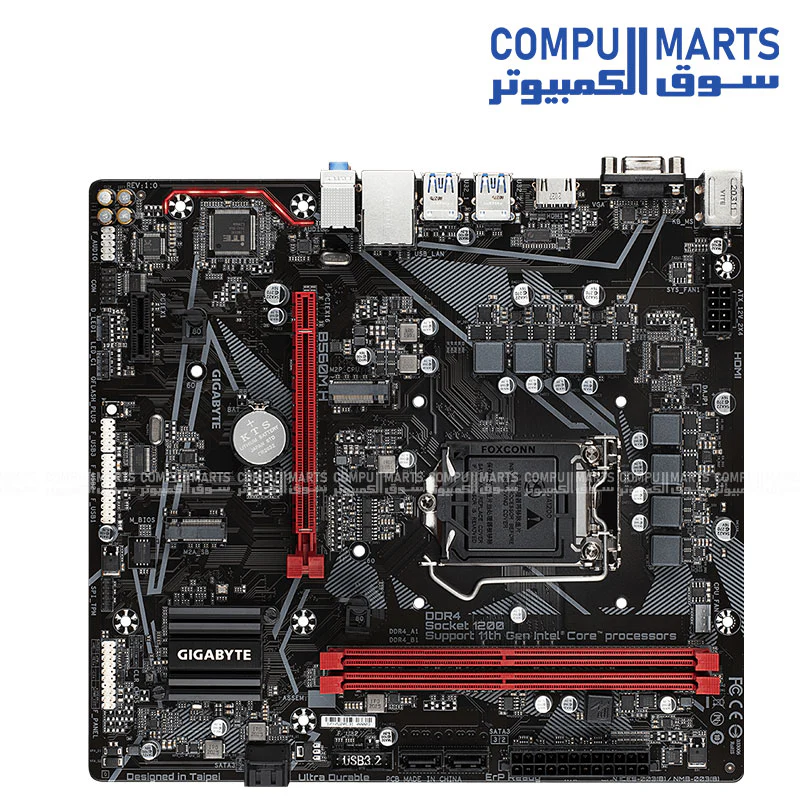

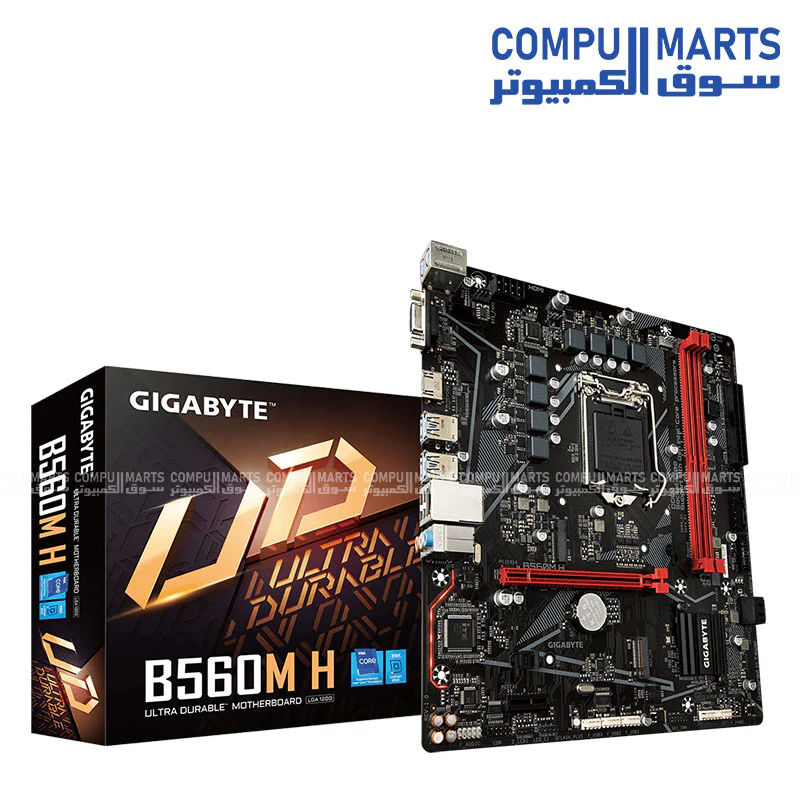

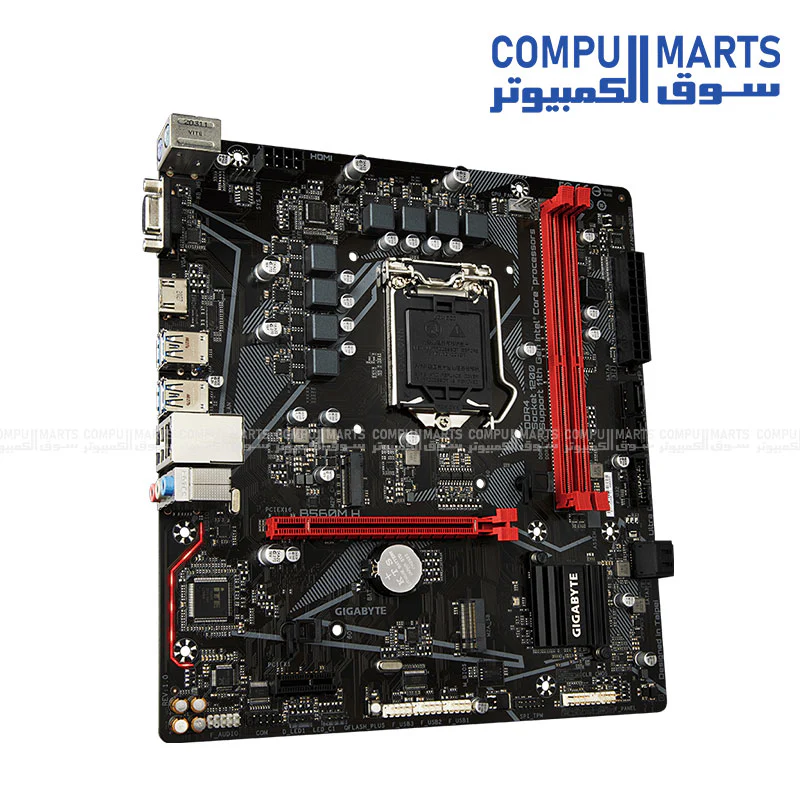

Gigabyte B560M H Motherboard—
$155.55
The Story
| Category | Specification Details |
|---|---|
| CPU Support | LGA1200 socket, 11th Gen Intel® Core™ i9 / i7 / i5, 10th Gen Intel® Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron® |
| Chipset | Intel® B560 Express Chipset |
| Memory | 2 × DDR4 DIMM slots, up to 64GB, Dual Channel, DDR4 up to 3200 MHz (11th Gen CPUs), XMP supported |
| Integrated Graphics | Intel® HD Graphics support, 1 × D-Sub (1920×1200@60Hz), 1 × HDMI (4096×2160@30Hz, HDMI 2.0, HDCP 2.3) |
| Audio | Realtek® High Definition Audio, 2 / 4 / 5.1 / 7.1 channels |
| LAN | Realtek® GbE LAN (10/100/1000 Mbps) |
| Expansion Slots | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 |
| Storage (CPU) | 1 × M.2 (PCIe 4.0 x4/x2, 2260/2280) |
| Storage (Chipset) | 1 × M.2 (PCIe 3.0 x4/x2 & SATA), 4 × SATA 6Gb/s |
| USB Ports | 6 × USB 3.2 Gen 1, 8 × USB 2.0 / 1.1 |
| Internal Connectors | 24-pin ATX power, 8-pin CPU power, CPU & System fan headers, RGB & ARGB headers, USB headers, TPM header |

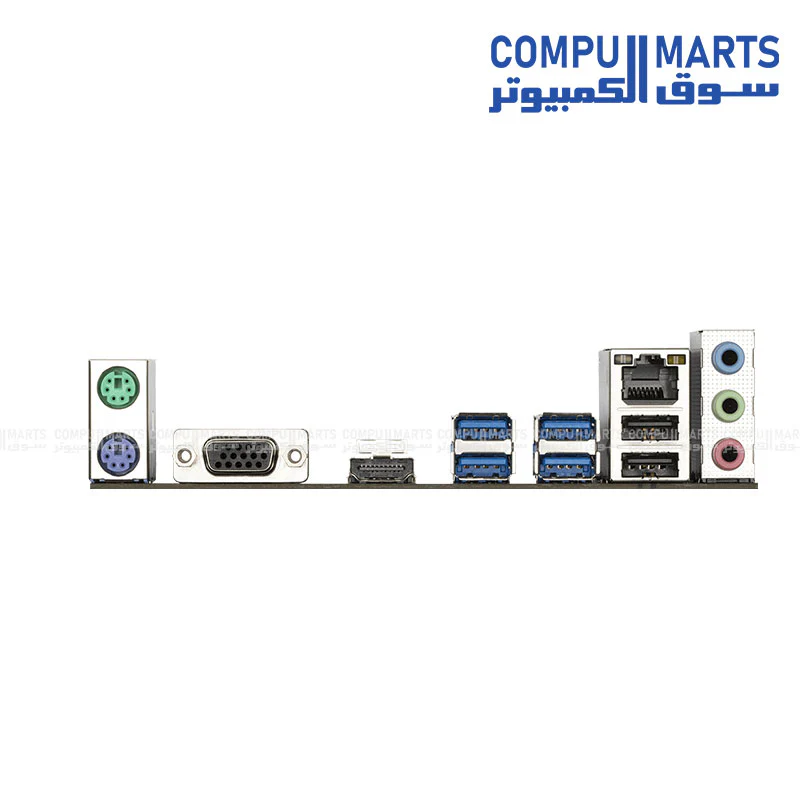

| Rear I/O Ports | PS/2 Mouse & Keyboard, D-Sub, HDMI, 4 × USB 3.2 Gen 1, 2 × USB 2.0, RJ-45 LAN, 3 × Audio jacks |
| BIOS | AMI UEFI BIOS, 256 Mbit flash, Q-Flash & Q-Flash Plus |
| Monitoring | Voltage, Temperature & Fan speed detection, Fan speed control |
| Special Features | APP Center, RGB Fusion, EasyTune, Fast Boot, Game Boost |
| Bundled Software | Norton® Internet Security (OEM), Realtek® LAN Utility |
| Operating System | Windows 10 64-bit |
| Form Factor | Micro-ATX (24.4 cm × 22.5 cm) |
