$90.66

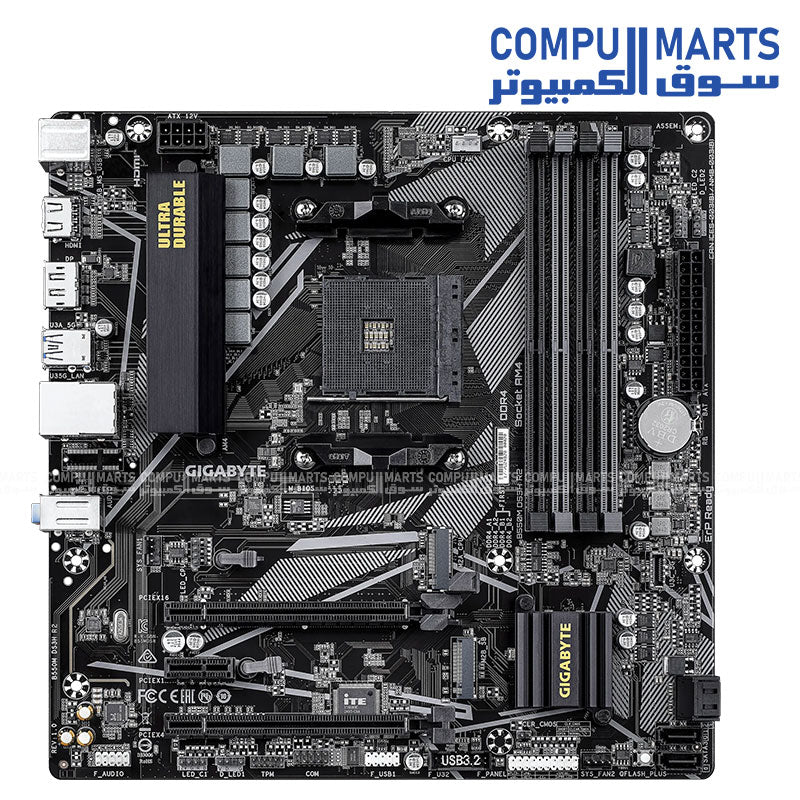

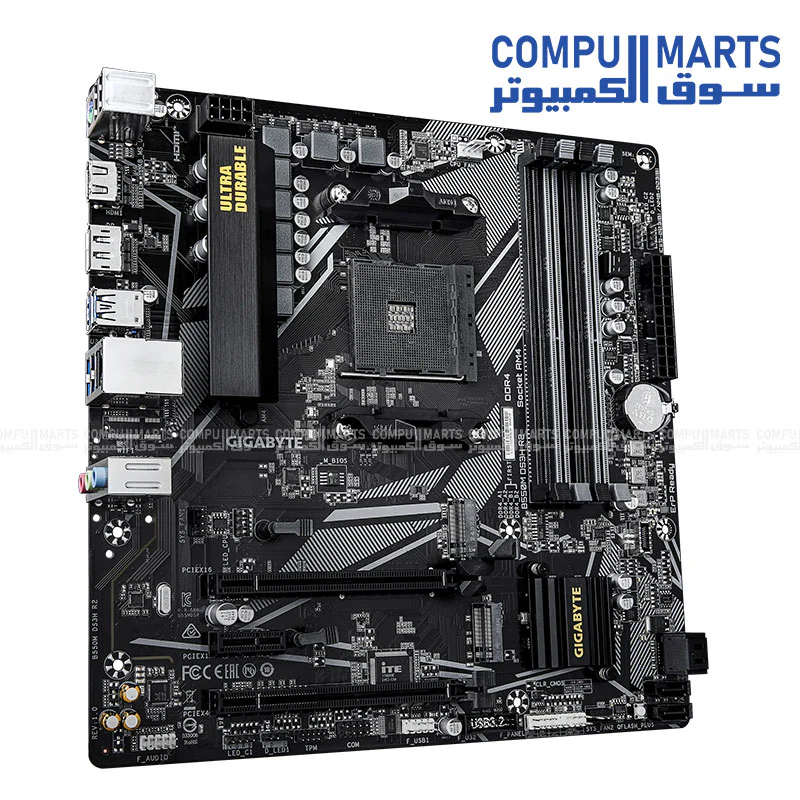

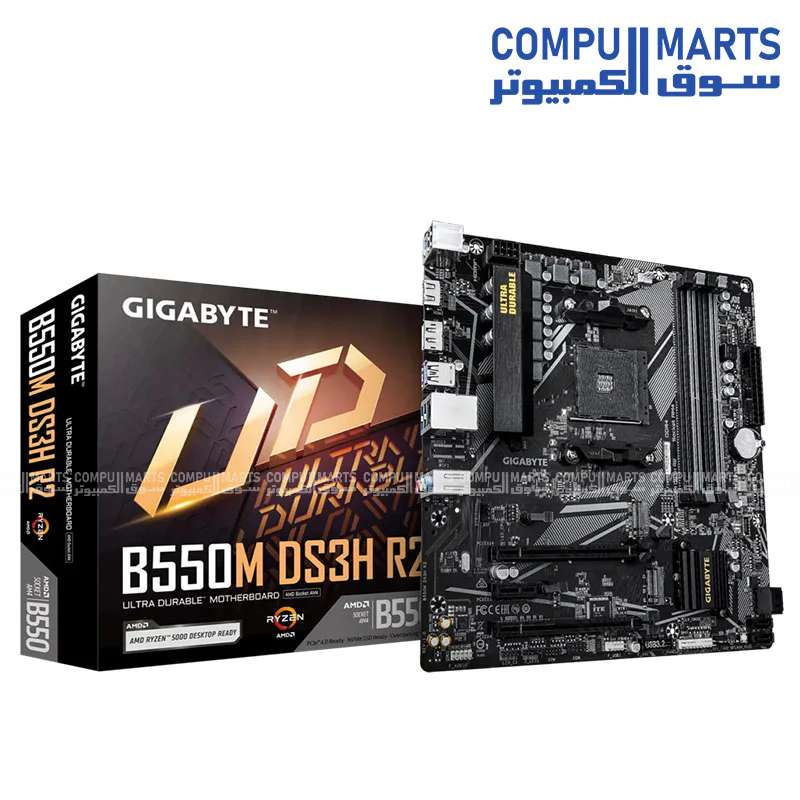

GIGABYTE B550M DS3H R2 – AMD AM4 Motherboard | DDR4 OC, PCIe 4.0, Dual M.2, Gigabit LAN—
$90.66
The Story
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM4 for Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 G-Series, and 3000 Series Processors |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM (Up to 128 GB); Supports up to DDR4 4733(O.C.) / Dual Channel / ECC & Non-ECC Un-buffered / XMP |
| Onboard Graphics | 1 x DisplayPort (5120x2880@60 Hz) | 1 x HDMI 2.1 (4096x2160@60 Hz); Max shared memory 16 GB |
| Audio | Realtek® ALC1220 CODEC; High Definition Audio 2/4/5.1/7.1-channel; DSD Audio support |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbps) |
| Expansion Slots | 1 x PCIe x16 (PCIe 4.0 support with Ryzen 5000/3000); 1 x PCIe x16 (running at x4); 1 x PCIe x1 |
| Storage | 1 x M.2 (CPU - PCIe 4.0/3.0 x4); 1 x M.2 (Chipset - PCIe 3.0 x2); 4 x SATA 6Gb/s; RAID 0, 1, 10 |
| USB Ports | Back: 4 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 1 x USB Type-C™ (3.2 Gen 1), 2 x USB 3.2 Gen 1, 2 x USB 2.0 |

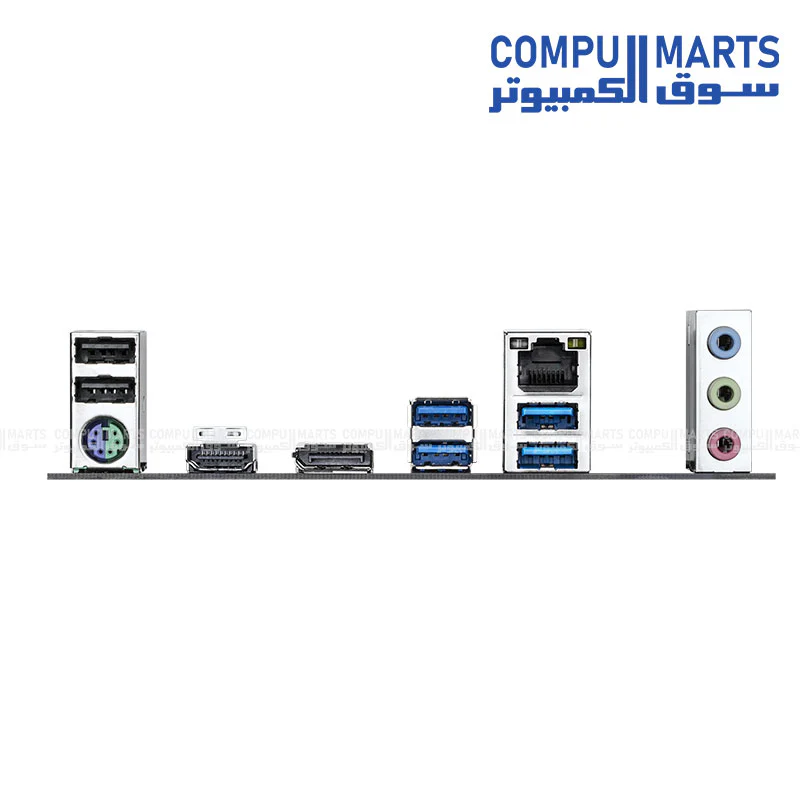

| Back Panel I/O | PS/2 Keyboard/Mouse, HDMI, DisplayPort, 4 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45, 3 x Audio Jacks |
| Internal I/O | Q-Flash Plus button, 2 x ARGB headers, 2 x RGB headers, CPU Cooler LED header, TPM header, Serial port header |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| OS Support | Windows 11 64-bit / Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM4 for Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 G-Series, and 3000 Series Processors |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM (Up to 128 GB); Supports up to DDR4 4733(O.C.) / Dual Channel / ECC & Non-ECC Un-buffered / XMP |
| Onboard Graphics | 1 x DisplayPort (5120x2880@60 Hz) | 1 x HDMI 2.1 (4096x2160@60 Hz); Max shared memory 16 GB |
| Audio | Realtek® ALC1220 CODEC; High Definition Audio 2/4/5.1/7.1-channel; DSD Audio support |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbps) |
| Expansion Slots | 1 x PCIe x16 (PCIe 4.0 support with Ryzen 5000/3000); 1 x PCIe x16 (running at x4); 1 x PCIe x1 |
| Storage | 1 x M.2 (CPU - PCIe 4.0/3.0 x4); 1 x M.2 (Chipset - PCIe 3.0 x2); 4 x SATA 6Gb/s; RAID 0, 1, 10 |
| USB Ports | Back: 4 x USB 3.2 Gen 1, 2 x USB 2.0; Internal: 1 x USB Type-C™ (3.2 Gen 1), 2 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Back Panel I/O | PS/2 Keyboard/Mouse, HDMI, DisplayPort, 4 x USB 3.2 Gen 1, 2 x USB 2.0, RJ-45, 3 x Audio Jacks |
| Internal I/O | Q-Flash Plus button, 2 x ARGB headers, 2 x RGB headers, CPU Cooler LED header, TPM header, Serial port header |
| Form Factor | Micro ATX Form Factor (24.4cm x 24.4cm) |
| OS Support | Windows 11 64-bit / Windows 10 64-bit |
