$103.06

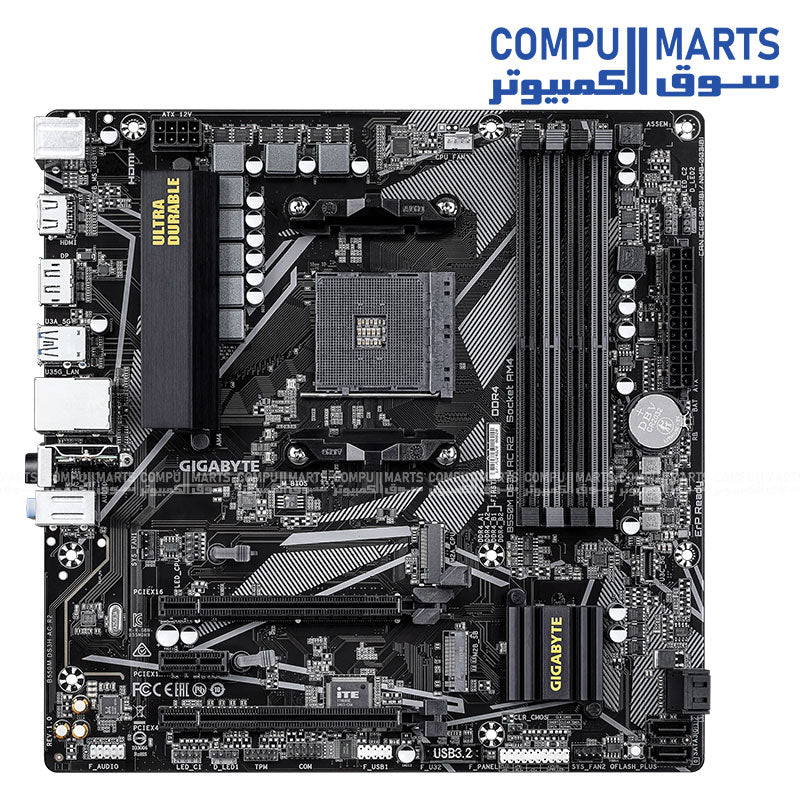

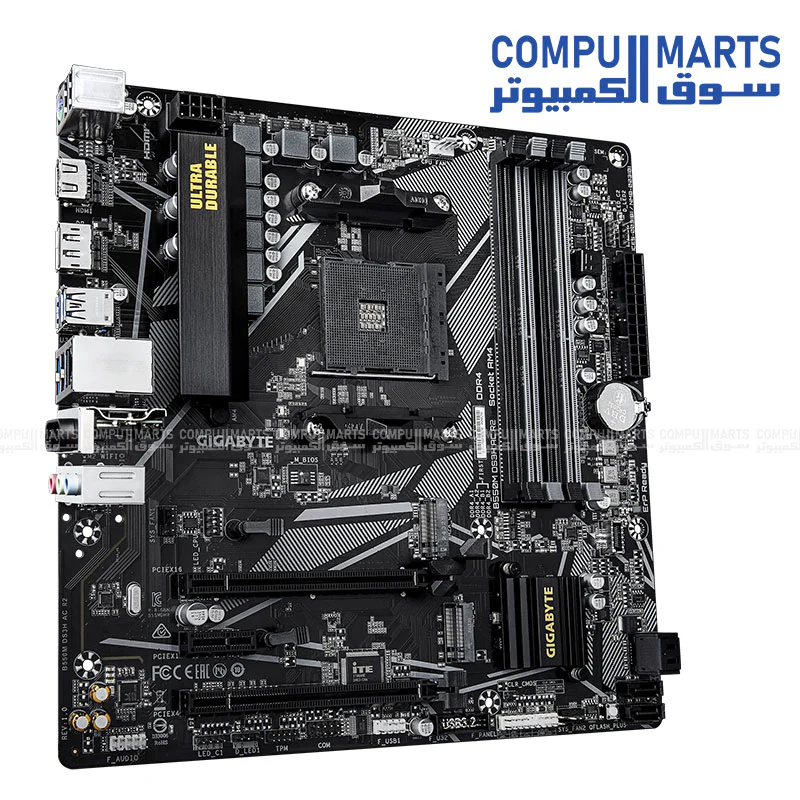

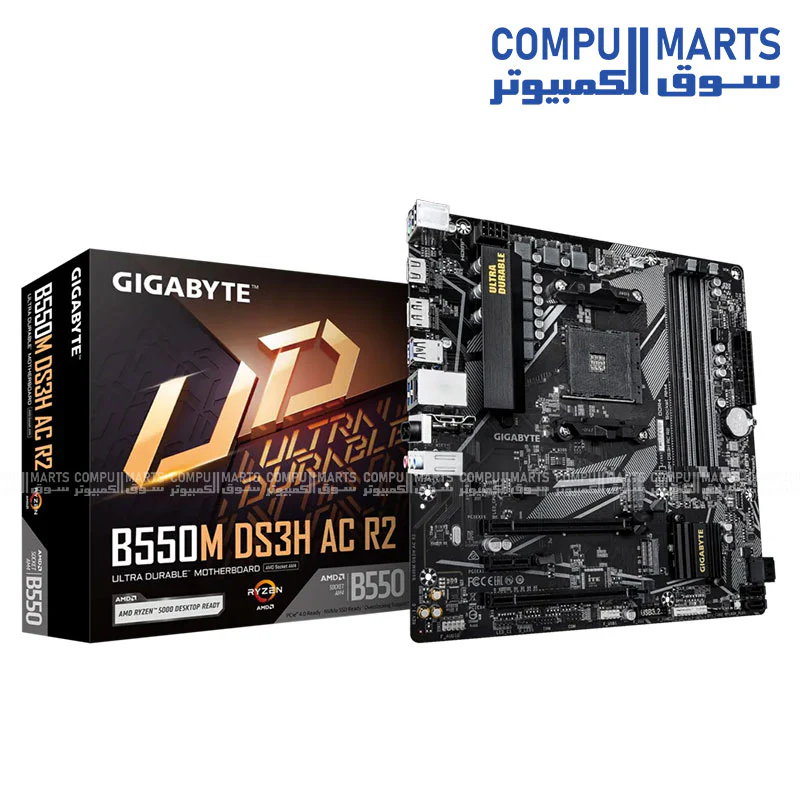

GIGABYTE B550M DS3H AC R2 – AM4 DDR4 Up to 4733 MHz OC, PCIe 4.0, Dual M.2, Wi‑Fi 5 & Bluetooth 4.2—
$103.06
The Story
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM4, support for Ryzen™ 5000 / 5000 G / 4000 G / 3000 / 3000 G Series Processors |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM (Max 128 GB); Supports up to DDR4 4733(O.C.), ECC/Non-ECC Un-buffered, XMP support |
| Onboard Graphics | 1 x DisplayPort (5120x2880@60Hz), 1 x HDMI 2.1 (4096x2160@60Hz); Max shared memory 16 GB |
| Audio | Realtek® ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, DSD support |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless & BT | Realtek® Wi-Fi AC 8821CE (Dual-Band 2.4/5 GHz); BLUETOOTH 5.0 |
| Expansion Slots | 1 x PCIe x16 (PCIe 4.0/3.0 depending on CPU), 1 x PCIe x16 (running at x4), 1 x PCIe x1 |
| Storage Interface | 1 x M.2 (CPU - PCIe 4.0/3.0 x4), 1 x M.2 (Chipset - PCIe 3.0 x2), 4 x SATA 6Gb/s; RAID 0, 1, 10 |
| USB | 4 x USB 3.2 Gen 1 (Back), 1 x USB Type-C (Internal), 2 x USB 3.2 Gen 1 (Internal), 4 x USB 2.0 (2 Back, 2 Internal) |

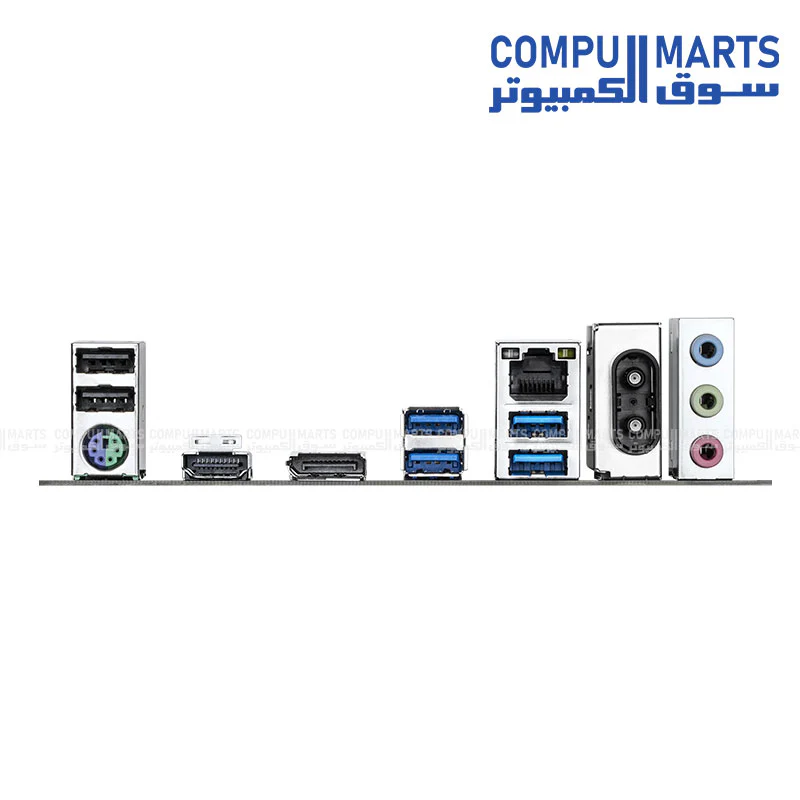

| Back Panel I/O | 2 x USB 2.0, PS/2 port, HDMI, DisplayPort, 4 x USB 3.2 Gen 1, RJ-45, 2 x Antenna, 3 x Audio Jacks |
| Internal Headers | 2 x Addressable LED, 2 x RGB LED, Q-Flash Plus Button, TPM header, Serial port header |
| Unique Features | Support for APP Center, @BIOS, RGB Fusion, Smart Backup, Q-Flash Plus |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS Support | Windows 11 64-bit / Windows 10 64-bit |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Category | Specification Details |
|---|---|
| CPU Support | AMD Socket AM4, support for Ryzen™ 5000 / 5000 G / 4000 G / 3000 / 3000 G Series Processors |
| Chipset | AMD B550 |
| Memory | 4 x DDR4 DIMM (Max 128 GB); Supports up to DDR4 4733(O.C.), ECC/Non-ECC Un-buffered, XMP support |
| Onboard Graphics | 1 x DisplayPort (5120x2880@60Hz), 1 x HDMI 2.1 (4096x2160@60Hz); Max shared memory 16 GB |
| Audio | Realtek® ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, DSD support |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Wireless & BT | Realtek® Wi-Fi AC 8821CE (Dual-Band 2.4/5 GHz); BLUETOOTH 5.0 |
| Expansion Slots | 1 x PCIe x16 (PCIe 4.0/3.0 depending on CPU), 1 x PCIe x16 (running at x4), 1 x PCIe x1 |
| Storage Interface | 1 x M.2 (CPU - PCIe 4.0/3.0 x4), 1 x M.2 (Chipset - PCIe 3.0 x2), 4 x SATA 6Gb/s; RAID 0, 1, 10 |
| USB | 4 x USB 3.2 Gen 1 (Back), 1 x USB Type-C (Internal), 2 x USB 3.2 Gen 1 (Internal), 4 x USB 2.0 (2 Back, 2 Internal) |
| Back Panel I/O | 2 x USB 2.0, PS/2 port, HDMI, DisplayPort, 4 x USB 3.2 Gen 1, RJ-45, 2 x Antenna, 3 x Audio Jacks |
| Internal Headers | 2 x Addressable LED, 2 x RGB LED, Q-Flash Plus Button, TPM header, Serial port header |
| Unique Features | Support for APP Center, @BIOS, RGB Fusion, Smart Backup, Q-Flash Plus |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| OS Support | Windows 11 64-bit / Windows 10 64-bit |
