$51.51
Fractal Design Prisma AL-14 – 140mm Silent Computer Fan ARGB—
$51.51
The Story

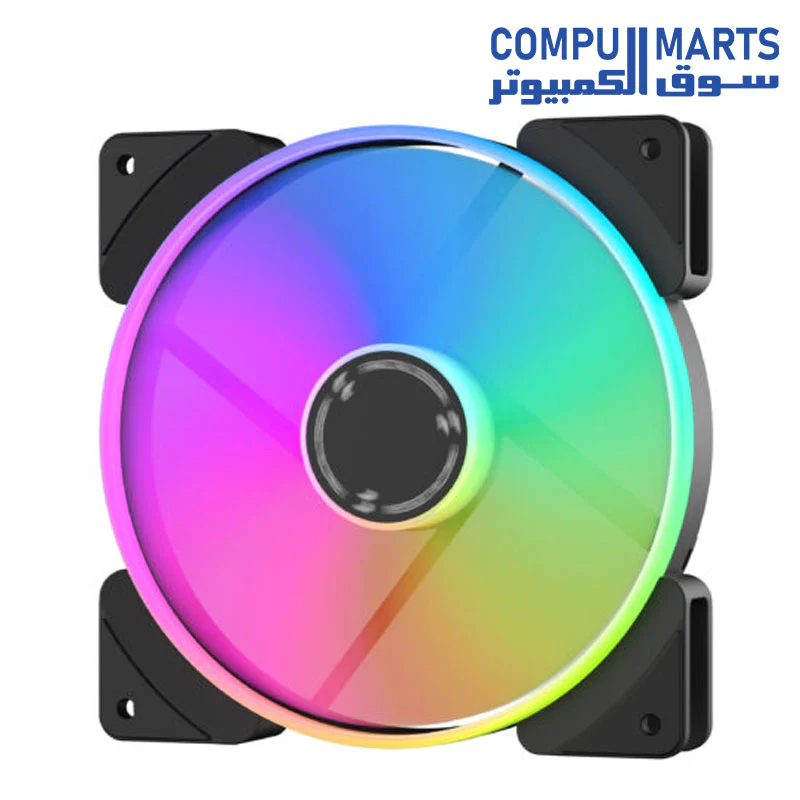

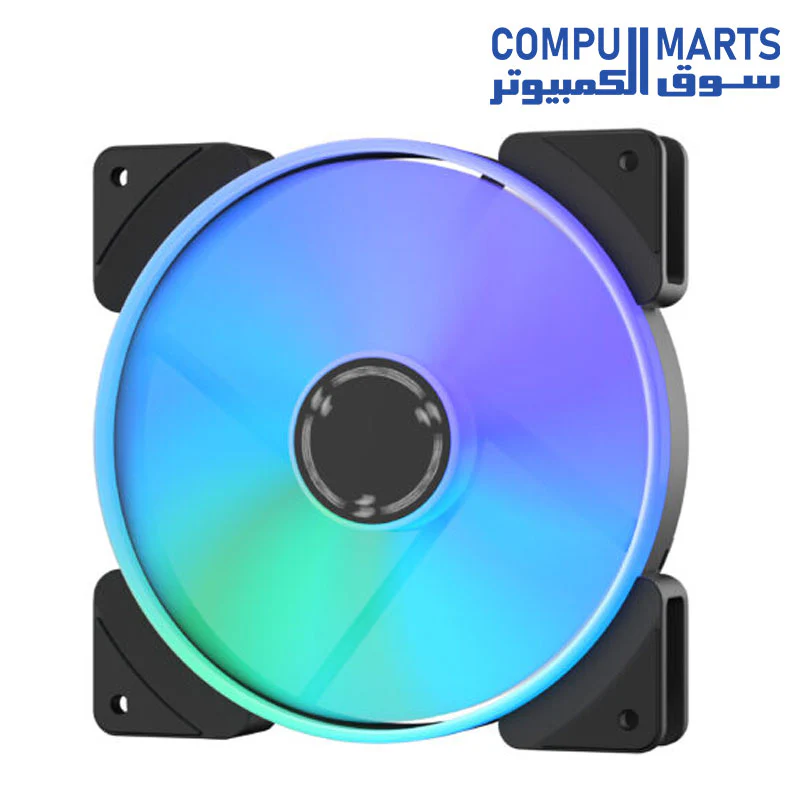

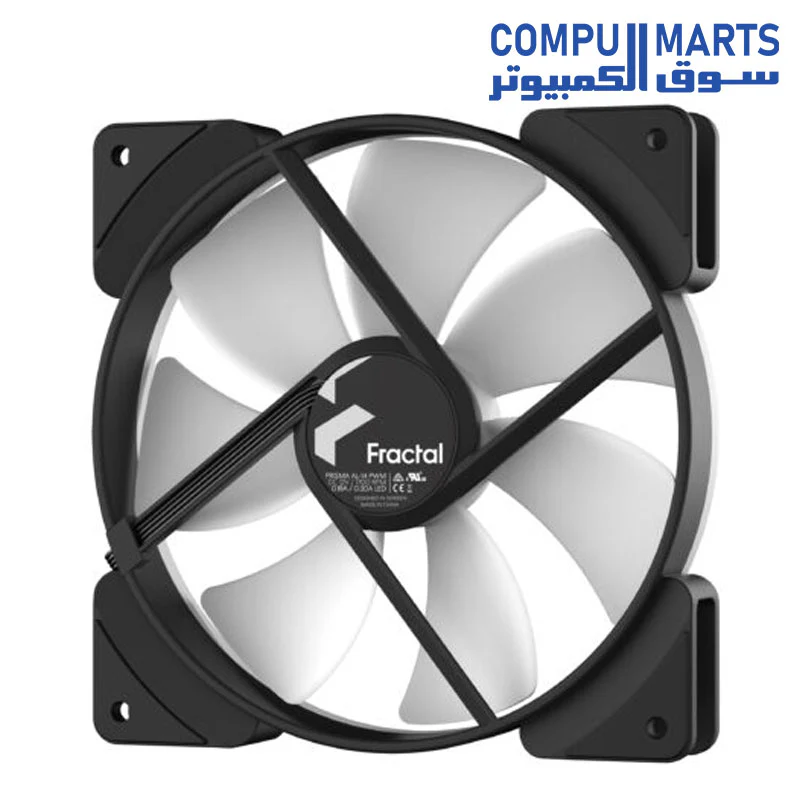

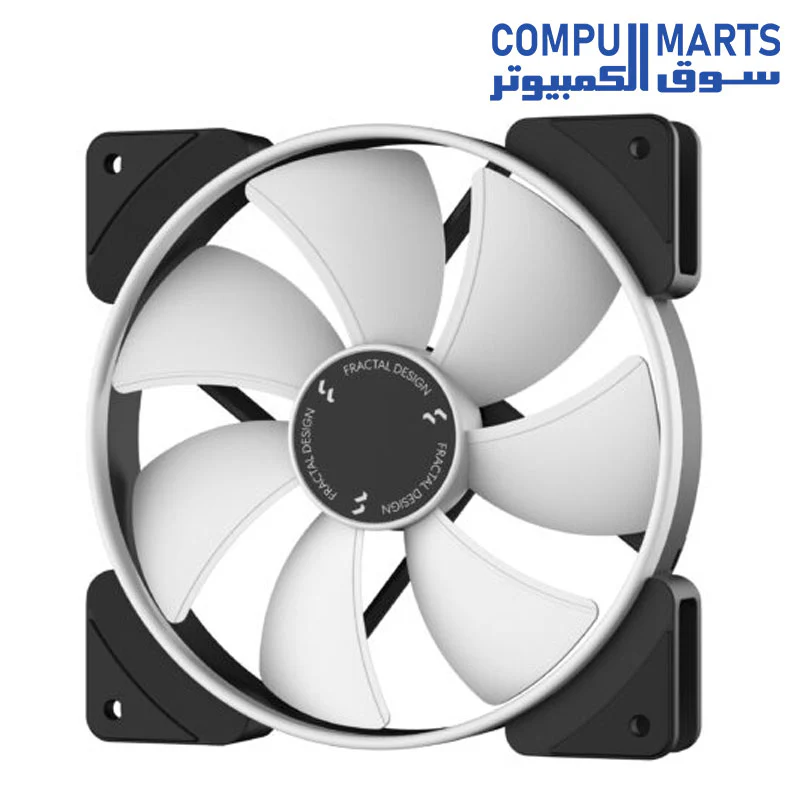

Fractal Design Prisma AL-14 – 140mm Silent Computer Fan ARGB
-
Size
140 x 140 x 25 mm
-
Screw hole pattern
125 x 125 mm
-
Fan connector
4-pin PWM
-
RGB connector
3-pin 5V addressable RGB
-
Bearing
LLS
-
Number of blades
7
-
Rotational speed
500 – 1700 RPM
-
Noise level
34.1 dB(A)
-
Airflow (CFM)
103.85 CFM
-
Airflow (m3/h)
176.44 m3/h
-
Static pressure
2.38 mmH2O
-
Fan input power
2.16 W
-
Fan max input current
0.18 A
-
Fan input voltage
12 V
-
Fan starting voltage
7 V
-
LED input power
1.50 W
-
LED max input current
0.30 A
-
LED input voltage
5 V
-
Low (0-20%) PWM speed
500 RPM
-
Low PWM noise level
15.1 dB(A)
-
Low PWM airflow
31.67 CFM
-
Low PWM static pressure
0.44 mmH2O
-
MTBF
100,000 hours
-
Fan weight
200 g
-
Cable length
500 mm
-
Cable type
Black sleeved
-
Package contents
Prisma AL-14 PWM 140 mm fan, 4x fan screws / 3x Prisma AL-14 PWM 140 mm fan, 12x fan screws (3-pack)
-
Package weight
248 g / 692 g (3-pack)
-
Package dimensions (Including hanging tab)
202 x 142 x 30 mm / 222 x 142 x 80 mm (3-pack)
-
Package dimensions (Excluding hanging tab)
167 x 142 x 30 mm / 177 x 142 x 80 mm (3-pack)
-
EAN
7340172701637 / 7340172701651 (3-pack)
-
UPC
843276101633 / 843276101657 (3-pack)
-
JAN
4537694264181 / 4537694264228 (3-pack)
-
Product code
FD-FAN-PRI-AL14-PWM / FD-FAN-PRI-AL14-PWM-3P (3-pack)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Fractal Design Prisma AL-14 – 140mm Silent Computer Fan ARGB
-
Size
140 x 140 x 25 mm
-
Screw hole pattern
125 x 125 mm
-
Fan connector
4-pin PWM
-
RGB connector
3-pin 5V addressable RGB
-
Bearing
LLS
-
Number of blades
7
-
Rotational speed
500 – 1700 RPM
-
Noise level
34.1 dB(A)
-
Airflow (CFM)
103.85 CFM
-
Airflow (m3/h)
176.44 m3/h
-
Static pressure
2.38 mmH2O
-
Fan input power
2.16 W
-
Fan max input current
0.18 A
-
Fan input voltage
12 V
-
Fan starting voltage
7 V
-
LED input power
1.50 W
-
LED max input current
0.30 A
-
LED input voltage
5 V
-
Low (0-20%) PWM speed
500 RPM
-
Low PWM noise level
15.1 dB(A)
-
Low PWM airflow
31.67 CFM
-
Low PWM static pressure
0.44 mmH2O
-
MTBF
100,000 hours
-
Fan weight
200 g
-
Cable length
500 mm
-
Cable type
Black sleeved
-
Package contents
Prisma AL-14 PWM 140 mm fan, 4x fan screws / 3x Prisma AL-14 PWM 140 mm fan, 12x fan screws (3-pack)
-
Package weight
248 g / 692 g (3-pack)
-
Package dimensions (Including hanging tab)
202 x 142 x 30 mm / 222 x 142 x 80 mm (3-pack)
-
Package dimensions (Excluding hanging tab)
167 x 142 x 30 mm / 177 x 142 x 80 mm (3-pack)
-
EAN
7340172701637 / 7340172701651 (3-pack)
-
UPC
843276101633 / 843276101657 (3-pack)
-
JAN
4537694264181 / 4537694264228 (3-pack)
-
Product code
FD-FAN-PRI-AL14-PWM / FD-FAN-PRI-AL14-PWM-3P (3-pack)
