The Story
| Category | Specification Details |
|---|---|

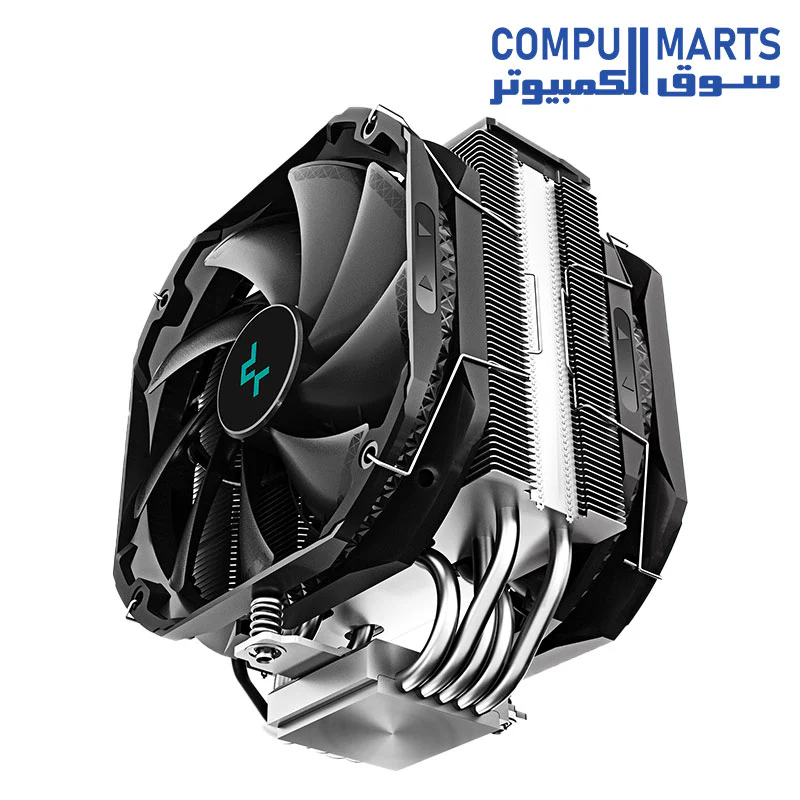

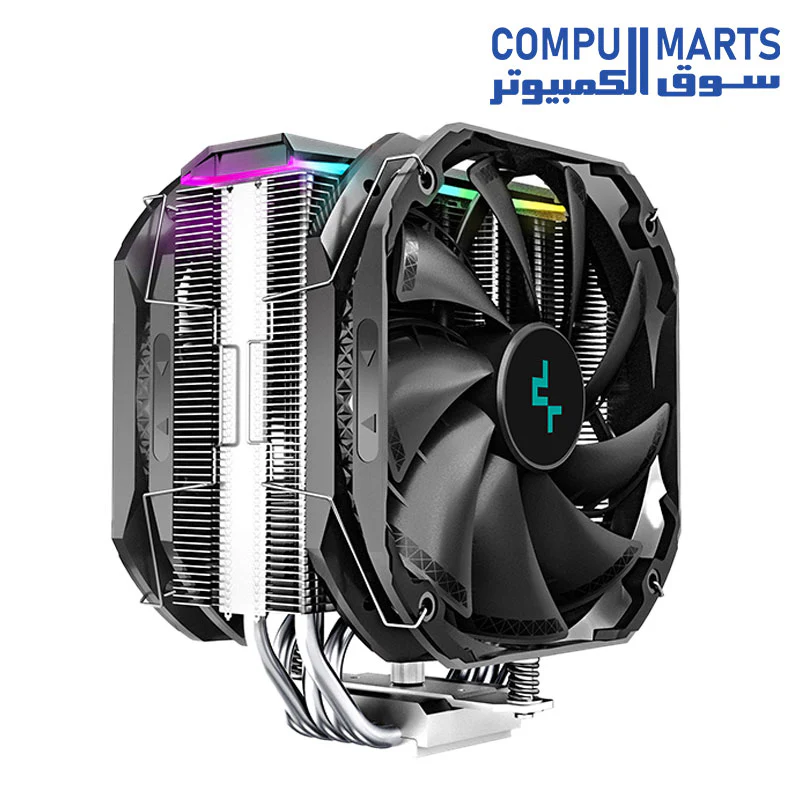

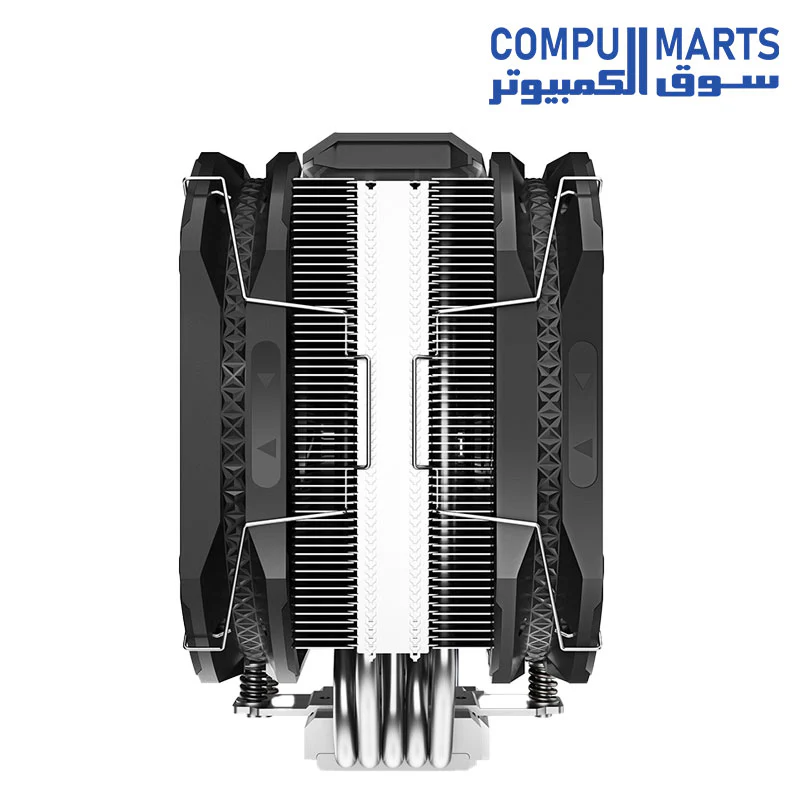

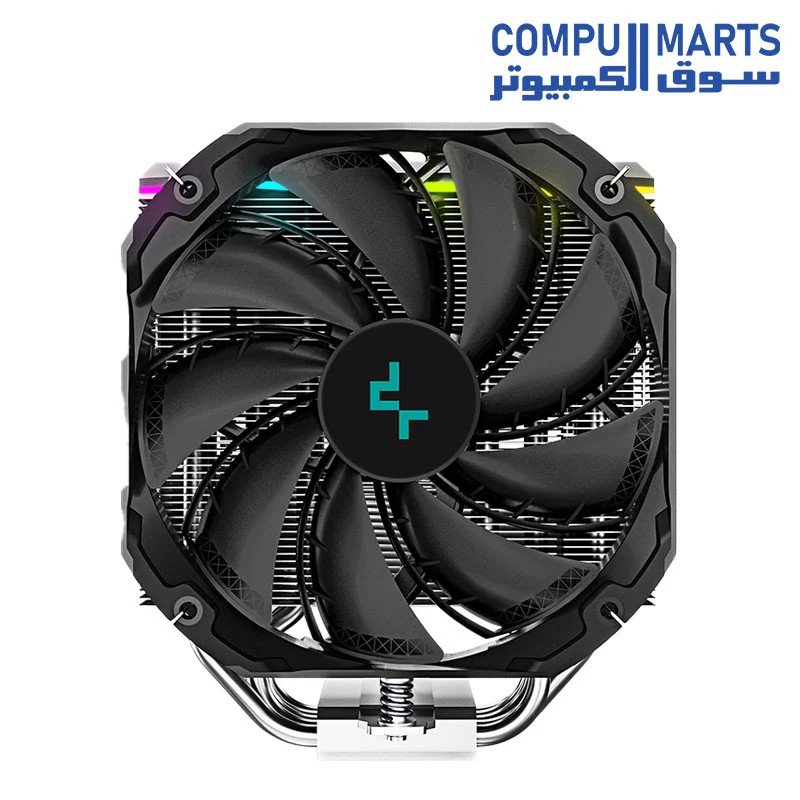

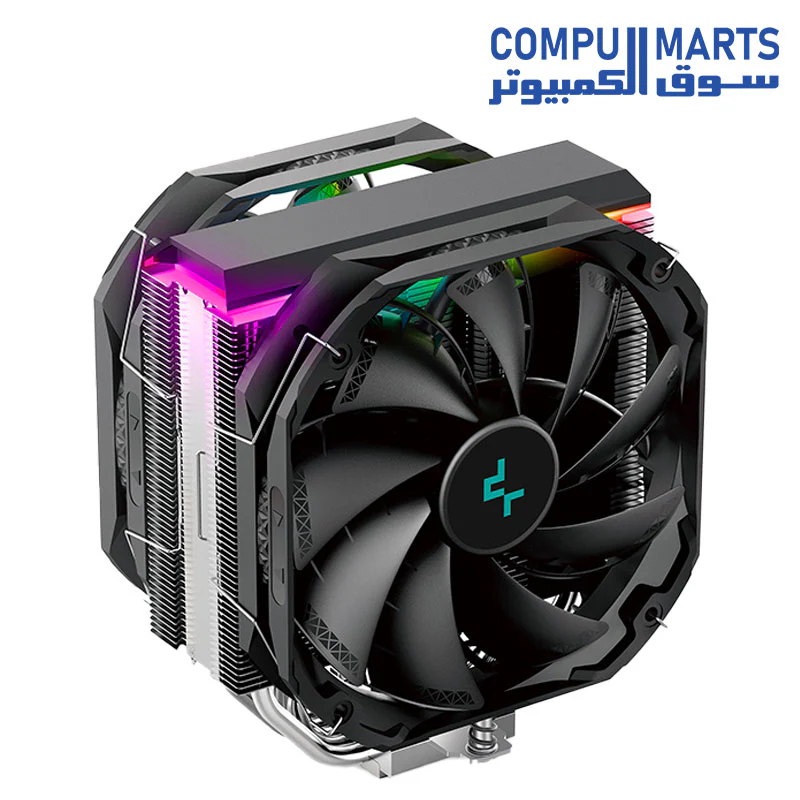

| Product Name | DeepCool AIR COOLER AS500 PLUS |
| Description | Single tower CPU cooler with five heat pipe design and two 140mm PWM fans |

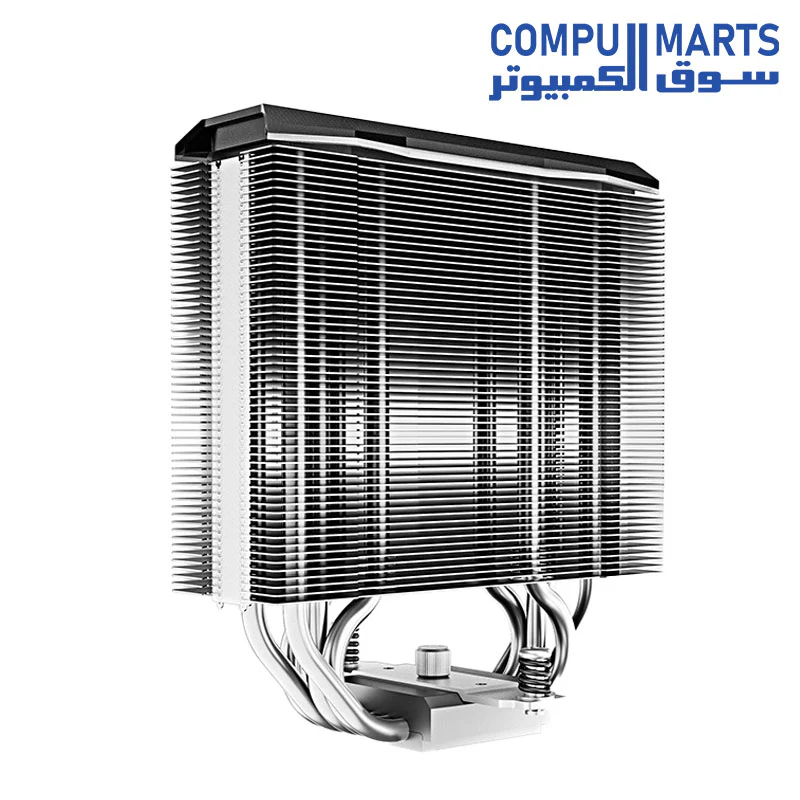

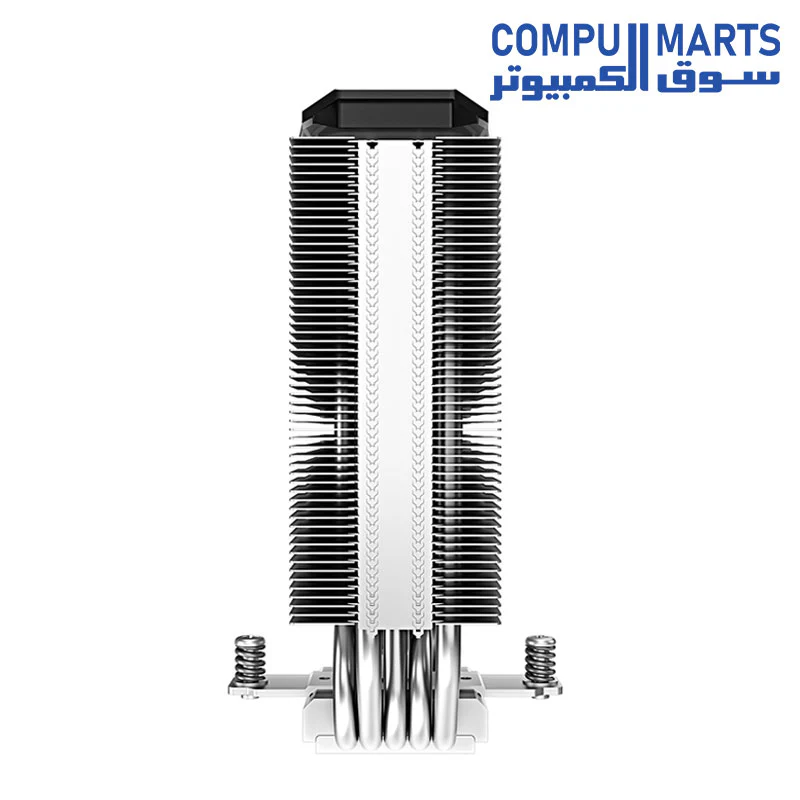

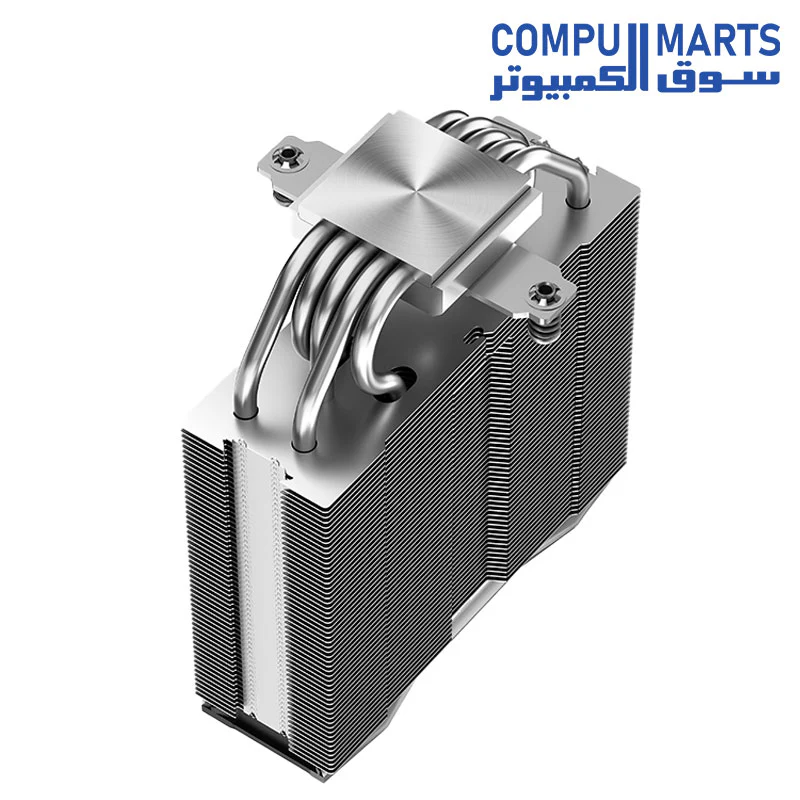

| Heatsink Design | Solid copper base with five 6mm heat pipes and high fin density |
| RAM Compatibility | Slim profile (48mm) for maximum RAM height compatibility |
| Fan Control | High-performance 140mm PWM fans with 500~1200 RPM±10% speed range |
| Lighting | A-RGB LED with included wired controller and motherboard connector cables |
| Product Dimensions | 142×102×164 mm |
| Heatsink Dimensions | 140×49×159 mm |
| Net Weight | 1198 g |
| Heatpipe | Ø6 mm×5 pcs |

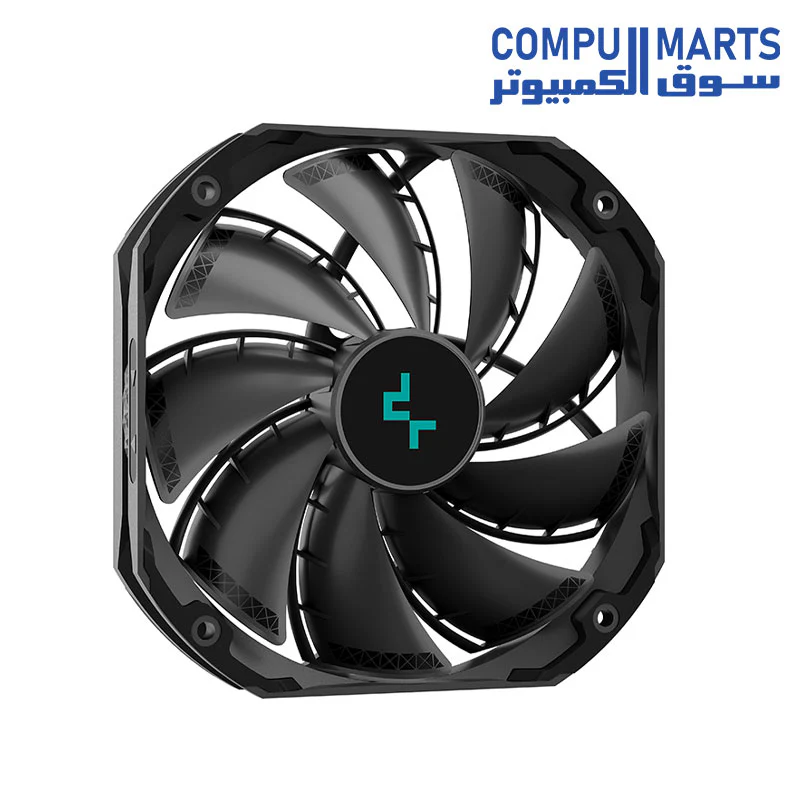

| Fan Dimensions | 140×140×25 mm |
| Fan Speed | 500~1200 RPM±10% |
| Fan Airflow | 70.81 CFM |
| Fan Air Pressure | 1.14 mmAq |
| Fan Noise | ≤29.2dB(A) |
| Overall Noise | ≤31.5 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.11 A |
| Fan Power Consumption | 1.32 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.4 W |
| EAN | 6933412727071 |
| P/N | R-AS500-BKNLMP-G |
